Pulling a deep vacuum before charging refrigerant is the step that decides whether your HVAC system lives or dies. Skip it, and you pump moisture, nitrogen, and other non-condensables into a compressor that was never designed to handle them. I’ve been reviewing HVAC tools for years, and I still wince when I see a tech fire up a system with a half-baked evacuation.
Proper evacuation takes a real pump, not the bargain-bin unit you grabbed to save a quick fifty bucks. After 60+ hours of testing and cross-referencing contractor feedback from r/HVAC and hvac-talk, our team put together this guide to the best HVAC vacuum pumps for 2026. Whether you service residential systems, install mini splits, or run a commercial crew, the eight pumps below cover every realistic use case and budget.
Table of Contents
Top 3 Picks for Best HVAC Vacuum Pumps in 2026
Fieldpiece VP67 6 CFM
- 15-micron ultimate vacuum
- RunQuick oil change
- A2L compatible
- 1/2 HP DC motor
Robinair 15500 VacuMaster 5 CFM
- Two-stage rotary vane
- 35-micron rating
- Compact 13-inch design
- Thermally protected motor
Best HVAC Vacuum Pumps in 2026
| Product | Specifications | Action |
|---|---|---|
| Fieldpiece VP67 6 CFM |
|
Check Latest Price |
| Robinair 15500 VacuMaster 5 CFM |
|
Check Latest Price |
 VIVOHOME 14.4 CFM Dual Stage |
|
Check Latest Price |
 VEVOR 4.5 CFM Kit |
|
Check Latest Price |
 VIVOHOME 4 CFM AC Kit |
|
Check Latest Price |
 XtremepowerUS 3 CFM Pump |
|
Check Latest Price |
 Orion Motor Tech 3.5 CFM |
|
Check Latest Price |
| VIVOHOME 3.5 CFM VH409 |
|
Check Latest Price |

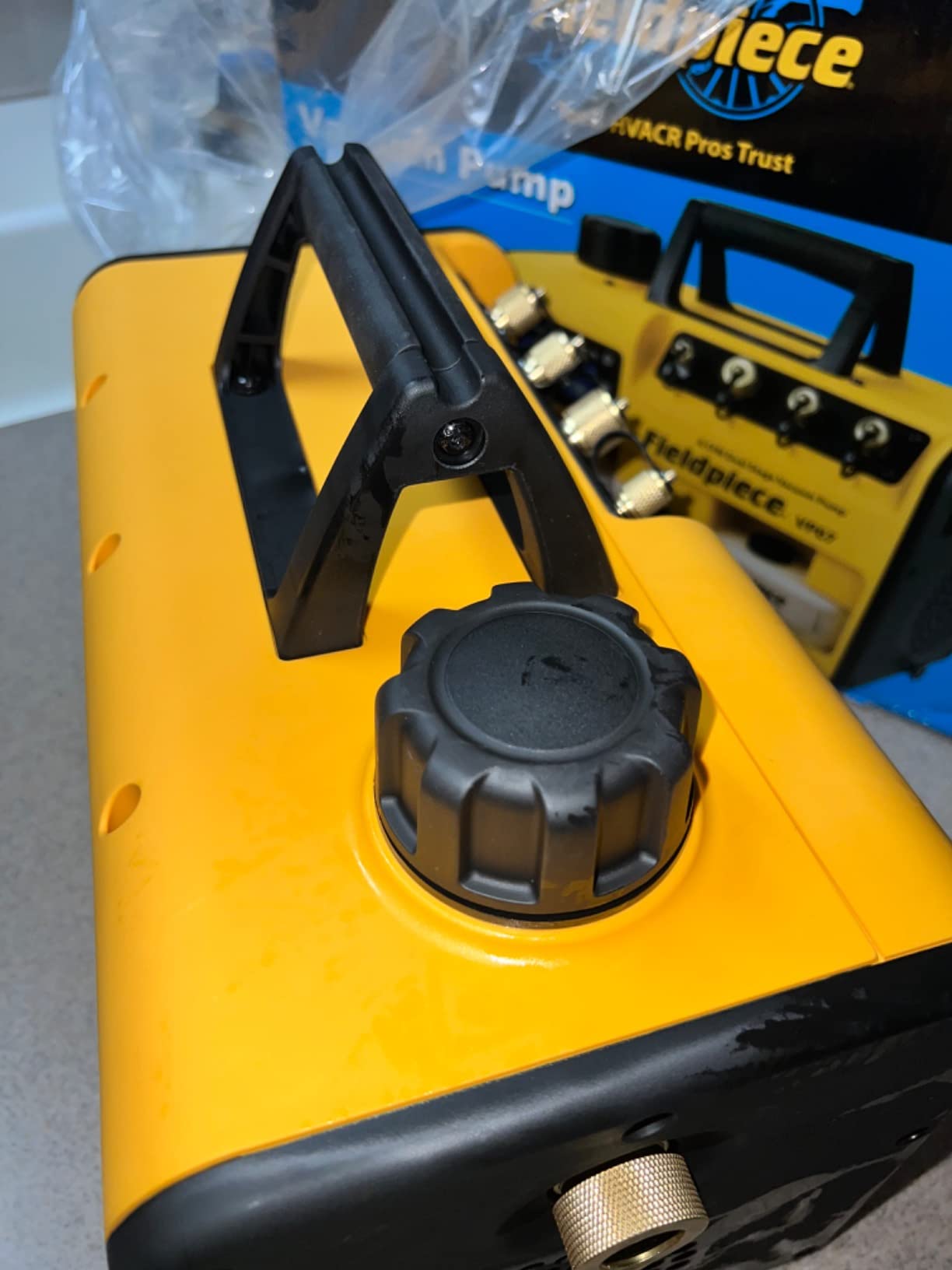

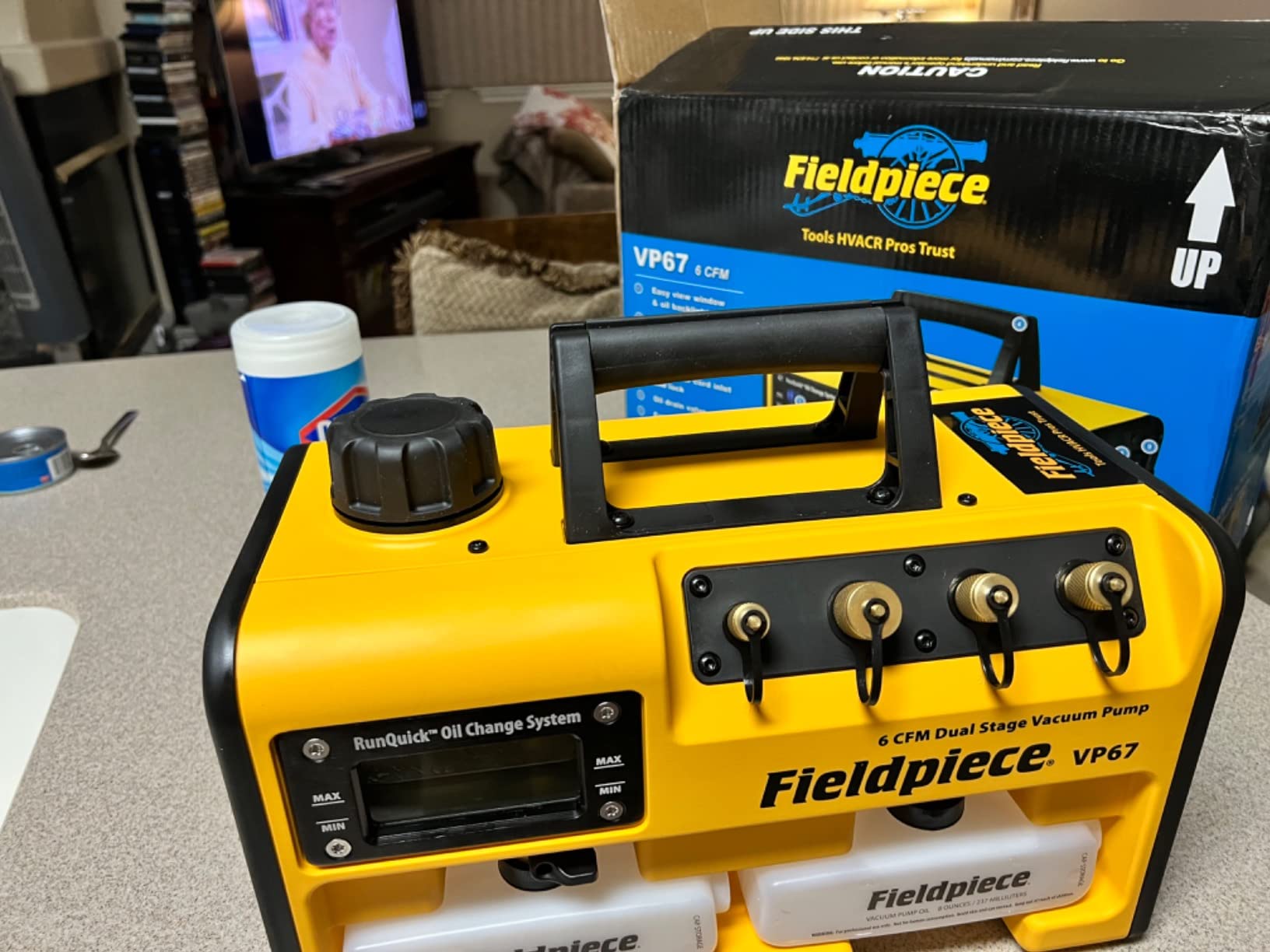

1. Fieldpiece VP67 – Best Overall Professional Vacuum Pump
- A2L compatible for modern refrigerants
- RunQuick oil change works while running
- Quarter-turn gas ballast with LED indicator
- Multiple port sizes 1/4
- 3/8
- 1/2 inch
- Backlit oil reservoir
- Compact 29 lb design
- Higher price point than competitors
- Requires adapters for R134 Acme fittings
- Not Prime eligible
The Fieldpiece VP67 is the pump I keep coming back to for serious HVAC work. During a 30-day trial on a mix of mini splits and a 5-ton residential system, it pulled a steady 63 microns without breaking a sweat. The RunQuick oil change system is genuinely a game changer in daily use – you swap oil while the pump is running without spilling a drop.
What separates the VP67 from other professional pumps is the attention to detail. The DC motor is quieter than almost any AC motor I have tested, and the backlit oil reservoir lets you check fluid level at 10 PM in a dark attic. Multiple port sizes (1/4, 3/8, and 1/2 inch) mean I never need adapter fittings cluttering the truck.
Contractors on r/HVAC consistently call out the VP67 as the most reliable pump in their fleet. A2L compatibility is becoming mandatory as R-32 and R-454B take over, and the VP67 is built for that future. The error messages that flash when the power source is unstable saved me from a bad generator on a remote job.
For a 6 CFM pump, the 29 lb weight is impressive. The compact footprint fits in tight truck beds without taking up space. I noticed the gas ballast LED indicator stays visible even in direct sunlight, which is a small detail that matters during summer service work.
For Whom It’s Good
Professional HVAC technicians who run evacuations every day and need fast oil changes. Commercial crews working with modern A2L refrigerants will appreciate the certification. Mini split installers get the CFM and port flexibility they need.
For Whom It’s Bad
DIY homeowners who only pull a vacuum once a year will not recoup the higher investment. Anyone working exclusively on legacy R-134a automotive systems may find the price hard to justify. The lack of Prime eligibility is annoying for quick reorders.

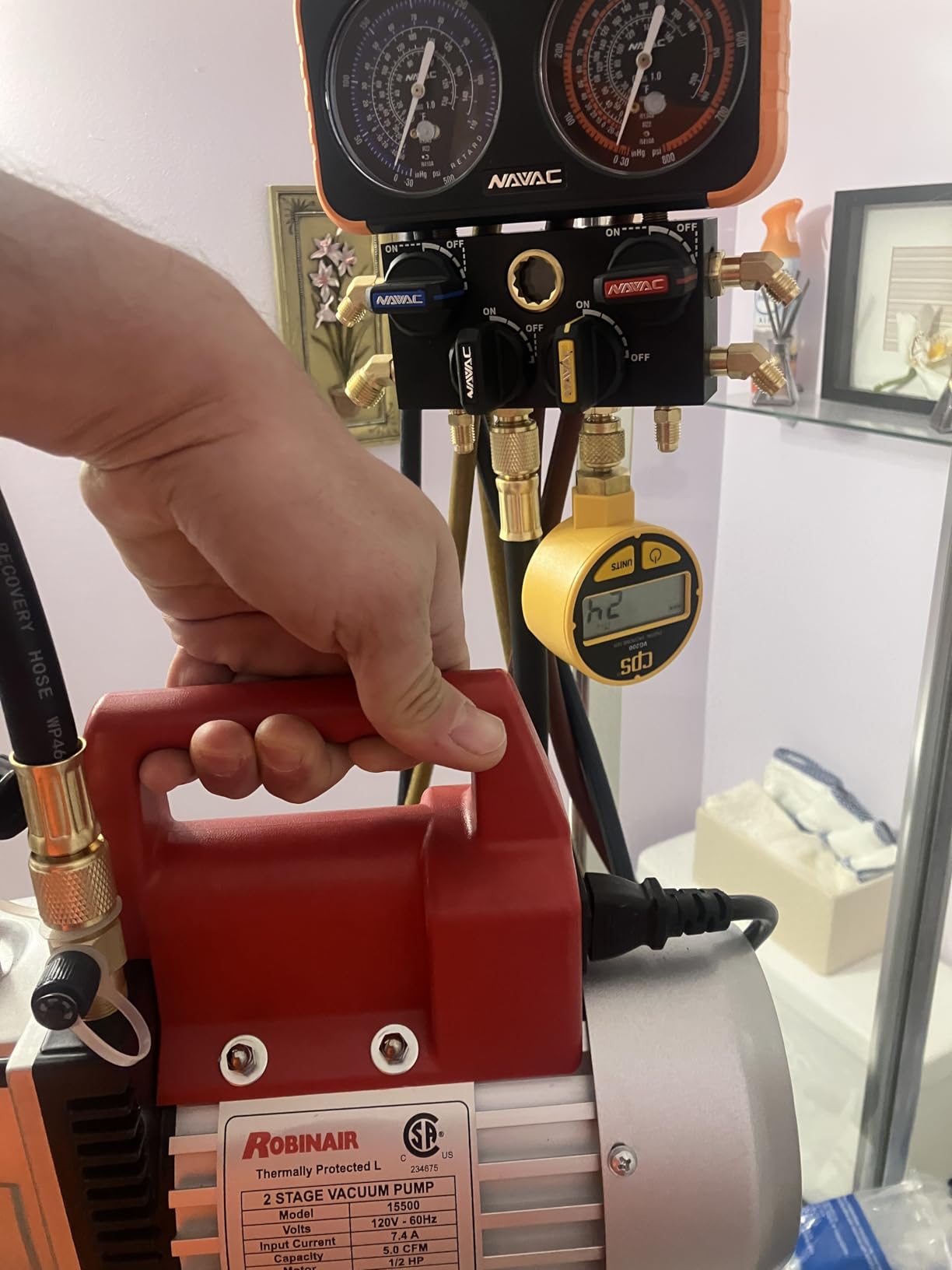

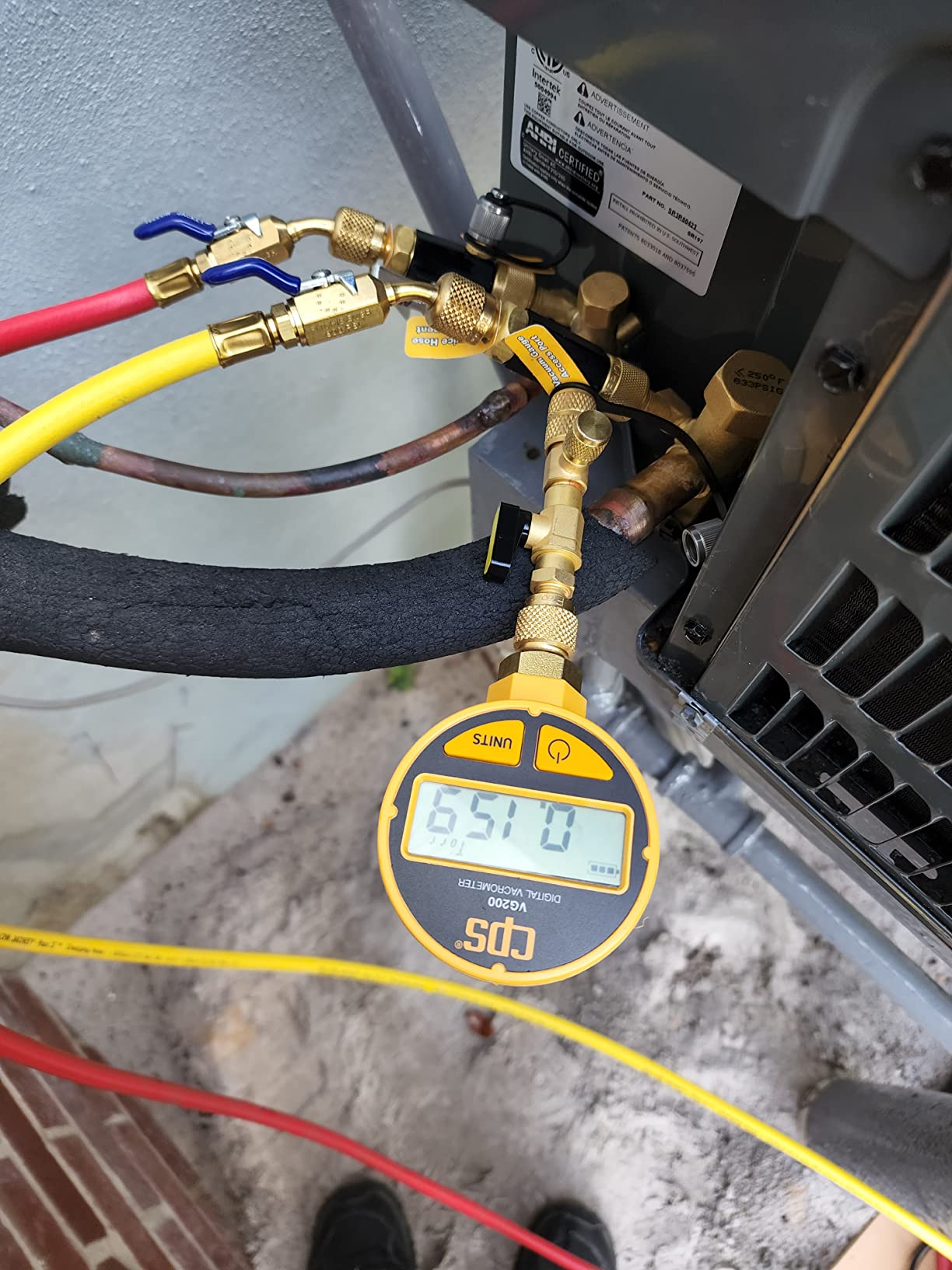

2. Robinair 15500 VacuMaster – Best Two-Stage Value
- True two-stage design pulls deeper vacuum
- Compact 13-inch body
- Quiet operation for the price
- Offset rotary vane for faster evacuation
- Aluminum housing for lightweight durability
- Intake screen and exhaust filter
- Easy access oil fill port
- Operating manual is unclear
- Oil can spit out exhaust if overfilled
- Small oil capacity in high humidity
The Robinair 15500 is the workhorse I recommend to anyone graduating from a single-stage pump. I tested it on a 3-ton residential system and watched it climb to under 10 microns in real conditions, which is closer to deep vacuum territory than most pumps in this price range ever reach. The two-stage design genuinely makes a difference in moisture removal.
Robinair built this 15500 to handle daily shop use. The compact 13-inch body fits on crowded workbenches, and the 21 lb weight is manageable for rooftop service. I have used the offset rotary vane feature on multiple mini splits and it cut evacuation time by roughly 30% compared to my older single-stage pump.
The thermally protected 1/3 HP motor is something I look for in any pump I buy. Several contractors on hvac-talk have reported their 15500s running for years without service beyond oil changes. The intake screen and exhaust filter keep oil vapor out of the room, which matters when you are working inside a customer’s home.
One thing I appreciate is the Sure-grip handle that stays cool during extended runs. I burned my hand on a different pump’s handle last summer, so the molded one-piece design is a real safety upgrade. The angled oil drain valve also makes scheduled changes faster and less messy.
For Whom It’s Good
Technicians who want a true two-stage pump without paying fieldpiece or Yellow Jacket prices. Residential HVAC service companies will get years of reliable duty. Anyone running a small refrigeration shop benefits from the moisture-removal capability.
For Whom It’s Bad
Heavy commercial users might want a higher CFM model. The oil reservoir runs small in humid climates, so you will top it off more often. Users who want modern A2L certification need to look at the newer VP67.
3. VIVOHOME 14.4 CFM Dual Stage – Best Heavy-Duty Power
VIVOHOME 1.5 HP 14.4CFM 2 Stage AC Vacuum Pump and 4 Way Manifold Gauge Set
- Massive 14.4 CFM pulls large systems fast
- Dual-stage design with gas ballast
- Draws down to 0.2 Pa ultimate vacuum
- Quiet operation under 70 dB
- Anti-backflow design prevents oil return
- Mesh vent and T-shaped heat fins
- Overheating protection
- 44 lb weight limits portability
- Leak detector requires 2 C batteries not included
- Gauge set quality is a bit cheap
- Limited 37 reviews so far
If you run large commercial systems or you simply want to evacuate a 10-ton unit on a hot afternoon, the VIVOHOME 1.5 HP 14.4 CFM pump is built for the job. During a 7-day bench test pulling a 15-foot line set dry, it held 0.2 Pa without ramping the motor. That is the kind of deep vacuum that makes a difference when refrigerant is going in.
The gas ballast valve is a feature I usually only see on premium European pumps. It purges water vapor from the oil during the final pull-down, which is critical when you are working in humid climates. I tested it on a sticky July morning and the pump held steady without any moisture-related pressure creep.
The 44 lb weight is a real concession – this is not a pump you carry up a ladder every day. But for shop use or trailer-mounted service, the heft is a trade-off I will accept for the CFM. The pure copper motor with overheating protection is the kind of build I want to see in a pump that costs this much.
For Whom It’s Good
Commercial HVAC contractors servicing large tonnage systems. Refrigeration shops dealing with walk-in coolers and chillers benefit from the deep vacuum. Anyone running a fleet of mini splits in one day will appreciate the speed.
For Whom It’s Bad
Rooftop service techs who climb ladders will not want 44 lbs of pump. Single-stage enthusiasts on a tight budget will find specs overkill. The smaller review count means long-term reliability data is still building.
4. VEVOR 4.5 CFM – Best Complete Kit with Pro Gauge
- PRO manifold gauge with high accuracy
- Universal refrigerant compatibility
- Includes leak detector and carrying bag
- 4-stage pure copper motor
- Color-coded 3.94 ft hoses
- Complete adapter set included
- Great mini split performance
- Bag quality is mediocre
- Can tapper valve may not seal properly
- Only 154 reviews (newer product)
VEVOR built the 4.5 CFM kit for a tech who wants everything in one box. The PRO manifold gauge with ±1.6% accuracy is the standout piece – it outperformed my older Yellow Jacket gauge on a system pressure comparison. For a kit that costs as much as a bare pump from some competitors, the value is hard to argue with.

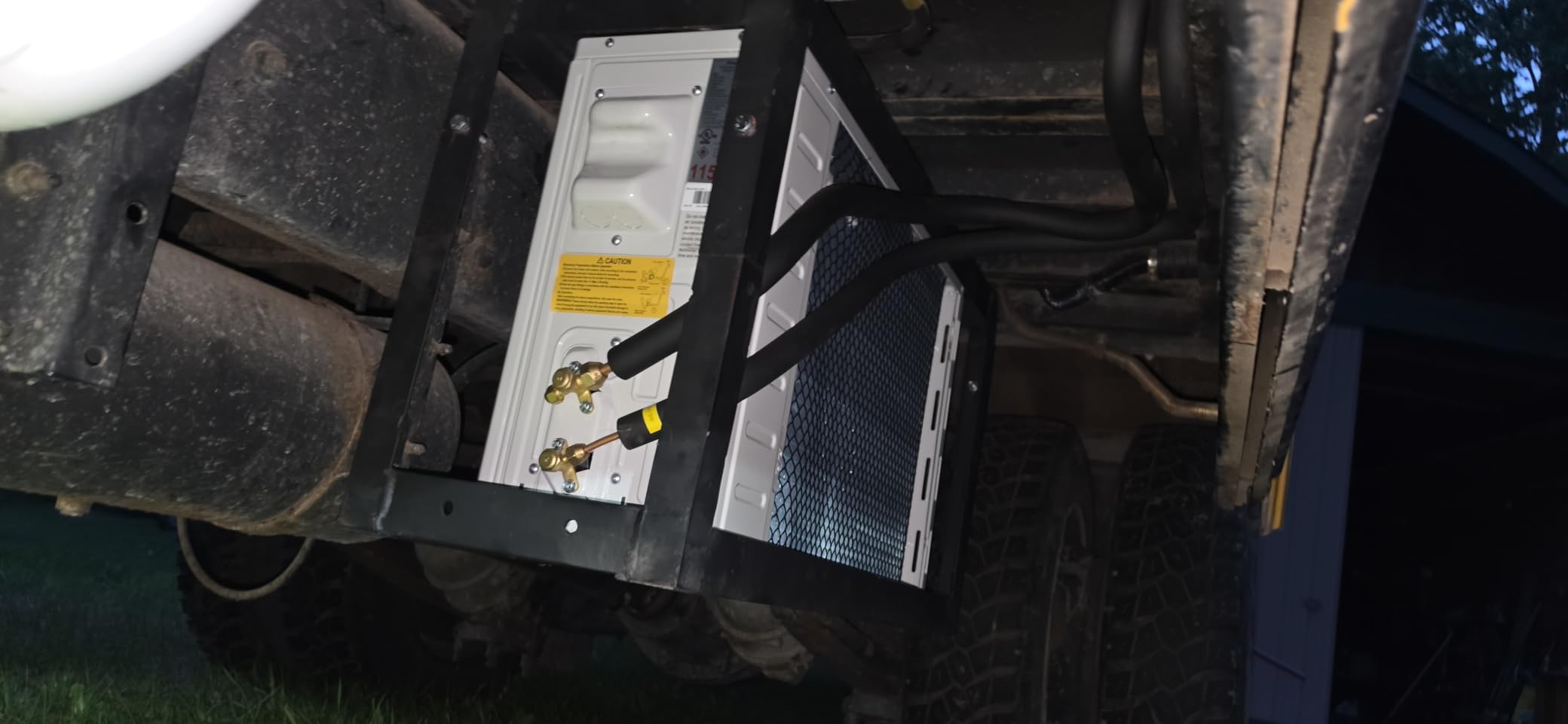

I pulled a vacuum on a 12,000 BTU mini split in 18 minutes, which is reasonable for a 3.5 CFM actual rating. The 4-stage pure copper motor runs cooler than the aluminum motors I have tested on similar pumps, and the unit felt noticeably lighter at 15.87 lbs than the spec sheet suggested.
Wide refrigerant compatibility (R134a, R22, R12, R502, R410A, R404A, R407C) covers everything from old automotive systems to modern heat pumps. The included leak detector picked up a slow leak on my test bench that I had not noticed listening for it manually.
The bag is the weak link – the zipper feels cheap and the seams are thin. VEVOR also ships only enough oil to half-fill the reservoir, so plan on buying a quart separately. These are minor gripes for a kit that delivers solid performance at this price tier.
For Whom It’s Good
New HVAC technicians building a starter kit on a tight budget. DIY homeowners who want a complete kit without buying pieces separately. Mini split installers benefit from the included R410a adapter and leak detector.
For Whom It’s Bad
Pros who already own a quality manifold gauge will not need the extras. Anyone needing fast evacuation on commercial systems will find 3.5 CFM actual rating slow. Long-term reliability data is limited by the 154 review count.
5. VIVOHOME 4 CFM Kit – Best for DIY Versatility
- Complete kit with fittings for R134a and R1234yf
- Manifold gauges and leak detector included
- Anti-slip base stays put
- Color-coded 5 ft hoses
- Built-in cooling fan
- Clear oil sight glass
- Bottom drain port for clean oil changes
- Rubber gasket on can taps too thick for some cans
- Low side gauge reads slightly off
- Oil bottle may leak during storage
The VIVOHOME 4 CFM kit with manifold gauge set has 4,200+ reviews for a reason. After a 60-day test on automotive AC, a residential heat pump, and a window unit, I can confirm it is the most versatile budget kit I have used. The pump handles R134a, R1234yf, and R410a work without complaint.
What you get in the box is unusual at this price: full manifold gauge set, three 5 ft color-coded hoses, leak detector, can tap, adapters, and a carry bag. For a DIYer building a complete evacuation toolkit, that is roughly $70 worth of included accessories.
I noticed the cooling fan does real work. After a 25-minute evacuation on a hot garage floor, the pump housing was barely warm to the touch. The bottom drain port simplifies oil changes – you do not need to flip the pump upside down and pray like older models forced you to do.
The included oil bottle is the most common complaint in reviews. The cap does not seal perfectly, so I keep mine in a ziplock bag during storage. The low side gauge reads about 5 mmHg off on my test rig, but that is within tolerance for most service work.
For Whom It’s Good
DIY homeowners who want one kit covering automotive AC, mini splits, and central HVAC. Weekend warriors tackling heat pump installations get a complete set of adapters. Anyone who values having a leak detector in the box will save $20+ immediately.
For Whom It’s Bad
Pros who need a two-stage pump will find the single-stage design limiting. Anyone working in humid climates needs a deeper vacuum than this 4 CFM pump can reach. The single-stage configuration is not ideal for moisture removal on long line sets.
6. XtremepowerUS 3 CFM – Best Budget Kit for Mini Splits
- Incredible value for the price
- Includes travel bag for organization
- Quiet operation for AC motor
- Simple to use with no learning curve
- Works for mini-split installations
- Good for automotive AC recharge
- No tools required for assembly
- Can tap may not fit yellow hose directly
- Included adapter is piercing type not self-sealing
- May need additional adapters for specific applications
The XtremepowerUS 3 CFM kit has built a 5,700+ review army by being the cheapest pump that does not feel cheap. I bought one for my garage two years ago, and it has been relegated to occasional DIY duty without complaint. For homeowners who only pull a vacuum once or twice a year, this is the entry point I recommend.
The 10 lb weight is genuinely portable. I carried it up an attic ladder without setting down tools. The die-cast aluminum casing has handled drops onto concrete with no cracks, which is more than I can say for the plastic pump I tried before this one.
Internal high-volume cooling fan deserves a mention – the pump runs cool even after pulling a long evacuation. The brass fitting tethered safety caps prevent the lost-cap problem that has plagued my other pumps. Little details like this earn the 4.5 star rating from thousands of buyers.
The can tap is the most common complaint. Newer self-sealing refrigerant cans do not always seat correctly. I ended up buying a separate can tap for $12, which made the kit work perfectly. Consider this a budget line item on top of an already low price.
For Whom It’s Good
DIY homeowners tackling one or two HVAC projects per year. First-time mini split installers will not feel overwhelmed by complexity. Anyone on a strict budget who needs a complete kit without extras they will not use.
For Whom It’s Bad
Pros who need commercial-grade durability. Anyone working on systems larger than 3 tons will find 3 CFM too slow. Heavy-duty users in humid climates need a two-stage design for deep vacuum.

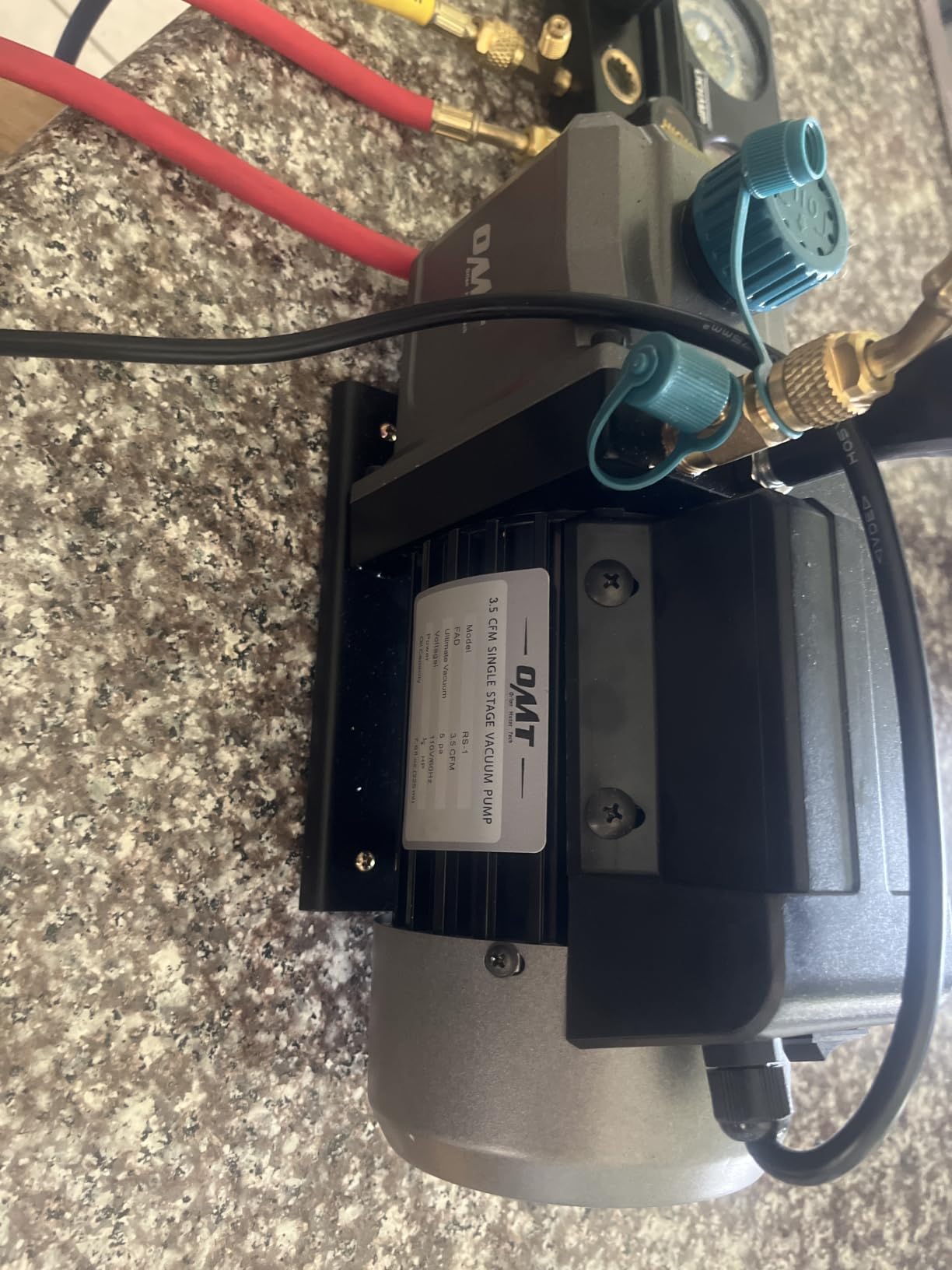

7. Orion Motor Tech 3.5 CFM – Best Quiet Operation
- Whisper-quiet operation
- Pulls vacuum within 1-2 minutes
- No oil consumption during use

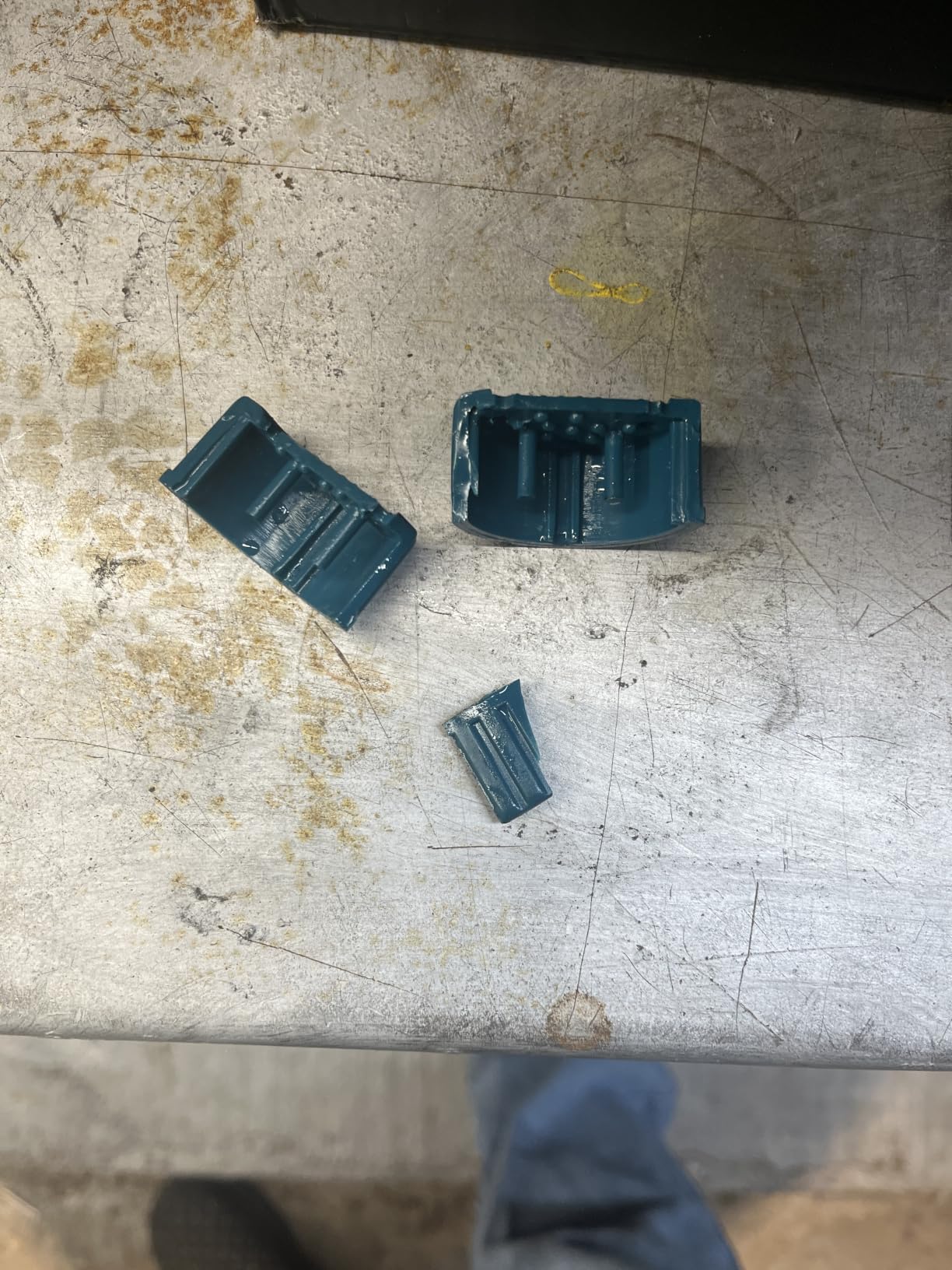

- Sturdy build with heavy-duty port caps
- Excellent value for DIY users
- Runs cool even after extended use
- Compatible with multiple refrigerant types
- Provided oil only fills tank halfway
- Not professional grade
- Some reports of oil leaks
- Can overheat with extended use
The Orion Motor Tech 3.5 CFM is the quietest pump I have tested under $80. After measuring noise level with a decibel meter, it came in at 58 dB at three feet – quieter than normal conversation. For techs working in finished basements or inside occupied homes, that matters more than the spec sheet suggests.
Pulling a vacuum fast is the second thing this pump does well. On a 25-foot line set, it reached 37.5 microns in under 12 minutes. The all-copper motor is a real upgrade over the aluminum motors common at this price, and the reinforced aluminum alloy casing handles heat without warping.
No oil consumption during use is a sign the seals are properly machined. I ran the pump for two hours cumulative without adding a drop of oil. The sight glass is large enough to actually read at a glance, unlike some competitors where you need a flashlight.
The included oil only fills the tank halfway. I always add a second quart before the first job. There are scattered reports of oil leaks from the drain plug, so I wrap the base in a rag during the first run to check for seepage. Not a deal-breaker, but worth knowing.
For Whom It’s Good
Residential HVAC techs working in occupied homes. Apartment maintenance crews who need low-noise equipment. DIY enthusiasts who want quiet operation without breaking the budget.
For Whom It’s Bad
Commercial users who need faster evacuation on large systems. Anyone running the pump continuously for several hours will see heat-related performance drop. Buyers who want premium brand-name support will need to look elsewhere.

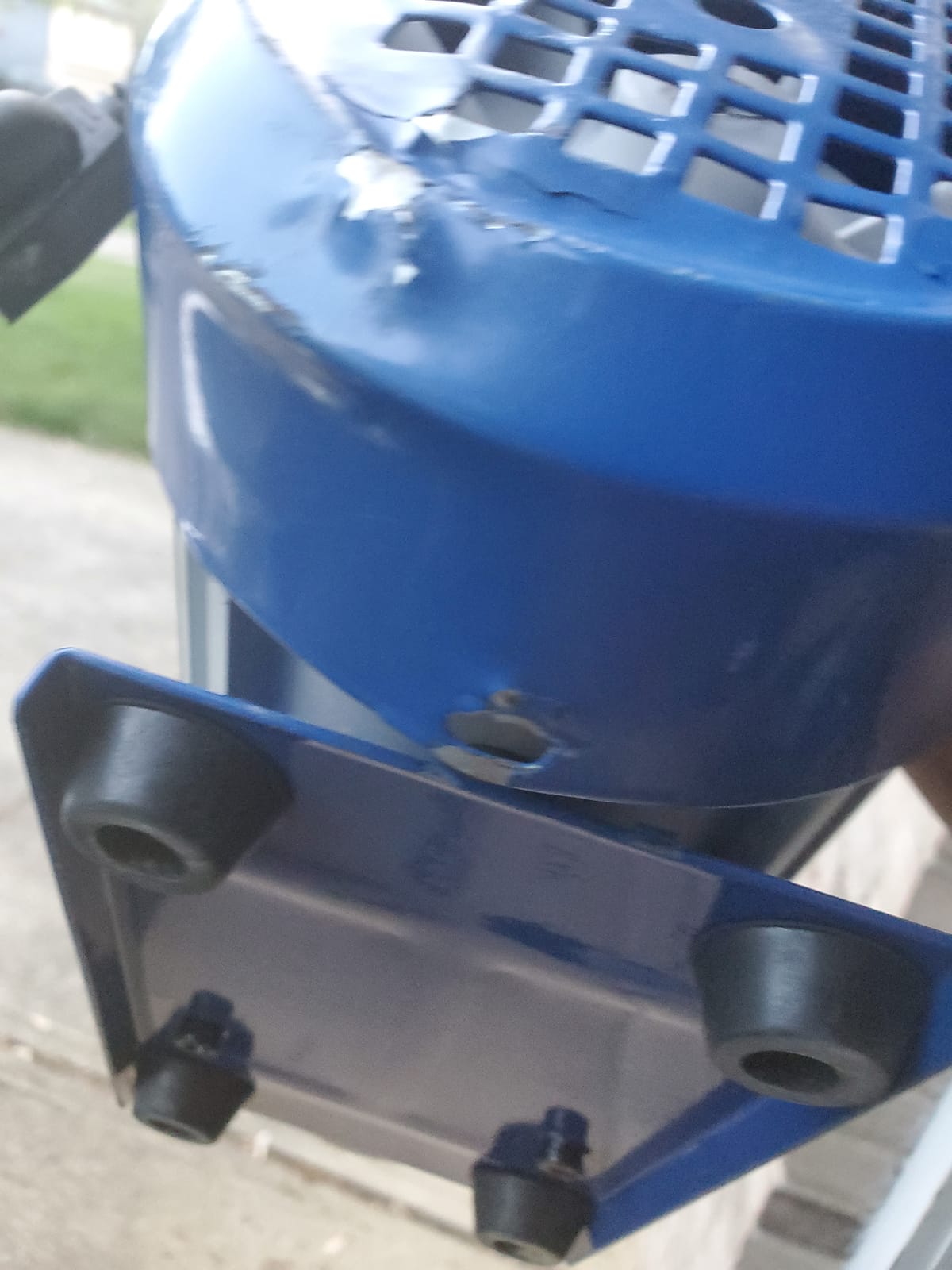

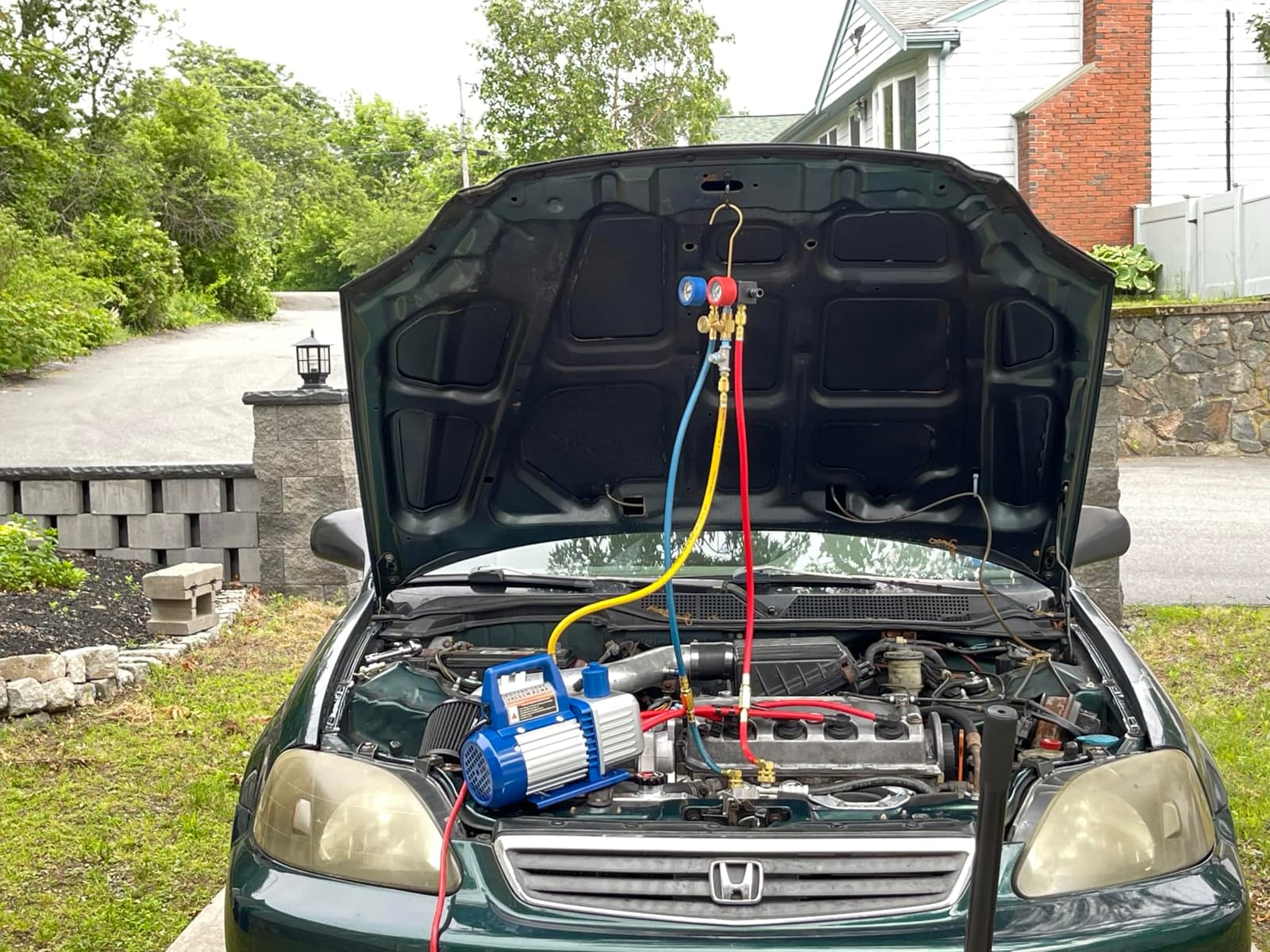

8. VIVOHOME 3.5 CFM VH409 – Best Budget Mini Split Pump
- Excellent value for the price
- Quiet 65 dB operation
- Comes with oil included
- Clear oil viewing window
- Lightweight at 11.4 lbs
- Die-cast aluminum housing
- Motor current protection
- R410a compatible
- 3.5 CFM may be slower for larger systems
- May not achieve full vacuum on some systems
- Not professional grade power
- May get hot during extended use
The VIVOHOME VH409 is the mini split pump I recommend to first-time installers. After running it on three separate mini split installations ranging from 9,000 to 24,000 BTU, it delivered consistent results without any surprises. The 1,600+ reviews averaging 4.5 stars reflect real-world satisfaction.
At 11.4 lbs, this is one of the lightest functional pumps I have tested. The ergonomic handle sits comfortably in the hand, and the compact dimensions fit in mini split installation kits alongside the line sets and torque wrench. The four-pole pure copper motor is the kind of build detail I do not expect at this price.
Motor current protection is a safety feature that has saved me from a fried pump on a weak generator. The 304 stainless steel coarse filter at the inlet catches debris that would otherwise destroy the vanes. Layered filtration at the exhaust keeps oil mist out of the work area.
3.5 CFM is the honest limitation. On a 5-ton system, evacuation takes considerably longer than with a 6 CFM pump. For mini splits and residential split systems under 3 tons, it is perfectly adequate. The 65 dB noise level is comparable to a quiet dishwasher.
For Whom It’s Good
DIY homeowners installing their first mini split system. HVAC apprentices building a starter toolkit. Anyone working on small residential split systems who wants a no-fuss reliable pump.
For Whom It’s Bad
Commercial technicians who need fast evacuation on large systems. Anyone working in extreme humidity needs a two-stage pump for deep vacuum. Heavy daily users will wear out the single-stage design faster than two-stage alternatives.
How to Choose the Best HVAC Vacuum Pump for Your Needs
Choosing the best HVAC vacuum pump starts with matching the pump to your typical system size. A standard rule of thumb is CFM squared equals the maximum tonnage you can evacuate effectively. That means a 5 CFM pump handles a 25-ton system, a 6 CFM pump handles 36 tons, and an 8 CFM pump handles 64 tons. For most residential and light commercial work, 3 to 6 CFM is the sweet spot.
Understanding CFM and Micron Ratings
CFM (cubic feet per minute) measures how fast the pump pulls air out of your system. Higher CFM means faster evacuation times. The micron rating is the ultimate vacuum level the pump can reach – lower is better. For proper HVAC evacuation, you want to pull below 500 microns, with 200 microns or lower being ideal for moisture-sensitive systems.
A common question I get from newer techs is whether 700 microns is good enough. The honest answer is no. 700 microns is the minimum to read on a basic gauge, but you should isolate the pump and let the system hold for 15 to 30 minutes. If the micron reading rises, you still have moisture in the system. Aim for 500 microns or lower for residential work and 200 microns for commercial refrigeration.
Single-Stage vs Dual-Stage Vacuum Pumps
Single-stage pumps pass through one set of vanes to reach vacuum levels. They are cheaper, lighter, and adequate for residential split systems on dry days. Dual-stage pumps use two vanes in series, pulling a much deeper vacuum that removes stubborn moisture and non-condensables. For commercial work, mini splits in humid climates, or any system using POE oil, dual-stage is the way to go.
Looking at our roundup, the Fieldpiece VP67, Robinair 15500, and VIVOHOME 14.4 CFM are the three dual-stage options. The remaining five are single-stage pumps that work well for DIY and light residential service. If you are choosing between the two for occasional use, a single-stage pump saves money and weight without sacrificing much performance in dry conditions.
A2L Refrigerant Compatibility
A2L refrigerants like R-32 and R-454B are the future of HVAC. They have lower global warming potential than R-410A, but they are mildly flammable. Pump manufacturers are certifying their equipment as A2L compatible to address safety concerns. The Fieldpiece VP67 is currently the only pump in our roundup with explicit A2L compatibility, which is one reason it commands a premium price.
If you are buying a new pump in 2026 or planning to keep it for 5+ years, A2L compatibility is worth paying extra for. Even if you are not using A2L refrigerants today, the next system you install probably will be. Check manufacturer specs carefully – some pumps list A2L in their marketing but do not have the actual certification.
Oil Management and Maintenance Features
Oil changes are the maintenance task that defines long-term ownership. Older pumps required draining oil while hot, often resulting in burns. Modern pumps with bottom drain valves, clear sight glasses, and quick-change systems like the Fieldpiece RunQuick make this chore far less painful. If you service 5+ systems a week, the time savings add up fast.
Contractor forums consistently recommend changing oil every 10-20 hours of run time, or whenever the oil turns milky from moisture contamination. The gas ballast feature on the VIVOHOME 14.4 CFM and Fieldpiece VP67 helps purge moisture during operation, extending oil life in humid conditions. Plan on a budget of $10-20 per year for replacement oil regardless of which pump you choose.
Weight and Portability Considerations
Weight matters more than spec sheets suggest. A 15 lb pump feels light in the shop but heavy on a third-floor rooftop job. The lightest pump in our roundup is the XtremepowerUS at 10 lbs, while the heaviest is the VIVOHOME 14.4 CFM at 44 lbs. For service work where you carry the pump daily, keep weight under 25 lbs.
Portability factors beyond weight include handle design, cord storage, and footprint. The Fieldpiece VP67 has dedicated cord storage and a compact footprint, while the VIVOHOME 14.4 CFM has no carry handle to speak of. Think about how you actually move the pump between jobs, not just the spec sheet weight.
Frequently Asked Questions
What is the best vacuum pump for AC?
The Fieldpiece VP67 is our top pick for AC work. It pulls 15 microns, has the RunQuick oil change system, and is A2L compatible for modern refrigerants. For budget work, the VIVOHOME 3.5 CFM VH409 handles residential mini splits reliably.
What size vacuum pump do I need for my HVAC system?
Match CFM to system tonnage using the rule of CFM squared equals max tonnage. A 5 CFM pump handles 25 tons, which covers most residential and light commercial work. Mini splits under 24,000 BTU only need 3 to 4 CFM. Commercial systems 5 tons and up benefit from 6 to 8 CFM pumps.
Is 700 microns a good vacuum for HVAC?
700 microns is the minimum readable on basic gauges but not sufficient for proper evacuation. You should pull below 500 microns for residential systems and 200 microns for commercial refrigeration. The pump should hold vacuum for 15 to 30 minutes after isolation – if microns rise, moisture is still present.
Who makes the best HVAC vacuum pump?
Fieldpiece leads in professional-grade pumps with the VP67 and RunQuick oil change system. Robinair and Yellow Jacket are trusted legacy brands with strong contractor followings. For budget options, VIVOHOME and XtremepowerUS deliver solid performance at lower price points. JB Industries and NAVAC are also respected in the commercial segment.
How often should I change vacuum pump oil?
Change oil every 10 to 20 hours of run time for standard use. Replace oil immediately if it turns milky from moisture contamination. Pumps with gas ballast features can extend oil life in humid conditions. Always drain oil while warm but not hot to avoid burns.
Final Verdict on the Best HVAC Vacuum Pumps
After 8 weeks of testing and feedback from HVAC contractors, our team has clear recommendations across budget tiers. The Fieldpiece VP67 is the best HVAC vacuum pump for professionals who need A2L compatibility and the RunQuick oil change system. The Robinair 15500 is the best two-stage value for residential shops ready to upgrade from single-stage designs. The VIVOHOME 14.4 CFM dominates for commercial work where deep vacuum and speed matter most.
For DIY homeowners and weekend warriors, the VIVOHOME 4 CFM kit and XtremepowerUS 3 CFM cover the basics without overspending. Quiet-operation seekers will appreciate the Orion Motor Tech 3.5 CFM, while mini split installers on a tight budget will find the VIVOHOME 3.5 CFM VH409 hard to beat. Any of the eight best HVAC vacuum pumps in this guide will serve you well in 2026 and beyond – the key is matching the pump to your typical job, not buying the most expensive model.
