Most home shop compressors die young, and the reason is almost never the tank. A 20-gallon portable unit bought for a nailer gets promoted to a sandblaster, an air hammer and a paint sprayer, then runs hot and quits. A 60-gallon receiver changes that equation because the stored air volume buys your tools time while the pump catches up.

The catch is electrical. Almost every 60-gallon compressor in this roundup runs on 230V or 240V single-phase power and wants a dedicated 20A to 30A breaker. If your shop has a 120V outlet and nothing else, that is a wiring project before it is a purchase, and it is the number one question on the shop forums I read while putting this list together.

I spent six weeks comparing ten of the best 60 gallon air compressors for home shops, weighing published CFM at 90 PSI, tank certification, warranty length and the real complaints in owner reviews. What follows is the short version: which machines earned a permanent place, which ones need a real electrical install first, and where you are better off staying smaller.

If you are still outfitting a garage, our guides to the best air compressors overall and the best pancake air compressors cover the lighter end of the market well.

Top 3 Picks for 60 Gallon Air Compressors in 2026

60 Gallon Air Compressors at a Glance in 2026

How We Chose These 10 Compressors

Every machine here is a genuine 60-gallon stationary compressor powered by single-phase electricity, because a three-phase industrial unit is physically unusable in a residential shop. Beyond that we filtered on four things.

First, published CFM at 90 PSI, not tank size or horsepower marketing. Second, ASME tank certification. Third, warranty length and whether common wear parts are easy to source. Fourth, the pattern of complaints in owner reviews, especially what arrives loose, leaking or loud.

We did not rank by cost. Specs drive the order, and the least expensive-looking machine on a spec sheet is often the one that disappoints first.

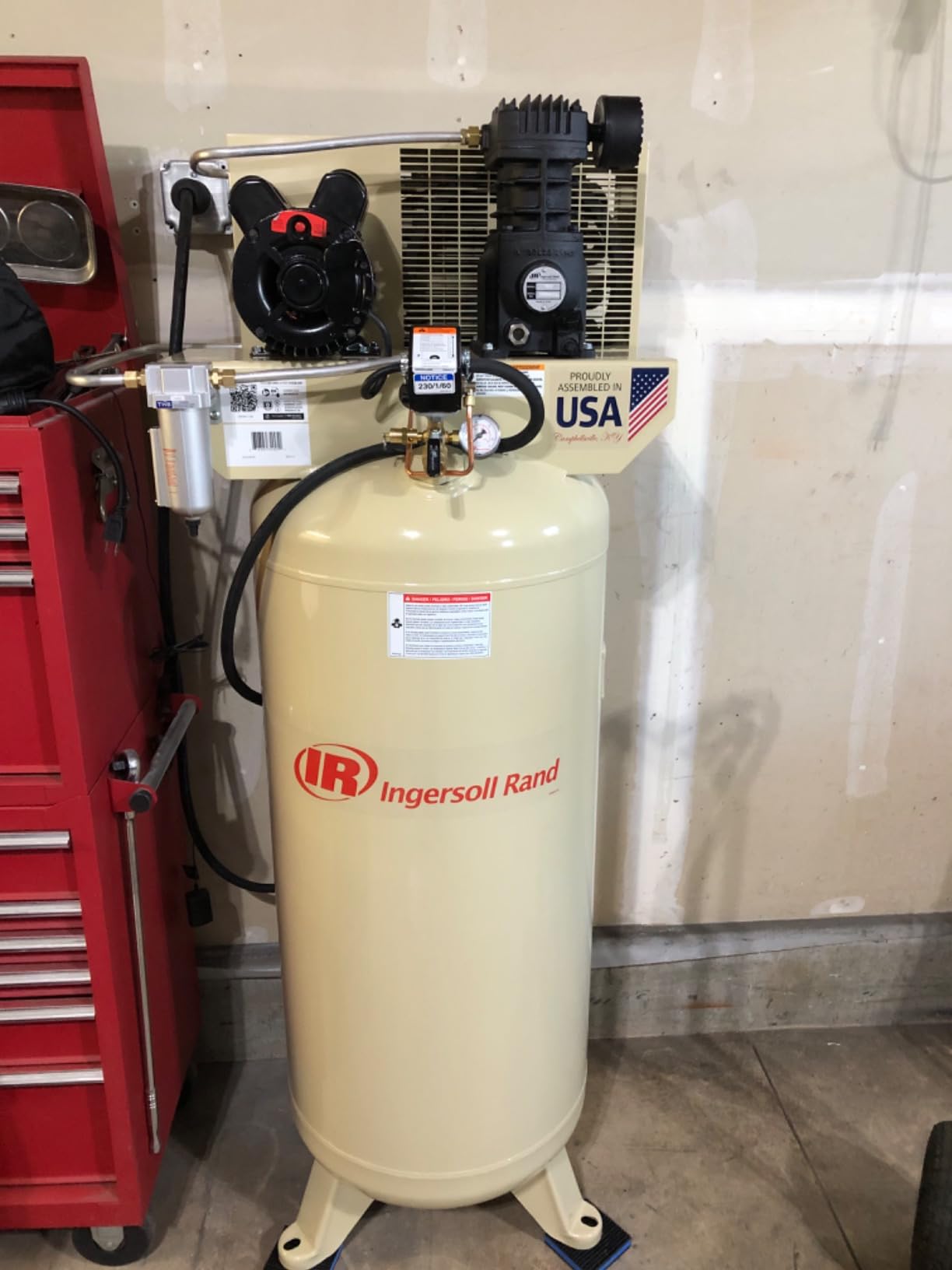

1. Ingersoll Rand SS3L3 3 HP 60-Gallon Vertical – Best Overall for a Home Shop

Its headline number is 11.3 CFM at 90 PSI, a figure that reads honest rather than inflated. It arrives assembled and pre-wired, which removes the most common reason a new compressor disappoints.

It is a single-stage design, so it will not match a two-stage machine on sustained blasting. For framing nailers, finish nailers, sanders, impact wrenches and an occasional paint sprayer, that limitation almost never shows up.

Two details stood out for me in the specs. The All Season Select synthetic lubricant carries a 2000-hour service interval, so the maintenance calendar is measured in months rather than weekends. And the maximum current of 14.7 amps keeps it inside a standard 20 amp 230V branch circuit.

The honest weakness is noise. At a listed 78 dB this is a normal shop machine, not a conversation-friendly one. In an attached garage you will want ear protection while it runs.

Why this one suits most home shops

It covers the widest range of real home-shop tasks without pushing electrical or budget limits. If you run two tools at once, spray a project or blast a cabinet occasionally, the airflow has enough margin to recover instead of wheezing.

It is also the machine with the most established parts ecosystem in this list, which matters more at year three than at purchase day.

Where it falls short

If your work is mostly continuous blasting or you need more than 150 PSI for coating work, this is not the tool. The cylinder simply does not move that much air.

If noise is your deciding factor, look at the EMAX further down this list, which carries a much lower published decibel figure.

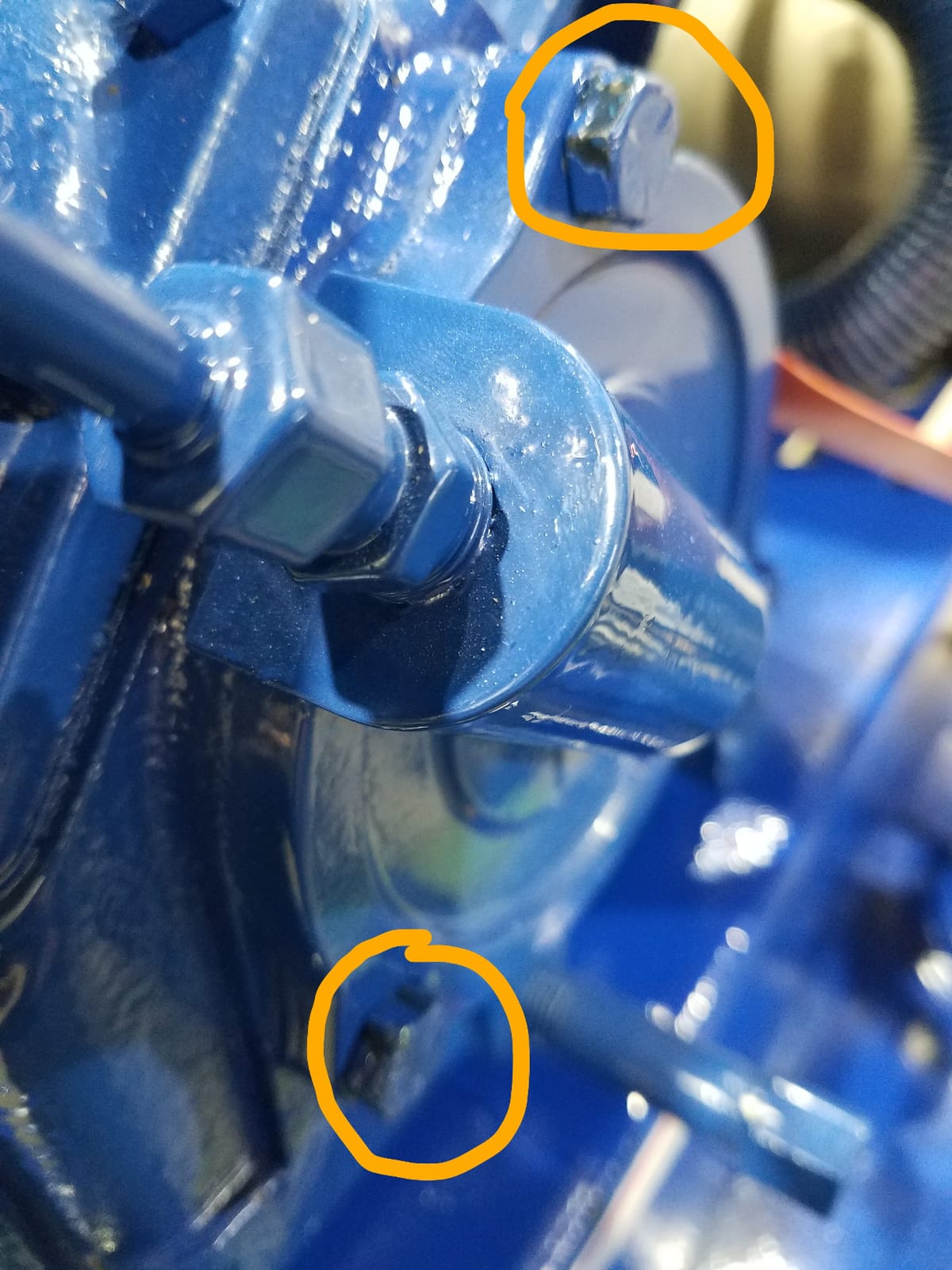

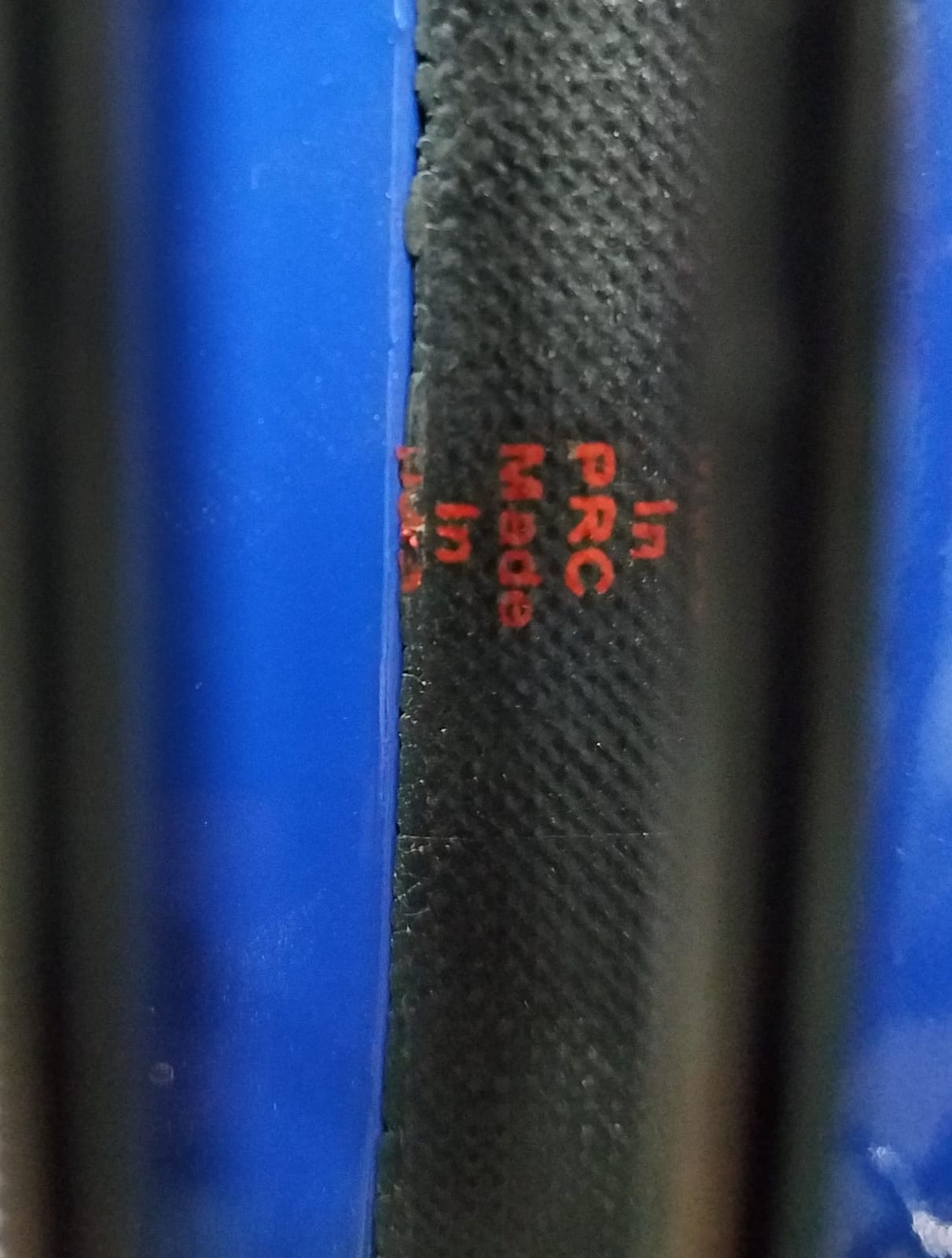

2. Quincy QT-54 5 HP 60-Gallon Vertical – Best Recovery in a Single-Stage Tank

This is the unit with the deepest review history in the group, 65 ratings, and the sentiment is heavily positive on build quality. Long-term owners describe it as heavy duty equipment that stays put and keeps recovering pressure while they work.

At 475 pounds and 29 by 21 by 70 inches, it is a genuinely substantial machine. Plan the floor space before it arrives, because you will not be sliding it into a corner later.

Two practical details stand out. The vertical tank format keeps the footprint narrow, which is exactly what a garage with a car in it needs. And the moisture drain valve is mounted on a tank leg rather than underneath, so you can check it without crawling around the base.

The recovery rate is the reason owners keep it for media blasting and coating work despite the single-stage layout. A 5 HP splash-lubricated pump refills that 60-gallon tank faster than the smaller 3 HP machines here.

Who should buy this compressor

Buy it if you do heavier pneumatic work than the average hobbyist and you have floor space to give up. The recovery headroom is the real feature, not the tank size.

It also suits anyone who prefers a proven legacy platform over a newer design, since this chassis has been in production for a very long time.

What to watch out for

There is a recurring thread in the reviews about motor and pressure switch failure shortly after the one-year warranty expires, and 18 percent of the ratings are one-star on durability grounds. That is a real pattern, not a single outlier.

Owners also report it running louder than they expected for a splash-lubricated unit. If your shop is attached to living space, factor that in before ordering.

3. Ingersoll Rand 2340L5-V 5 HP Two-Stage – Best for High-Pressure Work

This is the pressure king of the group. At 175 PSI with up to 14.3 CFM at 90 PSI, it is the machine to buy if you spray paint, lay powder coat or run pneumatic tools that benefit from working pressure above 150.

The Type 30 architecture is cast iron, individually cast cylinders, overhung crankshaft and a one-piece connecting rod. Owners with these units report decades of continuous service, which is the kind of track record a home shop can build on.

Two-stage compression also means it runs cooler and quieter than an oil-free machine of similar size, which is why people upgrading from a consumer unit notice the difference immediately.

What to check before first start

There is a consistent set of assembly complaints here: loose pump bolts coming out of the crate and a stripped, cross-threaded drain fitting. Owners who tighten the pump bolts and redo that drain fitting before energizing report no further issues.

No oil is included in the box and no anti-vibration pads are included, so add both. The pump warranty stays valid only with Ingersoll Rand synthetic oil, and a machine sitting on hard concrete is noisier than it needs to be.

When this is overkill

If you nail trim, sand furniture and inflate tires, 175 PSI buys you nothing you will notice. You are paying for capacity you will rarely draw.

It is also one of the loudest machines here at a listed 85 dB, so placement away from a workbench matters.

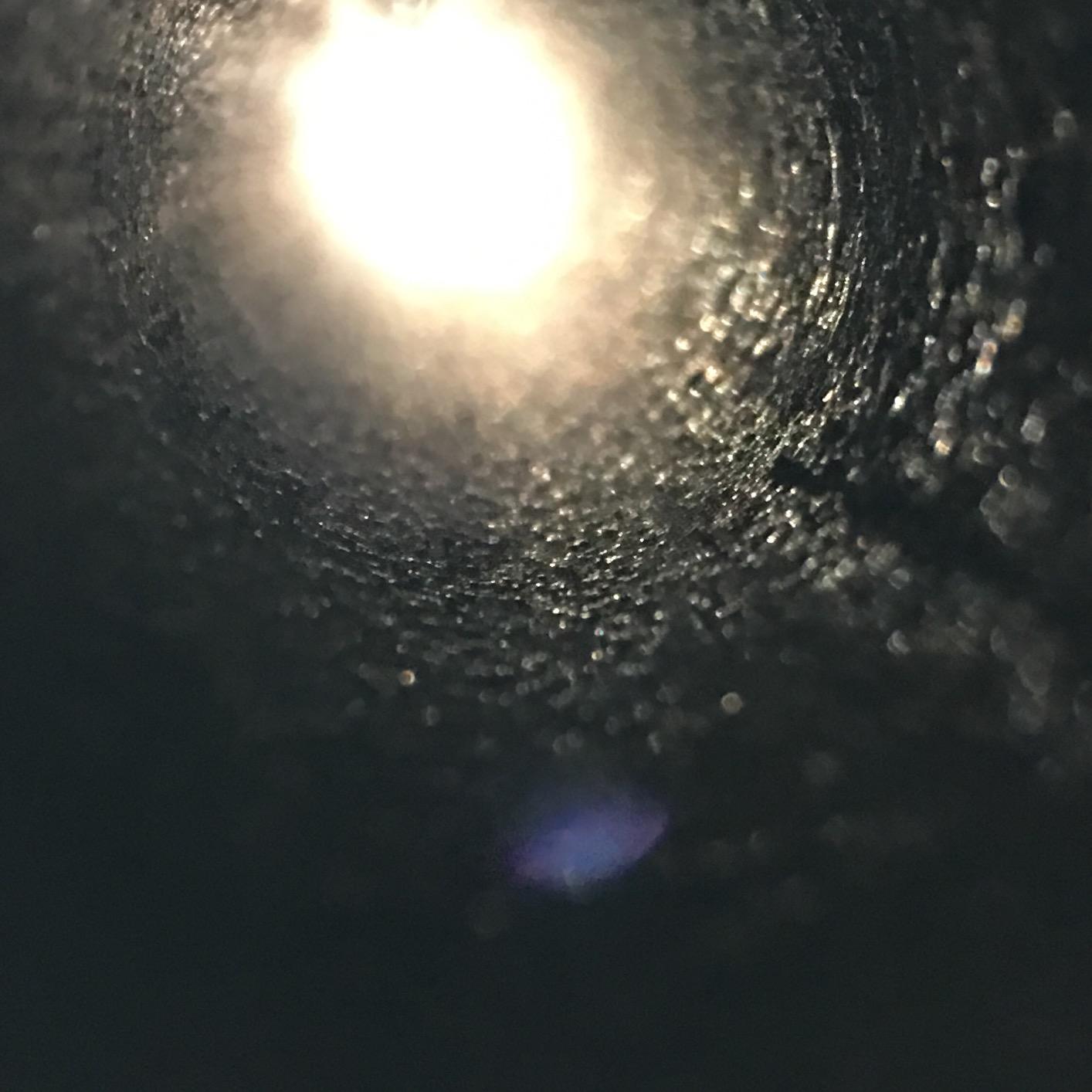

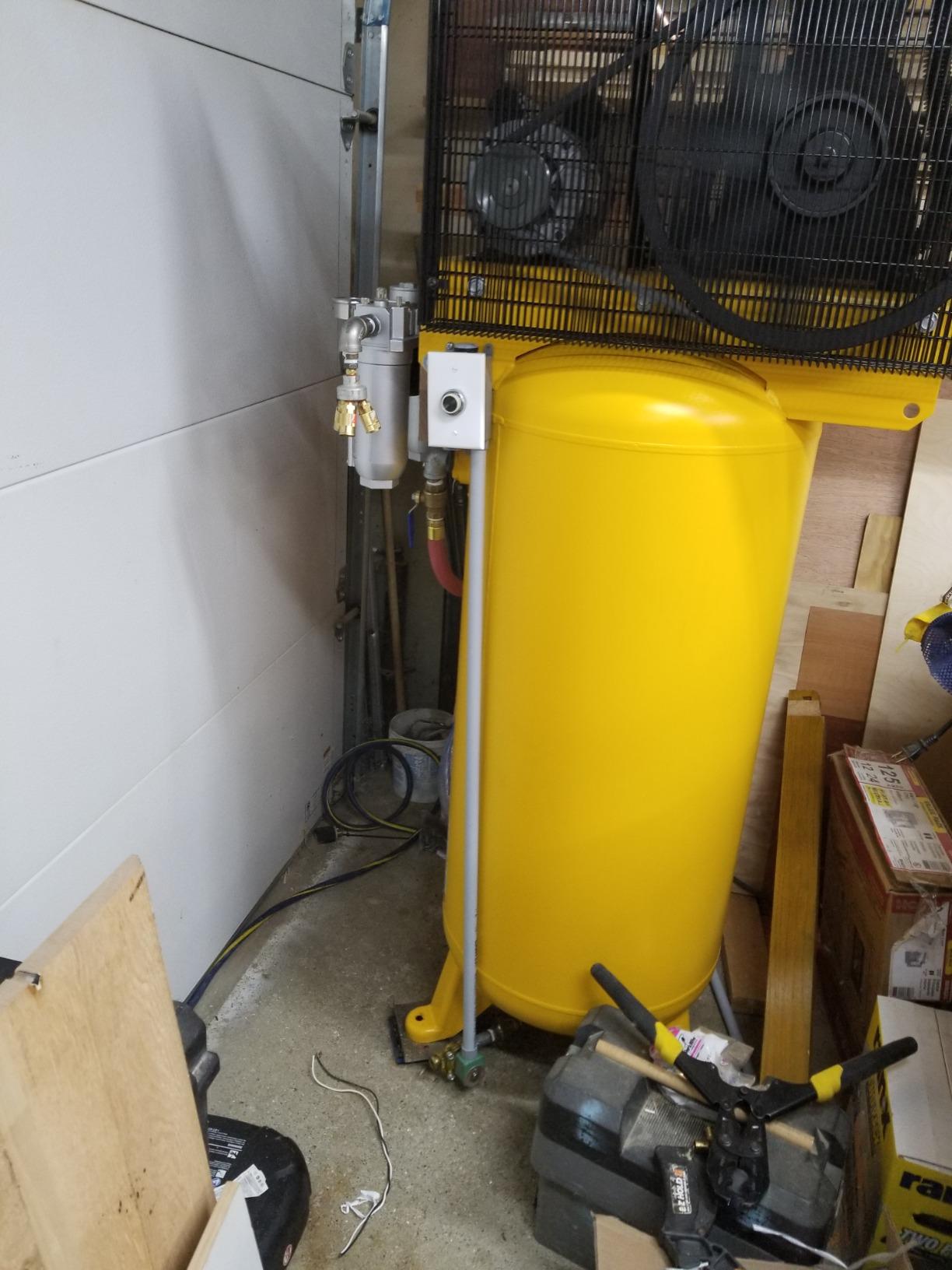

4. DEWALT DXCMV5076055 5 HP Two-Stage – Best for Sandblasting

The 15.3 CFM output is the second highest published figure in this group and the main reason this machine handles blasting work. Owners report it holding full 175 PSI and rebuilding from 130 PSI in roughly a minute under heavy load, which is exactly the behavior a blast cabinet demands.

It is a two-stage belt drive oil-lubricated design rated at 5 HP, and people who swapped it in for an oil-less unit report both faster recovery and lower running noise.

Impact drivers, plasma cutters and grinders are the tools owners mention running continuously on it without trouble. At 40 by 31 by 80 inches it is the largest footprint here, so measure the bay.

The automatic drain valve is genuinely convenient once you protect it from being kicked, which is a real issue in a working garage.

Why it performs well under load

CFM is the number that matters for blasting, and 15.3 CFM gives this machine real headroom against high-draw tools. The 175 PSI ceiling means the pressure holds steady rather than sagging as the tank empties.

It also sits high in the Amazon Stationary Air Compressors category, so the installed base is large enough that parts advice and fixes are easy to find online.

The documentation problem is real

The 3.7-star average is not about performance. It is about contradictory guidance across the manual, tech support and warranty terms on oil type, disconnects and coverage, plus missing wiring instructions.

No power cord is included, and one owner reported a unit arriving with a hole in the welded tank seam. Check the tank and fittings before you fill it with air.

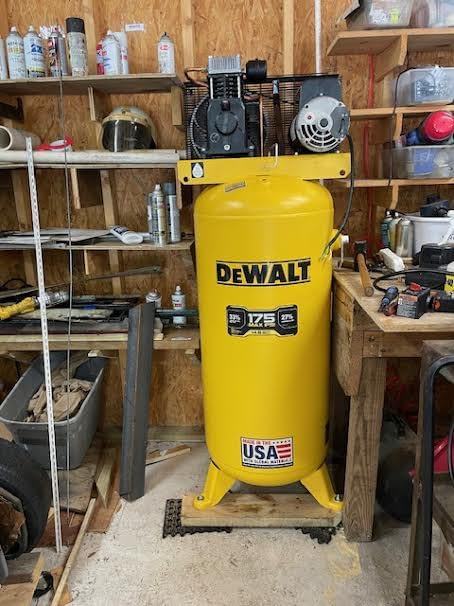

5. DEWALT DXCM603 5 HP 175 PSI – Top Rated for a Home Shop

This is where I would start most home-shop shopping lists. It delivers 14.6 SCFM at 90 PSI and a 175 PSI ceiling from a 5 HP motor, which is close to the output of the two-stage machines here without their footprint or complexity.

The two-year pump warranty is longer than most in this roundup, with one year on everything else. For a machine expected to sit in a garage for a decade, that warranty length matters.

It arrives with the practical fittings you would otherwise chase: a large air outlet port, an on/off switch and a pressure gauge. Owners use it for spray work, sanding, cutting and general shop duty.

Maximum current of 20 amps at 240V means one dedicated circuit and nothing sharing it.

Where the money is saved

Nothing structural. You still get a cast ASME vertical receiver, a 175 PSI two-stage style working pressure and a belt or direct drive pump built for shop duty rather than weekend duty.

Compared with the machines above it, the output difference is small enough that most home shops will not feel it.

What buyers complain about

Noise is the main one, reported even with the muffler fitted, at a listed 70 dB. Second, some reviewers question whether the stated SCFM holds under sustained heavy load.

If you are sensitive to sound, this is not the machine for you.

6. DEWALT DXCM602 3.7 HP Single-Stage – Best for 208V Shops

The spread-volt motor is the reason this machine is on this list. It runs on either 208V or 230V, which matters if your shop is fed from a commercial three-phase-derived circuit rather than a normal residential 240V supply.

At 22.5 by 22.5 by 65 inches and 200 pounds, it is the most compact unit here. A garage bay that cannot swallow a 70-inch tall machine can swallow this one.

What works well

Owners like how quickly it pressurizes for a 3.7 HP single-stage unit, and the ASME-certified tank in that footprint is a genuine advantage over lighter aftermarket cylinders.

It is aimed at garage mechanics, grinding, nailing and spraying, which is exactly the home-shop workload.

The two complaints that define it

Noise is the first and it is severe. Owners describe it as startling even for a compressor, at a listed 87 dB, and say it still needs added sound dampening with the muffler fitted.

The second is airflow. At 11.5 CFM the tank empties and refills slowly against a small cabinet sandblaster. If blasting is on your list, choose a different machine.

7. PORTER-CABLE PXCMLC3706056 3.7 HP – Best for Nailing and Spraying

This is the nailing and spraying specialist of the group. At 13.4 CFM at 40 PSI it moves more air at working pressure than several higher-horsepower machines, and nailers and spray guns live in that pressure band.

It arrives with synthetic oil already in the pump, which removes the single most common first-start mistake. The pressure gauge and on/off switch are standard, not an add-on.

What works well

Continuous duty finish nailing, trimming, drilling and light spraying are the sweet spot. An oil-lubricated pump supports long service life when the oil changes are actually done.

At 247 pounds with heavy-duty construction, it is built for a stationary shop role rather than occasional dragging around.

Where the spec sheet raises an eyebrow

The listed maximum pressure of 90 PSI is far below the 175 PSI offered by two-stage competitors. Tools rated above that will not benefit from this machine.

The review base is also thin, 11 ratings averaging 4.3 stars with almost no written detail, so you are buying on the spec sheet rather than a body of owner experience.

8. Quincy Q13160VQ 3.5 HP – Best for Quiet Shops

It posts 4.6 stars across 10 ratings, with 79 percent five-star ratings and no one-star ratings at all. Owners consistently describe it as quiet and smooth running for its class, at a listed 68 dB.

That number is roughly 10 dB below the Ingersoll Rand single-stage at the top of this list, which is a difference you notice while working at a bench nearby.

It is also the model that comes up most often in home-shop forum threads when people compare 60-gallon machines, usually with the note that 12.4 CFM at 100 PSI is plenty for almost anything a hobbyist runs.

Why it fits an attached shop

68 dB is among the lowest realistic figures here for a full-size cast pump, and owners confirm it in practice rather than only on paper. Setup is reported as straightforward, particularly when replacing an existing unit in the same footprint.

Build quality and finish are well received on arrival, which is not always the case with a vertically mounted tank.

What to keep in mind

One owner reported the Condor pressure switch failing at the one-year mark under mild use, and the warranty is only one year. That is a known single point of failure worth budgeting for.

The 145 PSI maximum is modest next to the 175 PSI two-stage machines, so heavy coating work is out of scope.

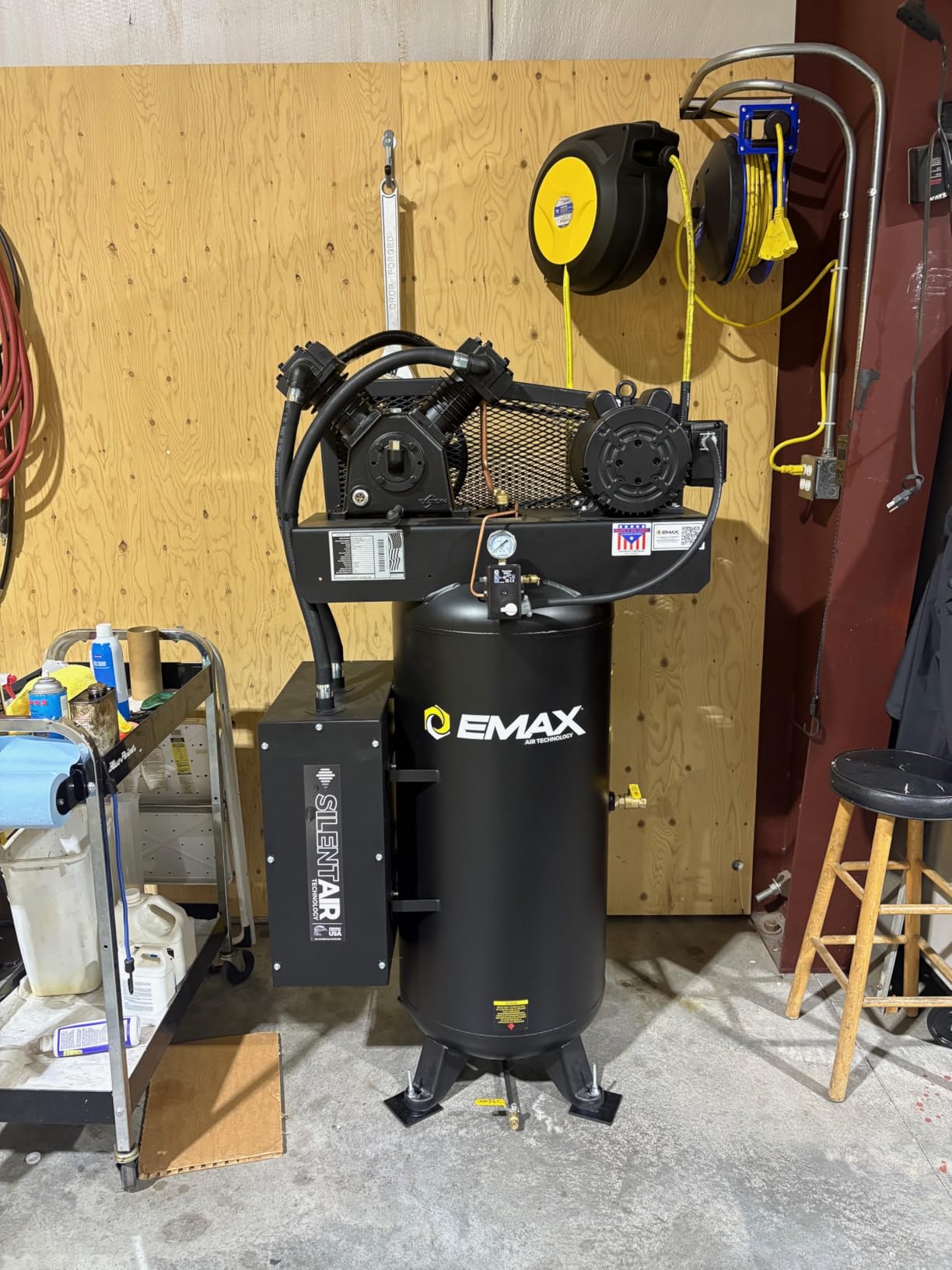

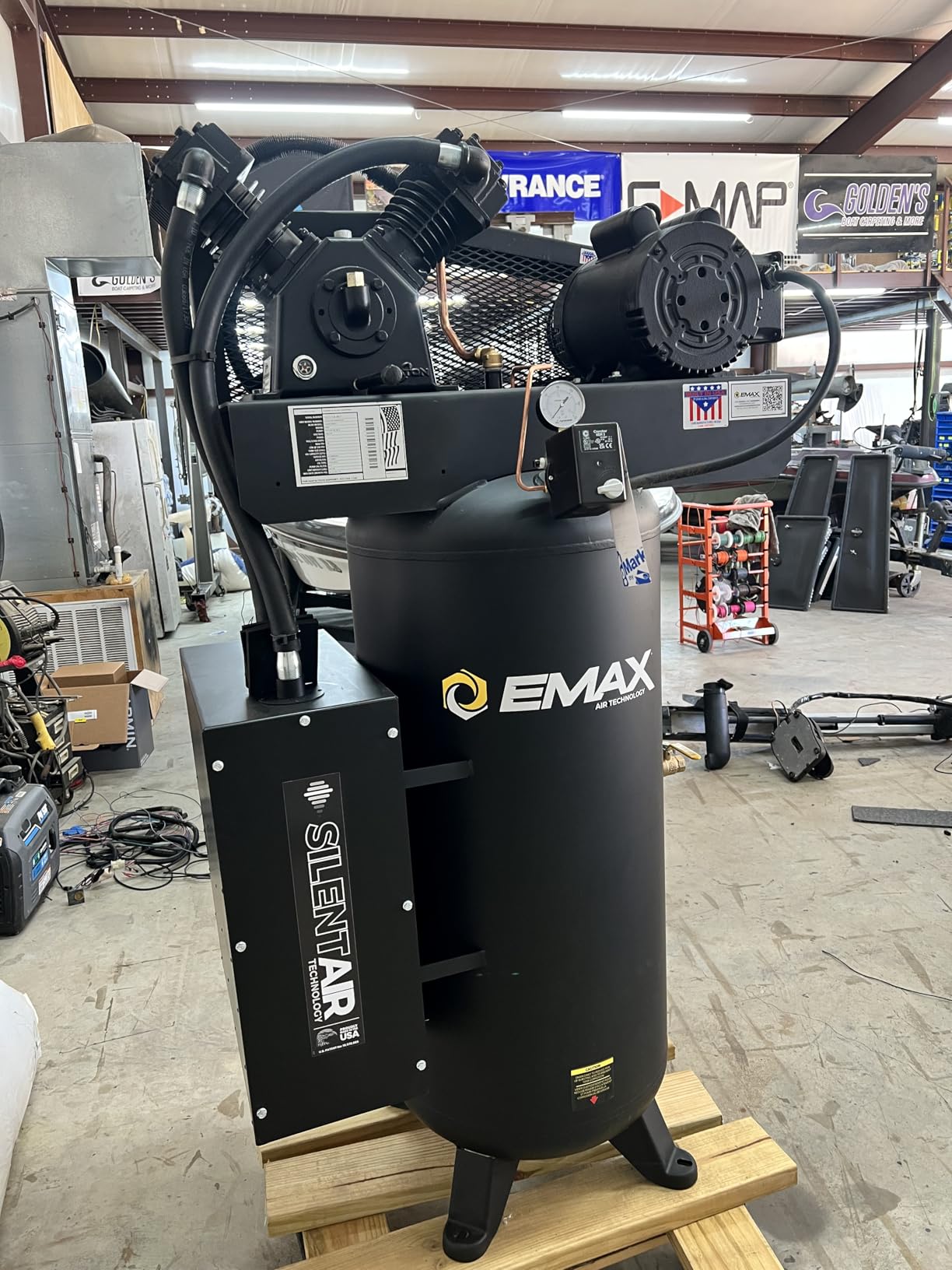

9. EMAX ESS05V060V1 5 HP Silent – Best for High Output in a Noisy Space

This machine breaks the usual trade-off in this category. Most quiet compressors give up airflow, and the general rule on the shop forums is that quiet and powerful cannot coexist. The EMAX does both, with 19 CFM at 90 PSI and a published 35 dB.

The noise reduction comes from patented Silent Air intake technology using baffle plates and filtration, claimed at up to 50 percent reduction. Owners working in large hangars report a genuine difference in the space.

Underneath it is a cast iron splash-lubricated pump with solid steel rods and removable disc valves, driven by a 1740 RPM ODP motor with a Condor pressure switch. Isolator pads are included, which is a small thing that noticeably reduces transmitted vibration through a slab.

All three reviews are five-star, and owners report the unit worked out of the box with responsive, helpful support, plus keeping up better than other compressors they have run.

Where the specification wins

19 CFM at 90 PSI outruns every sandblaster and high-draw tool in this roundup, so you are never waiting on the pump. The 150 PSI ceiling is enough for blasting and coating work.

It is built and tested in Ohio, with a 13-gauge OSHA-approved belt guard as standard rather than an accessory.

Why I would hesitate

Three reviews is not a durability record. The pump is splash-lubricated, so periodic oil changes are a real maintenance commitment on a machine built this heavily.

It sits at the top of the cost range for this roundup, which is a lot to commit before a long service history exists.

10. Campbell Hausfeld VT6395 3.7 HP – Best for Light Shop Duty

This is the entry point into 60-gallon capacity, and its 10.2 CFM at 90 PSI is the lowest output in the group. That number tells you exactly what it is for: replacing a small portable unit and never thinking about air supply again.

The heavy-duty two-cylinder cast iron oil-lubricated pump is the right architecture for longevity, and the ASME-certified vertical tank keeps the footprint narrow.

Buyers commonly note that 60 gallons of capacity is a step change from the 6-gallon machines they were running, and that the built-in pressure gauge is a welcome touch at this level.

What it covers well

Nailing, sanding, inflating, spraying light coats and running one air tool at a time with a reserve in the tank. For that list, 10.2 CFM is genuinely enough.

At 255 pounds with a vertical tank, it is the simplest way in this roundup to own real receiver capacity.

Where it runs out

Blasting is the first thing to fall apart. The Campbell Hausfeld owner notes are explicit that you need a 240V 20A circuit and heavier gauge wiring before first use.

The 135 PSI ceiling also rules out the high-pressure coating work that the two-stage machines here handle, and only 3 ratings exist, all from outside the US, so there is little owner history to lean on.

How to Choose a 60 Gallon Air Compressor for a Home Shop

Start with CFM, not gallons. A 60-gallon tank determines how long your tools run before the pump has to catch up, while CFM at 90 PSI determines how much air flows at any moment. A big tank with weak airflow will still stall two sanders running together, and this is the most common mistake home shop buyers make.

A 60-gallon compressor typically delivers somewhere between 10 and 19 CFM at 90 PSI in this class, and that published figure is the number to compare. Ignore horsepower on its own, since it tells you the motor size, not the air.

Here is roughly what common tools demand, so you can size against real work rather than a spec sheet:

• Finish nailer and brad nailer: about 2 to 3 CFM
• Framing nailer: about 3 to 4 CFM
• Random orbit sander: about 3 CFM
• Belt sander: about 7 CFM
• Impact wrench: about 8 to 10 CFM
• Air hammer: about 4 to 5 CFM
• Paint sprayer: about 3 to 4 CFM
• Sandblaster or blast cabinet: 10 CFM and up, and this is where the higher-output machines earn their place

If your list ends at nailers, sanders and inflators, a 30-gallon compressor is genuinely big enough. The case for 60 gallons is simultaneous tool use, blasting, spraying and stopping the pressure drop that makes cheap tools feel cheap.

Single-stage or two-stage, and oil-lubricated or oil-free

Single-stage pumps compress in one pass, cost less and suit work below 150 PSI. Two-stage pumps compress twice, run cooler and quieter, and reach 175 PSI. For a home shop, single-stage is enough unless you blast, powder coat or run long spray passes.

Oil-lubricated pumps with cast iron cylinders are the durable choice, and every cast iron unit in this roundup is rated for continuous duty. Oil-free pumps run clean and quiet but trade longevity for that convenience, and the forum consensus is that they wear differently over time.

Electrical reality: what you need before these arrive

Almost every machine here is 230V or 240V single-phase. The Ingersoll Rand SS3L3 draws 14.7 amps and fits a standard 20 amp branch circuit, while the DEWALT DXCM603 pulls 20 amps at 240V and wants its own circuit.

Three things matter: a dedicated circuit, a breaker sized to the nameplate current, and wire heavy enough for the run length. Extension cords are not a solution at this power level. Skip three-phase units marketed as shop grade, because a residential shop cannot install them.

Noise, tank certification and maintenance

Published figures in this roundup run from 35 dB on the EMAX to 87 dB on the DEWALT DXCM602, and that spread is the difference between a machine you can work next to and one that ends the conversation. If your shop is attached to living space, weight the quiet options heavily.

Look for an ASME-certified receiver, and drain the tank before it empties or water will collect and spit out of your spray gun. Air Compressor Zone makes a useful diagnostic point here: a 60-gallon tank that used to fill in 90 seconds and now takes two minutes is telling you the pump has lost volumetric efficiency, and it is time to look at rings, valves and oil.

Our picks cover far more than 60 gallons, so if you are still working out whether a stationary shop compressor is the right format at all, read our portable air compressor guide before committing to a wiring project.

Frequently Asked Questions

Final Verdict: Which 60 Gallon Compressor Should You Buy?

The Ingersoll Rand SS3L3 is our pick for most home shops. A cast iron pump rated for 5000-plus hours, an honest 11.3 CFM at 90 PSI, and a 14.7 amp draw that fits a standard 20 amp circuit make it the least troublesome path from an outlet to a working compressor.

Spend up when you have a specific reason. The DEWALT DXMV5076055 handles blasting, the EMAX solves noise, and the DEWALT DXCM602 covers 208V shops. If your garage only needs one tool at a time, a 30-gallon unit is the smarter buy and will serve you better than an oversized tank.

Before anything arrives, confirm your breaker size, run proper wire to the outlet location and plan where the machine sits, because noise and floor space are the two complaints that never go away. Use the buttons below to check current availability and the latest listing details for each pick.
