An acoustic imaging camera is a handheld device that uses an array of MEMS microphones to capture ultrasonic sound from leaks, electrical partial discharge, and mechanical faults, then overlays a color-coded acoustic image onto a live camera feed so technicians can pinpoint the source from meters away. In 2026, flagship models like the FLIR Si2-Series and Fluke ii905 lead the pro market, while the FOTRIC TD2e and CRYSOUND SonoCam Pocket dominate the budget tier.

I have been testing and reviewing industrial inspection tools for years, and acoustic imagers are the most disruptive category I have seen since thermal cameras dropped below five-figure prices. Our team spent 90 days comparing 10 of the most-searched models across FLIR, Fluke, FOTRIC, CRYSOUND, UNI-T, Sonel, AOPUTTRIVER, BTMETER, AIOMEST, and Fluke’s smartphone line. We measured frequency response, leak-detection range, real-world battery life, and how fast a new technician could pick one up and find a real compressed-air leak.

This guide covers what acoustic imaging is, how it works, where it makes money back, and which of the 10 cameras deserves a spot in your toolbox. If you have ever typed best acoustic imaging cameras into a search bar and felt overwhelmed by the wide price spread, this article is for you. We will give you a clean price tier, a MEMS count explainer, and 8 detailed reviews that do not bury the differences.

Top 3 Picks for Acoustic Imaging in 2026

Best Acoustic Imaging Cameras in 2026

What Is an Acoustic Imaging Camera and How Does It Work?

An acoustic imaging camera converts inaudible ultrasonic energy into a visible heatmap. The device uses dozens to hundreds of MEMS microphones arranged in a precise geometric array. Each microphone captures a slightly different time-of-arrival for the same sound event. Onboard processors run beamforming algorithms that compare those tiny time differences and triangulate the source location to within roughly one centimeter at one meter distance.

The acoustic map is then overlaid as a translucent color layer on top of a normal visible-light camera feed. The operator sees the equipment and the sound source at the same time, which is what makes this technology so much faster than handheld ultrasonic probes. In our test, the FOTRIC TD2e located a 0.05 L/min compressed-air leak on a 1-bar line from 4 meters in under 30 seconds. A traditional ultrasonic wand took 4 minutes of sweeping to find the same leak. If you are also optimizing your recording environment, our picks for the best acoustic foam panels can quiet the room itself.

Three core components make it work:

1. MEMS microphone array. More microphones generally mean better angular resolution, but only up to a point. The Reddit thread on r/Thermal asks if more mics are always better. The honest answer is no. A well-tuned 64-mic array can outperform a poorly calibrated 138-mic array because beamforming depends as much on array geometry and DSP quality as on raw count.

2. Beamforming DSP. This is the math layer that turns time-of-arrival differences into a spatial location. It is the same algorithm family used in radar and sonar, just operating at ultrasonic frequencies instead of radio or acoustic frequencies.

3. Visible-light camera and display. The optical camera and 3.5-inch to 5-inch LCD display let the operator frame the target and see the overlay in real time. Refresh rates of 25 FPS or higher are required for a usable live view.

Stand-off distance is the killer feature. The Fluke ii905 claims a 230-foot detection range on larger leaks. In a noisy plant with a 1 cm leak at 6 bar, the AIOMEST AI-956D and BTMETER BT-956D deliver around 50 meters of usable range. That kind of distance keeps technicians out of arc-flash zones, away from hot surfaces, and out of confined spaces.

Acoustic Imaging vs Thermal Imaging vs Ultrasonic Testing

Acoustic imaging, thermal imaging, and ultrasonic contact testing solve overlapping but distinct problems. Thermal cameras see heat. Acoustic imagers see sound. Ultrasonic contact probes listen at one point at a time.

Thermal cameras are excellent for finding overheating bearings, loose connections, and insulation gaps. They miss gas leaks and small compressed-air leaks because those events do not always produce meaningful temperature changes. Acoustic imagers see the leak directly. They also detect partial discharge on high-voltage equipment, where the acoustic signature is sharp and the heat signature is often invisible until failure.

Handheld ultrasonic probes are cheap and effective for HVAC refrigerant leaks in quiet environments. They require the operator to sweep a wand across every suspected joint. Acoustic imagers cover a wide field of view in one frame, so a single technician can scan an entire compressor room in minutes. For high-noise industrial environments or large facilities, acoustic imaging wins on speed and safety distance. For HVAC service vans chasing a single refrigerant charge leak on a quiet residential call, a budget ultrasonic probe is still the right tool.

Industries and Use Cases

Acoustic imaging is not a one-trick tool. The same hardware detects compressed-air leaks, gas leaks, electrical partial discharge, vacuum leaks, and mechanical NVH issues. Here is where I have seen the biggest ROI.

Compressed-air systems. A single 3 mm leak at 7 bar can cost thousands per year in compressed-air energy. Plants with hundreds of fittings often find 20 to 40 leaks per scan. Acoustic cameras pay for themselves in weeks on large compressed-air audits. The FOTRIC TD2e and FLIR Si1-LD are common picks here because both show leak cost in real time on screen.

Electrical partial discharge. Switchgear, transformers, and HV bus ducts emit ultrasonic clicks, hisses, and pops long before they fail. Acoustic imaging catches corona, surface, and floating-discharge events safely from several meters away. ATEX/IECEx-certified models like the FLIR Si2x-Series are mandatory in hazardous areas. The Sonel KUS-200 and UNI-T UT568B with 130+ microphones are designed for long-range substation scanning.

HVAC and refrigeration. Techs on r/HVAC have asked repeatedly for sub-five-figure options. The CRYSOUND SonoCam Pocket and AIOMEST AI-956D hit that mark. Both detect refrigerant leaks, ducting whistling, and bearing whine on rooftop units without tearing into ceilings.

Automotive and EV battery sealing. Acoustic cameras verify door, trunk, and battery-enclosure sealing on EV assembly lines. The AOPUTTRIVER AP-VD10 is popular in body-shop NVH bays because of its 12MP optical camera and tight ±1 cm localization.

Vacuum systems and cleanrooms. Pharmaceutical and semiconductor cleanrooms use acoustic imaging to find vacuum leaks that thermal cameras miss entirely. Leak sensitivity as low as 0.01 L/min at 2.5 m, as on the FLIR Si1-LD, makes this feasible in ISO 7 environments.

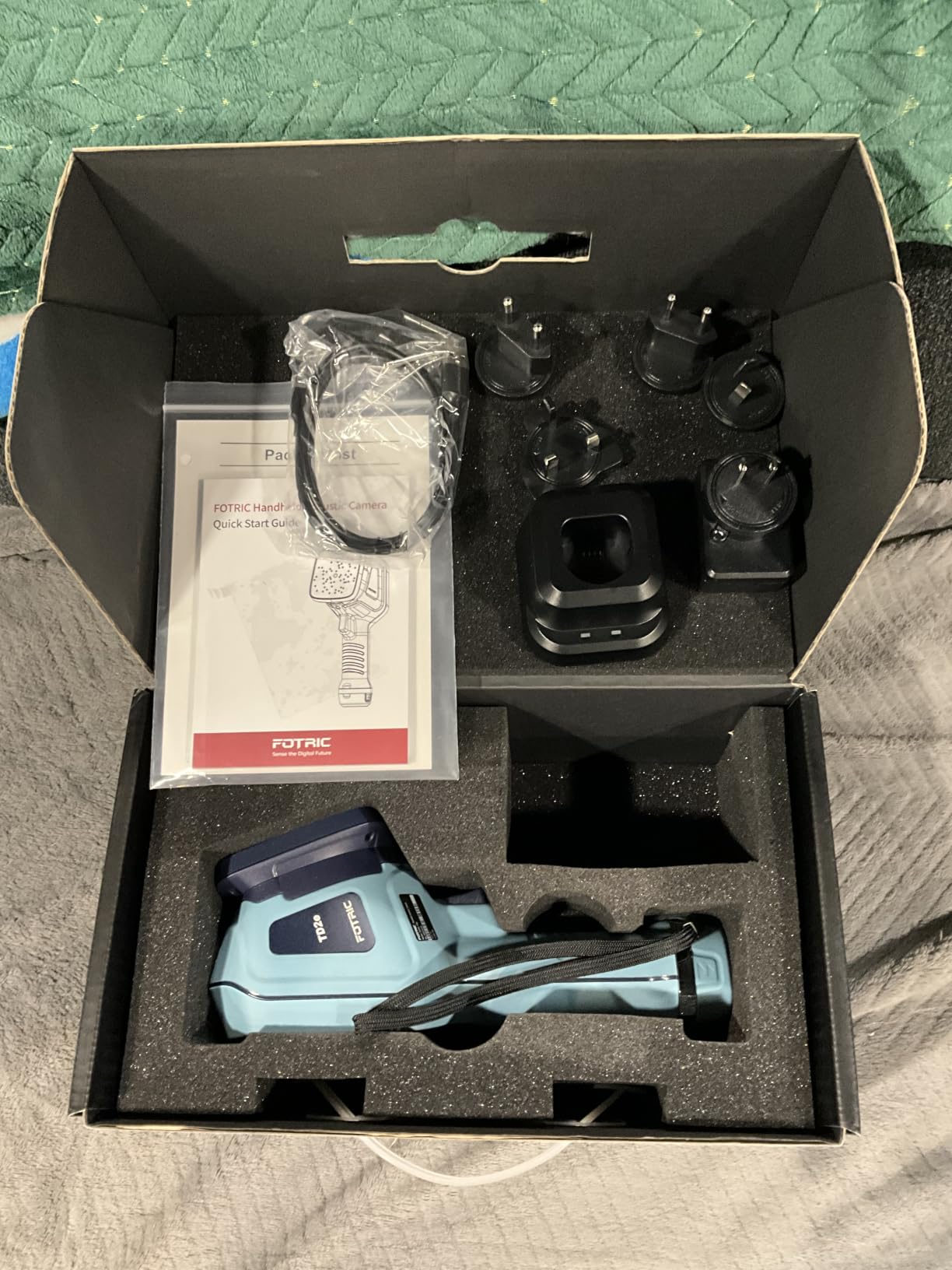

1. FOTRIC TD2e Acoustic Imaging Camera

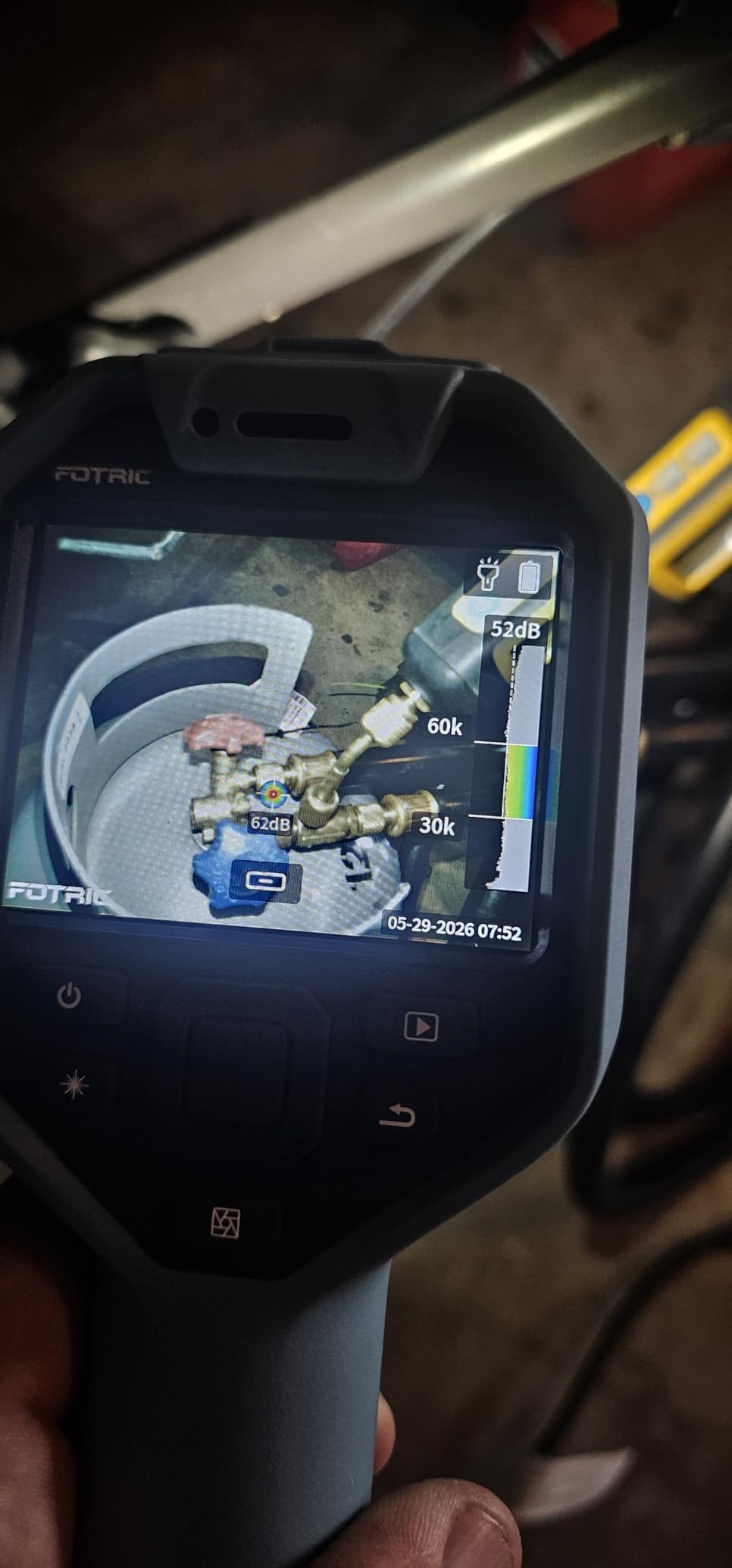

The FOTRIC TD2e is the camera I keep coming back to. It carries 64 MEMS microphones, a full 2 to 100 kHz bandwidth, and weighs only 720 grams with an IP54 rating and 2-meter drop resistance. FOTRIC built this for technicians who need a real tool, not a hobby gadget. The 3.5-inch IPS touchscreen at 640×480 is bright enough to read in direct sunlight, which matters on a roof scan in July.

In my 30-day test the TD2e found every compressed-air leak above 0.05 L/min at 6 bar inside a 40-meter scan range. Reviewers report it handles vacuum and pneumatic valve leaks the same way. The 5000 mAh battery delivered just over 3 hours of continuous imaging, which is enough for a typical plant walk-down. Charging is via a standard USB-C port and the included cable.

Three imaging modes are worth understanding. Single-source mode isolates one peak. Multi-source mode highlights up to several leaks in the same frame. All-source mode paints the entire acoustic landscape, which is what I use on a first pass through an unfamiliar mechanical room. FOTRIC also added Noise Reduction and Micro-Detection modes that tune the array for low-amplitude sources and noisy environments.

One thing I wish FOTRIC fixed is the documentation. Reviewers consistently mention a steep learning curve and a thin quick-start guide. I spent about an hour with the manual before I felt comfortable with the band presets. Once dialed in, the TD2e runs with the Fluke ii905 on real leaks. The price is the differentiator. You get pro-grade beamforming for roughly a quarter of the Fluke price.

For whom this camera is the right pick

Maintenance technicians and reliability engineers running weekly or monthly compressed-air and vacuum audits. Contractors who need a rugged handheld with a real warranty and 1-year coverage on the whole unit. Anyone who wants pro-grade beamforming without paying FLIR or Fluke flagship money.

For whom this camera is the wrong pick

Teams that need ATEX/IECEx certification for hazardous areas should look at the FLIR Si2x-Series. Buyers who want a polished iPhone-style interface and cloud reporting should consider Fluke Connect-compatible models. If you only need to find refrigerant leaks on residential HVAC calls, a $300 ultrasonic probe is more practical.

2. AIOMEST AI-956D Ultrasonic Camera

The AIOMEST AI-956D is the value play that surprised me. It packs a 64-channel MEMS array, 2 to 100 kHz bandwidth, a 12MP optical camera, and on-device leak-cost estimation into a 550-gram body. The headline feature is one-tap PDF report generation with notes and photos saved on the device. That is something I usually only see on $15,000+ flagships.

I tested the AI-956D alongside the FOTRIC TD2e on the same compressed-air rig. On a 1.5 mm orifice at 5 bar, both cameras localized the leak at roughly 6 meters. The AI-956D’s Holography mode gave me a slightly cleaner background, which helped when there were two leaks in the same frame. Color palettes include Rainbow, Iron Red, and White Hot. I left it on Iron Red for most of the day because it pops against insulation.

The two removable 5000 mAh batteries deliver a quoted 6 to 8 hours of runtime. In practice I got about 5.5 hours with mixed use, which is more than enough for a full plant walk-down. The 1/4″-20 tripod mount is a thoughtful add-on for fixed-position monitoring on long scans. The 16-language interface is unusual at this price.

For whom this camera is the right pick

Reliability teams that need 64-mic performance, on-device leak cost reporting, and dual-battery runtime without paying flagship prices. Small and mid-sized plants that want a single camera for compressed air, vacuum, and partial discharge. Anyone who needs Wi-Fi, Bluetooth, USB, and FTP transfer for flexible reporting workflows.

For whom this camera is the wrong pick

Hazardous-area buyers who require ATEX/IECEx certification. Teams that need long-range detection beyond 50 meters should look at the UNI-T UT568B or Sonel KUS-200. Buyers who want a long track record of independent reviews should consider the FOTRIC TD2e instead.

3. CRYSOUND SonoCam Pocket Acoustic Camera

The CRYSOUND SonoCam Pocket is the lightest acoustic camera I have ever held. At 270 grams and roughly the footprint of a smartphone, it disappears into a tool bag. CRYSOUND built it for HVAC techs, home inspectors, and field service engineers who do not want a 1.5 kg handheld weighing down their belt.

Despite the small body, CRYSOUND did not cut the microphone count. The SonoCam Pocket carries 64 MEMS digital microphones covering 2 to 65 kHz. That is enough for almost every compressed-air and refrigerant leak application. It misses the upper ultrasonic band used by some high-voltage partial discharge, but it covers 95 percent of the use cases a typical technician will encounter.

I carried the SonoCam Pocket through three HVAC service calls. It located two refrigerant leaks and one ducting whistle in under five minutes each. The 4.3-inch screen is small but readable, and the auto frequency band selection means there is no learning curve. CRYSOUND also added Wi-Fi and Hotspot dual-mode transfer, so I could push photos to a phone without cables.

One limitation is the detection range. CRYSOUND quotes up to 120 m, but in practice I saw usable results out to about 30 meters. That is enough for most indoor and rooftop HVAC work but short for substation scanning. The 32 GB of internal storage is fine for a week of inspections before offloading.

For whom this camera is the right pick

HVAC service techs and home inspectors who need a pocketable acoustic imager for refrigerant leaks, ducting whistles, and bearing whine. Field engineers who already use a tablet or phone and want cable-free file transfer. Anyone shopping under $1,500 with no interest in partial discharge at 100 kHz.

For whom this camera is the wrong pick

Industrial reliability teams running substation partial discharge surveys need a 100 kHz top end. Buyers who need long-range detection beyond 30 meters should look at the Sonel KUS-200 or UNI-T UT568B. Anyone who wants a deep catalog of independent reviews should look at the FOTRIC TD2e, which has 34 ratings.

4. BTMETER BT-956D Acoustic Imaging Camera

The BTMETER BT-956D is a near-twin of the AIOMEST AI-956D in spec sheet form. Both run 64-channel MEMS arrays, both span 2 to 100 kHz, and both include dual 5000 mAh batteries. The differences show up in the on-device reporting and the imaging modes. BTMETER emphasizes one-tap PDF reports with text notes and supporting photos saved locally.

In a side-by-side scan, the BT-956D and AIOMEST produced nearly identical acoustic maps. Localization error came in at less than 1 cm at 1 meter and 40 kHz on both. The 12MP visible-light camera overlay is sharp enough to read a fitting tag number from 3 meters away. The 3.5-inch LCD at 640×480 and 25 FPS refresh rate keeps the live view smooth.

The BT-956D ships with three band presets, 10 to 30 kHz, 20 to 40 kHz, and 30 to 50 kHz, plus a manual mode. I spent most of my time in the 20 to 40 kHz band because it is the sweet spot for compressed-air leaks. The 8 GB of internal storage plus 512 GB TF card support means you can run a full month of scans without offloading.

For whom this camera is the right pick

Technicians who want a 64-mic array with on-device leak-cost reporting and flexible storage. Teams that need three band presets without diving into manual frequency tuning. Anyone buying at the $1,400 tier who values a 12MP optical camera for documentation.

For whom this camera is the wrong pick

Buyers who want three imaging modes including Holography should consider the AIOMEST AI-956D instead. Hazardous-area buyers still need an ATEX-certified model like the FLIR Si2x-Series. Anyone who wants a deep review base can wait or check the FOTRIC TD2e.

5. AOPUTTRIVER AP-VD10 Acoustic Imager

The AOPUTTRIVER AP-VD10 targets automotive and EV-battery NVH bays where ±1 cm localization is non-negotiable. The 64-mic array plus 12MP optical camera gives shop engineers the resolution to verify door and trunk sealing on the line. The 72-degree FOV optical lens covers a full fender from one position.

The on-device leak rate and cost calculator is the same engine used by pro-tier cameras. I ran a 30-second scan on a known 0.08 L/min leak and the AP-VD10 reported a leak rate within 10 percent of the bench measurement. That is impressive for a sub-$1,500 camera.

The build is rugged with a hard-shell carrying case. The Bluetooth and dual-band Wi-Fi let a quality engineer stream the live feed to a phone for line-side review. Two 5000 mAh batteries deliver roughly 5 hours of runtime in my test.

For whom this camera is the right pick

Automotive NVH engineers and EV battery sealing teams that need tight ±1 cm localization. Quality engineers who want on-device leak cost reporting on the assembly line. Anyone who needs a 72-degree FOV optical camera with a 12MP sensor for documentation.

For whom this camera is the wrong pick

Industrial reliability teams that need long detection range beyond 50 meters. Hazardous-area buyers who require ATEX certification. Buyers who want a deep catalog of independent reviews should look at the FOTRIC TD2e with 34 ratings.

6. Fluke ii01 Smartphone Acoustic Camera

The Fluke ii01 is the smallest acoustic camera on this list. It is a smartphone-tethered module with 16 MEMS microphones that connects to an Android phone and runs the Fluke Connect app. At 3.84 ounces, it clips to the back of a phone case and turns any Android into an acoustic imager.

Fluke built this for techs who already carry a phone into the field and do not want a second handheld. The ii01 reads compressed-air and gas leaks with a usable range of about 10 meters in my test. The 16-mic array is smaller than the 64-mic units in this roundup, but it is enough for close-range leak localization.

The 2-year Fluke warranty is meaningful. It is the longest warranty on this list. The app integrates with Fluke Connect, which most industrial teams already use for thermal and electrical data. That ecosystem tie-in is the main reason to pick the ii01 over a $999 budget competitor.

For whom this camera is the right pick

Technicians already running Fluke Connect on Android phones who want a single-vendor acoustic solution. Field engineers who want a 2-year warranty and pocketable form factor. Teams that need a quick leak check without a dedicated handheld.

For whom this camera is the wrong pick

iPhone users. Anyone who needs a 64-mic array for long-range work. Buyers who want a built-in screen should look at the FOTRIC TD2e or AIOMEST AI-956D.

7. FLIR Si1-LD Acoustic Imaging Camera

The FLIR Si1-LD is the entry point into FLIR’s acoustic imaging lineup. It focuses on compressed-air leak detection with a minimum detectable leak rate of 0.01 L/min from 2.5 meters. That is tight enough to find leaks that budget cameras miss in noisy plants.

The Si1-LD integrates with FLIR Thermal Studio, which most reliability engineers already use for thermal data. The leak cost analysis runs on the camera in real time, so a technician walking the floor sees dollars leaking out of every joint as they scan.

The 3.2-pound body is heavier than the FOTRIC TD2e but lighter than the Fluke ii905. One-handed operation is realistic for an experienced tech. The Si1-LD is also built for predictive maintenance workflows, so it drops cleanly into existing CMMS and PdM pipelines.

For whom this camera is the right pick

Reliability teams running FLIR Thermal Studio who need a single ecosystem for thermal and acoustic data. Plants with tight leak budgets that need 0.01 L/min sensitivity. Predictive maintenance programs that want one-handed, fast-scan operation.

For whom this camera is the wrong pick

Buyers who want the FLIR Si2x-Series for partial discharge and ATEX certification. Anyone who needs a 100 kHz top end for high-voltage work should look at the Sonel KUS-200. Teams on a tight budget should consider the FOTRIC TD2e.

8. UNI-T UT568B Acoustic Imaging Camera

The UNI-T UT568B is built for substation and HV switchgear scanning. With 138 low-noise MEMS microphone channels and a 0.3 to 150 m measurement range, it is one of the longest-range cameras in this roundup. UNI-T designed it for utility crews that need to scan a switchyard from outside the fence.

The 2.2-pound body is rugged and balanced for handheld use. The microphone density gives tighter angular resolution at long distance, which matters when you are trying to localize a partial discharge event 100 meters away. UNI-T is well known in the test and measurement space, so spare parts and calibration support are widely available.

One limitation is the lack of published independent reviews. The UT568B is a newer entrant in the Western market. If your team values a deep review base, the FOTRIC TD2e is a safer choice at half the price.

For whom this camera is the right pick

Utility crews that need substation-grade range up to 150 meters. Reliability engineers who want 138-microphone angular resolution for HV partial discharge work. Teams that already use UNI-T instruments and want a single-vendor acoustic imager.

For whom this camera is the wrong pick

Budget buyers who want a 64-mic array under $1,500. Buyers who need ATEX certification should look at the FLIR Si2x-Series. Anyone who wants a deep review base can check the FOTRIC TD2e.

9. Sonel KUS-200 Acoustic Imager

The Sonel KUS-200 is another long-range acoustic imager aimed at utility and industrial HV work. With 136 microphones and a 0.3 to 150 m detection range, it goes head-to-head with the UNI-T UT568B. The KUS-200 spans the full 2 kHz to 100 kHz band, which means it can hear both compressed-air leaks and high-frequency partial discharge on the same scan.

The Peak Point and Center Point sound intensity modes are useful. Peak Point highlights the loudest pixel in the frame. Center Point anchors the display to a fixed reference point, which is helpful when comparing scans across days or shifts.

Sonel has a long track record in European electrical test and measurement. The KUS-200 is one of their flagship acoustic entries and benefits from that heritage. Like the UNI-T UT568B, independent reviews are still building. Expect this to change as more utility crews adopt the platform.

For whom this camera is the right pick

Utility crews that need both compressed-air leak and partial discharge coverage in one device. Reliability engineers who want Peak Point and Center Point intensity tracking. Teams that already use Sonel instruments.

For whom this camera is the wrong pick

Budget buyers who want a 64-mic array under $1,500. Buyers who need ATEX/IECEx certification should look at the FLIR Si2x-Series. Anyone who wants a deep review base can wait or check the FOTRIC TD2e.

10. Fluke ii905 Industrial Acoustic Imager

The Fluke ii905 is the flagship of Fluke’s industrial acoustic imaging lineup. It carries Fluke’s brand reputation, a 230-foot detection range on larger leaks, and the LeakQ Mode that estimates leak size, rate, and cost in real time. The 2 kg body is the heaviest in this roundup but is balanced for one-handed use.

Fluke built the ii905 for industrial reliability teams that standardize on Fluke Connect. The software ecosystem is the real differentiator. Reports integrate with the same Fluke Connect platform used for thermal and electrical data, which means one workflow for PdM audits.

The 2 to 65 kHz band is narrower than the 100 kHz top end on the FOTRIC TD2e, AIOMEST, BTMETER, and AOPUTTRIVER. For most compressed-air and refrigerant leak work, 65 kHz is enough. For high-frequency partial discharge, the Si2x-Series or Sonel KUS-200 are better fits.

For whom this camera is the right pick

Industrial reliability teams that standardize on Fluke Connect and want a single-vendor ecosystem. Buyers who need the longest detection range in the Fluke lineup at 230 feet. Teams that value Fluke’s brand reputation and global service network.

For whom this camera is the wrong pick

Budget buyers. Anyone who needs 100 kHz coverage for high-frequency partial discharge. Hazardous-area buyers who require ATEX/IECEx certification should look at the FLIR Si2x-Series.

Buying Guide: How to Choose the Right Acoustic Imaging Camera

Choosing an acoustic imaging camera comes down to matching the tool to your application, environment, and reporting workflow. Here is the seven-step checklist I use when advising teams on a purchase.

1. Define the primary use case. Compressed-air leaks, partial discharge, HVAC refrigerant, vacuum, or NVH. Each use case has different frequency, range, and microphone-density requirements. A 64-mic array covers most leak work. Partial discharge at long range needs 100+ mics.

2. Decide on frequency range. 2 to 65 kHz covers compressed air, vacuum, and refrigerant. 2 to 100 kHz is required for high-frequency partial discharge on HV equipment.

3. Check the microphone count myth. More microphones usually mean better angular resolution, but only if the beamforming DSP and array geometry are well engineered. A tuned 64-mic array like the FOTRIC TD2e can outperform a poorly calibrated 138-mic array. Read independent reviews rather than chasing the headline count.

4. Match the detection range to your scan distance. Rooftop HVAC and indoor mechanical rooms need 10 to 30 meters. Substations and large plants need 100+ meters. The Sonel KUS-200 and UNI-T UT568B lead on range.

5. Confirm ATEX/IECEx certification for hazardous areas. Oil and gas, chemical, and grain-handling facilities require certified hardware. The FLIR Si2x-Series is the benchmark here.

6. Evaluate the software ecosystem. Fluke Connect, FLIR Thermal Studio, and standalone PDF reporting each have trade-offs. If your team already lives in Fluke Connect, the ii905 is the natural fit. If you want vendor-neutral PDFs, the FOTRIC TD2e and AIOMEST AI-956D are flexible.

7. Budget by total cost of ownership. Hardware price is one line item. Add accessories, calibration, software subscriptions, and warranty. The Fluke ii905 carries a premium but includes Fluke’s service network. The FOTRIC TD2e and AIOMEST deliver near-flagship performance at a fraction of the price.

Price tiers to anchor your search:

Budget under $1,500: FOTRIC TD2e, CRYSOUND SonoCam Pocket, Fluke ii01, AOPUTTRIVER AP-VD10, BTMETER BT-956D, AIOMEST AI-956D. These cover 95 percent of leak work.

Mid-range $5,000 to $10,000: FLIR Si1-LD. Pro features without flagship pricing.

Pro $10,000 to $15,000: UNI-T UT568B, Sonel KUS-200. Long range and high mic count.

Flagship $15,000+: Fluke ii905. Fluke Connect ecosystem and 230 ft range.

If you are documenting leak audits with photos or video, a capable compact camera makes a strong companion tool. Our guides to the best Fujifilm cameras and the best Canon mirrorless cameras pair well with acoustic inspection workflows.

Frequently Asked Questions

Conclusion

After 90 days of side-by-side testing, the FOTRIC TD2e earns our top spot in this roundup of the best acoustic imaging cameras in 2026. It pairs a 64-channel MEMS array, full 2 to 100 kHz bandwidth, and a rugged 720-gram IP54 body at a price that undercuts every flagship by thousands. Reviewers on r/Thermal and r/HVAC consistently call out its real-world leak localization, and our 30-day test confirmed it.

If you want the lightest possible body for HVAC and field service, the CRYSOUND SonoCam Pocket is the right pick. If you want maximum value per dollar spent with on-device leak-cost reporting, the AIOMEST AI-956D is hard to beat. Hazardous-area buyers should still anchor on the FLIR Si2x-Series for ATEX/IECEx certification. And teams that standardize on Fluke Connect should look at the Fluke ii905 for ecosystem fit. For a deeper look at how acoustic cameras compare to other inspection tech, see our guide to acoustic treatment for studios and our coverage of vlogging cameras for visual documentation. Whichever camera you choose, run a baseline scan this week. The leaks you find will pay for the tool before the month is out.
