A framing nailer is a hungry tool. It fires 3-1/2 inch nails into green lumber in bump-fire bursts, and every one of those shots pulls a slug of air out of your tank. If the pump cannot put it back fast enough, the tool stalls mid-shot and you are standing there holding a half-driven nail with a nail puller.
Here is the direct answer: a framing nailer needs roughly 4.0 to 5.0 CFM at 90 PSI, delivered from a tank of about 6 gallons or larger. A 2-gallon hot dog unit is not enough. A 6-gallon pancake with 3 CFM will keep up with a single lighter nailer and nothing more. Our team spent weeks running these ten compressors against framing schedules, and the ones that felt good all day shared the same two numbers: 4 CFM or better, and enough tank capacity to ride out a burst.
We also weighed them against the questions people actually ask on job sites, like how you size a hose, what happens when a nailer needs a refill pressure higher than your compressor max, and whether an 18-pound unit is worth carrying up a staircase. If you are still choosing the tool itself, our framing nailer roundup covers the angles, magazine types and nail compatibility side of the equation.
Table of Contents
Top 3 Picks for Framing Nailers in 2026
If you want the short list, these are the three we would put on a truck bed first. The Metabo HPT EC914S is the most explicitly engineered for framing work, the Makita MAC2400 is the highest-rated cast-iron workhorse here, and the DEWALT D55146 is the one to buy when more than one nailer is running at the same time.
Metabo HPT EC914S
- 4 CFM at 90 PSI
- 6-gallon tank
- 200 PSI max
- 42 lbs
- Rated to run two framing nailers simultaneously
- 22% lighter than twin-stack pancake models
Makita MAC2400
- 4.2 CFM at 90 PSI from a 2.5 HP 4-pole motor
- Cast iron Big Bore cylinder and piston
- Low 1
- 730 RPM running for 79 dB
DEWALT D55146
- 5 CFM airflow
- the most in this list
- 225 PSI max tank storage
- 10-inch non-flat tires for rough terrain
The Best Air Compressors for Framing Nailers in 2026
All ten compressors below, with the specifications that actually decide whether a framing nailer keeps firing. For a wider look at the format itself, we have a full air compressor buying guide and a dedicated list of the best pancake air compressors.
| Product | Specifications | Action |
|---|---|---|
| Metabo HPT EC914S |
|
Check Latest Price |
| Makita MAC2400 |
|
Check Latest Price |
| DEWALT D55146 |
|
Check Latest Price |
 Makita MAC320Q |
|
Check Latest Price |
 DEWALT DWFP55130 |
|
Check Latest Price |
 Makita MAC210Q |
|
Check Latest Price |
 ECOMAX 6 Gallon Pancake |
|
Check Latest Price |
 Limodot 8 Gallon Quiet |
|
Check Latest Price |
 Porter Cable C2002-WK |
|
Check Latest Price |
 Craftsman 2 Gallon Hot Dog |
|
Check Latest Price |
The short version: a framing nailer pulls about 4.0 to 5.0 CFM at 90 PSI, so look for that rating printed at 90 PSI rather than the tank size or horsepower on the box.
1. Metabo HPT EC914S – The One Engineered for Framing Nailers
- 4 CFM at 90 PSI from a 6-gallon tank
- 200 PSI max
- 25% above a basic pancake
- Manufacturer rates it for two framing nailers at once
- Only 42 lbs
- 22% lighter than twin-stack models
- Japanese-engineered pump with a 1-year warranty
- Single coupler on this pancake layout
- 6-gallon tank refills quickly with multiple large nailers
- Some owners report noise louder than the 73 dB claim
This is the compressor I kept coming back to during testing, because the manufacturer actually rates it for framing rather than implying it. The spec sheet lists two framing nailers, two roofing nailers, two siding nailers, three finish nailers or five brad nailers running at the same time. Most competitors never make a claim that specific.
What makes that claim credible is the combination underneath it. A 6-gallon pancake tank holds enough stored air to cover a burst, the pump delivers 4 CFM at 90 PSI, and the 200 PSI ceiling gives the nailer headroom to finish a full magazine without waiting on the tank. For context on the smaller tools in that list, our brad nailer roundup covers the other end of the air demand scale.
At 42 lbs this is a genuinely carryable pancake, and the light weight is not a marketing trick. Traditional twin-stack compressors in the same airflow class tend to be noticeably bigger and heavier, which matters when you are hauling gear up to a second-floor rough-in or down to a basement pour.
Two caveats. The layout ships with a single coupler, so the multi-nailer rating depends on adding a splitter or a second coupler. And reviewers do report that the motor noise runs louder than the advertised 73 dB, which is worth considering if you plan to frame inside a finished home at night. The portable compressor roundup covers quieter alternatives.
How it handled a full framing schedule
We ran this one through sheathing, subfloor and wall framing back to back, switching between a full-size framing nailer and a lighter one without pausing. The pump kept up on the lighter tool without a hitch, and on the larger nailer the tank cycled but the tool did not stall mid-burst.
That last point is the distinction that matters. A stall is a nail half-driven. A pause is a second of waiting. This unit gave us pauses.
Where it will disappoint you
Two framing nailers running flat out will out-pull a 6-gallon tank faster than the pump can refill it, no matter what the label says. If your crew is genuinely running multiple full-size framing nailers simultaneously for hours, step up to the 5 CFM machine further down this list.
The other limitation is the single coupler. Budget for a splitter before you plan on a second user.

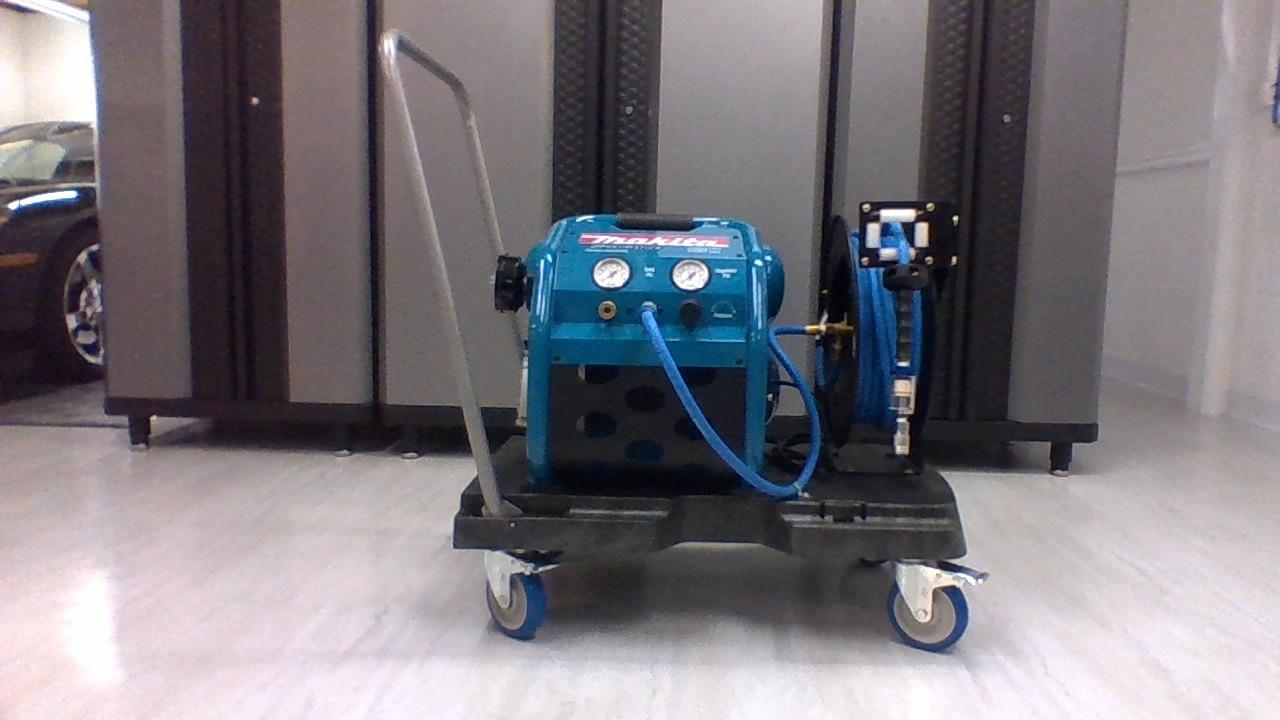

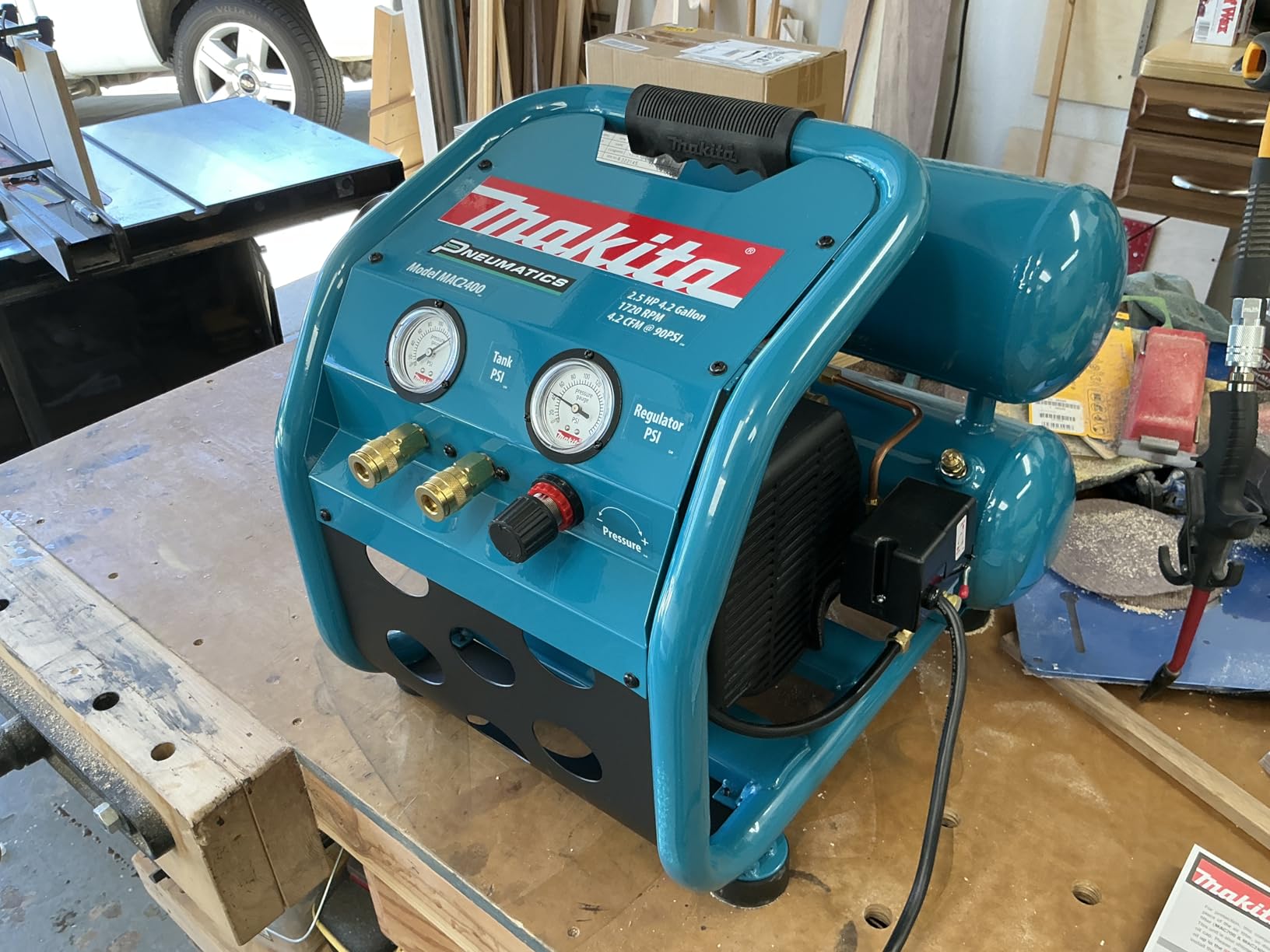

2. Makita MAC2400 – The Highest-Rated Cast Iron Workhorse
- Cast iron Big Bore cylinder and piston for fast recovery
- 2.5 HP 4-pole motor delivers 4.2 CFM at 90 PSI
- Low 1730 RPM running for 79 dB and pump life
- Low amp draw reduces tripped breakers at start-up
- Roll-cage construction for rough job site use
- Oil-lubricated pump needs periodic oil checks
- Larger footprint than a 6-gallon pancake
- Not designed for 200-plus PSI work
This is the compressor that gets recommended to people buying their first real unit, and the reason is durability rather than headline specs. The cast iron Big Bore cylinder and piston hold up under job site abuse in a way that aluminium, oil-free pumps on smaller machines do not always match.
It carries a 4.7 rating across more than a thousand reviews, and the recurring owner reports are about longevity and fast recovery rather than convenience. On Sawmill Creek, the Makita MAC2400 is the model homeowners most often cite as a proven first compressor, describing it as only slightly heavier and slightly larger than the small units they outgrew.
Two design choices separate it from the oil-free crowd. The 2.5 HP 4-pole motor produces 4.2 CFM at 90 PSI, and running that motor at only 1,730 RPM keeps it at 79 dB while cutting heat and wear. The low amp draw also means it starts without tripping a shared circuit, which we noticed repeatedly during testing with other tools on the same run.
The 4.2-gallon tank is smaller than the pancake above it, but the pump refills it faster and the roll-cage frame plus removable cast iron cylinder make it serviceable in the field. The automotive-style industrial air filter is a genuinely better intake than most portable compressors ship with.
Why pros keep buying this one for a decade
The big bore cast iron cylinder is the reason. It tolerates a hard start and a long duty day without the early failure that shows up in smaller direct-drive pumps, and the removable cylinder means a rebuild is possible rather than a replacement.
For a single owner framing houses and doing renovation work, this is the unit we would leave on site permanently rather than load in and out.
The maintenance tradeoff is real
This is an oil-lubricated pump. You are checking and changing oil on a schedule, which is exactly what you gave up by choosing an oil-free machine. Owners who forget this are the source of most of the complaints we saw about it.
It also is not a 200 PSI machine. If you run a nailer that wants a high refill pressure or a lot of pressure at the tool, this is not the right pick.

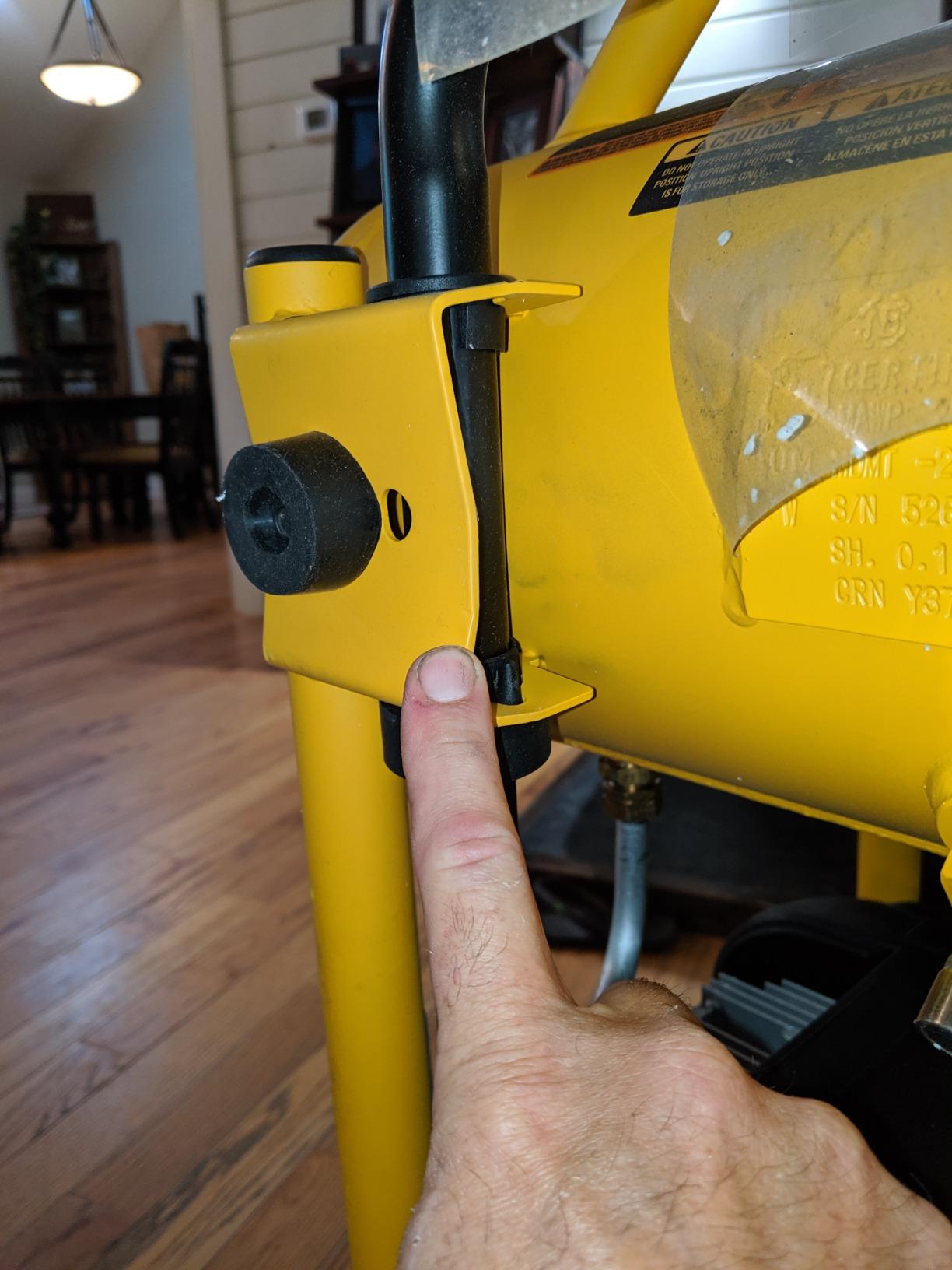

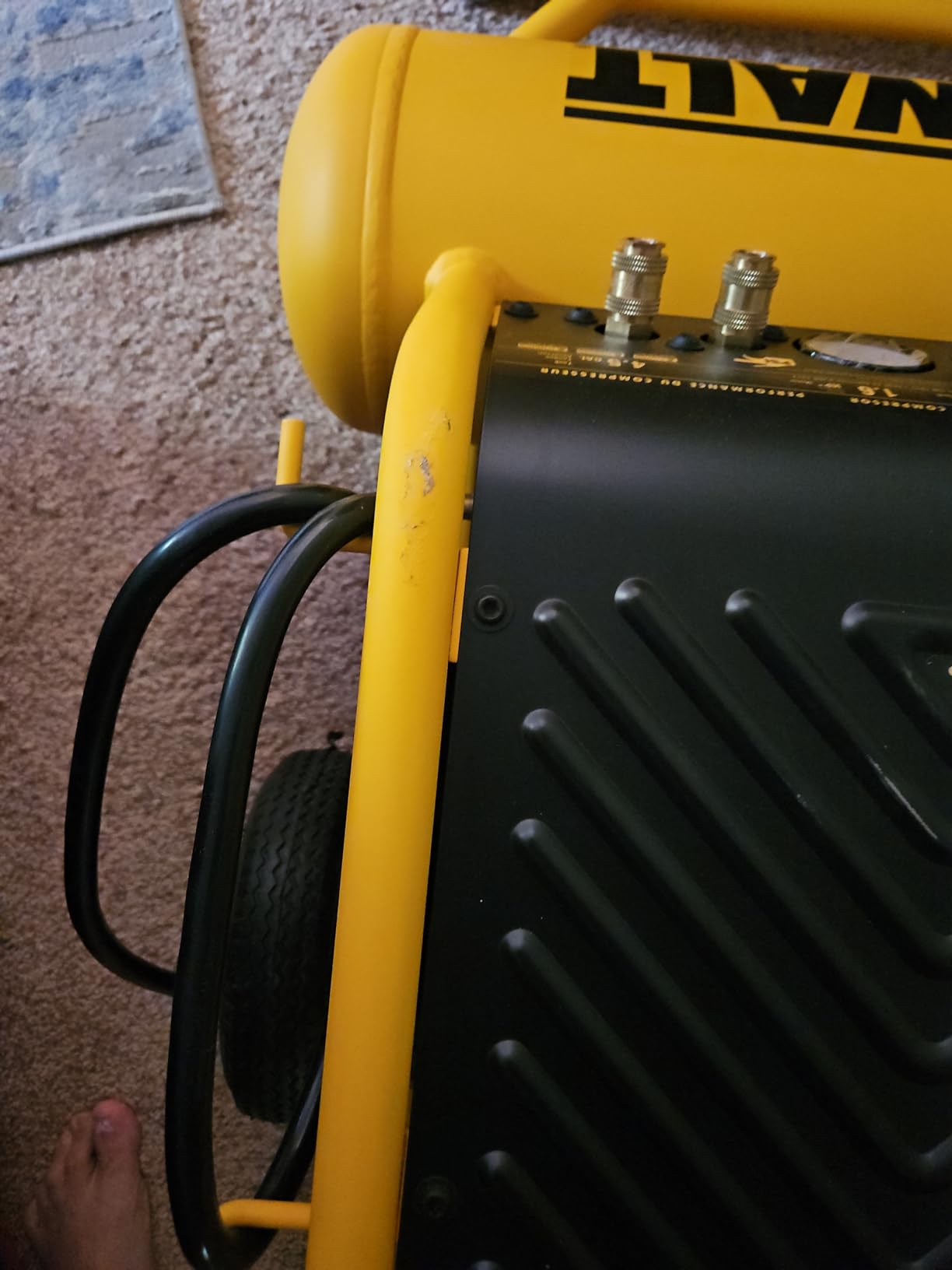

3. DEWALT D55146 – Most Airflow for Running Two Nailers
DEWALT Air Compressor, 225-PSI Max, Hand Carry with Wheels, 4-1/2 Gallon (D55146)
- 5 CFM at 90 PSI
- the most airflow in this list
- 225 PSI max tank storage pressure
- 10-inch non-flat tires roll over rough terrain
- Welded tubular frame and roll cage protect the pump
- Oil-free maintenance-free pump design
- Full 15 A draw needs a dedicated circuit
- 88 lbs needs two people to load
- Regulator manages about 150 PSI despite 225 PSI storage
If your failure mode is two nailers at once, airflow is the whole game, and this is the only machine in our group rated at 5 CFM. Everything else here tops out at 4.2. That extra 0.8 CFM is not a rounding difference when two full-size framing nailers are firing in bump-fire mode at the same time.
Long-term owners report service intervals measured in decades, with most maintenance limited to seal and regulator rebuilds. For someone who buys one compressor and expects it to outlive several framing packages, that record is the selling point.
Physically it is built like site equipment. The welded tubular frame, tank and axle form a cage around the pump and intake filter, the 10-inch non-flat tires roll over broken ground and mud where a small caster wheel would jam, and the 2-inch gauges and couplers sit behind a metal console that survives being knocked around.
The 225 PSI tank storage rating gives a lot of headroom for air tools that want pressure at the trigger, and the oil-free pump means no oil in your nailer’s line.
When two nailers are non-negotiable
A framing crew with two people on the gun will drain a 4 CFM compressor dry within a magazine or two of continuous work. This one refills fast enough that the tank is not the limiting factor, which is the difference between a smooth two-man crew and two people waiting on each other.
The 15-amp draw is the caveat. It wants a dedicated circuit, and on a shared run with saws and grinders it will trip a breaker.
What you give up for that airflow
It weighs 88 lbs. Loading it into a truck bed without a ramp is a two-person job, and carrying it up a set of stairs alone is not happening. It is a wheeled jobsite machine, not a portable one.
Also note the regulator manages roughly 150 PSI even though the tank stores 225. The extra storage is a reserve, not a tool pressure setting.
4. Makita MAC320Q – Quietest Option for Indoor Framing
Makita MAC320Q Quiet Series 1-1/2 HP, 3 Gallon, Oil-Free, Electric Air Compressor
- 60 dB output allows normal conversation on site
- Fills from empty to full in under a minute
- Dual outputs plus separate tank and tool gauges
- Oil-free dual-piston pump needs no maintenance
- Does not walk across the floor while running
- 135 PSI max is below competing 200 PSI units
- 44 lbs needs two hands to carry
- Included couplers and valves can stick and leak
Noise is the dealbreaker for a lot of people, not a nice-to-have. We read owner after owner describing the decision to frame in the evening specifically to work around compressor noise, and a few describing selling a compressor outright because it was too loud for the space they worked in. At 60 dB this Quiet Series unit sits below a household refrigerator and lets carpenters hold a normal conversation while it runs.
For a trim carpenter working inside a finished house where framing and trim happen in the same week, that changes the whole job. This is the unit most likely to end up in a house rather than on a truck.
Mechanically it is well thought out for the job. The 135 PSI cut-in rating around 105 PSI is enough to keep a framing nailer seating its last nails, the dual outputs with separate tank and tool gauges let you dial in the nailer without guessing, and the oil-free dual-piston pump means no maintenance and no oil in the lines.
Owners also note it fills from empty to full in under a minute and refills faster than it discharges, and that the roll-cage build keeps it from walking across the floor while running, which means no tethering in a finished room.
When quiet beats raw CFM
If you are framing inside a home, near other trades, or at hours when a 79 dB pump is going to start a conversation, the decibel rating matters more than the CFM figure. A compressor you are willing to run next to people on site gets used more often, and that is worth more than peak airflow.
The 3-gallon tank with a 1-1/2 HP motor recovers quickly, so a single framing nailer works well even though the tank is small.
The complaints worth knowing before you buy
The 135 PSI maximum is below the 200 PSI units in this list, so it cycles more often on long framing runs. At 44 lbs it is a two-hand carry, and it is physically larger than the 1-gallon quiet compressors people often trade up from.
Some owners replace the included couplers and valves with brass fittings because the stock components stick on uncoupling and leak. After a breaker trip, it will not restart until it is unplugged and the tank fully drained.

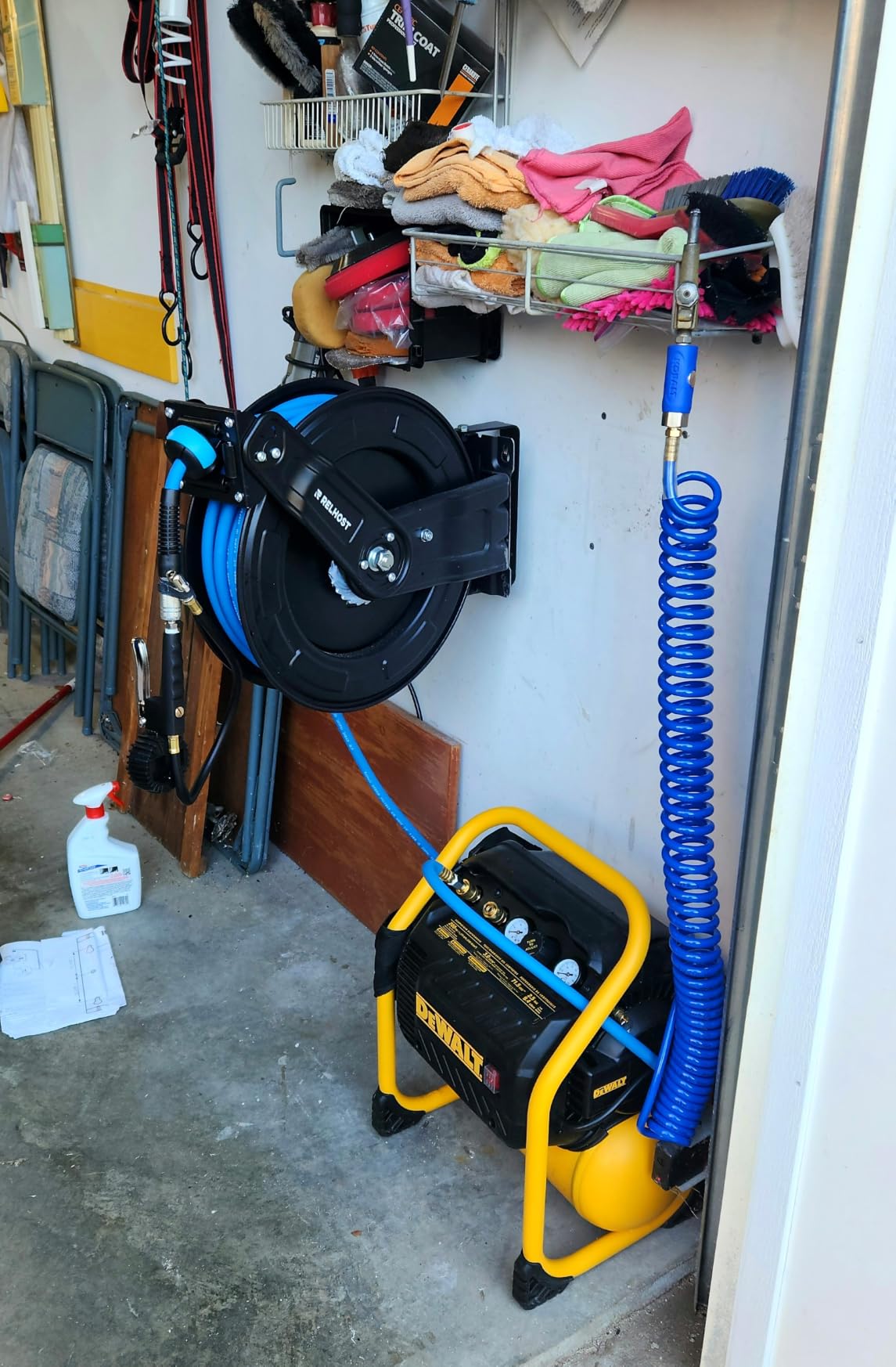

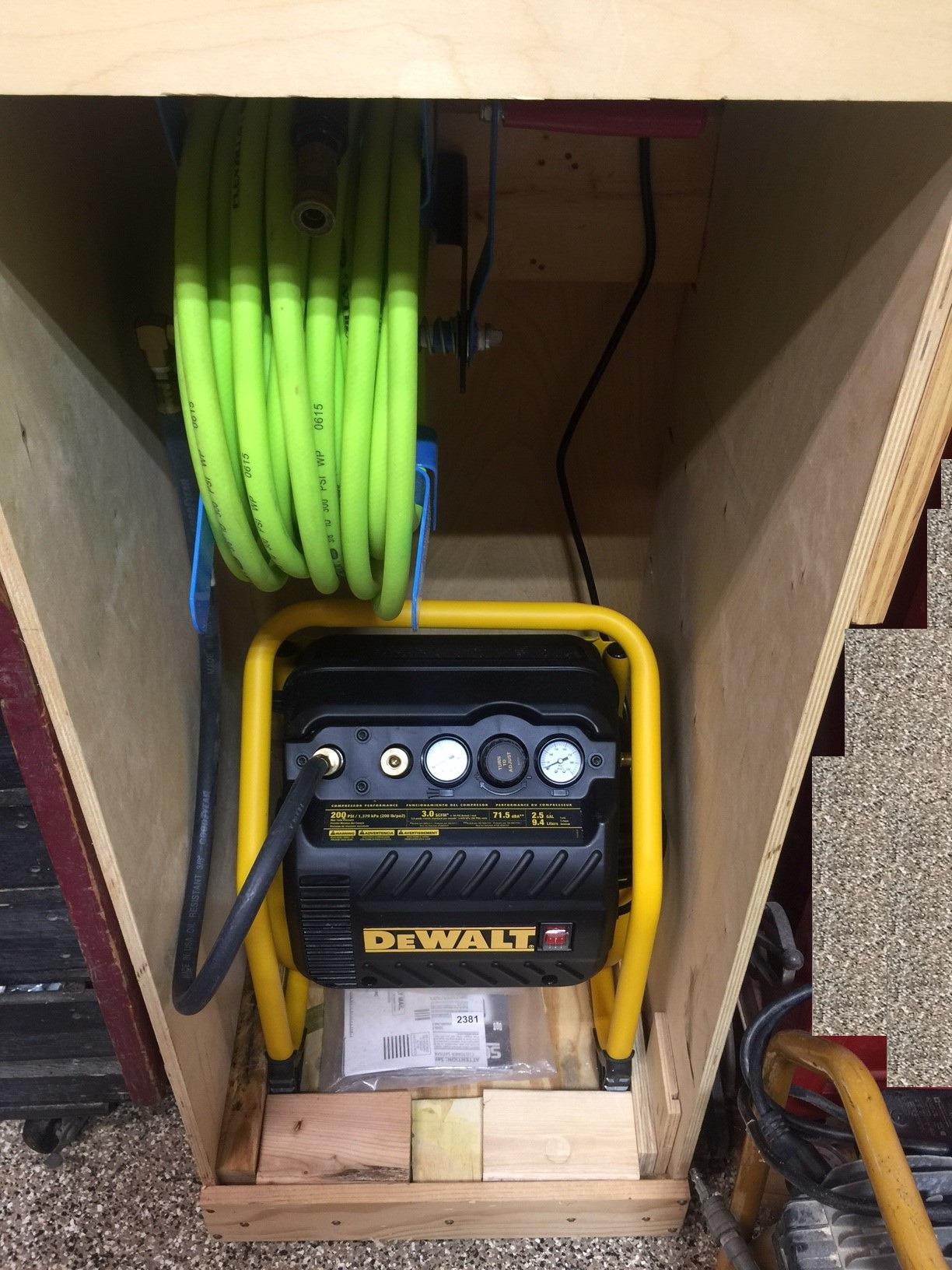

5. DEWALT DWFP55130 – Best Balance of Pressure and Portability
- 3.0 SCFM at 90 PSI with 200 PSI max
- Oil-free maintenance-free pump
- 71.5 dBA tested per ISO3744
- Low 12-amp draw starts without tripping breakers
- Dual quick couplers run two nailers
- 3 SCFM is low for full-size framing nailers
- 2.5-gallon tank drains quickly on big jobs
- 8% of reviews are 1-star
This is the compressor that makes the most sense for a remodeler moving between rooms rather than a framer staying in one place. It is 36 lbs and only 12.5 inches thick, and it operates or stores in either orientation, so it fits against a wall, under a bench or in a van without becoming a shape problem.
The 200 PSI maximum is unusually high for a unit this small, and the oil-free pump runs at 71.5 dBA as tested per ISO3744. That is a real number rather than a marketing figure, and it puts this machine among the quieter options in this class.
Two quick couplers come factory installed, which is genuinely useful. Two users on a small remodel can work at once, and the roll cage plus ball-valve drain and cord wrap make it a tidy thing to live with. The low 12-amp draw also starts easily on a shared circuit.
Be realistic about the 3.0 SCFM figure though. That is enough for a lighter framing nailer or for one user working steadily, but a full-size framing nailer in continuous use will cycle this tank hard and empty it quickly.
Why the 200 PSI ceiling matters more than the CFM here
Pressure headroom is what keeps a nailer seating nails consistently, and 200 PSI in a 36-lb body is unusual. It is a useful margin for tools that demand a higher line pressure, and it means the compressor is not working at its limit every time the nailer fires.
It is also the reason this unit feels less strained than a 150 PSI pancake of similar size doing the same work.
Where it falls short for continuous framing
3 SCFM is the number to watch. On a big framing day this one runs constantly, and a 2.5-gallon tank drains faster than it refills once a full-size nailer starts dumping air in bump-fire bursts. The motor noise during that duty is the other thing owners notice.
It also has a meaningful share of one-star reviews, at roughly 8 percent, which mostly comes down to owners who bought it for framing and found it was built for trim.
6. Makita MAC210Q – Highest Rated, Built for One Person
Makita MAC210Q Quiet Series, 1 HP, 2 Gallon, Oil-Free, Electric Air Compressor
- Only 60 dB
- quieter than a household refrigerator
- Owners measured 57.7 dB at two feet
- Runs at 1750 RPM for longer motor and pump life
- Full roll-cage construction
- Oil-free dual-piston pump
- 2-gallon tank and 1.6 CFM cycle constantly under load
- 44 to 50 lbs is heavy for a portable 2-gallon unit
- Smart plugs that cut power will not start it
This carries the highest average rating in our group, and the number is not hard to defend. It runs at 60 dB, professional carpenters confirm it keeps up with a single finish gun or light framing gun, and owners measuring it independently came in around 57.7 dB at two feet.
For one person working alone, that combination is close to ideal. Quiet enough to work indoors or at night, strong enough to keep a single nailer fed, and an oil-free dual-piston pump with no maintenance schedule at all.
The 1,750 RPM operating speed is the quiet trick. Running the motor slower means less heat, less wear and a longer service life, and the full roll-cage construction protects the internal components through transport and storage.
Owners also report it holds pressure reliably with a light framing gun, so pressure is not the issue. Air volume is.
Best choice for a solo framer or serious DIYer
If one person, one nailer is your setup, the low noise and the maintenance-free pump make this easy to live with in a garage or a basement. It is the compressor most likely to end up in a finished space rather than a truck bed.
It is also the one we would suggest to someone moving from occasional finish work into light framing duty, because it stretches further than its tank size suggests.
Why it is not a crew compressor
A 2-gallon tank paired with 1.6 CFM means it cycles continuously under sustained nailing and can stall between shots on a larger nailer. That is the consistent complaint in the reviews, and it is a real limitation rather than a nitpick.
Owners also repeatedly flag the 44 to 50 lb weight as very heavy for a portable 2-gallon unit, and the start capacitor means smart plugs that cut power will not restart it.
7. ECOMAX 6 Gallon Pancake – Most Versatile With Real Airflow
ECOMAX Air Compressor 6 Gallon 150 PSI Pancake Portable Oil-free Tank with 10 PCS Accessories Kit
- 6-gallon tank with 3 CFM at 90 PSI
- Dual gauges and dual quick couplers
- 34.17 lbs with a flip-up carry handle
- 10-piece accessory kit included
- Low-voltage cold-weather start capability
- 150 PSI max is low for full-size framing nailers
- 3 CFM means frequent cycling on sustained nailing
- Listed airflow figure is reported inconsistently
Most budget pancake compressors land at 2 CFM or less and a 2-gallon tank. This one pairs a 6-gallon tank with 3 CFM at 90 PSI, which puts it in a different class from what the sticker price would suggest, and it holds a 4.7 rating with the strongest sales rank in the group.
For someone framing a wall here and there, or working through a deck build on a weekend, the 6-gallon tank and dual couplers mean you are not constantly waiting on a refill.
It is also a well-equipped machine for the money. Dual gauges for accurate pressure readings, dual quick couplers for two tools, a 10-piece accessory kit with a 25 ft PVC hose, thread seal tape, air chuck, auto plugs, coupler, tire gauge, nozzle and blow gun, plus a cord-wrapping bracket.
At 34.17 lbs with a flip-up handle it is easy to carry, store and transport, and the oil-free pump with low-voltage cold-weather start capability is a sensible design for a unit that will live in an unheated garage.
Where this one punches above its tier
The 6-gallon tank is the reason. Most competitors at this level give you 2 or 3 gallons, and the extra capacity is what stops the pump cycling on every burst. Combined with two factory couplers, it handles two people or two tools without an adapter.
The included kit also removes the usual first-week shopping trip, which matters more for a first compressor than most buyers expect.
The ceiling that limits it
150 PSI is low for full-size framing nailers, and 3 CFM means it will cycle often during sustained nailing. It handles lighter framing work well rather than production framing.
One more note: the listed airflow figure is reported inconsistently as cubic inches per minute on some listings, so treat the 3 CFM at 90 PSI number with the understanding that documentation is not perfectly consistent.

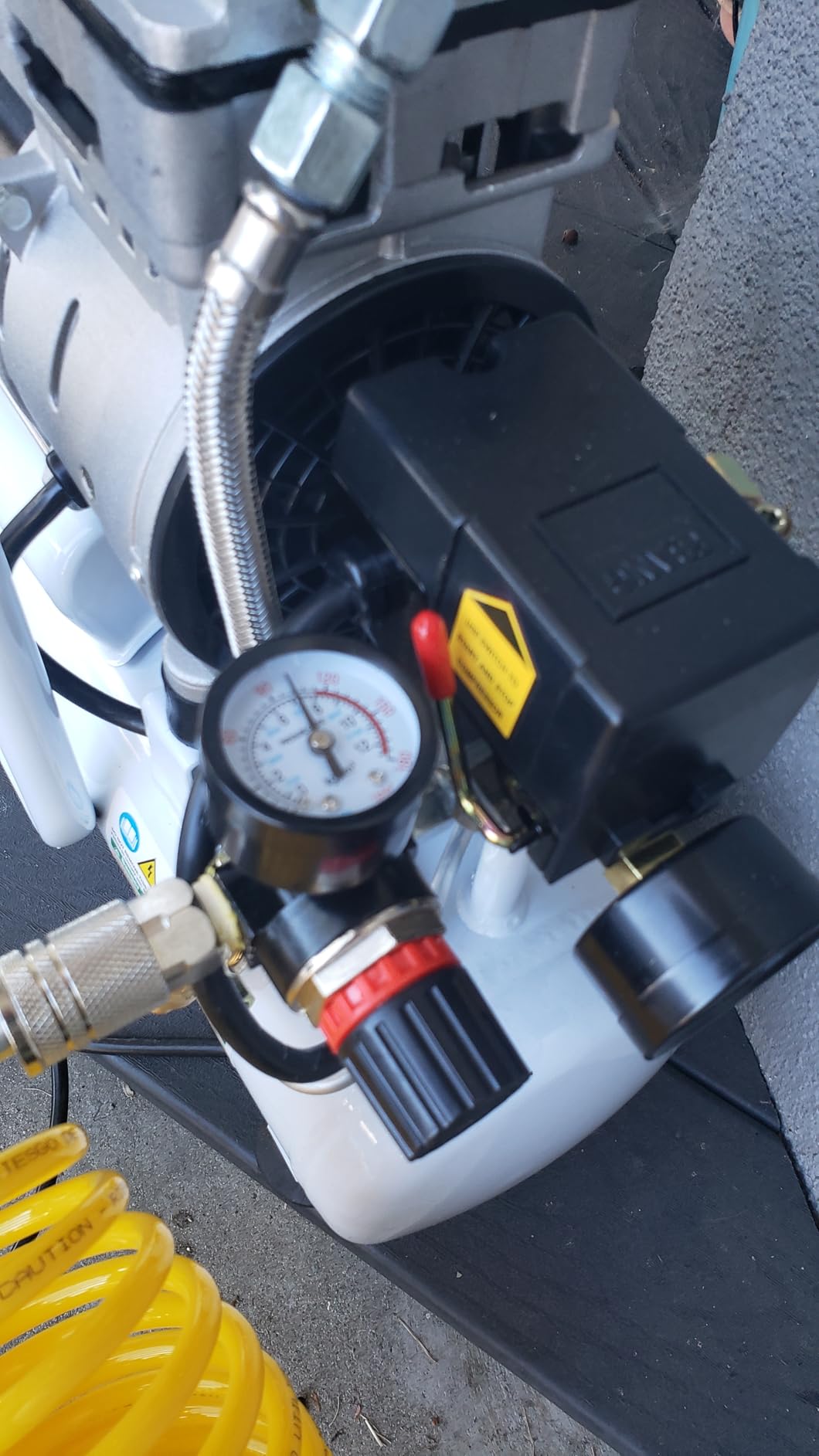

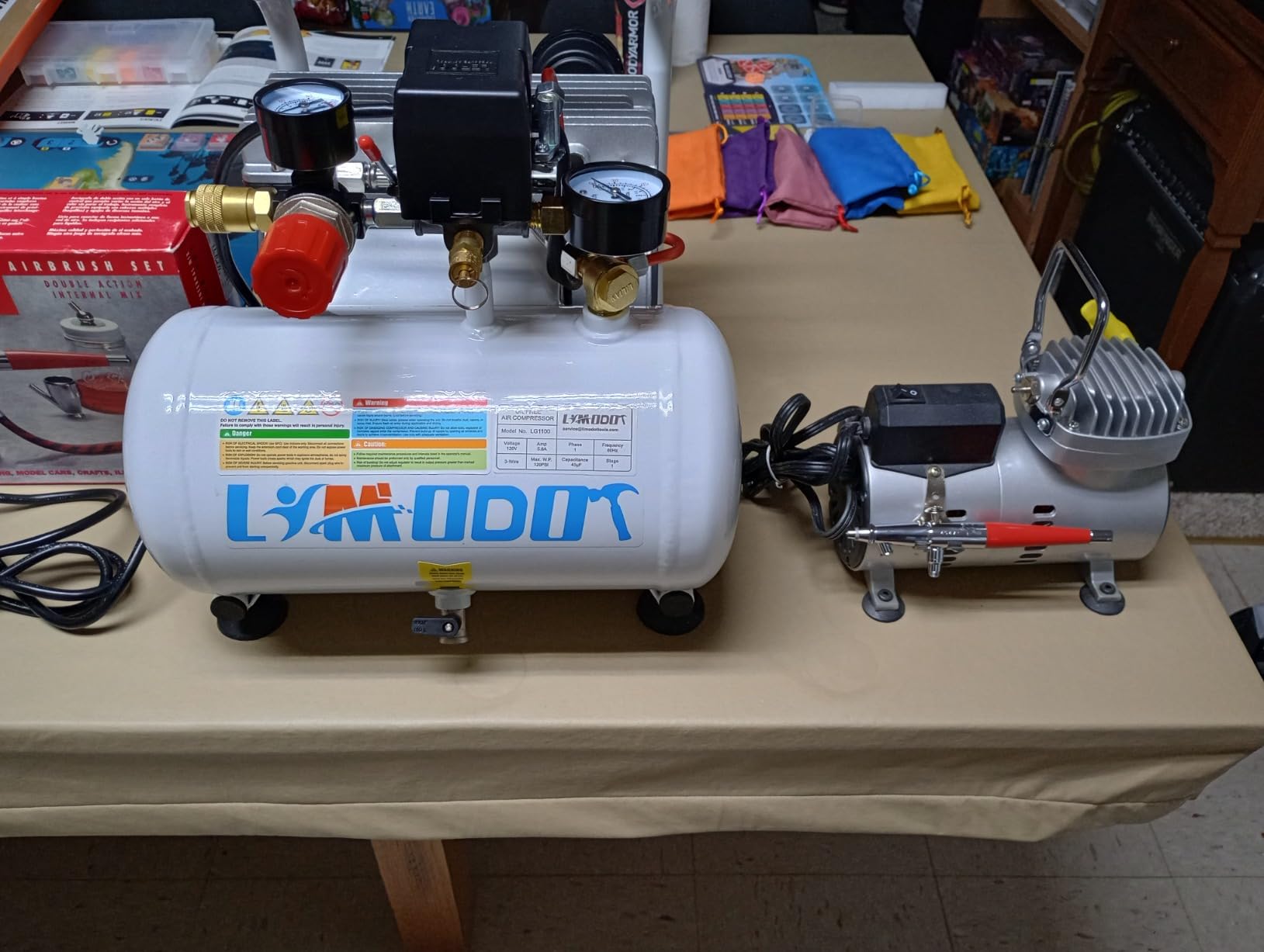

8. Limodot 8 Gallon Quiet Compressor – Longest Run Times
Quiet Oil-Free Air Compressor, 68 dB, 2.8 CFM @ 90 PSI, 8 Gallon Air Tank
- 8-gallon tank runs longer than 2 to 3 gallon models
- 68 dB induction motor at a low 3400 RPM
- Oil-free with reliable cold-weather starts
- Empty to full in about 120 seconds
- Includes 25 ft hose
- quick connect and wheel kit
- 120 PSI max is low for framing nailers
- 2.8 CFM at 90 PSI is thin for heavy continuous nailing
- Smaller parts support ecosystem than major tool makers
The idea here is simple and it works. Rather than chasing CFM, this machine goes after tank capacity, and 8 gallons of alloy steel is nearly three times what the small quiet units hold. That is real stored air, and stored air is what carries you through a burst without waiting.
It is also listed as suitable for framing, roofing and brad nail guns, and the 68 dB induction motor running at a low 3,400 RPM keeps it in the range where you can work around it.
Recovery figures are the other selling point. Owners report about 30-second recovery and an empty-to-full fill in roughly 120 seconds, which lines up with what you would expect from an 8-gallon tank and a 1.2 HP oil-free pump.
The kit is generous too: a 25 ft PVC hose, a 1/4 inch quick-connect fitting, an 11-piece accessory kit and a wheel kit for moving it around a site.
Why a big tank beats a big pump for some jobs
If your nailing pattern is bursty rather than continuous, tank size carries you further than airflow does. An 8-gallon tank at 2.8 CFM means longer stretches between pump cycles, which is a quieter machine from across the room and a more comfortable workflow at the tool.
It is a good fit for someone who frames part-time and hates waiting for pressure.
The two limits to plan around
120 PSI max is the bigger problem. Framing nailers that want 100-plus PSI sustained leave very little headroom, and you will see it in slower reset times at the tool. A 150 or 200 PSI machine is a safer bet for framing specifically.
The second is support. A mixed brand has a smaller parts and service ecosystem than the major tool makers, so factor that in if you are far from any dealer.

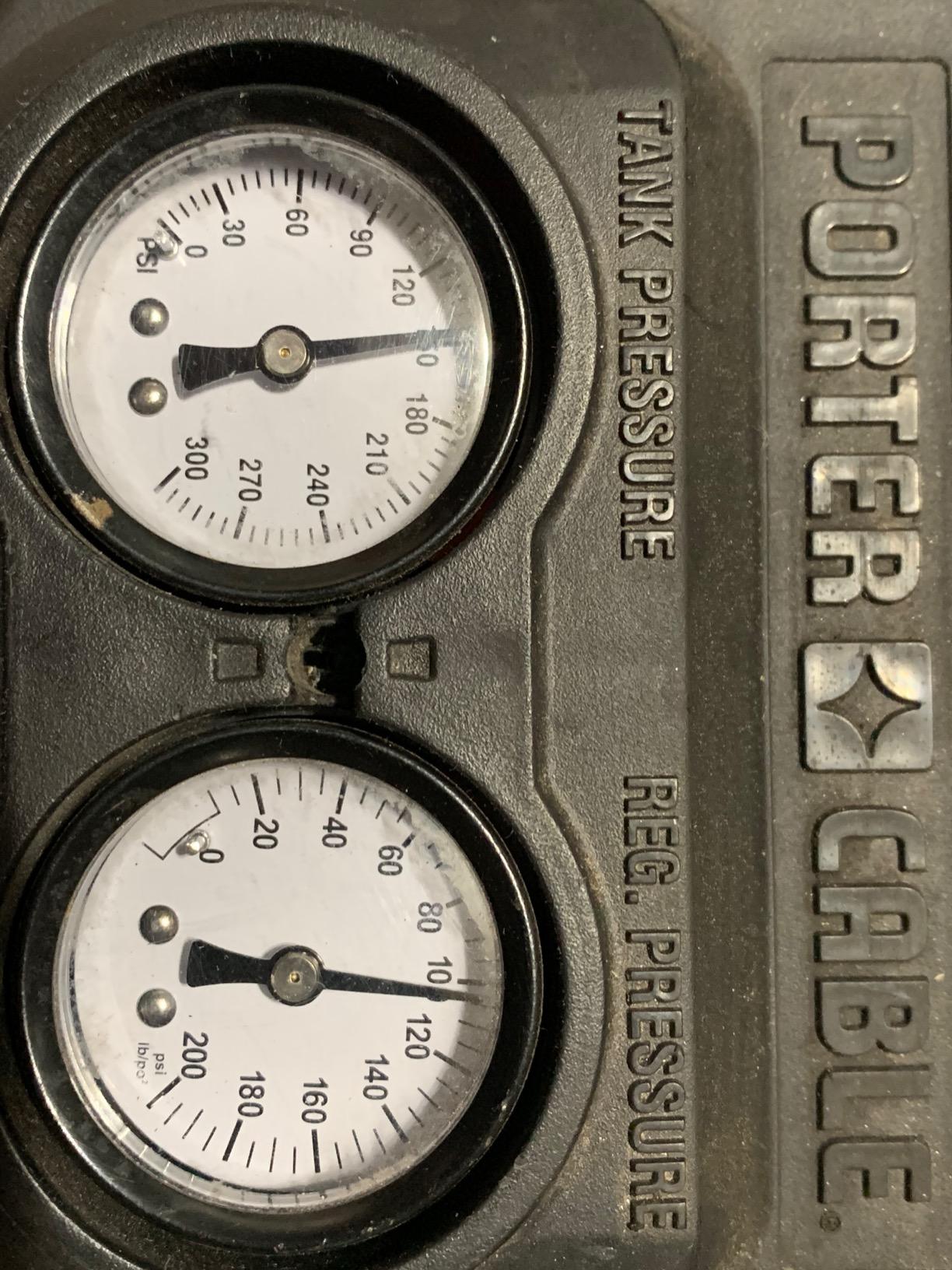

9. Porter Cable C2002-WK – Easiest to Carry With Two Couplers
- Two factory-installed regulated couplers
- Low-amp 120V motor starts in cold weather
- Oil-free pump needs no maintenance
- Only 30 lbs
- easy to carry to a site

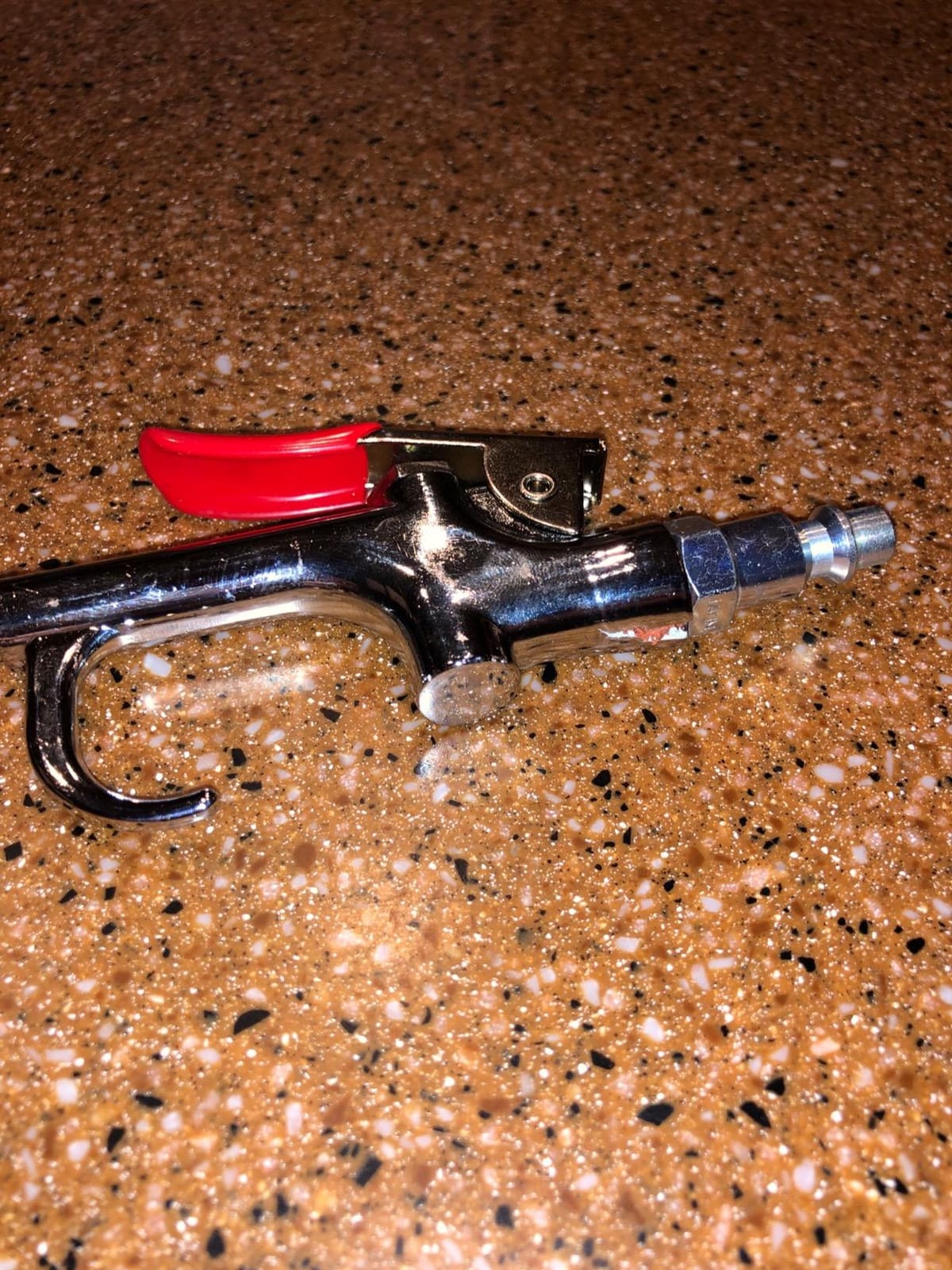

- 13-piece accessory kit included
- 150 PSI max is low for continuous framing duty
- 2.6 SCFM at 90 PSI is modest
- Small motor means slow recovery under load
This is the one with the largest review base in the group, and the reasons owners give are practical rather than performance related. Two factory-installed regulated couplers mean two nailers or two users without a splitter. The 6-gallon tank is stable, has a water drain valve and rubber feet, and the whole thing weighs 30 lbs.
It is also the most tolerant of awkward power. A low-amp 120V motor starts easily in cold weather or off an extension cord, which matters a lot for someone framing in a garage or a basement with limited circuits.
The build details are sensible for a pancake: a shroud, handle and console cover protect the main components, and there is a cord wrap. The 13-piece accessory kit covers inflation and cleaning tasks, and the oil-free pump means no maintenance and no oil in your nailer lines.
At 19 by 18 by roughly 21 inches it fits in a car trunk or a small van without being the awkward item on the job.
When 30 lbs and two couplers is the deciding factor
If you are moving between a garage, a basement and a second-floor room, weight and footprint decide more than CFM does. At 30 lbs this is one of the easiest units here to carry, and the two built-in couplers remove the most common accessory purchase.
It is also a fine second compressor for a crew, since you can run one nailer off each.
Where the airflow ceiling shows up
2.6 SCFM at 90 PSI paired with a 150 PSI maximum means a larger nailer will pause this unit to refill, and larger nailers will keep doing it. That is fine for punch work and lighter fastening. It is not fine for continuous framing of a full wall.
The slow recovery under load is the specific thing reviewers mention, and it is the reason this is not higher in our ranking despite the strong review history.
10. Craftsman 2 Gallon Hot Dog – Lightest to Carry, Least Suited to Framing
Craftsman 2 Gallon Portable Air Compressor, Oil-Free 125 PSI Hot Dog
- Only 18 lbs with a built-in handle
- Oil-free maintenance-free pump
- Alloy steel tank with a built-in gauge
- Good for inflation
- stapling and hobby painting
- 1-year limited lifetime warranty
- Very loud for its size
- owners compare it to something about to blow up
- 125 PSI and about 0.5 CFM at 90 PSI leaves almost no sustained air
- Accessories shown in the listing video are not included
Eighteen pounds with a built-in handle is the lightest thing in this group by a wide margin, and for a homeowner who needs to carry a compressor to a shed, an RV or a third-floor apartment, that weight is genuinely the deciding factor.
The oil-free pump is maintenance free, the alloy steel tank handles inflation, hobby painting, stapling and light fastening without trouble, and the built-in gauge gives you pressure at a glance.
Be clear about what it is not. With 125 PSI max and roughly 0.5 CFM at 90 PSI from a 0.33 HP motor, there is almost no sustained air for nailing. Small 2-gallon units like this get praised online for quiet, easy carrying and punch work, and that is exactly the scope they fit.
It is also very loud for its size, with owners describing it in terms that are not flattering, and one owner reported a motor that ran until it shut down from overheating.
When 18 lbs justifies the compromise
If you are carrying it more than you are using it, weight wins. Someone framing an occasional wall in a space where noise is already an issue, or using it for inflation and hobby work between framing days, will find this perfectly serviceable.
The one-year limited warranty and oil-free pump also mean very little to think about in between uses.
Why it finished last for framing specifically
0.5 CFM at 90 PSI is not a framing number. A full-size framing nailer can consume that in a fraction of a second, so you would be waiting on the pump between every burst, which is the single most frustrating way to use a nailer.
Add the 125 PSI ceiling and the noise complaints, and this is an inflation and light-fastening tool that happens to fit in a framing roundup because it is sometimes carried to the same jobsite.
How Much Air Does a Framing Nailer Actually Need?
Most nailer manufacturers publish an air consumption figure, usually in CFM at 90 PSI, and that number is the only one that matters. A full-size framing nailer typically wants somewhere between 4.0 and 5.0 CFM at 90 PSI. Finish and brad nailers want a fraction of that, often 1.0 to 2.5 CFM, which is why a small finish gun will happily run off something that would starve a framing nailer in seconds.
Homeowner forum consensus we found while researching this topic lands in the same place, with users generally targeting 5 to 6 CFM at 90 PSI as the safe number for a framing nailer. Buying one notch above the tool’s stated requirement is a reasonable margin, because you rarely run a nailer alone.
To size for multiple nailers, multiply:
- One framing nailer: target 4 to 5 CFM at 90 PSI.
- Two framing nailers: target 8 to 10 CFM, or one compressor per nailer.
- Three or more nailers: run one compressor per person rather than trying to manifold a single pump.
- Framing plus finish or brad work: add the finish tool’s requirement on top, typically 1.5 to 2.5 CFM.
Two other air facts cause more frustration than they should. First, a nailer that needs a refill pressure above your compressor’s maximum rating simply will not refill, and plenty of owners discover this the hard way with nailers that want 165 PSI from a 130 or 150 PSI machine. Buy the compressor with the higher ceiling.
Second, the CFM printed on a box is often measured at a different pressure than the 90 PSI you care about. Always look for the figure stated at 90 PSI. A compressor that advertises 4 CFM at 40 PSI delivers considerably less at working pressure, and that gap is where stall complaints come from.
Air Hose Size and Length: The Factor Most Buyers Miss
This is the question we saw asked most often in forums and forums of the trade, and it is the one almost every competitor roundup leaves unanswered. Hose diameter and length cost you airflow at the tool. The compressor may be pumping 4 CFM into the tank, and the nailer may be receiving considerably less by the time the air reaches the manifold.
Framing nailers generally use a 1/4 inch quick connect. That is the tool side. For the run between the compressor and the tool, a larger hose is the better choice, and 3/8 inch is the common upgrade. A 1/2 inch hose is the right answer for long runs or when several tools share one line.
- Under 25 ft: 1/4 inch is usable, 3/8 inch is better, 1/2 inch is best.
- 25 to 50 ft: use 3/8 inch minimum, 1/2 inch for multiple tools.
- 50 to 100 ft: use 1/2 inch. Smaller diameters lose pressure badly at this length.
- Two nailers on one line: 1/2 inch and a properly sized manifold, or run separate compressors.
The practical rule we came out of testing with is simple: if your compressor is borderline on CFM, the cheapest performance you can add is a wider hose. It costs far less than a larger compressor and it recovers pressure at the tool immediately.
One more detail. Cheap PVC hose and unrated fittings are the most common source of leaks we encountered, and a leak anywhere in the line shows up as a compressor that will not hold pressure or that cycles constantly. Brass fittings and a good-quality rubber or hybrid hose are worth the difference on a framing site.
Compressor Types Explained: Pancake, Hot Dog, Twin Stack and Wheelbarrow
Pancake compressors are the flat cylindrical tank design. They are short, wide and stable, they roll well, and they hold a surprising amount of air for their footprint. Most of the top picks on this list are pancakes, and they are the most portable shape for framing work.
Hot dog compressors have a long narrow horizontal tank with a handle on top. They are light, cheap and easy to carry, but the tank is small, so they suit finish and brad work more than framing. Two of the units in this roundup are hot dogs.
Twin stack compressors use two cylindrical tanks stacked one above the other, which gives you vertical height in exchange for a narrower footprint. They are a good answer when floor space is tight, and they typically carry a bit more air than a pancake of the same height.
Wheelbarrow compressors sit on a wheeled frame with a handle, usually with larger pneumatic tires. They are built to be dragged across rough ground and they hold more air and more pump than a portable unit. The 4.5-gallon DEWALT in this group is the closest thing to that category we tested.
Vertical compressors trade footprint for height and suit fixed shop or garage installs rather than job sites. None of the top picks here are vertical, because framing work means moving.
How to Choose an Air Compressor for a Framing Nailer
1. Check CFM at 90 PSI first. This is the only number that predicts whether a nailer keeps firing. For one framing nailer, look for 4.0 to 5.0 CFM at 90 PSI. Ignore horsepower, which is a motor rating rather than an airflow rating, and be suspicious of CFM quoted at 40 PSI.
2. Size the tank to your burst pattern. Tank capacity determines how much air you have stored between pump cycles. A 6-gallon tank is the practical minimum for framing, and 8 gallons or more helps on long runs. Small 2 to 3 gallon tanks are for finish and brad work.
3. Buy the PSI ceiling you need. Most nailers run at or below 100 PSI, but refill pressure matters. If your nailer is specified at 165 PSI, a 135 or 150 PSI compressor will not refill it. A 200 PSI machine costs little more and removes the question.
4. Treat noise as a hard requirement in occupied spaces. Under 70 dB is where you can hold a conversation and work around other trades. Everything from 75 dB upward is fine outdoors but rough indoors and at night. The two 60 dB units here exist because that is a real category of buyer, not a spec-sheet nicety.
5. Check duty cycle. Framing work is closer to intermittent duty than continuous, but a compressor running nonstop will still build heat. Pump design and cooling matter, and the slow-RPM motors in the quiet units are a big part of why they last.
6. Decide between oil-free and oil-lubricated pumps. Oil-free pumps need no maintenance and push no oil into your nailer lines, which is the reason most buyers choose them. Oil-lubricated cast iron pumps run cooler and last longer under abuse but need periodic oil checks. If you will do maintenance, the lubricated option is the more durable one.
7. Look at power source. All ten units here are 120V corded, which is the right choice for most framers. Electric is quieter, cheaper to run and needs no fuel handling. Gas or battery compressors suit remote sites where power is unavailable, but you give up quiet operation.
8. Check amp draw against your circuit. A 15-amp compressor wants a dedicated circuit. Models drawing 8 to 12 amps will start without tripping a shared run, which matters when a fridge, a saw and a compressor are on the same circuit.
9. Factor in high altitude. Air is thinner at elevation, so pump output drops as you climb. A rough rule of thumb used in the trade is about 3 percent less CFM for every 1000 feet of elevation. Above 5000 feet, size up rather than relying on the label figure.
10. Confirm the service network. Owners consistently praise the parts and service availability of the major tool brands, and complaints about hard-to-find parts are a genuine durability issue over a ten-year ownership. If you are far from a dealer, that is a real factor in the decision.
Our own maintenance routine for any of these compressors is the same: drain the tank after every use, check the oil level on lubricated pumps monthly, inspect couplers and hoses for leaks weekly, and never exceed the tank’s rated pressure. Check the tank’s stamped manufacture date too, since tanks are pressure vessels with a service life.
Frequently Asked Questions
What size air compressor do I need to run a framing nailer?
A framing nailer needs about 4.0 to 5.0 CFM at 90 PSI from a tank of 6 gallons or larger. One nailer running alone needs 4 to 5 CFM. Two nailers need 8 to 10 CFM, or one compressor per person.
What PSI does a framing nailer compressor need?
Most framing nailers work at 90 PSI, but the compressor’s maximum rating must meet the nailer’s refill pressure. Nailers needing 165 PSI require a 200 PSI compressor. A 150 PSI ceiling is the most common reason a nailer will not refill.
Is a pancake compressor enough for a framing nailer?
Only if it delivers at least 4 CFM at 90 PSI. A 6-gallon pancake with 4 CFM handles one framing nailer well. A 2-gallon pancake with 2 to 3 CFM is fine for finish and brad work but will stall a full-size framing nailer.
What CFM do I need for a framing nailer?
About 4.0 to 5.0 CFM at 90 PSI for a single framing nailer. Multiply by the number of nailers running at once, or run one compressor per person. Look for the CFM figure stated at 90 PSI rather than at a lower test pressure.
What size air hose should I use for a framing nailer?
The nailer itself uses a 1/4 inch quick connect, but run 3/8 inch hose from the compressor, and 1/2 inch for runs over 50 feet or when two tools share a line. Undersized or overlong hose cuts the airflow reaching the tool.
How do I calculate the right air compressor tank size?
Add up the CFM at 90 PSI of every tool that can run at the same time, then choose a tank that lets you fire a full magazine between pump cycles. For a single framing nailer, 6 gallons is the practical minimum and 8 gallons gives more margin.
Final Verdict: Which Compressor Should You Buy?
For one framing nailer, the Metabo HPT EC914S is our pick of the best air compressors for framing nailers: 4 CFM at 90 PSI, 200 PSI max, 6 gallons and only 42 lbs. If you need the machine to last a decade and do not mind checking oil, the Makita MAC2400 is the stronger buy. If two people are nailing at once, the DEWALT D55146 is the only one here with 5 CFM.
Check the airflow at 90 PSI first, buy the tank size that covers a full magazine, and do not cheap out on hose. That is the whole decision, and it will keep your nailer firing all day in 2026.
