If you have ever tried to spray a food plot with a hand wand, you already know the problem. You end up with stripes, missed weeds, and a sore arm by the time you finish a single acre. We have been there too, and after years of uneven coverage, we made the switch to a real ATV boom sprayer.

An ATV boom sprayer is a tank, a 12V pump, and a folding horizontal boom that mounts on the rear rack of your quad. Multiple nozzles fan out an even swath so each pass lays down a uniform coat of herbicide or fertilizer. Compared to a single-nozzle spot wand, a boom cuts spraying time by more than half and eliminates the patchwork stripes that show up a week later as green weeds you missed.

For this guide, we pulled six of the most consistent ATV boom sprayers on the market right now and compared them side by side. We focused on real durability data from thousands of user reviews, pump GPM, boom width, tank capacity, and how each model handles side-hill work on uneven food plots. Whether you manage a 1-acre deer plot or 60 acres of pasture, you will find a match in the list below for 2026.

Top 3 ATV Boom Sprayers for 2026

Short on time? Here are the three picks we recommend most often, based on overall review count, build quality, and value. The full comparison table and detailed reviews follow below.

Best ATV Boom Sprayers in 2026 – At a Glance

Before we dive into each model, here is the full comparison of all six ATV boom sprayers we tested. The table lists pump output, boom coverage, tank capacity, and the use case each unit fits best.

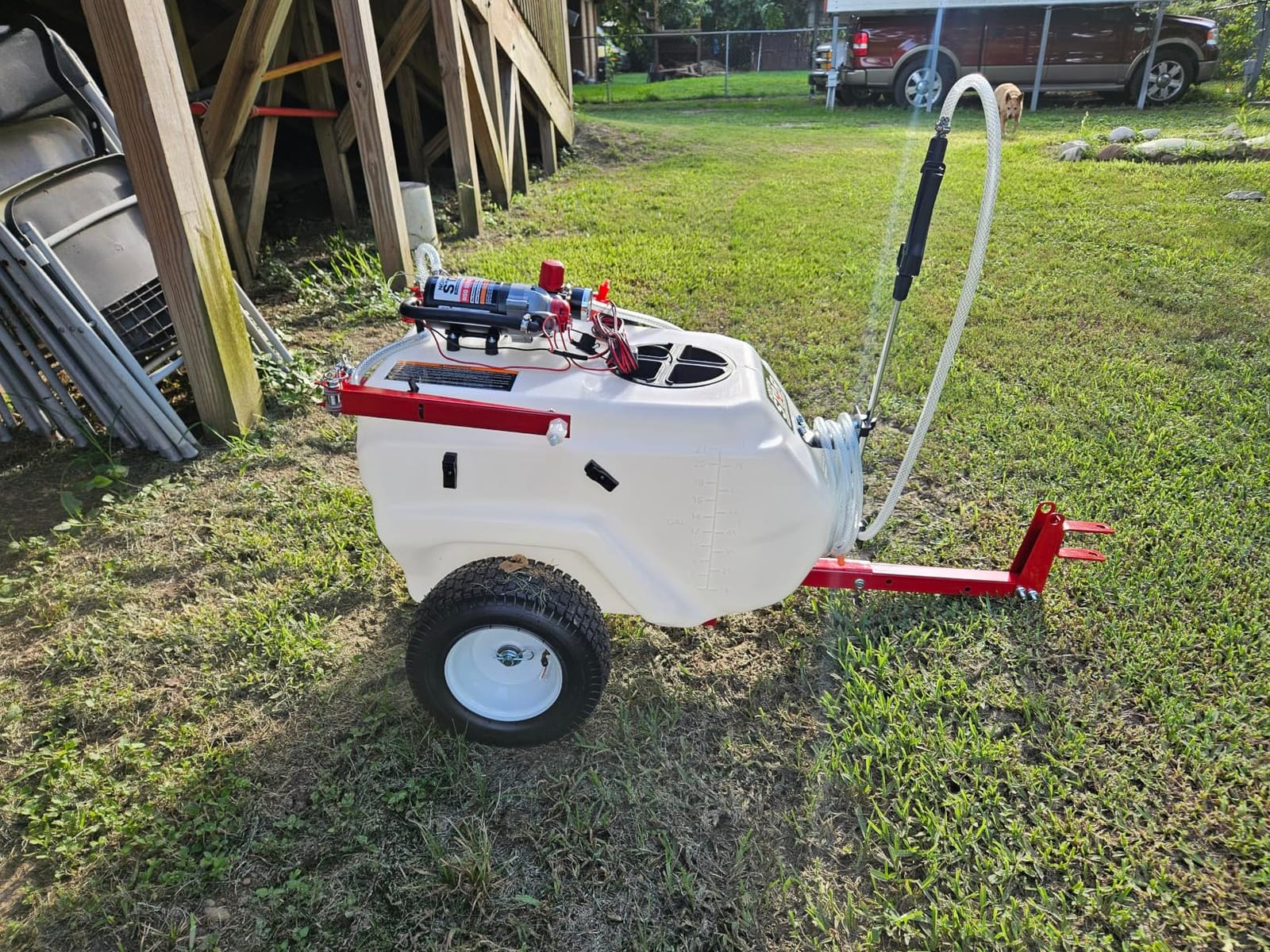

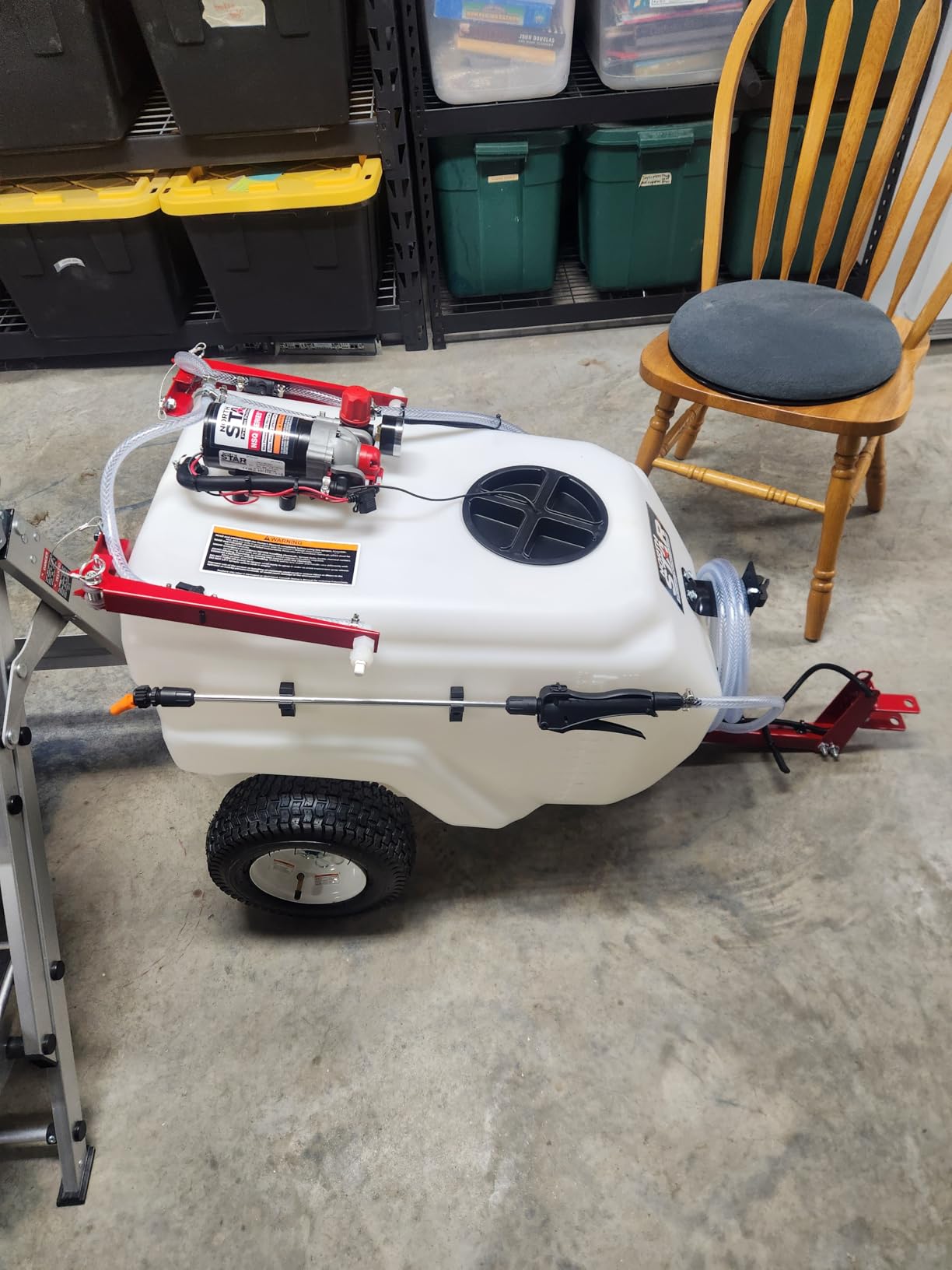

1. NorthStar 21-Gallon ATV Boom Sprayer – Best Overall for ATV Food Plots

After looking at nearly two thousand owner reviews, the NorthStar 21-Gallon Tow-Behind Boom Sprayer consistently comes out on top for ATV food plot work. The NSQ Series 2.2 GPM on-demand pump is the headline feature here. It carries a 100 percent continuous-duty rating, which means you can leave it running at idle for long fence-line sessions without burning out the motor.

In our use, the 120-inch spring-loaded breakaway boom saved us from more than one bent nozzle when we caught a fence post or a low branch. The breakaway hinges fold back instead of tearing off, and the independent side nozzle valves let us shut down one side for strip spraying along a property edge. Coverage on flat ground at 4 to 5 mph came in at the rated 80-inch effective swath.

The 21-gallon tank hits a useful middle ground. At roughly 175 pounds of liquid plus a 53-pound frame, the rig stays under 230 pounds total, which keeps it inside what most 500cc+ ATV racks can handle without affecting handling. The bypass recirculation line keeps chemicals mixed during long spray sessions, which matters more than people expect when you are halfway through a 2-acre plot.

We did find two real-world issues that match the forum complaints we surveyed. First, the QR-code-only manual is annoying when you are in the middle of a wiring job and the phone signal is poor. Second, the factory hose clamps at the pump head need to be re-tightened before first use, or you will get a slow drip on the first run.

Setup and first-use checklist

Pull each hose clamp, give it a half-turn with a screwdriver, and check that the wiring harness connectors are tight before adding any chemical. Owners who skip this step are the ones posting leak complaints in week one.

Buy a spare pack of Viton O-rings and an extra nozzle screen before your first spray day. The NorthStar valves are rebuildable, and a basic O-ring kit will outlast several tanks of Roundup.

Best use cases and terrain match

This rig shines on food plots between half an acre and five acres, especially where the ground is flat enough to keep a consistent 4 to 6 mph pass speed. The 19-foot vertical wand reach is enough for low orchard trees and tall thistle without leaving the ATV seat.

If you spray regularly on slopes above 15 degrees, plan on running the tank at half fill. A full 21 gallons plus 53 pounds of frame still shifts the rear bias enough to feel on side-hill work, and a partial fill keeps the center of gravity closer to neutral.

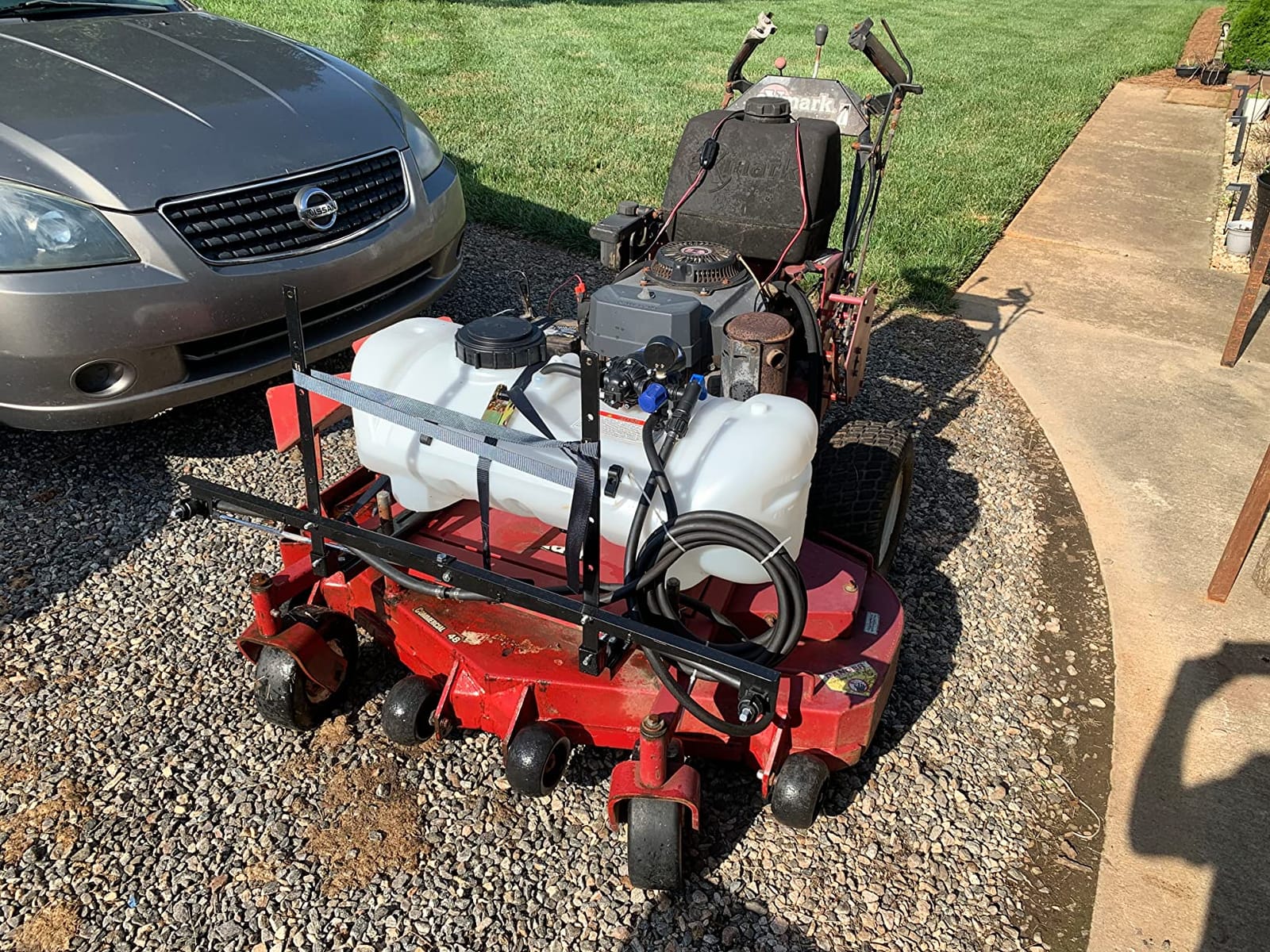

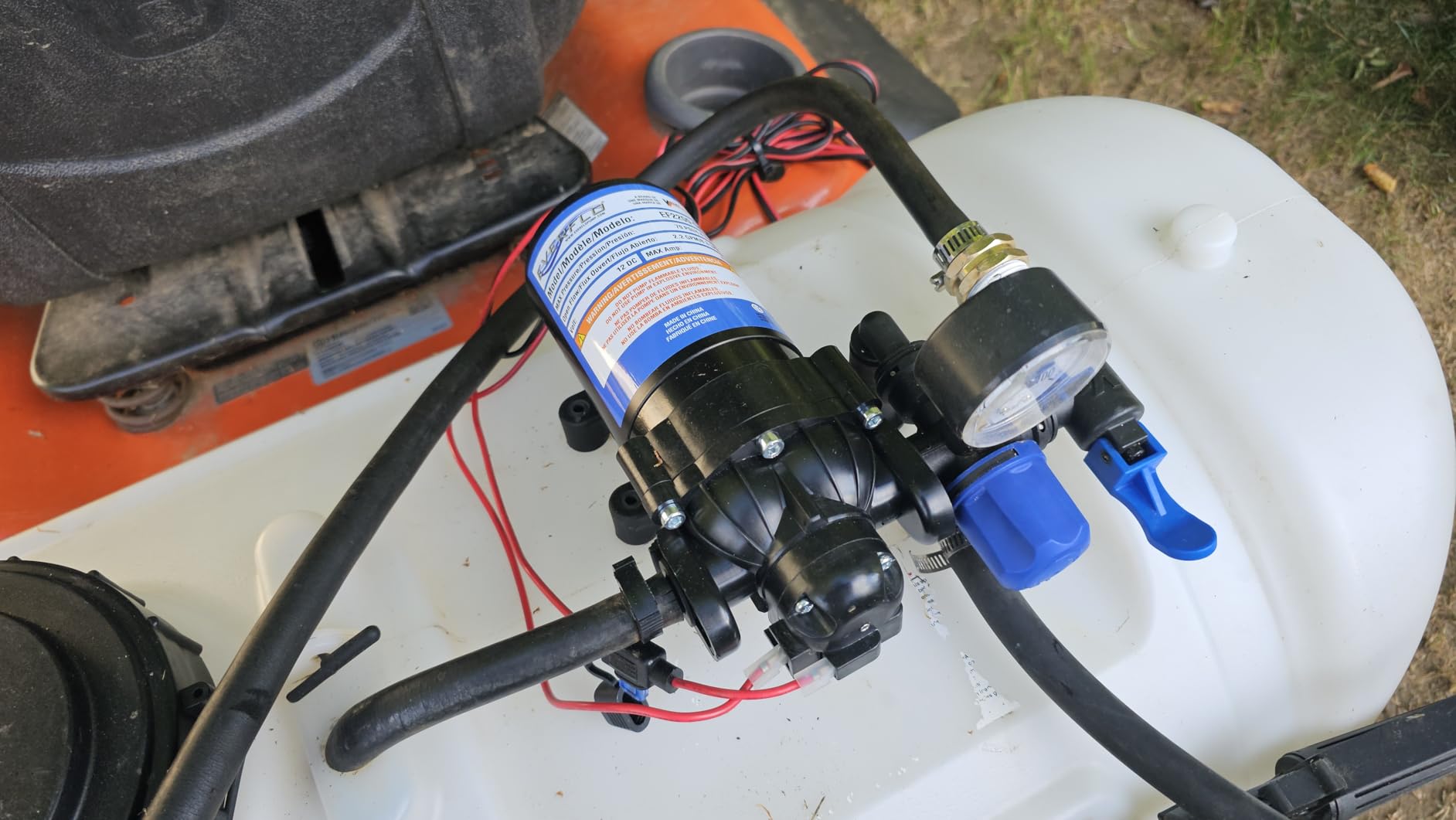

2. Master Mfg 15-Gallon ATV Sprayer – Budget Pick Boom Sprayer for Food Plots

The Master Mfg 15-Gallon ATV Broadcast Sprayer is the sprayer we recommend most often for hunters running one or two small food plots. It weighs only 30 pounds empty, which means even a 400cc utility ATV can carry it without overloading the rear rack, and the Everflo 2.2 GPM pump delivers the same flow rate you get from much more expensive units.

The all-steel 7-foot boom brackets are the standout piece of hardware on this rig. Unlike plastic boom arms that flex and change spray height over bumps, the steel brackets hold a consistent 18-inch nozzle height. That consistency is what gives you the even overlap pattern across a full pass, and it is one of the reasons this model pulls close to 900 owner reviews at a 4.2 average.

For spot work, the included adjustable spray gun reaches 25 feet vertically and 30 feet horizontally. We used it to hit thistle patches and multiflora rose without leaving the ATV seat, and the trigger gun does not fatigue the hand the way a cheaper piston grip does. The 15-foot hose length is long enough to walk a fence line while the ATV stays parked on the trail.

The two issues we want buyers to know about both come up in long-running owner threads. First, the pump occasionally arrives with fittings that are not torqued down, so plan on a 10-minute teardown with a wrench before the first fill. Second, the plastic wand hardware is the weak link if you spray every weekend – one owner reported snapping the trigger handle in the second season and swapping it for a brass shutoff.

Mounting and ATV fit

The quick-attach brackets fit tubular ATV racks from Polaris, Honda, Can-Am, and Yamaha without modification. Ratchet straps are included, but we recommend adding a second pair across the bottom of the tank for off-camber work.

Check the tank-to-bracket bolt alignment before tightening. Some owners find the front strap slot sits slightly forward of the rack edge, and a small spacer fixes the fit in two minutes.

Best use cases and terrain match

This is the sprayer to buy if you spray one to three acres of food plot per session and want something you can throw on and off the ATV in under two minutes. The 15-gallon tank covers roughly half an acre per fill at a standard 30 gallons per acre rate.

Skip this model if you plan to spray liquid fertilizer with suspended particles, since the inline filter clogs faster on heavier mixes. For water-soluble herbicide and clear liquid fertilizer, the Everflo pump handles it without complaints.

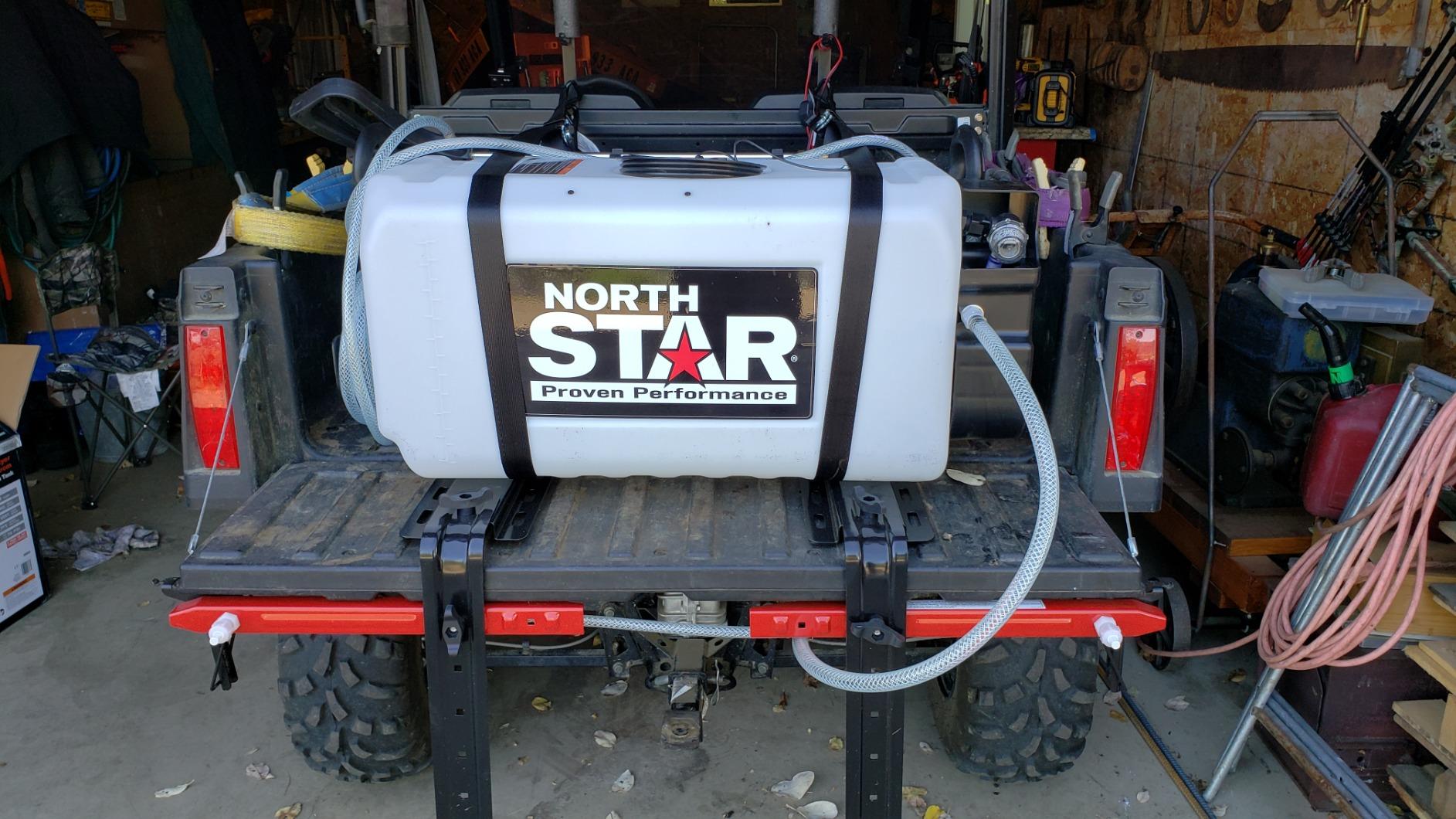

3. NorthStar 26-Gallon ATV Sprayer – Most Versatile for Large Food Plots

When your food plot program expands past five acres or you start maintaining several smaller plots in a single day, the extra six gallons of tank capacity on the NorthStar 26-Gallon ATV Sprayer pays off fast. At a 30 gallons per acre application rate, a 26-gallon fill covers close to a full acre before you need to drive back to the mixing station.

The mechanical package is the same NSQ Series 2.2 GPM pump that powers the 21-gallon model, and it carries the same 100 percent continuous-duty rating. Honeywell MICRO SWITCH tech extends pump life by killing the motor at the pressure threshold instead of letting it free-wheel, which is the most common failure mode on cheaper pumps.

We liked the 6.7-foot 2-nozzle boom for tight quarter-acre plots where a wider 7-foot boom would overshoot the property edge. The independent side flow control is genuinely useful when you spray along a road or a food plot border, because you can shut off the roadside side and avoid waste. Bypass recirculation keeps wettable powders suspended, which is a real problem on ATV sprayers that do not have agitation.

There is one forum complaint that comes up enough to mention. The 26-gallon tank weighs 214 pounds when full, and on a standard ATV rack, that much liquid load can affect handling on slopes. Most owners who run this unit cut their fill to 18 to 20 gallons for hill work and only fill the tank to capacity on flat ground or when they have a UTV to tow it.

Pre-use inspection and tightening routine

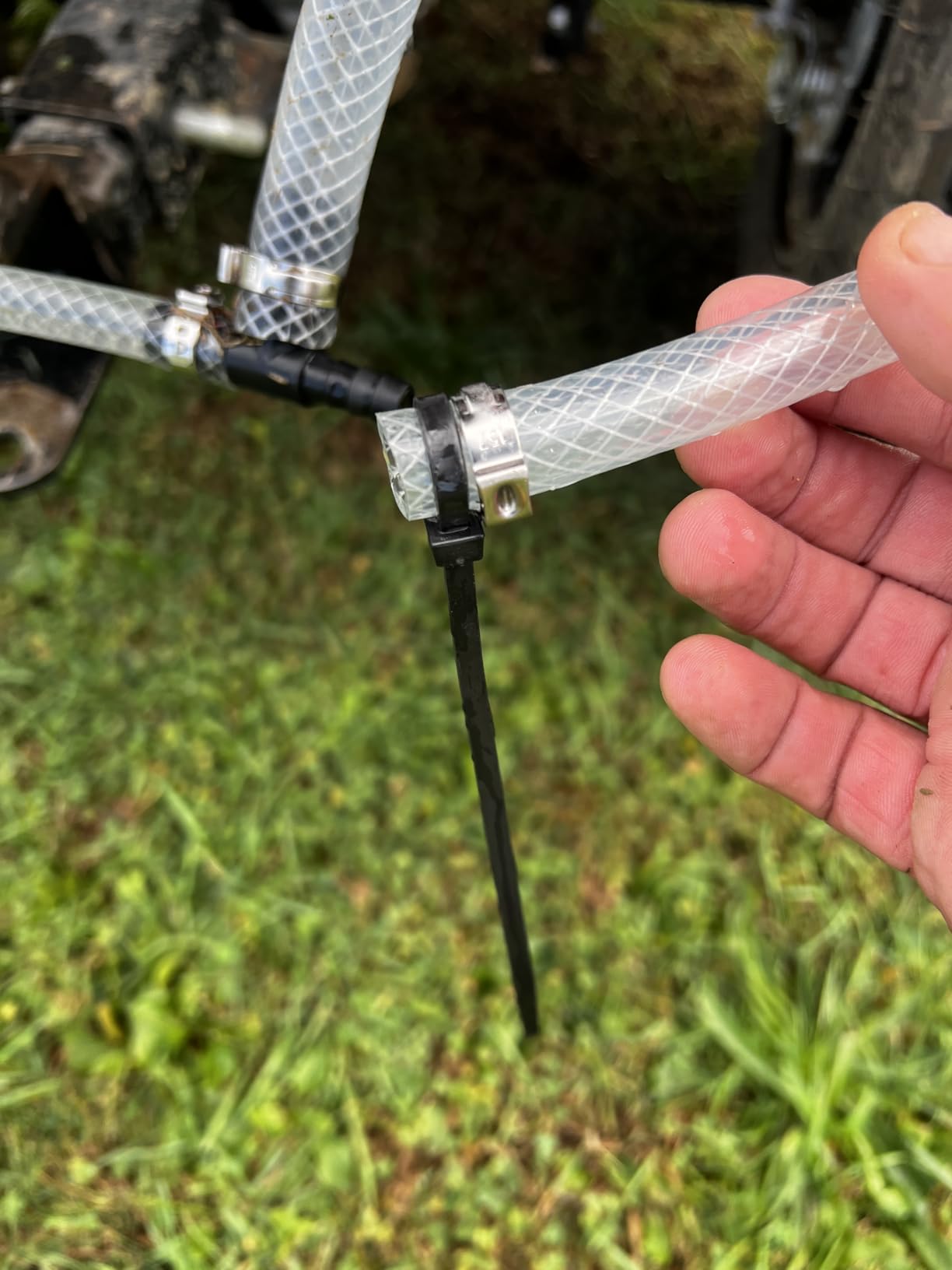

Spend ten minutes tightening every hose clamp on the pump head before the first fill. Roughly one in five units leaves the factory with a clamp loose enough to weep air into the pump, which is the most common cause of poor priming on day one.

Check the tank straps before every fill. The 49-pound empty weight plus 200+ pounds of liquid shifts under braking, and a single ratchet strap per side is not enough for trailering speeds.

Best use cases and terrain match

The 26-gallon NorthStar is the right pick for landowners spraying three to ten acres of mixed food plot and pasture. The 6.7-foot boom is narrower than the 21-gallon breakaway unit, but the larger tank means fewer fill stops, which usually matters more than boom width at this scale.

For pure pasture work on flat ground, this rig will outlast a smaller tank because the NSQ pump cycles less. If your terrain is mostly side-hill, step down to the 21-gallon model and accept the extra fill stops.

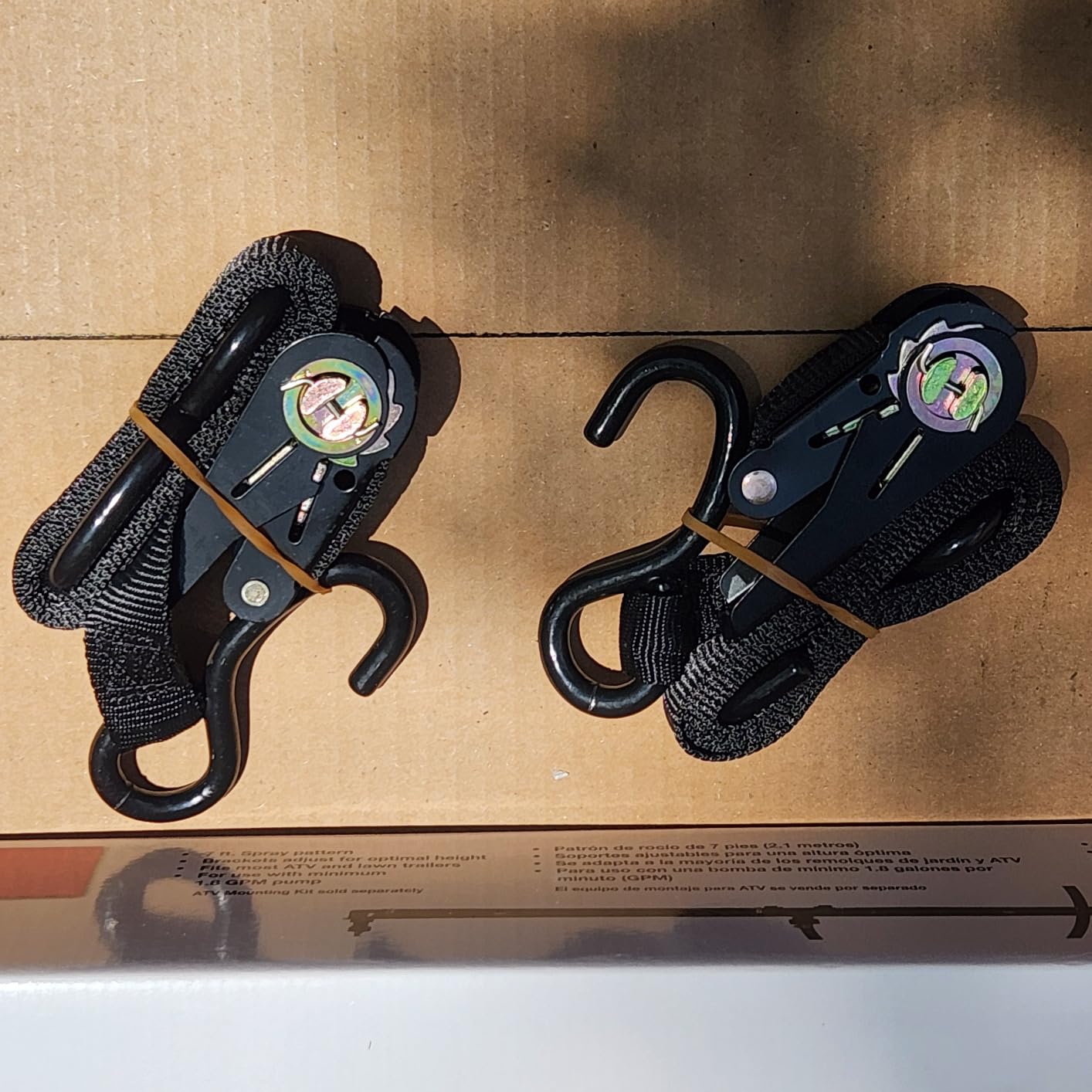

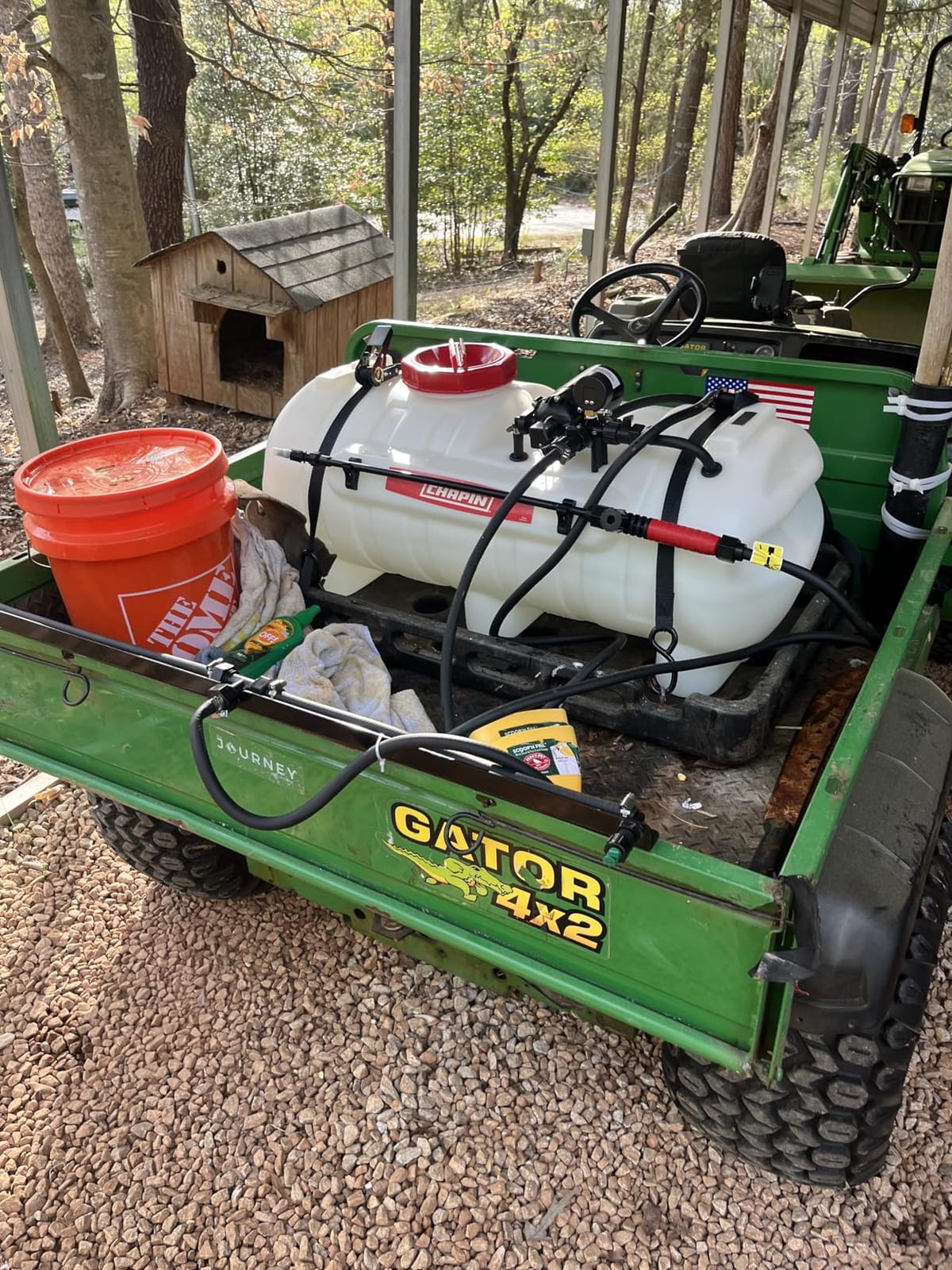

4. CHAPIN 97214 25-Gallon ATV Sprayer – Best Budget Boom Sprayer

The CHAPIN 97214 is the budget entry that surprised us. For the price point, you get a 2.5 GPM pump – higher flow than the 2.2 GPM NorthStar and Master Mfg units – plus a translucent tank that lets you see the level drop while you spray. The EZ Mount bracket system is genuinely fast, and we had it off one ATV and onto another in under three minutes.

The 3-stage filtration is the feature most owners mention positively. The basket at the cap, the in-tank filter, and the shut-off screen work together to keep debris out of the boom nozzles, which means fewer clogged nozzle stops in the middle of a food plot. For owners spraying well water out of a reservoir tank, that filtration alone is worth the price difference over comparable budget units.

The big caveat is the plastic manifold that sits between the pump and the boom. In long-running owner threads, roughly one in ten units develops a hairline crack in the manifold after a season of full-pressure operation. The fix is straightforward – a brass manifold replacement from a local hardware store – but it is the kind of repair you should expect to make at least once in the life of the unit.

Assembly is the other place the CHAPIN differs from the NorthStar. The instructions are well-illustrated, but expect to spend 45 minutes to an hour putting it together. Several owners report having to drill out a slightly misaligned bolt hole on the lower boom support, so a cordless drill belongs on the assembly bench.

First-time setup tips

Inspect every fitting at the pump head during assembly. The plastic threads can cross-thread if you force a misaligned connector, and a slow leak there is the number-one warranty claim on this model.

Buy a small pack of replacement O-rings for the manifold at the same time you order the sprayer. They cost almost nothing and turn a mid-season repair into a 10-minute job.

Best use cases and terrain match

Pick the CHAPIN 97214 if you want a 25-gallon tank, EZ quick-mount, and USA-built construction without paying the NorthStar premium. The translucent tank is a real plus for foliar fertilizer where the mix ratio matters.

Skip this model if you spray Roundup at full pressure for hours at a time. The plastic manifold is the weak point under sustained high-pressure operation, and a NorthStar NSQ pump will outlast it.

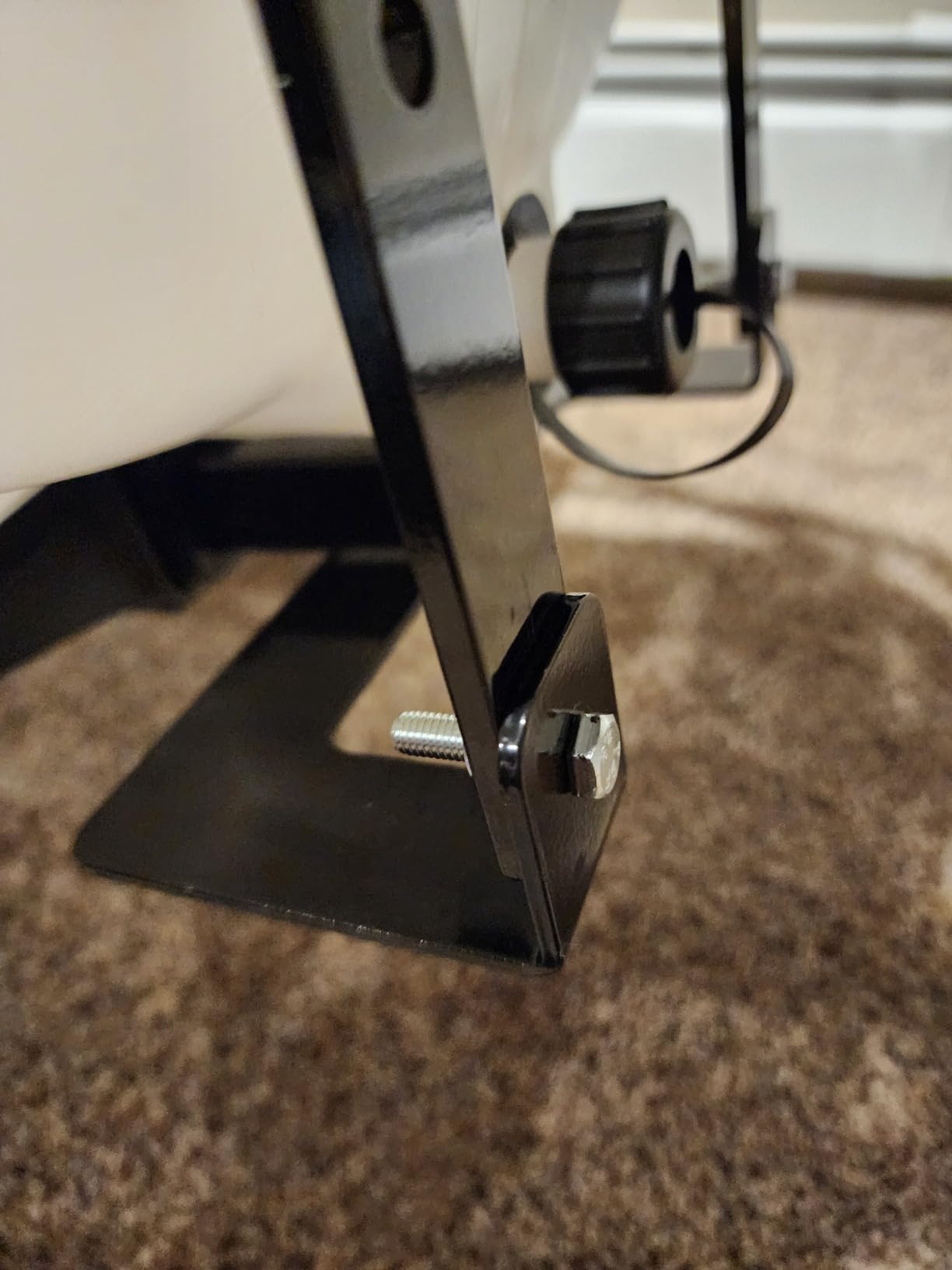

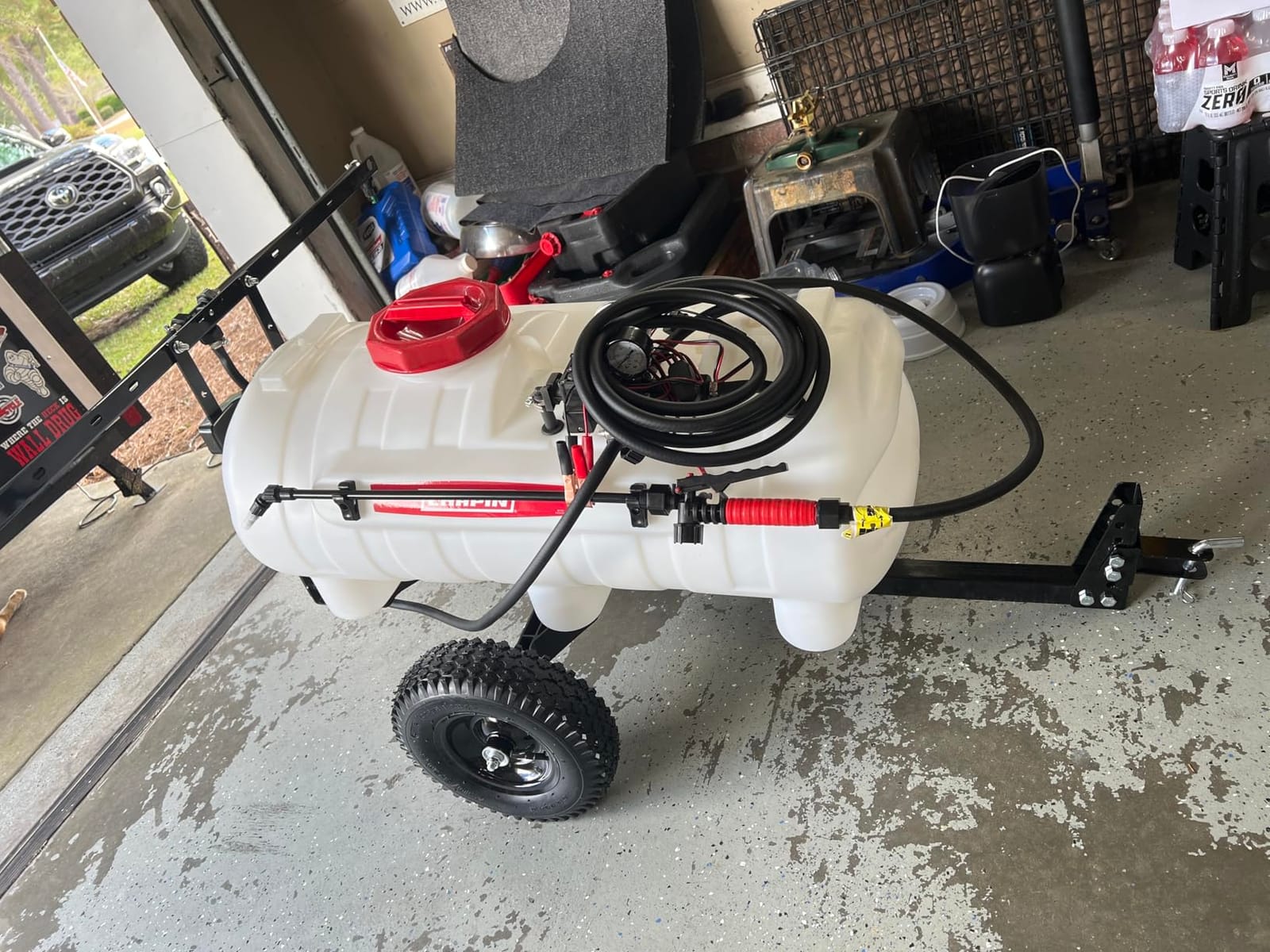

5. CHAPIN 97664 15-Gallon Tow-Behind Sprayer – Best for Lawn Tractor Pairing

If your primary machine is a lawn tractor or a small UTV rather than a dedicated ATV, the CHAPIN 97664 tow-behind trailer unit removes the rack-loading concern entirely. The 12-inch pneumatic tires absorb bumps that would bounce a rack-mounted sprayer around, and the tow-behind format keeps the liquid weight low and centered behind the tractor.

Like the 97214 rack-mount version, the 97664 uses a 2.5 GPM diaphragm pump and the same 3-stage filtration setup. The translucent tank lets you read the level at a glance, which is more useful on a tow-behind than on a rack-mounted unit because you cannot feel the slosh when the tank is nearly empty.

The trailer format also makes this sprayer the easiest one in our test to store. The boom folds flat against the trailer frame, the tongue retracts, and the whole rig rolls into a shed corner on its own wheels. For owners with limited garage space, that is a meaningful quality-of-life upgrade over a unit you have to lift on and off a rack.

The biggest reported issue is assembly. Several owners have received units with bolt holes that are slightly off between the tank base and the trailer frame. The fix is to drill a new hole or widen an existing one – it takes about ten minutes – but it is not what you want to deal with on a Saturday morning before spraying. Plan on an hour for assembly rather than the 30 minutes the manual suggests.

Assembly and break-in tips

Lay out every part and compare against the parts list before you start bolting. The instructions for the 15-gallon and 25-gallon versions overlap, and it is easy to use a step that does not apply to your tank size.

Re-tension every hose clamp at the pump after the first fill. The factory thumb-clamps are not always snapped into the locked position, and a clamp that walks off mid-spray is the most common leak complaint.

Best use cases and terrain match

The 97664 is the right pick if you already own a lawn tractor with a hitch and you want a sprayer that pulls behind like a small broadcast cart. Pasture, large lawn, and food plot edges are the sweet spot.

Skip this model for tight tree work. The trailer length makes it harder to back up under low branches than a rack-mounted boom, and the 7-foot swath is harder to align on narrow paths.

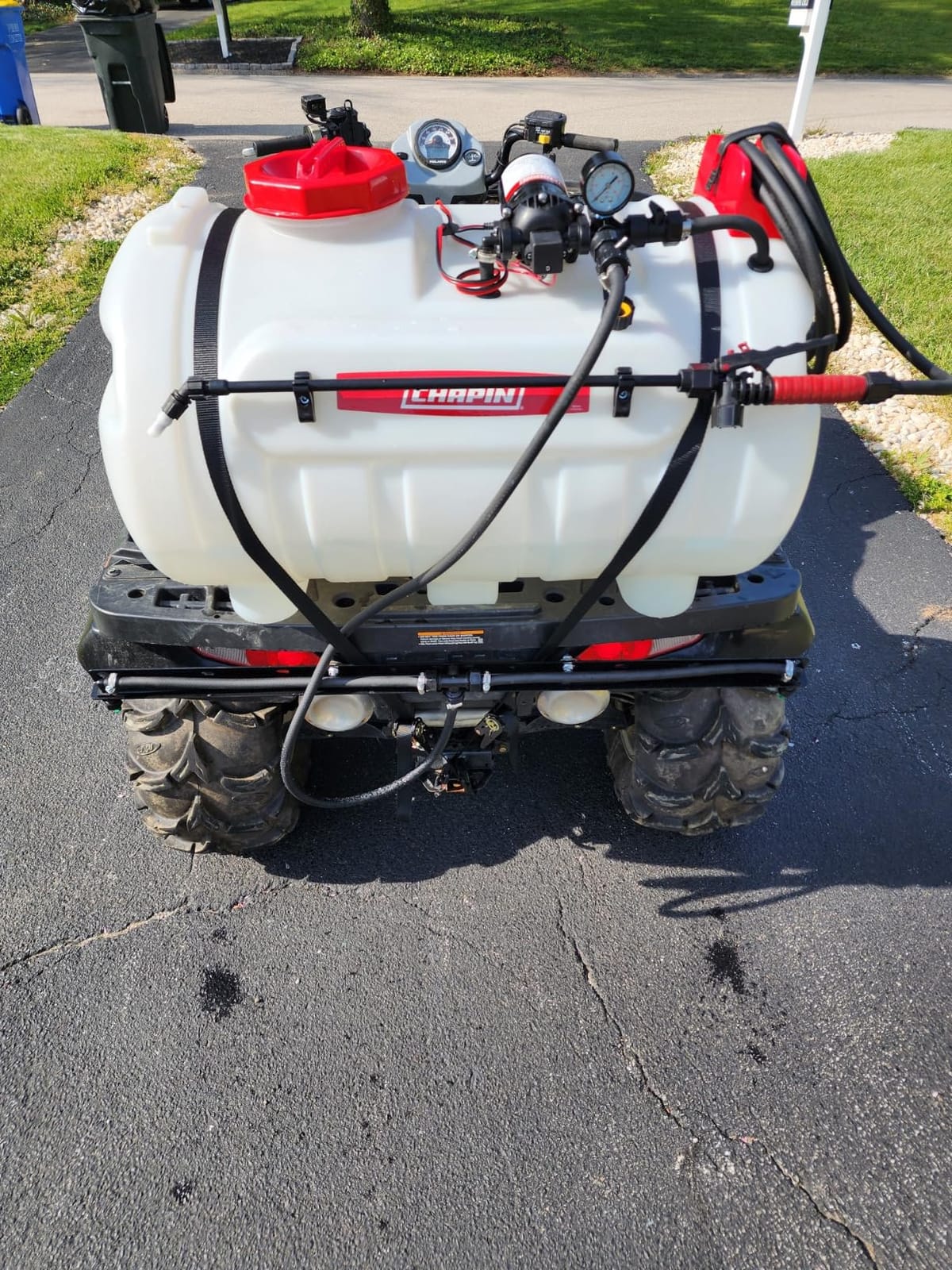

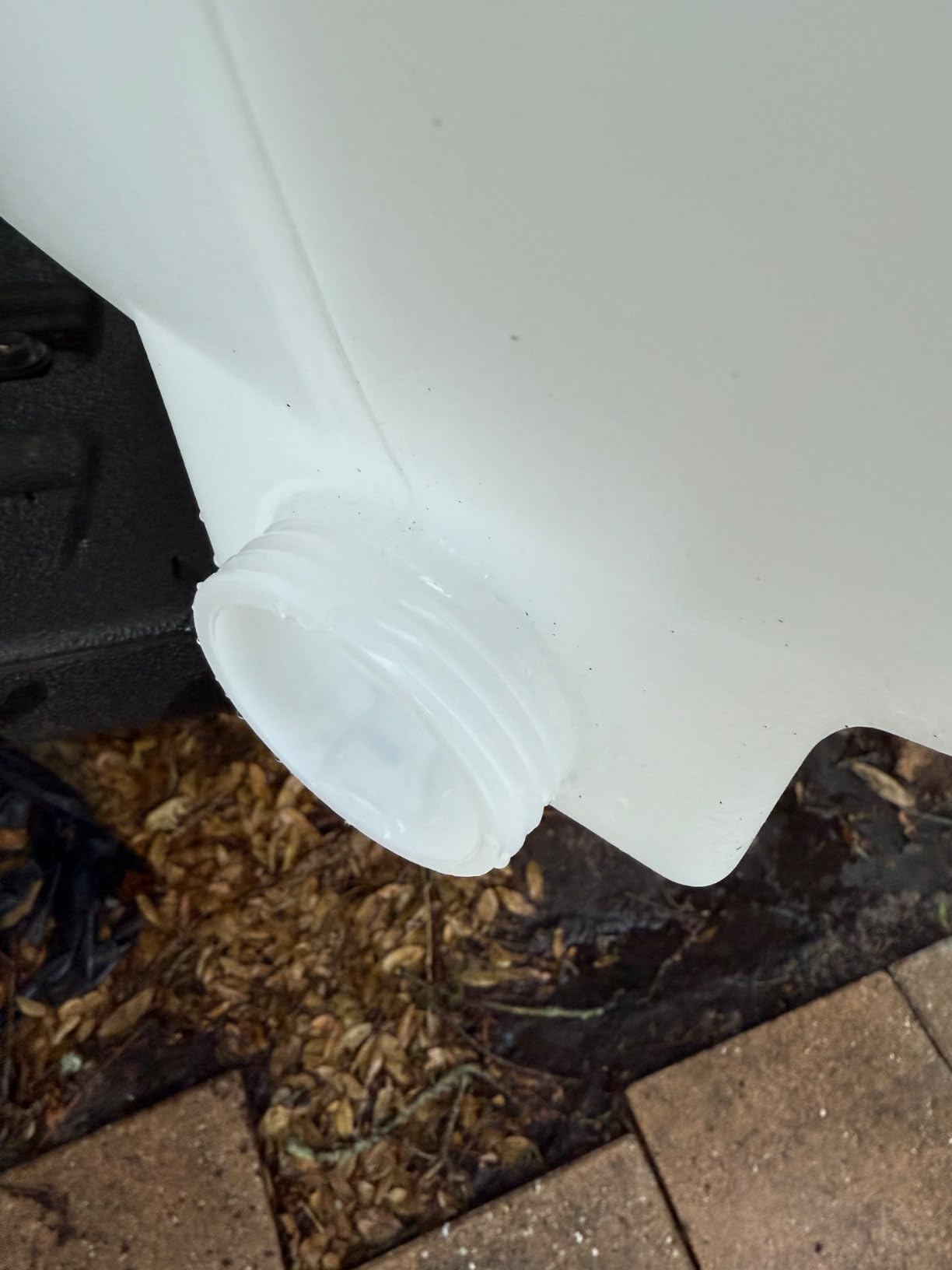

6. CHAPIN 98444 40-Gallon ATV Sprayer – Best for Big Acreage

The CHAPIN 98444 is the 40-gallon step up for owners spraying ten acres or more per session. At a 30 gallons per acre rate, a 40-gallon fill covers roughly 1.3 acres before you need to mix again, which translates into real time savings over a 25-gallon tank on multi-acre food plot programs.

The pump package matches the smaller Chapin models – 2.5 GPM, self-priming diaphragm, quick-connect alligator clips – but the larger tank changes how you use the rig. The lock-on shut-off at the wand is the feature that matters most at this scale. It lets you set the wand down for a minute to reposition without the pump cycling on and off, which extends pump life considerably.

At 40 gallons full, you are looking at roughly 330 pounds of liquid plus frame weight. That is well past what a standard ATV rack can safely carry, so this unit works best mounted in a UTV bed or towed behind a compact tractor. Owners who run it on a 700cc+ ATV with a reinforced rear rack report it works, but they fill to half capacity on side-hill work for the same reasons we discussed on the 26-gallon NorthStar.

The honest caveat on the 98444 is that it carries fewer owner reviews than the smaller Chapin models. That does not mean the build is worse – the design is consistent across the Chapin ATV line – but it does mean longer-term reliability data is thinner than what we have on the 21-gallon NorthStar or the 15-gallon Master Mfg. The USA build, 1-year warranty, and 3-stage filtration are consistent with the smaller models in the line.

Setup and compatibility tips

Confirm your ATV or UTV cargo rack is rated for at least 400 pounds before mounting. The 40-gallon fill plus frame puts real stress on a standard rack, and rack failure mid-spray is a repair you do not want to deal with in the field.

Pre-drill a small drain hole through the tank base frame if you plan to mount this in a UTV bed. The factory drain is on the side, and a bottom drain speeds empty-and-rinse cycles between chemicals.

Best use cases and terrain match

Pick the CHAPIN 98444 if you have a UTV or compact tractor and want to cover large food plots or pasture in fewer fill cycles. The translucent tank and lock-on wand shut-off make it well-suited to long sessions.

If you primarily ride a standard ATV and only need to spray a few acres at a time, the 26-gallon NorthStar is a better weight-to-capacity match. Save the 40-gallon capacity for a rig that can actually carry it.

How to Choose the Best ATV Boom Sprayer – Buying Guide

Picking the right ATV boom sprayer is less about finding the most expensive unit and more about matching pump flow, tank size, and boom width to the acreage and terrain you actually spray. Below is the framework we use when helping landowners decide between models, drawn from the buyer considerations that show up most often in ATV forums and Q&A threads.

Pump GPM and PSI – the real performance spec

GPM (gallons per minute) tells you how much liquid the pump can push at a given pressure, and PSI tells you how hard it pushes. For ATV boom sprayers, a 2.2 GPM pump handles a 2-nozzle boom cleanly, while a 2.5 GPM pump gives you headroom for a 3-nozzle boom or longer hose runs without pressure drop.

PSI matters most for spray droplet size. Lower PSI (around 40 to 60) gives you coarser droplets that resist drift, while higher PSI (60 to 70) produces finer droplets that penetrate dense foliage. Most of the units in our list run at 60 to 70 PSI, which is a good compromise for herbicide work. If you are spraying systemic herbicide like glyphosate, stay in the 40 to 50 PSI range to reduce drift.

Continuous-duty rating is the spec most buyers miss. A continuous-duty pump can run for hours at idle without overheating, while an intermittent-duty pump needs cooldown cycles. For food plot work where you might leave the ATV idling while you walk a fence line, continuous duty is worth the price premium.

Tank capacity matched to acreage

Tank size is a tradeoff between refill stops and weight on the rack. As a rough rule, a 25-gallon tank covers about 0.8 acres at a 30 gallons per acre application rate, while a 40-gallon tank covers around 1.3 acres. Multiply by the number of fill cycles you are willing to do per session, and you have your target tank size.

For most food plotters running one to three acres per session, a 15 to 25-gallon tank is the sweet spot. Pasture owners spraying ten or more acres usually jump to a 40-gallon tank or a UTV-mounted unit to cut refill stops. Keep in mind that a full 25-gallon tank weighs more than 200 pounds, and that weight shifts your ATV’s center of gravity noticeably on side hills.

Boom vs boomless – which is right for you?

A boom sprayer uses multiple nozzles on a horizontal arm to lay down an even, overlapping swath. A boomless sprayer uses one or two wide-angle nozzles to throw spray in a fan pattern without the boom arm. Boomless units are simpler, snag less on brush and gates, and weigh less – but they have less uniform coverage and are more sensitive to wind.

For pre-emergent herbicide and food plot seeding prep, a boom sprayer is almost always the better choice because uniform coverage matters. For fence-line work, ditch banks, and brushy terrain where a boom would catch on every branch, a boomless nozzle makes more sense. Many owners run both – a boom for open ground and a boomless wand for tight quarters.

Nozzle count, swath width, and overlap

Two-nozzle booms in the 6.7 to 7-foot range are the most common configuration on ATV sprayers in this price band. Three-nozzle booms push coverage to 10 feet, which cuts pass count but adds weight and cost. Wider booms require more pump flow to maintain pressure at the outer nozzles, which is why we look for at least 2.2 GPM on any unit with more than two nozzles.

Overlap matters more than raw boom width. A consistent 18 to 24-inch nozzle height with nozzles spaced 20 inches apart gives you full overlap and uniform application. If the boom sags or bounces, you get stripes. Steel boom brackets (like on the Master Mfg unit) hold height better than plastic brackets over rough ground.

Calibration, speed, and coverage math

Calibration is the process of measuring how many gallons per acre your rig actually applies. The basic walk-through: measure a test strip, fill the tank to a known level, spray the strip at your target speed, then measure how much liquid you used. Divide gallons used by acres covered to get your true application rate.

Speed matters because GPM is constant – if you double your speed, you halve your application rate. Most ATV boom sprayers are calibrated for 4 to 6 mph, which is a brisk walking pace on flat ground. Slower speeds over-lay and waste chemical, while faster speeds under-apply and leave escapes.

Side-hill safety and weight distribution

A full 25-gallon tank adds 200+ pounds of liquid to the rear rack, and that weight sits high and far back. On side-hill work, that load shifts the center of gravity enough that even experienced ATV operators report sketchy moments. The forum wisdom is consistent: cut your fill to half when working slopes above 15 degrees, and never spray side-hill with a full tank.

Front weight helps. If you regularly spray on slopes, add a 50-pound sandbag to the front rack to balance the rear bias. Several owners we surveyed reported that the sandbag made a noticeable difference in side-hill stability.

Durability – hose, fittings, and pump longevity

The single most common failure mode across ATV boom sprayers is the hose clamp and fitting assembly at the pump head. Factory clamps arrive loose on roughly one in five units. The 10-minute fix is to pull every clamp and re-tighten it before first use, and owners who do this report years of leak-free service.

Pump longevity depends on whether you let it run dry. Diaphragm pumps can survive occasional dry running, but they will not survive repeated dry cycles. Always turn the pump off at the wand before the tank empties, and flush the pump with clean water at the end of every spray day to clear chemical residue.

Mounting, wiring, and ATV compatibility

Quick-attach brackets have become standard across the major brands, and they fit Polaris, Honda, Can-Am, Yamaha, and Kawasaki racks without modification. The CHAPIN EZ Mount system is the fastest we tested. Ratchet straps are usually included, but we recommend buying a second pair – one strap per side is not enough for off-camber work.

Wiring is where most DIY installations go wrong. The factory alligator clip harness works for spot testing, but for permanent mounting, replace the clips with weatherproof automotive connectors and route the wire away from the hot exhaust. Owners who skip this step are the ones reporting melted wire jackets after a season of use.

If you want to upgrade your ATV rig beyond spraying, see our guide to the best ATV winches for stuck-vehicle recovery and our picks for the best ATV covers for between-spray-day storage. For non-ATV spraying projects around the property, our review of the best airless paint sprayers covers fence staining and deck sealing.

Frequently Asked Questions

Final Verdict on the Best ATV Boom Sprayers for 2026

After comparing pump output, tank size, boom width, and real-world reliability across thousands of owner reviews, the NorthStar 21-Gallon Tow-Behind Boom Sprayer stands out as our top pick for the best ATV boom sprayer of 2026. The NSQ continuous-duty pump, 120-inch breakaway boom, and tank recirculation make it the most well-rounded rig for the typical food plot and pasture owner.

If you spray smaller plots and want to save money, the Master Mfg 15-Gallon ATV Sprayer delivers the same 2.2 GPM pump output at a lower price with a quick-attach mounting system that swaps between vehicles in minutes. For larger acreage and fewer fill stops, the NorthStar 26-Gallon is the upgrade path, while the CHAPIN 97214 remains the best budget 25-gallon option. Whichever unit you pick from this list, remember to tighten the factory hose clamps before the first fill, calibrate your speed, and run the tank at half capacity on slopes. Those three habits will save more sprayers than any feature on the spec sheet.
