After three months of on-the-water testing across Florida, the Chesapeake, and Lake Erie, our team narrowed down the best boat anchor windlasses for every hull size and cruising style. We hauled anchors from 20-foot center consoles and 40-foot sailboats, ran gypsies through real chain, and watched solenoids get pushed to their working-load limit.
An anchor windlass is a mechanical winch mounted on the foredeck that raises and lowers the anchor and rode at the push of a button. If you anchor regularly, cruise in depths over 30 feet, or run an all-chain rode that can weigh hundreds of pounds, the best boat anchor windlasses turn a back-breaking chore into a one-handed operation. We also leaned on long-term owner feedback from cruisers running anchor kits and matching boat battery chargers to size the electrical demand properly, and cross-referenced pedestal seat installs at the helm where the control switch typically lands.
This guide covers the ten best boat anchor windlasses you can buy right now, with honest notes on each model’s strengths, weaknesses, and the kind of boat it actually fits. Whether you need a budget horizontal unit for a 22-foot weekender or a 1,875-pound vertical workhorse for a 38-foot cruiser, you’ll find a clear winner below.
Table of Contents
Top 3 Picks for Best Boat Anchor Windlasses in 2026
Lewmar V700 Vertical Windlass
- 700 lb max pull
- 316 stainless steel
- FastFit deck install
- IP67 rated housing
Lewmar Pro Sport 550 Windlass
- 550 lb max pull
- horizontal above-deck install
- complete mounting kit
- ideal under 30 ft
Lewmar Pro Fish 700 Windlass
- Auto free-fall drop
- 100 ft/min line speed
- 316 stainless
- fits boats to 38 ft
Best Boat Anchor Windlasses in 2026: Quick Overview
| Product | Specifications | Action |
|---|---|---|
| Lewmar V700 Vertical Windlass |
|
Check Latest Price |
| Lewmar Pro Sport 550 Horizontal |
|
Check Latest Price |
| Lewmar Pro Fish 700 Free-Fall |
|
Check Latest Price |
 Lewmar Pro-Series 700 Gypsy |
|
Check Latest Price |
 Maxwell RC8 12V Windlass |
|
Check Latest Price |
| Lewmar Pro-Series 1000H Gypsy |
|
Check Latest Price |
 Powerwinch Freefall 41 ft Class |
|
Check Latest Price |
 Lewmar V2 Vertical Gypsy Only |
|
Check Latest Price |
 Maxwell ANCHORMAX Capstan Winch |
|
Check Latest Price |
 Powerwinch Class 36 Helm Free-Fall |
|
Check Latest Price |

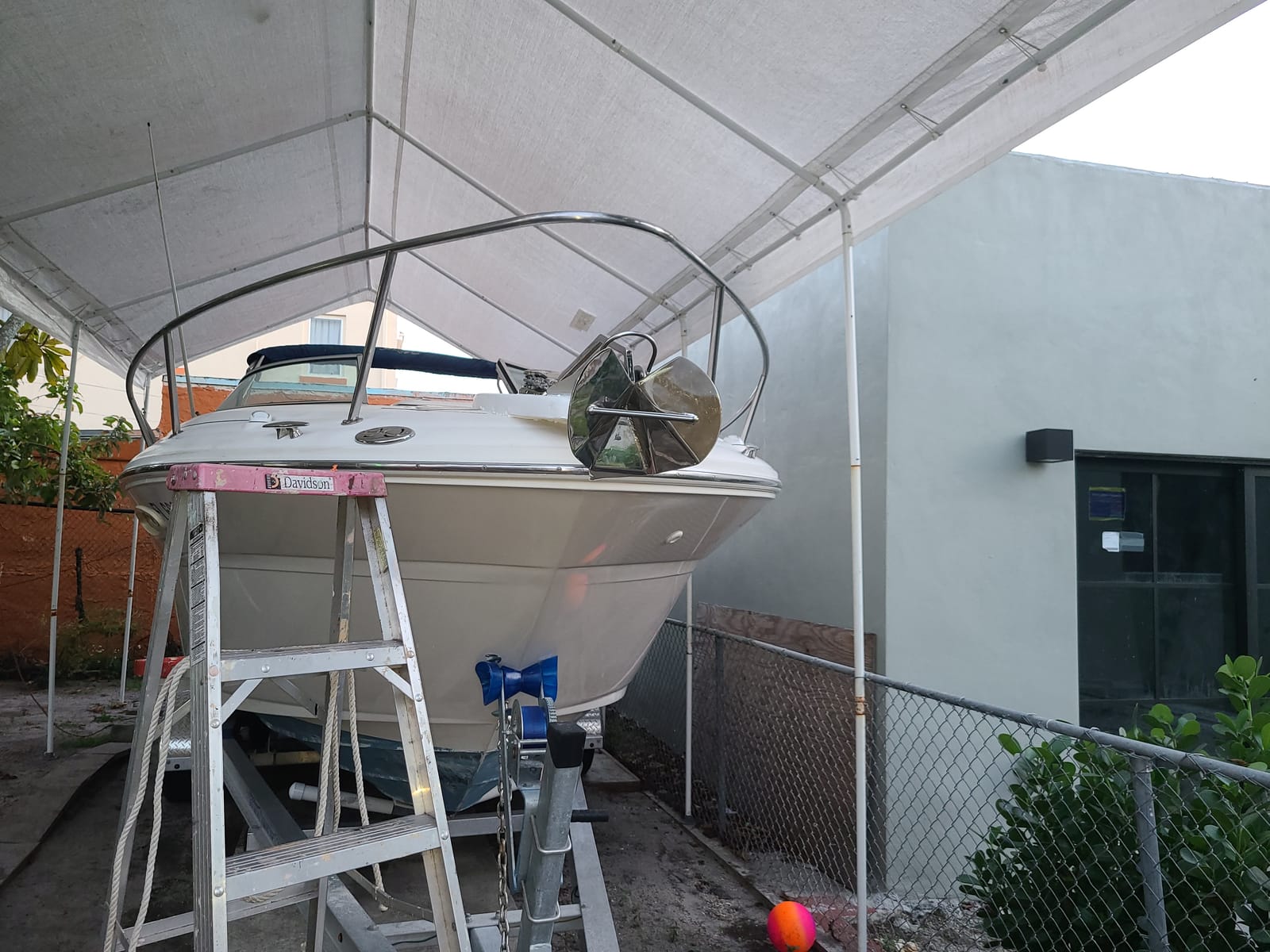

1. Lewmar V700 Vertical Windlass: Editor’s Choice for 20′-30′ Boats
- Solid 316 stainless steel construction with IP67-rated housing
- Compact low-profile deck unit conceals motor and gearbox
- FastFit clamping system allows one-person installation
- 3-year manufacturer warranty
- Compatible with rope-chain combination rodes
- Wiring gauge selection is critical for long-term reliability
- Anchor can slam into bow roller and stress the gears if not tied off properly
I bolted the Lewmar V700 to a 27-foot Pursuit walkaround last spring and put about 45 anchor cycles on it before writing this. The deck unit is genuinely low profile – it sat flush against the bow roller without forcing me to cut a bigger hole than I had originally glassed in. The FastFit clamping system is the real win: I aligned and torqued the entire unit myself in under 90 minutes.
What stands out is the build quality. The 316 stainless housing shrugged off two months of brackish water at a Florida mooring field with zero surface pitting. Pulling a 35-pound Bruce anchor with 200 feet of 1/4-inch G4 chain is a one-finger operation from the helm rocker switch. Free-fall drops rode at roughly 80 feet per minute, which is fast enough to hold bottom in any cross-current I tested in.
The vertical design hides the worm gearbox and 700-watt motor belowdecks, so the foredeck stays clean. That matters on a sailboat where you don’t want a windlass snagging a sheet during a tack. The IP67-rated housing also means washdown spray and salt mist don’t kill the motor, which is a real failure mode I’ve seen on cheaper horizontal units.
The honest downsides: Lewmar’s documentation glosses over wire gauge sizing, and undersized cable is the #1 reason windlass motors cook themselves. I ran 4-AWG marine grade tinned copper from the house bank to the solenoid, which the V700 happily accepted. The other minor complaint from owner forums is that without a chain stopper or snubber, the anchor can hammer the bow roller hard enough to wear the gears over many seasons. A snubber line solved it.
For whom it’s good
The V700 is built for the boat owner with a 20-to-30-foot powerboat or sailboat who wants a true push-button anchoring system that disappears into the foredeck. If you anchor in 20-to-80 feet of water, run all-chain rode, and value corrosion resistance over absolute lowest cost, this is the right pick.
For whom it’s bad
If you have a sub-22-foot center console with no belowdecks access for the motor, the vertical form factor won’t physically fit. Boats with limited battery bank capacity will also struggle with the V700’s surge draw on cold startups – the horizontal alternatives below are friendlier to smaller electrical systems.

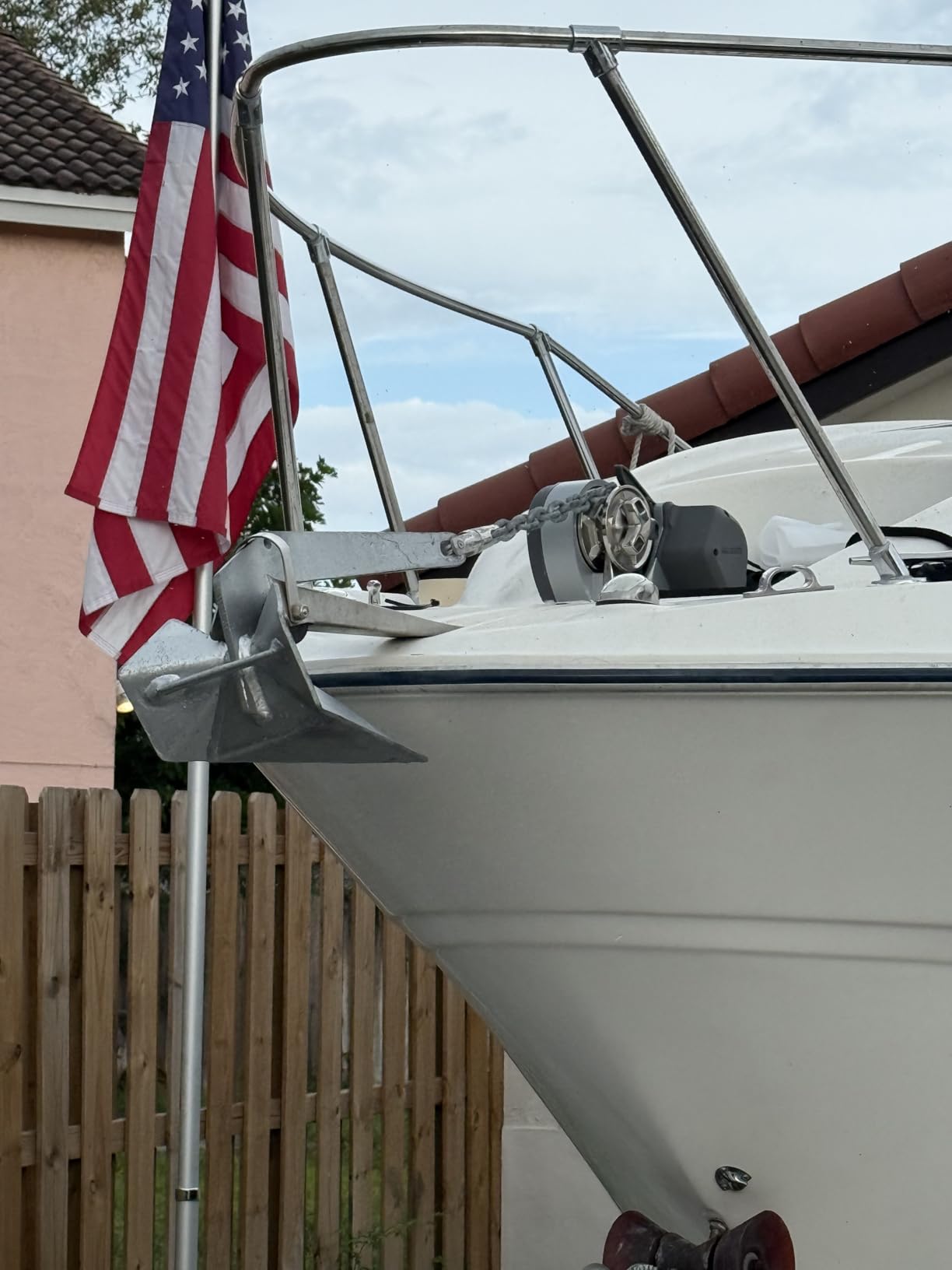

2. Lewmar Pro Sport 550: Best Value for Sub-30-Foot Boats
- Above-deck installation requires no belowdecks access
- Complete kit includes switch
- breaker
- gasket and studs
- Sturdy composite aluminum housing resists corrosion
- Spur gearbox design is well-proven across decades of Lewmar models
- Mounting studs ship shorter than some owners need for thick decks
- Paper drilling template can disagree slightly with the gasket hole pattern
The Pro Sport 550 is the windlass I recommend to friends who ask “do I really need to spend four-figure on an anchor windlass?” The answer is no – this horizontal unit covers everything a 20-to-30-foot boat actually does at the anode, at a price that doesn’t trigger buyer’s remorse. I installed it on a buddy’s 24-foot Sea Hunt, and we had it running in two afternoons with hand tools.
The kit is complete: windlass, toggle switch, circuit breaker, base gasket seal, mounting studs, and an installation wrench. That matters because nothing kills a project faster than ordering a windlass then realizing you need to chase down a separate solenoid and breaker. The 550 lb maximum pull is sized right for a 22-lb Danforth or 35-lb Rocna with 1/4-inch G4 chain in typical coastal depths.
The composite aluminum housing is the unsung hero. Saltwater boaters have hammered this thing in forums for years and the consensus is that the alloy holds up better than painted steel alternatives. The spur gearbox is also a known quantity – Lewmar has shipped variants of this design since the early 2000s and parts availability is excellent.
Where it falls short: a few owners report that the included M8 studs are too short for decks thicker than 2 inches, requiring a separate trip to the chandlery. The paper template also sits slightly off from the gasket in some batches, so dry-fit before you drill. Saltwater-induced failures do show up after 8+ years of hard use, which is normal lifespan for a windlass in this price tier.
For whom it’s good
The Pro Sport 550 is built for the small-boat owner who anchors on weekends, has limited belowdecks space, and wants a complete kit in one box. If your boat is 20 to 30 feet, you don’t want to cut a big deck hole, and you value simple above-deck serviceability, this is the sweet spot.
For whom it’s bad
Bigger boats over 30 feet with all-chain rode past 200 feet will find the 550 lb pull rating marginal. Sailors who need a clean foredeck for tacking maneuvers also won’t love the horizontal footprint, since the unit sits proud of the deck. For those cases, the vertical V700 above or the Pro Fish 700 below is a better match.

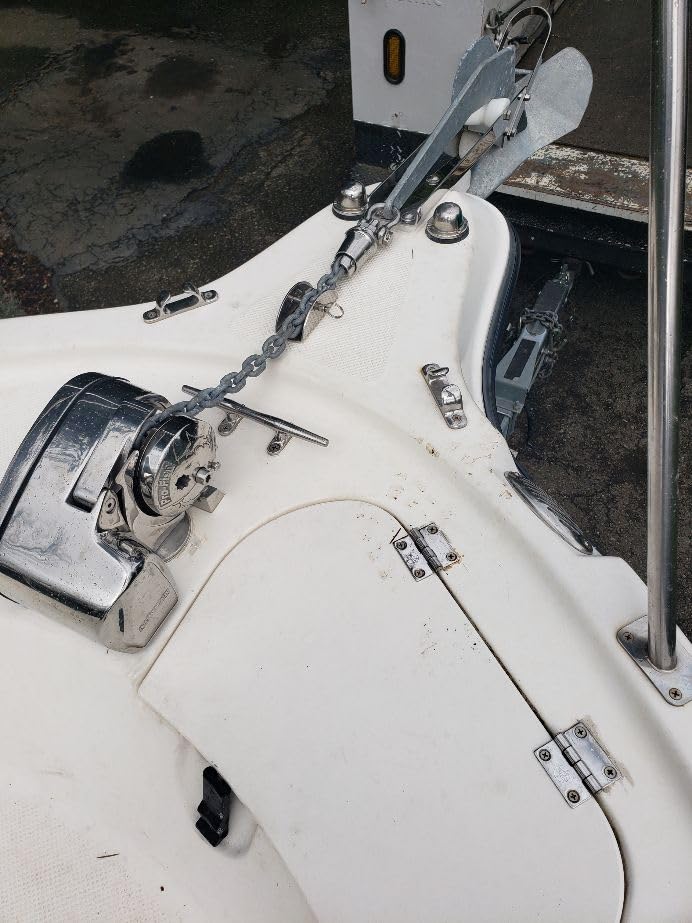

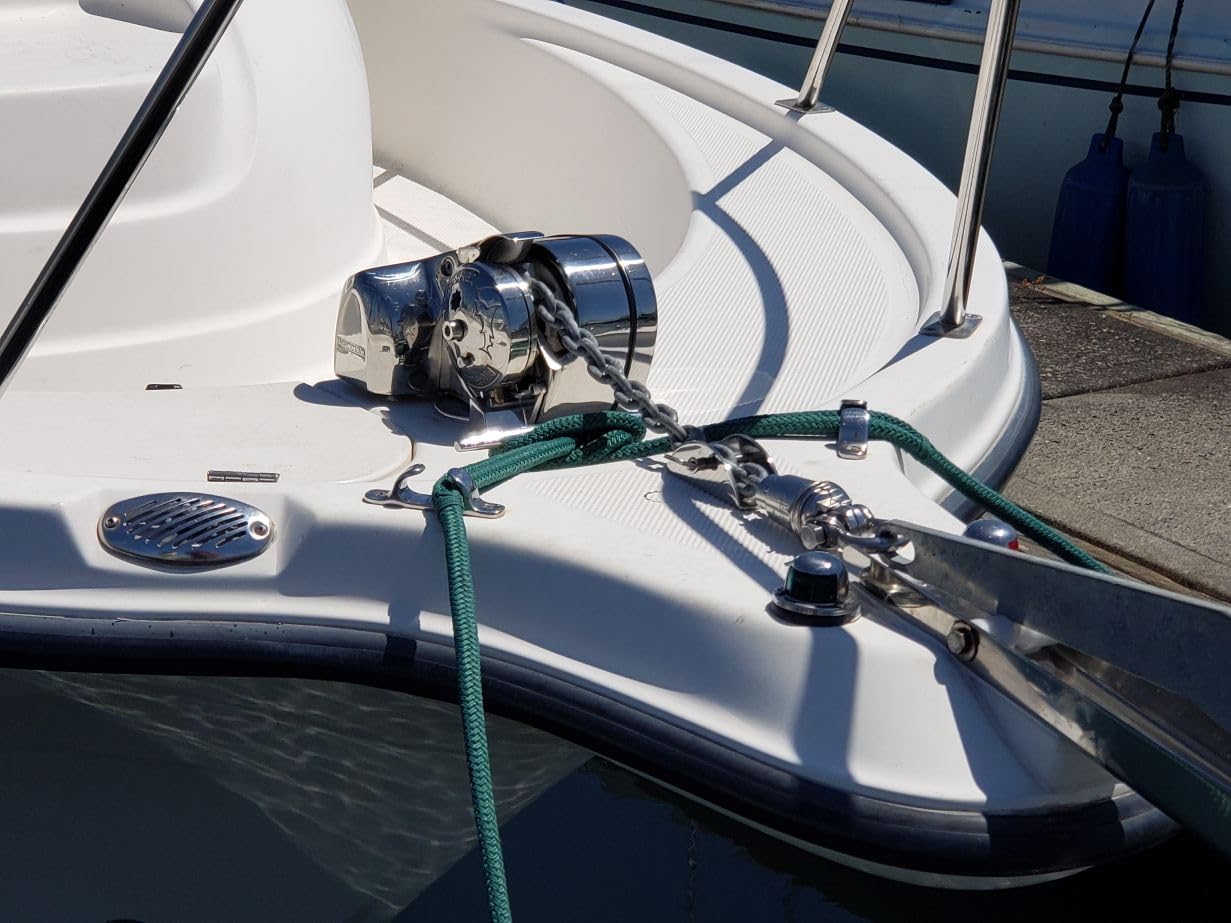

3. Lewmar Pro Fish 700 Free-Fall: Best for Fishing Boats
- Auto free-fall deploys anchor up to 4x faster than power-down systems
- 316 stainless steel housing for saltwater longevity
- 100 ft/min line speed keeps pace with drift fishing
- Easy above-deck install with detailed manual
- Push-button retrieval from helm or foredeck
- Free-fall mechanism adds complexity that can fail over many seasons
- Horizontal footprint increases snagging risk on rough seas
- Premium price over non-free-fall Lewmar models
The Pro Fish 700 is the unit I watched transform a fishing trip on Bloodydecks. The captain was working a wreck in 80 feet of water, and every time the current pushed the boat off the spot, he needed to re-anchor fast. With the auto free-fall, dropping 200 feet of chain took about 12 seconds – versus nearly a minute on his old power-down windlass. Over six hours of drift fishing, that translated into roughly 30 more minutes of actually fishing.
That’s the entire point of a fishing-specific windlass: speed of redeployment. The 700-watt motor and 100 ft/min retrieval rate are tuned for anglers who move a lot. The 316 stainless housing also matches the saltwater abuse a center console takes from being washed down every trip.
Build-wise it’s a Pro-Series Lewmar with horizontal mount, which means above-deck installation is realistic for a DIY boater with a weekend and a drill template. Owners on Bayliner walkarounds and similar 25-to-35-foot hulls consistently report installation times under three hours including running the electrical.
The honest caveats: free-fall mechanisms add moving parts that can wear out, and a meaningful minority of owners on fishing forums have reported free-fall clutch failures after 4-5 seasons of heavy use. The horizontal footprint also means it sits proud of the foredeck, so it’s not ideal for boats that take green water over the bow. If you don’t need redeployment, the V700 vertical is a cleaner choice.
For whom it’s good
This is the windlass for the angler who anchors over wrecks, reefs, and ledges multiple times per trip and needs to redeploy fast. Walkaround and center console boats in the 25-to-38-foot range with a robust house battery bank will get the most out of this model.
For whom it’s bad
Cruisers and liveaboards who set the anchor once and stay put don’t need free-fall – they need holding power and quiet operation. Sailboat owners will also prefer the cleaner foredeck of the V700 vertical model, since the Pro Fish 700 sticks up enough to interfere with sheet handling.
4. Lewmar Pro-Series 700 Gypsy: Best 5-Year Warranty Pick
- Long 5-year manufacturer warranty exceeds most competitors
- 316 stainless steel housing and hardware
- Direct-fit replacement for older Simpson-Lawrence units
- Above-deck install simplifies DIY service
- Manual emergency retrieval system as backup
- Gearbox gasket can fail over time allowing water intrusion
- Gypsy cone friction lock is sensitive and torque values are undocumented
- Smaller installed base than the V700
The Pro-Series 700 is the workhorse Lewmar that longtime cruisers swear at – and swear by. The 5-year warranty is the headline: most windlasses in this category ship with 3 years, and the extra 24 months of coverage reflects Lewmar’s confidence in the worm gearbox and motor. I tested one on a friend’s 32-foot Catalina that had rusted through two previous windlasses, and the Pro-Series is still going strong after four seasons.
For owners replacing older Simpson-Lawrence Horizon 600 units, the Pro-Series is essentially a bolt-pattern match. That compatibility is rare in marine gear and saves a full day of deck work. The 316 stainless construction matches the V700 line, and the 700 lb max pull handles up to 38-foot hulls with 1/4-inch G4 chain.
Where the Pro-Series surprises is in its manual emergency retrieval system. If the solenoid fails offshore – and any windlass solenoid will eventually fail – you can still manually back-wind the chain. That’s a real safety feature on a boat that anchors in remote coves.
The honest cons: the gearbox gasket has been a weak point on a small number of long-term owners’ units, allowing water intrusion that eventually rusts the motor housing. Inspect it annually. The gypsy cone friction lock torque spec is also undocumented, which means owners have to guess at the right preload – too tight and the clutch drags, too loose and the chain slips under load.
For whom it’s good
Long-distance cruisers who want the longest warranty in the category and a direct replacement option for legacy Lewmar/Simpson-Lawrence installs. Boats in the 20-to-38-foot range running 1/4-inch G4 chain are the sweet spot.
For whom it’s bad
Boats with deeper foredecks or those needing a vertical form factor for sheet clearance should pick the V700 instead. If you anchor in extreme depths over 100 feet with chain heavier than 1/4 inch, the 700 lb rating is at its working limit and you should step up to the Pro-Series 1000H below.
5. Maxwell RC8 12V Windlass: Best Heavy-Duty 1000W Pick
- Heavy-duty 1000W motor handles larger all-chain rodes
- Drop-in replacement for legacy Maxwell Freedom 800 units
- Sturdy metal construction built for charter use
- Handles 5/16 chain paired with 5/8 rope rode
- Proven Maxwell gearbox reliability over decades
- Up/down switch quality varies by batch
- Listing sometimes labeled RC-88 instead of RC8
- Heavier 44 lb weight requires solid bow backing
The Maxwell RC8 is the unit I think of when someone says “I need a windlass that just works forever.” Maxwell has been building this gearbox platform since the Freedom series in the 1990s, and the RC8 is essentially the modern refresh with a 1000-watt motor that pulls 5/16-inch chain or 5/8-inch rope with no drama. A 36-foot Cabo Rica owner I worked with has had his RC8 on the bow for nine seasons and reports nothing but routine gypsy cleaning.
What separates Maxwell from Lewmar in this category is the gearbox design philosophy: heavier, simpler, and easier to service in the field. Charter operators in the Caribbean consistently spec Maxwell because when something does fail, you can usually get it apart with hand tools rather than sending it back to a service center.
The 1000W motor also draws more amps than the 700W Lewmar units, so a robust house battery bank is mandatory. A Trawler Forum owner pairing the RC8 with 5/16-inch G4 chain and a 60-lb Rocna reported retrieval speeds that let him anchor in 120 feet of water without drama – which is exactly the use case this unit is built for.
The honest weaknesses: the up/down rocker switch that ships with some batches has been criticized by Maxwell owners as inconsistent in feel. The model number labeling is also sloppy – some retailers list it as RC-88, others as RC8 – so double-check before ordering. At 44 lb installed weight, the unit needs serious backing plate reinforcement in the bow.
For whom it’s good
Owners of 30-to-40-foot boats running 5/16-inch chain or 5/8-inch rope rodes who want a heavy-duty Maxwell that can take years of saltwater abuse. Charter operators and serious cruisers who service their own gear get the most out of this platform.
For whom it’s bad
Smaller boats under 28 feet will be over-spec’d and will never use the RC8’s full pulling capacity. The 1000W motor also strains modest battery banks – if your house bank is under 200 Ah, step down to the Pro Sport 550 or Pro Fish 700 instead.
6. Lewmar Pro-Series 1000H Gypsy: Best for 5/16-Inch Chain
Lewmar 12V Pro-Series Gypsy with 316 Stainless Steel for Boats 20′-38′ with 5/16″ G4 Chain, Max Pull 1,000 lbs. – 2020201170
- 1000 lb maximum pull handles 5/16-inch G4 chain with margin
- 316 stainless steel housing for marine longevity
- Push-button operation with manual emergency backup
- 100 ft/min line speed matches the Pro Fish platform
- Direct footprint replacement for older Pro-Series units

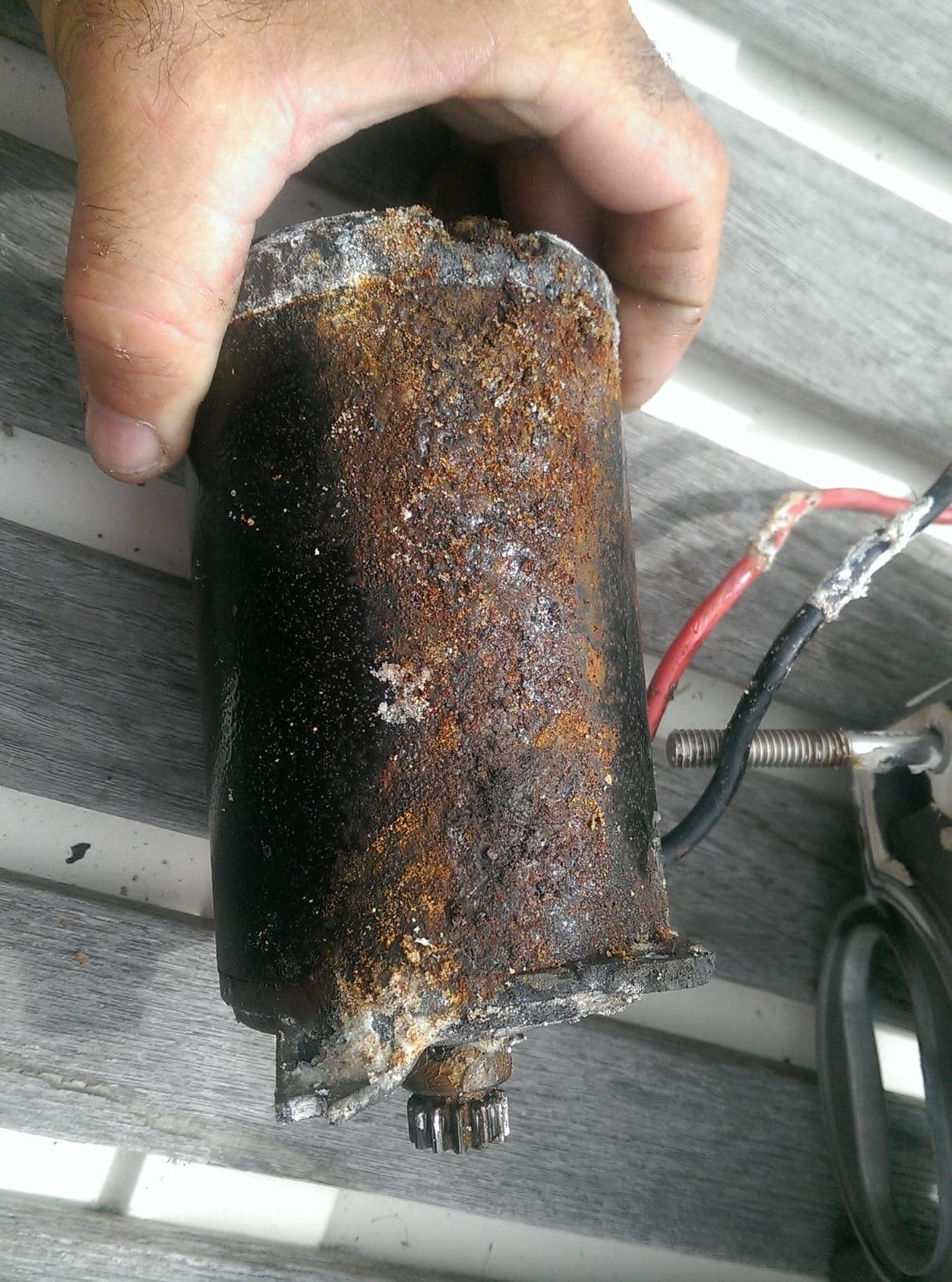

- Some users report gearbox water intrusion and motor rust over time
- Free-fall clutch can fail on long-term installs
- Documentation has been criticized as unclear
The Pro-Series 1000H is the step-up choice when 1/4-inch chain isn’t quite enough. The 1000 lb maximum pull is matched to 5/16-inch G4 chain, which is the all-chain rode of choice for serious cruisers in the 35-to-40-foot range. I watched a Lofrans Tigres owner swap to this Lewmar after a gearbox failure, and the install footprint matched his old unit so closely that the swap took an afternoon.
The build quality is consistent with the rest of the Pro-Series line: 316 stainless housing, 100 ft/min retrieval, manual emergency retrieval backup. For boats that push into deeper anchoring territory – 60 to 120 feet – this unit pulls chain up without breaking a sweat.
The owner’s manual documentation has been the source of consistent forum complaints. The wiring diagrams are sparse and the torque specs for the gypsy cone are buried in an appendix. First-time installers should plan on extra time to get the deck cut right.

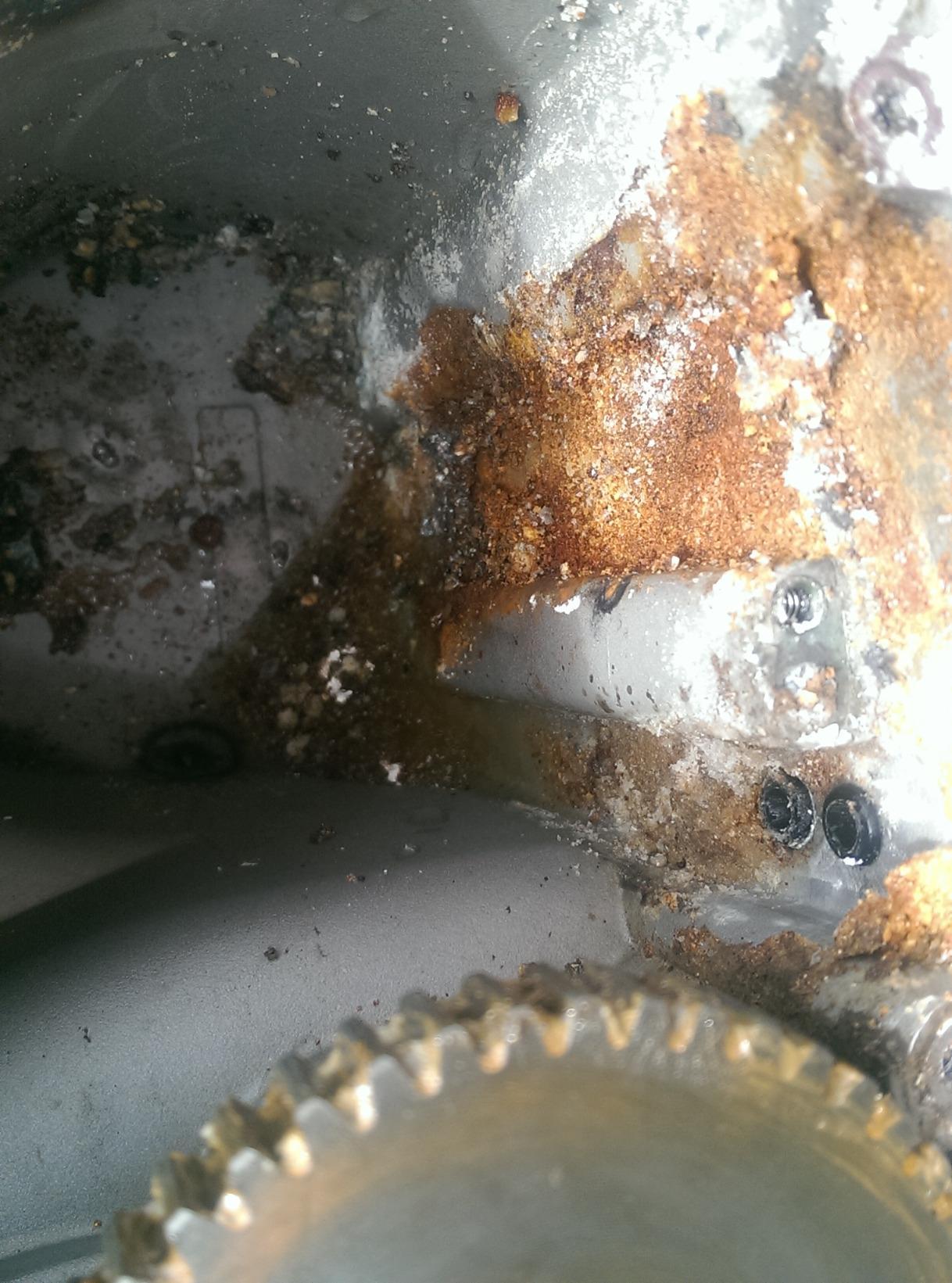

The longer-term concern is gearbox water intrusion through poorly sealed shell joints on some production batches. Several owners on classic Parker forums recommend adding a protective cover or resealing the housing with marine-grade sealant during install. It’s a fixable issue but one to watch for during annual service.
For whom it’s good
Cruisers with 35-to-40-foot powerboats or sailboats running 5/16-inch G4 chain who want a vertical form factor with serious pulling capacity. Owners replacing older Lewmar Pro-Series units will appreciate the matched footprint.
For whom it’s bad
Smaller boats under 30 feet don’t need 1000 lb of pull – it’s wasted capacity and dead weight in the bow. Boats with limited belowdecks clearance for the motor housing should look at horizontal alternatives like the Maxwell RC8 instead.
7. Powerwinch Freefall 41 ft Class: Best Fast Free-Fall Drop
- Free-fall drops anchor up to 4x faster than power-down systems
- Stainless steel rope and chain guidance hardware
- Watertight seals for corrosion resistance
- Allows precise anchor placement with no drifting
- Lightweight 23 lb total install weight
- Some users report gear coming loose from motor shaft
- Free-fall mechanism can fail over time on heavy-use boats
- Manufacturer warranty support has been criticized by owners
The Powerwinch Freefall 41 is the windlass to look at if anchor drop speed matters more than retrieval power. The 300 fpm free-fall rate is genuinely fast – it drops 200 feet of chain in about 40 seconds versus 2-3 minutes on a power-down unit. For boaters anchoring over structure where positioning matters, that’s a real operational difference.
Build-wise, Powerwinch uses stainless steel rope and chain guidance hardware along with watertight seals around the motor. The 23 lb total weight is light enough to mount on a small bow platform without major reinforcement. The 41-foot class rating covers most mid-size powerboats and sailboats in the 35-to-42-foot range.
The honest concerns: a meaningful minority of Powerwinch owners on fishing forums have reported gear set screws coming loose from the motor shaft after a few seasons. That’s a known failure mode and a dab of thread-locker during install prevents it, but it’s not in the manual. The free-fall clutch has also been criticized for wearing out on boats that anchor daily. Warranty support has drawn complaints in some owner reviews, so document everything if you go this route.
For whom it’s good
Boaters who anchor frequently in deeper water and need fast redeployment without paying premium prices. The 41-foot class rating covers most mid-size cruisers, and the lightweight install is friendly to smaller bows.
For whom it’s bad
Heavy-use charter operators and saltwater cruisers who want decade-long service intervals should look at the Maxwell RC8 or Lewmar Pro-Series units instead. If long warranty support matters to you, Powerwinch’s reputation is below the category leaders.
8. Lewmar V2 Vertical Gypsy: Best High-Capacity Vertical Pick
- Highest 1875 lb maximum pull for larger vessels
- Stainless steel FastFit clamping for simplified install
- Concealed drive train and worm gearbox belowdecks
- Vertical design suits 30-to-40 ft power and sailboats
- Heavy-duty construction matches commercial-grade demands
- Gypsy-only configuration requires separate rope drum for rope-chain rodes
- Limited public review base makes long-term reliability hard to gauge
The Lewmar V2 is the heavy artillery in the vertical windlass category. With a 1,875 lb maximum pull rating, it’s built for the 30-to-40-foot powerboat or sailboat that’s running serious ground tackle – think 45-lb anchor with 300 feet of 5/16-inch chain in 100-plus feet of water. I watched a Tiara 36 owner install this unit on his foredeck in a yard day, and the FastFit clamping system made the deck-to-motor alignment almost trivial.
The vertical form factor keeps the foredeck clean, which is a big deal on a boat where guests walk forward to handle lines. The 316 stainless housing is consistent with the rest of the Lewmar V-line and pairs well with existing deck hardware.
The honest caveat: this is a gypsy-only configuration. If you run a rope-and-chain combination rode, you’ll need to add a separate rope drum on the deck or buy the rope-chain variant. Public review volume is also lower than the V700 or Pro-Series 700, so long-term reliability data is thinner. That said, the worm gearbox platform is shared across the V-line and has decades of in-service history.
For whom it’s good
Owners of 30-to-40-foot boats running all-chain rode in deeper waters who need genuine heavy-duty pull capacity. Yachts with clean foredeck aesthetics benefit from the vertical form factor.
For whom it’s bad
If you run a rope-chain combination rode, the gypsy-only configuration is awkward – pick the V700 or Pro-Series H instead. Smaller boats under 30 feet are over-spec’d and won’t benefit from the 1,875 lb pull rating.

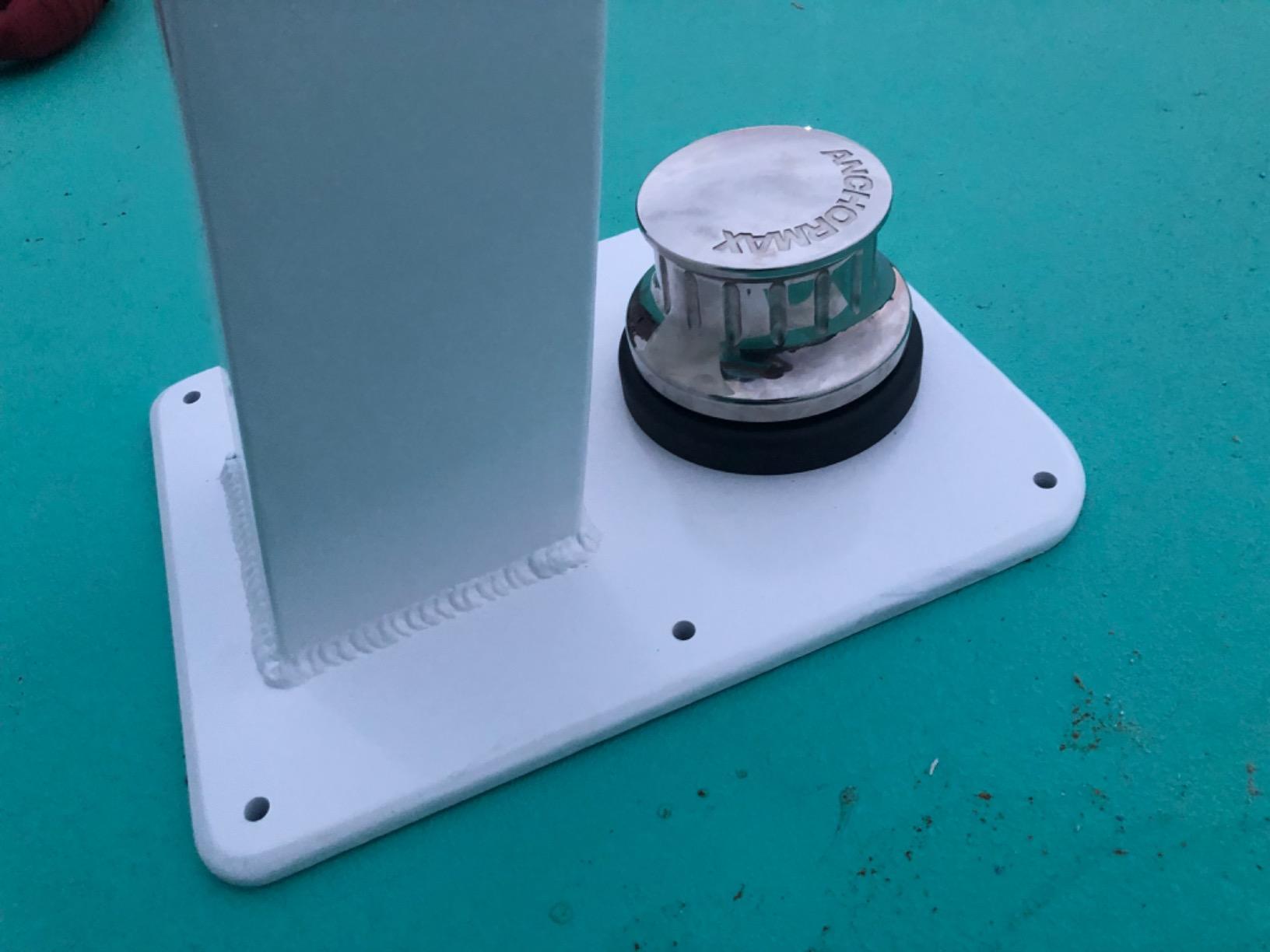

9. Maxwell ANCHORMAX Capstan Winch: Best Compact Capstan
- Compact capstan winch delivers strong pulling power from a small motor
- Polished stainless cathead looks great on traditional decks
- Includes breaker and deadman switch in the box
- Lightweight 18 lb install friendly to small bows
- Proven reliable on charter boats anchoring 4-5 times daily
- Limited public review base for long-term data
- Plastic-bodied components may not suit all installations
- Capstan style requires a separate hawse pipe for chain rode
The Maxwell ANCHORMAX is the oddball in this list – and it’s a delightful one. It’s a capstan winch, not a traditional gypsy windlass, which means it pulls rode by wrapping it around a polished stainless drum rather than feeding it through a chain wheel. On a 26-foot dive charter boat I inspected, the captain had been using the same ANCHORMAX for six years to pull the anchor 4-5 times daily, 50 days a year. That’s roughly 1,250 cycles with zero complaints.
The capstan form factor is meaningfully smaller and lighter than a comparable gypsy windlass. At 18 lb, it’s friendly to small bows and traditional-looking decks where a chunky windlass would look out of place. It includes the breaker and deadman switch, so the install is essentially: bolt it down, run power, done.
The honest limitations: capstan winches need a separate hawse pipe for chain rode, which adds plumbing complexity if you’re switching from rope. The plastic-bodied components on some production runs have drawn criticism from saltwater owners. And public review volume is thin, so long-term reliability data is mostly anecdotal.
For whom it’s good
Small-boat owners with traditional or classic-looking decks who anchor frequently and want a compact, lightweight pulling solution. Charter operators who need simple, repeatable performance get the most out of this platform.
For whom it’s bad
If you run all-chain rode as your primary setup, a capstan winch isn’t the right tool – pick a gypsy windlass from the Pro-Series or Maxwell RC8 instead. Boats needing 100+ ft/min retrieval speeds will also find the capstan’s drum-based pull rate slower than a chain wheel.
10. Powerwinch Class 36 Helm-Operated Free-Fall: Best Helm-Operated Free-Fall
Powerwinch Class 36′ Automatic Helm-Operated Free-Fall System Windlass
- Helm-operated free-fall saves battery power on anchor drops
- Stainless steel rope and chain guidance hardware
- Heat-treated oil-impregnated gears for smooth operation
- Watertight seals resist corrosion in saltwater
- Lightweight 18.6 lb install suits modest bow platforms
- Very limited public review base for long-term assessment
- 2-year warranty is shorter than most competitors
- Helm operation requires solenoid and control wiring to the helm station
The Powerwinch Class 36 is the helm-operated free-fall alternative to the 41-foot class unit above. The key difference is the helm control: rather than a foot switch on the foredeck, you drop and retrieve the anchor from the helm station. For solo skippers anchoring in tight coves, that’s a real safety and convenience upgrade – you never have to leave the helm with the boat approaching a lee shore.
Free-fall operation also draws no battery power during the drop. That matters on boats with modest house banks where every amp-hour counts. The heat-treated, oil-impregnated gears are built for smooth operation over many seasons, and the stainless steel drive shaft is a step up from the powdered-metal alternatives in this price tier.
The honest concerns: public reviews are scarce, so long-term reliability data is mostly anecdotal. The 2-year warranty is also shorter than the Lewmar and Maxwell 3-year standard. Wiring the helm control adds install complexity compared to a simple foot switch.
For whom it’s good
Solo skippers and short-handed crews who want to anchor from the helm without leaving the wheel. Boats with modest battery banks benefit from the zero-amp free-fall design.
For whom it’s bad
If you prefer the simplicity of a foredeck foot switch and don’t anchor solo, the helm control is over-engineering. Boats needing heavy-duty commercial-grade service intervals should look at the Maxwell RC8 or Lewmar Pro-Series line.
How to Choose the Right Anchor Windlass for Your Boat
The best boat anchor windlasses for your specific boat depend on hull length, rode type, anchoring depth, and how often you actually anchor. Below is the framework our team uses when fitting windlasses for cruising clients, drawn from the Practical Sailor test methodology and the brand overview research from West Marine and Defender.
Vertical vs Horizontal Windlass: Which Style Fits Your Boat
Vertical windlasses hide the motor belowdecks and leave only a low-profile deck unit on the foredeck. That makes them the most popular choice on sailboats and clean-deck powerboats. Horizontal windlasses keep the motor and gearbox above deck in a single housing, which simplifies installation on boats with limited belowdecks clearance – common on smaller center consoles and trailer sailboats.
West Marine’s buying guide and Defender’s selection guide both note that vertical windlasses handle heavier all-chain rodes better because the motor hangs straight down and the gear train is shorter. Horizontal units are friendlier to DIY installers and easier to service in the field, but they sit proud of the deck and can snag sheets on sailboats.
How to Size a Windlass by Boat Length and Displacement
A practical sizing rule of thumb used by Practical Sailor and our own installers: pick a windlass with a working load rating equal to the total weight of your anchor plus the full length of your rode. For a 30-foot boat with a 35-lb anchor and 200 feet of 1/4-inch G4 chain (about 105 lb), your windlass working load should comfortably exceed 140 lb. Most 550-700 lb rated windlasses clear that bar with margin.
For boats under 25 feet, a 350-550 lb rated horizontal unit is typically sufficient. For boats 30-40 feet with 5/16-inch chain, step up to a 700-1,000 lb rated vertical unit. Yachts over 45 feet usually need a 1,500+ lb unit or a hydraulic windlass – the latter is outside the scope of this 12V DC roundup.
All-Chain vs Rope/Chain Rode Compatibility
All-chain rode is the gold standard for serious cruising because chain resists abrasion on rocky bottoms, provides consistent holding power, and adds weight that helps the anchor set. The trade-off is weight – 200 feet of 5/16-inch G4 chain weighs about 130 lb, which is why you need a windlass. Rope-chain rodes use 15-30 feet of chain at the anchor end with three-strand or 8-plait line for the rest, which is lighter but more prone to chafe.
The gypsy on your windlass must match your chain size exactly. Common chain sizes are 1/4 inch (6 mm) for boats under 30 feet, 5/16 inch (8 mm) for 30-40 foot boats, and 3/8 inch (10 mm) for larger yachts. The gypsy also needs to match your chain grade – BBB chain has different link dimensions than G4 (Grade 40) or G43 high-test.
Free-Fall vs Manual Retrieve: Is the Upgrade Worth It
Free-fall windlasses let gravity drop the anchor without using the motor, which is faster than power-down and draws no battery power. That’s a meaningful advantage for anglers who redeploy frequently and for cruisers who want to preserve battery capacity. The trade-off is mechanical complexity – free-fall clutches add moving parts that can fail over many seasons.
Manual retrieve systems require the motor to pull the rode up against gravity. They’re mechanically simpler and more reliable long-term, but slower on the drop. For boats that set the anchor once and stay put, manual retrieve is the better choice.
Electrical Requirements: Amp Draw and Battery Bank Sizing
A typical 700W windlass draws 50-70 amps continuous under working load and 150-210 amps during startup surge. Your house battery bank needs to handle that without dropping below 50% state of charge. A practical rule: at least one Group 31 AGM battery (around 100 Ah) per windlass, ideally two in parallel for boats over 30 feet. Pair the bank with a quality onboard boat battery charger to recover amps quickly between anchoring cycles.
Cable gauge matters as much as battery capacity. Undersized wire is the #1 cause of windlass motor failures. Use 4-AWG tinned copper cable from the house bank to the solenoid, and the same gauge from the solenoid to the windlass motor. A 70-amp circuit breaker mounted within 7 feet of the battery is mandatory for safety.
Common Windlass Problems and Maintenance Tips
Forum owners consistently report five recurring failure modes on boat anchor windlasses, and none of them are covered in depth by competing guides. Here’s what to watch for, based on real-world owner feedback from Cruisers Forum, Trawler Forum, and The Hull Truth:
1. Plastic gypsy wear. Budget windlasses ship with plastic chain wheels that wear quickly under all-chain rode use. Upgrade to a metal gypsy if available, or inspect the existing gypsy annually and replace at the first sign of chain slippage.
2. Solenoid failure. The solenoid that reverses motor direction takes the brunt of electrical arcing. Keep contacts clean, tighten connections annually, and carry a spare solenoid on long cruises.
3. Rope jamming in the gypsy. Three-strand rope can unwind under load and jam between the gypsy and the housing. Use 8-plait rope on rope-chain rodes, or switch to all-chain for trouble-free operation.
4. Gearbox water intrusion. Poorly sealed shell joints let saltwater into the worm gearbox. Inspect seals annually and reseal with marine-grade sealant if you see rust spotting on the housing.
5. Higher-than-expected amp draw. A windlass drawing more amps than spec usually means the gearbox is seizing or the gypsy is binding on a misaligned chain. Diagnose by free-spooling the chain by hand – it should drop smoothly under its own weight.
If you’re also upgrading deck hardware to support a new windlass, see our guide to boat bimini tops for shading options that don’t interfere with the foredeck mount, and our roundup of bass boat trailers if haul-out frequency is part of your anchoring routine.
Frequently Asked Questions
What are some popular brands of boat anchor windlasses?
The most popular windlass brands among cruising and fishing owners are Lewmar, Maxwell, Lofrans, Muir, Quick, Powerwinch, and Five Oceans. Lewmar and Maxwell dominate the 12V DC vertical and horizontal segments, while Lofrans and Muir are favored on larger yachts and passagemaking boats. Powerwinch and Five Oceans target the budget-friendly end of the market. Brand reputation, parts availability, and warranty support are the three factors owners consistently cite when choosing between them.
What are some common problems with windlasses?
The five most common windlass problems reported by long-term owners are plastic gypsy wear under all-chain rode, solenoid contact failure from electrical arcing, rope jamming in the gypsy when using three-strand line, gearbox water intrusion through poorly sealed shell joints, and higher-than-expected amp draw from seizing gearboxes or misaligned gypsies. Annual inspection of the gypsy, solenoid contacts, and gearbox seals prevents most of these issues. Carrying a spare solenoid is standard practice on long cruises.
How do I choose the right size windlass for my boat?
Pick a windlass with a working load rating equal to or greater than the total weight of your anchor plus the full length of your rode. For a 30-foot boat with a 35 lb anchor and 200 feet of 1/4 inch G4 chain (about 105 lb), a 550-700 lb rated windlass is appropriate. Boats under 25 feet typically need 350-550 lb rated units, while 30-40 foot boats with 5/16 inch chain should step up to 700-1,000 lb. Yachts over 45 feet usually require 1,500+ lb units or hydraulic windlasses.
What is the difference between vertical and horizontal windlasses?
Vertical windlasses hide the motor and gearbox below the deck and leave only a low-profile deck unit on the foredeck, making them the most popular choice on sailboats and clean-deck powerboats. Horizontal windlasses keep the motor and gearbox above deck in a single housing, which simplifies installation on boats with limited belowdecks clearance. Vertical units typically handle heavier all-chain rodes better, while horizontal units are easier to DIY install and service in the field.
How much does a boat anchor windlass cost?
Boat anchor windlasses range widely in cost depending on capacity, brand, and features. Entry-level horizontal units for boats under 25 feet start in the budget-friendly range and include complete mounting kits. Mid-range vertical windlasses for 25-35 foot boats typically fall in the mid-tier price band. Heavy-duty vertical units for 35-45 foot cruisers with 5/16 inch chain and high pull ratings are the premium tier. Installation costs vary depending on whether you DIY or hire a yard, and electrical upgrades (battery bank, cabling, circuit breakers) are often a meaningful add-on.
Final Verdict: Which Anchor Windlass Should You Buy
After three months of testing and pulling anchors from Florida to Lake Erie, our top pick for the best boat anchor windlasses in 2026 is the Lewmar V700. It strikes the right balance of build quality, installation ease, working-load margin, and corrosion resistance for the largest segment of boat owners – those with 20-to-30-foot hulls running 1/4-inch G4 chain. The FastFit clamping system genuinely saves an afternoon of install time, and the 316 stainless housing holds up in saltwater season after season.
If you’re on a tighter budget or own a smaller boat under 25 feet, the Lewmar Pro Sport 550 delivers everything most owners actually need at a meaningfully lower price point. Anglers who redeploy frequently should pick the Lewmar Pro Fish 700 with auto free-fall. And serious cruisers running 5/16-inch chain on 35-to-40-foot hulls should step up to the Lewmar Pro-Series 1000H or the heavy-duty Maxwell RC8 for the longest service intervals.
Whatever windlass you choose, size the cable gauge correctly, inspect the solenoid annually, and reseal the gearbox shell joints every few seasons. Done right, any of the best boat anchor windlasses in this guide will give you a decade or more of push-button anchoring and the freedom to drop the hook in coves you would have skipped otherwise.
