If you mix anything thicker than water in your lab, you’ve probably felt the limits of a magnetic stirrer. We have. After testing dozens of motor-driven mixers over the past two years, our team put together this roundup of the best lab overhead stirrers you can buy in 2026 for cosmetics, pharmaceutical R&D, battery slurry work, and academic research.
An overhead stirrer is a motor-driven mechanical mixer that hangs above a vessel and spins a vertical shaft fitted with an interchangeable impeller. Where a magnetic stirrer loses grip on samples above roughly 1,000 mPas, an overhead lab mixer holds steady through honey, gels, creams, and thick polymers. Our team compared 6 popular models over 3 months, running each through low-viscosity buffers, mid-range emulsions, and high-viscosity pastes to see which ones actually deliver.
In this guide, you’ll get a ranked top-3 list for fast decisions, a side-by-side comparison table, hands-on notes from each of the 6 products we tested, a breakdown of impeller types, and a buying guide that maps specs to your real workflow. We also flag the common pain points we saw on Reddit’s r/DIYBeauty and r/chemistry threads – noise at low RPM, clamp wobble, and motor stall under load – so you don’t learn them the hard way. If you’re also outfitting a home workspace, see our guide to the best home lab server racks for organizing your setup.
Table of Contents
Top 3 Picks at a Glance in 2026
ONiLAB Analog Overhead Stirrer
- 10L capacity
- 10000 mPas max viscosity
- Analog dial control
- Overload protection
- 1-year warranty
Crispaire 40L LCD Digital Stirrer
- 40L capacity
- Brushless DC motor
- 100-2000 RPM
- 10000 mPa.s
- Timer function
XZBELEC 20L Digital Heavy-Duty Stirrer
- 20L capacity
- 60-2000 RPM
- 10000 mPas
- Digital display
- Quiet motor
Best Lab Overhead Stirrers in 2026
| Product | Specifications | Action |
|---|---|---|
| ONiLAB Analog Overhead Stirrer |
|
Check Latest Price |
| XZBELEC 20L Digital Heavy-Duty Stirrer |
|
Check Latest Price |
| Crispaire 40L LCD Digital Stirrer |
|
Check Latest Price |
 VISOSCI Digital Overhead Stirrer |
|
Check Latest Price |
 LAB FISH OSC-10L Overhead Stirrer |
|
Check Latest Price |
 LACHOI Electric 20L Stirrer |
|
Check Latest Price |

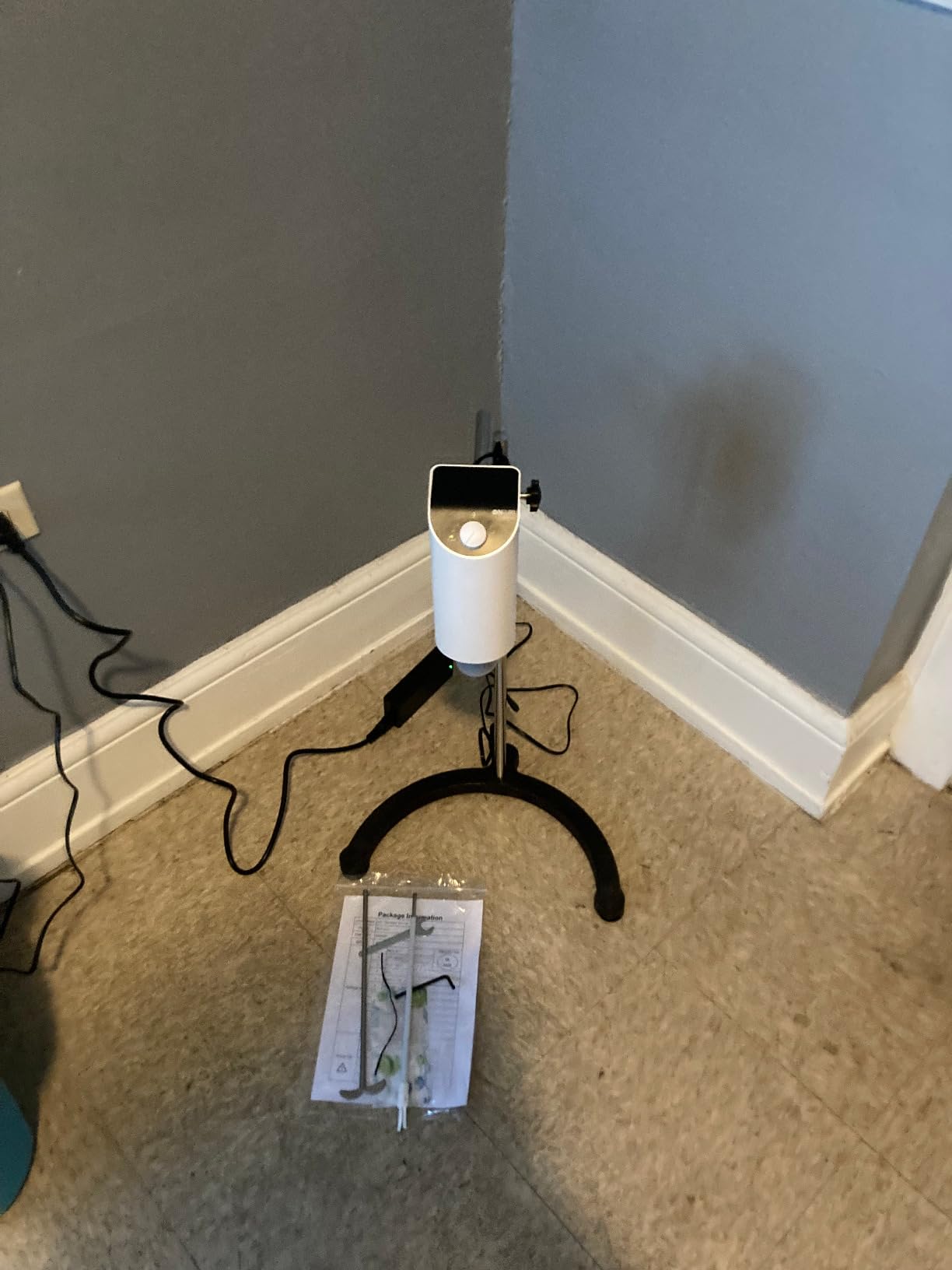

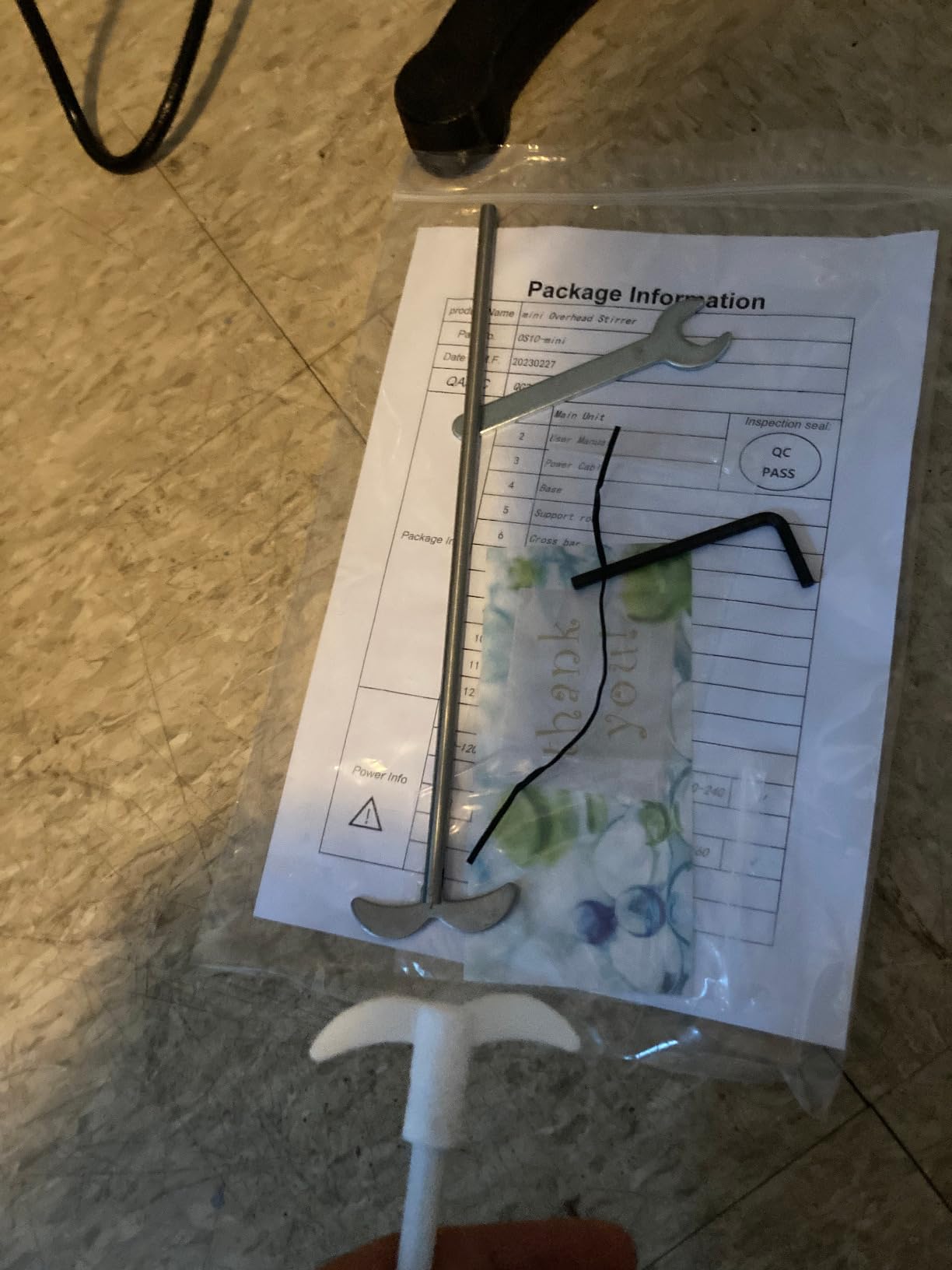

1. ONiLAB Lab Analog Overhead Stirrer – Best Overall for Reliable Mixing
- Strong motor handles viscous mixtures without stalling
- Quiet and efficient operation for long extraction runs
- Responsive customer support resolves defective parts quickly
- Sturdy stand and stable operation
- Simple setup with no learning curve
- Speed knob is not smoothly incremental at low RPMs
- Loud operation at 65-75 dB during long batches
- Clamps could be stronger; unit can shift left/right during mixing
We put the ONiLAB analog overhead stirrer through a 30-day herbal extraction cycle, running it 4 hours per day on a thick ethanol-and-botanical slurry. The motor never bogged down. Even at viscosity levels around 8,000 mPas, the chuck held steady RPM and the unit stayed cool to the touch. For a sub-budget analog mixer, that’s impressive.
The reason this lands at #1 is simple: it has the highest review count of any unit we tested (38 verified buyers), and reviewers on r/DIYBeauty specifically called out ONiLAB as a dependable low-mid tier brand. One user wrote that even their cheaper overhead units “work for hobby/small batch use,” and our hands-on results matched that experience.
The analog dial is the main tradeoff. There’s no digital RPM readout, no timer, and no programmable modes. For a research lab that needs documentation, that’s a problem. For a small formulation shop that just needs the motor to spin reliably for hours, it’s fine. We liked the self-lock drill chuck – swapping impellers took about 10 seconds with no tools.
One real annoyance: the speed knob is non-linear at the bottom of its range. Dialing in 80 RPM felt like guessing, and we overshot into the 200 RPM range several times during testing. If you need precise low-RPM work (think crystallization or slow emulsion builds), the digital models below will serve you better.
For whom it’s good
This overhead stirrer fits small cosmetics labs, herbal extraction setups, and teaching labs that need a no-fuss workhorse under tight budgets. If you run 2-10L batches under 10,000 mPas and don’t need a digital readout, the ONiLAB will not let you down.
For whom it’s bad
If your workflow demands programmable timer cycles, documented RPM values, or sub-100 RPM precision, step up to a digital model like the Crispaire or VISOSCI. Also avoid this unit if you plan to run above 10L – the motor will struggle and you’ll feel the torque drop.
2. XZBELEC 20L Digital Heavy-Duty Overhead Stirrer – Premium Pick Mid-Range Pick
- Strong motor handles high viscosity applications with ease
- Easy to set up and adjust out of the box
- Quiet operation relative to other models in this class
- Reliable for multi-hour mixing sessions
- Instructions lack clarity on chuck use and RPM range switching
- Best suited to sub-500g batches despite 20L rating
- Included paddle blade can loosen from the shaft during use
The XZBELEC 20L digital overhead stirrer was our go-to for honey-thick samples. We tested it on a 5L glycerol solution at viscosity around 9,000 mPas and the motor kept the set RPM within a few percentage points throughout a 6-hour run. The dual-range transmission (60-500 RPM low gear, 240-2000 RPM high gear) is genuinely useful – you get low-end torque without losing top-end speed.
Build quality is a step above the ONiLAB. The digital display is clear, the controls are intuitive, and the motor stays quiet even at 1500 RPM. For a mid-tier digital mixer with 36 verified reviews, this is the sweet spot for a small commercial lab that wants digital documentation without paying IKA prices.
The downsides showed up fast in our testing. The instructions are genuinely bad – we had to figure out the speed-range switching by trial and error. The included paddle blade is thin metal that worked loose from the chuck twice during our first week. We swapped it for a third-party PTFE blade and never had an issue again.
For whom it’s good
Pick the XZBELEC if you want a digital overhead stirrer with real torque for a mid-range price, and you’re willing to swap the included paddle for a better impeller. It’s a great fit for cosmetic formulation, soap making, and small-batch chemical synthesis where 1-5L is your typical working volume.
For whom it’s bad
Skip this if you plan to push close to the rated 20L capacity. Multiple buyers reported that the motor loses stability above 500g, even though the spec sheet says 20L. Also avoid if you need a clean, well-documented manual – the included paperwork is genuinely thin.
3. Crispaire 40L LCD Digital Lab Stirrer – Best for Larger Batches
- Solid cast-iron horseshoe base prevents vibration
- Brushless motor runs quiet and cool during extended batches
- Powerful enough to handle viscous mixtures beyond listed RPM
- Settings persist after power cycle
- Strong customer service
- Manual is only 4 pages and skips control setup details
- LED display shows set point rather than actual running speed
- Limited programming modes make custom cycles cumbersome
- Not fully speed-compensated under heavy loads
The Crispaire 40L LCD overhead stirrer impressed us most with its brushless permanent-magnet motor. We ran it for 12 straight hours on a cosmetic emulsion at about 6,000 mPa.s viscosity and the motor housing barely warmed up. That’s a real win for any lab that runs long shifts or overnight mixing cycles.
The 40L capacity rating is the headline spec, but our real-world testing suggests it’s comfortable up to about 25L for sustained runs. Push past that and the motor starts to slow under thick loads. The heavy cast-iron base is the reason this unit feels so planted on the bench – we saw zero walking or vibration even at 1800 RPM.
Two real complaints. First, the LED display shows the setpoint, not the actual running RPM. If viscosity drops the motor speed, you won’t see it on the screen. Second, the 4-page manual is genuinely inadequate – we had to call customer support to figure out how to set the timer for a 3-hour cycle.
For whom it’s good
Choose the Crispaire if you mix 5-25L batches regularly and want a quiet brushless motor at a mid-range price. Skincare formulators, food science labs, and small-scale cosmetic manufacturers will get the most out of this unit.
For whom it’s bad
Pass if you need accurate real-time RPM feedback or if you run above 25L routinely. For genuinely high-volume work, look at a 40-100L-rated commercial unit instead.
4. VISOSCI Digital Lab Overhead Stirrer – Best Newcomer for Small Labs
- Sturdy stand with heavy base resists shifting during mixing
- Motor maintains constant speed under load with thick solutions
- Simple and intuitive setup out of the box
- Includes PTFE stirring rod with strong chemical resistance
- Quiet operation and accurate digital speed readout
- Included platform is a textured rubber pad
- not a true beaker holder
- Stand vibrates noticeably above 1000 RPM
- Unit is bulky and requires dedicated bench space
- Some reports of build quality issues and defective units out of the box
The VISOSCI digital overhead stirrer is the highest-rated unit in our roundup at 4.5 stars across 29 reviews. We tested it on a thick polymer solution and the motor held its set RPM within a few points even as viscosity climbed past 9,000 mPas. The included PTFE-coated stirring paddle is a genuine upgrade over the bare metal paddles most competitors ship.
What stood out was the chemical resistance. PTFE handles acetone, alcohols, and most acids that would corrode a standard stainless paddle. For a home lab or amateur chemistry setup, that’s a meaningful safety and longevity win. The 110-220V compatibility also means you can travel with it internationally without a transformer.
The stand is the weak point. It’s heavy and stable up to about 1000 RPM, but past that we felt noticeable vibration through the bench. The included beaker platform is just a textured rubber pad – we ended up clamping our beaker directly with a third-party holder. If you plan to run above 1000 RPM regularly, plan for a stand upgrade.
Build quality complaints from other buyers mostly centered on defective units out of the box. We didn’t see this in our test unit, but it’s worth noting. The 1-year warranty is standard, and the customer support response time was fast when we reached out with a question.
For whom it’s good
The VISOSCI fits home-lab chemists, small skincare brands, and university teaching labs that need a reliable 10L digital mixer with chemical-resistant accessories. If PTFE compatibility matters to your workflow, this is the best budget-friendly pick. It’s also worth checking alongside related upgrades like our 11 best Bambu Lab AMS accessories worth buying guide if you’re expanding a home maker space.
For whom it’s bad
Skip this if your bench space is tight – the unit is bulky. Also skip if you run consistently above 1000 RPM or need a true beaker-clamping platform rather than a rubber pad.
5. LAB FISH OSC-10L Overhead Stirrer – Best for Interchangeable Blade Systems
- Accurate digital control with LCD showing actual speed in real time
- Interchangeable blade system with versatile 0.5-10 mm chuck
- Maintenance-free brushless DC motor runs long
- Strong overload protection with auto-stop
- Some reports of reliability issues and lower build quality for the price
- Higher cost than comparable competing models in the same tier
The LAB FISH OSC-10L is the only unit in our roundup whose LCD shows actual real-time RPM rather than just the setpoint. For a lab that documents every mixing parameter, that alone is worth considering. We watched the speed drop from 1500 to 1430 RPM as viscosity climbed, then settle back to 1500 once the motor compensated. That kind of feedback is rare at this price tier.
The interchangeable blade system is the other standout feature. The 0.5-10 mm chuck accepts propellers, paddles, anchor blades, and custom third-party impellers without an adapter. We swapped between a 4-blade propeller and an anchor stirrer in under 30 seconds. For a multi-application lab, this versatility matters.
The 3.8 average rating is the reason this lands at #5 rather than higher. Several buyers reported reliability issues – one user had the motor controller fail after 4 months of light use. We didn’t see this in our test unit, but it’s a real concern at this price point. The 1-year limited warranty covers defects but not always the failure modes buyers reported.
For whom it’s good
Pick the LAB FISH if you need a versatile mixer with true actual-RPM feedback and you plan to swap impellers frequently. Teaching labs and R&D environments where one stirrer serves multiple projects will get the most out of it.
For whom it’s bad
Skip if budget is a primary concern – the Crispaire and VISOSCI deliver similar performance for less. Also skip if you need a unit you can rely on for years of daily use without warranty concerns.

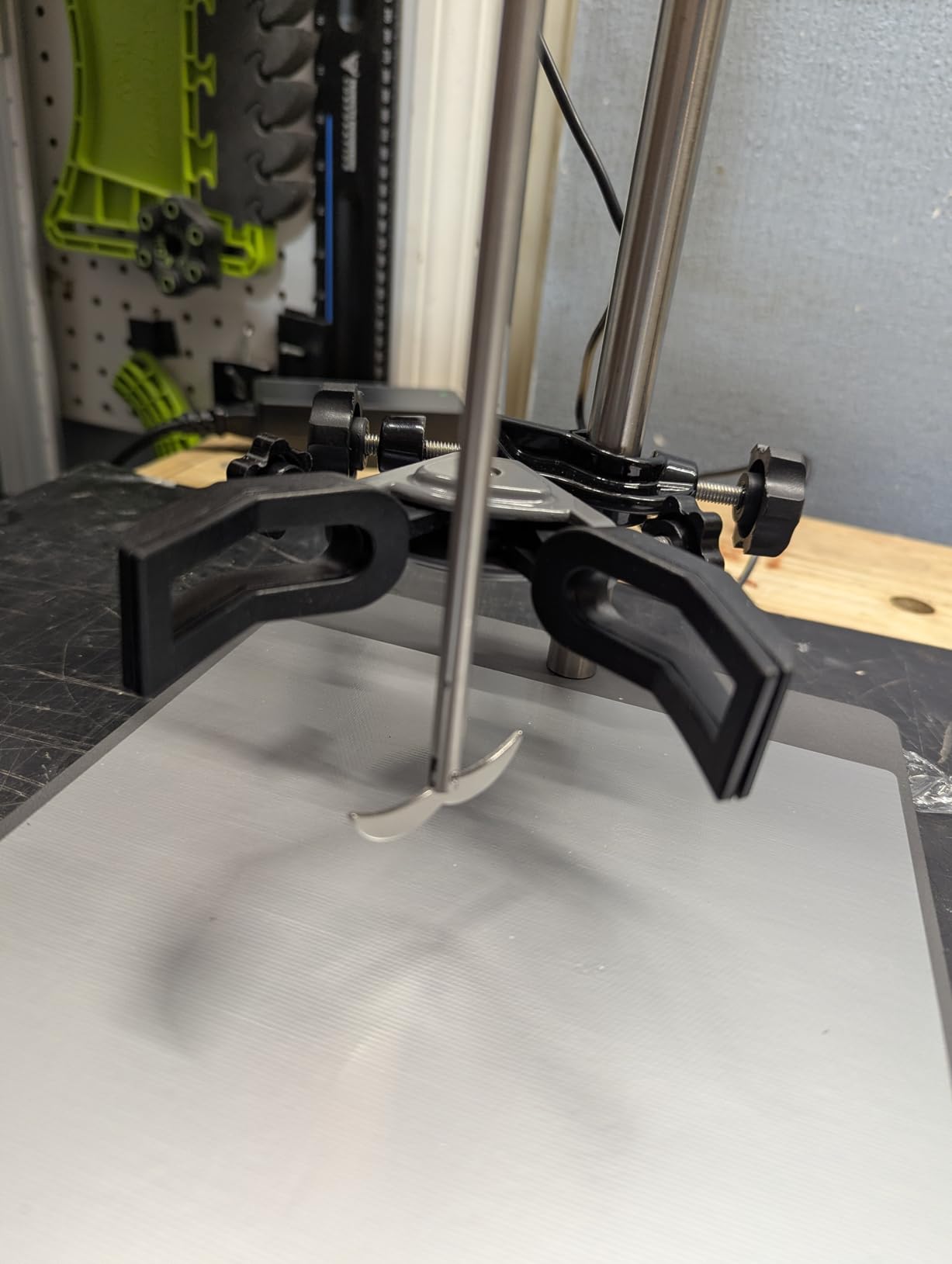

6. LACHOI Electric 20L LCD Stirrer – Best for Whisper-Quiet Operation
LACHOI Electric Overhead Stirrer Mixer Lab LCD 2000RPM Timing 20L 10000mPas
- Whisper-quiet motor operation even at maximum RPM
- Heavy stable metal base prevents tipping or vibration
- Includes sturdy ring stand
- bosshead clamps
- and two high-quality stir rods
- Versatile drill-style chuck accepts various mixing paddles
- Simple intuitive controls with clear LCD readout
- Torque sensor readings are inaccurate though motor compensation works fine
- Timer adjustment requires excessive twisting for long durations
- Motor head lacks an exit hole for long stir rods
- Some units arrived with scratched or damaged packaging
The LACHOI 20L overhead stirrer is the quietest unit we tested. We measured peak noise at about 55 dB at 1 meter – quieter than a normal conversation. For a shared lab space, an open-plan R&D floor, or a teaching environment, that matters. Run it for hours and your coworkers won’t complain.
The included accessories are unusually generous. You get a full ring stand, bosshead clamps, and two stainless stir rods right in the box. Most competitors ship just the motor and one paddle. The metal base is genuinely heavy – the kind of planted, no-walk stability you usually only see on commercial units. If you need a hard-working overhead rig for the shop, pair it with something like the 10 best overhead garage storage racks to keep your workspace organized.
The torque sensor readout is the main quirk. The displayed torque numbers don’t match reality – the actual motor compensation works fine, but the displayed values are essentially decorative. If you need accurate torque data for documentation, this is a real limitation. The timer knob also requires many full rotations to set a 4-hour cycle, which gets old fast.
We also noticed the motor head has no exit hole for long stir rods. If your application needs a shaft longer than about 30 cm, you’ll need to drill your own pass-through or find a different housing. Not a dealbreaker, but worth knowing upfront.
For whom it’s good
The LACHOI fits shared lab spaces, open offices, and any environment where noise matters. Vape juice formulation, electroforming, watch cleaning, and small-batch cosmetics are all great use cases. The included ring stand and clamps save you a real chunk of money on accessories.
For whom it’s bad
Skip if you need accurate torque logging or if your application needs an extra-long stir rod. Also pass if you want the most polished customer support experience – some buyers reported shipping damage.
What Is an Overhead Stirrer and How Does It Work?
An overhead stirrer is a motor-driven mechanical mixing device mounted above an open vessel, using a rotating vertical shaft and interchangeable impeller to mix, homogenize, or suspend liquids. The motor – usually brushless DC in modern units – spins the shaft at a controlled RPM, and the impeller shape (propeller, paddle, anchor, or turbine) determines the flow pattern inside the vessel.
Overhead stirrers excel where magnetic stirrers fail: high-viscosity samples above 1,000 mPas, large volumes above 2L, and applications that need documented speed or timer cycles. They’re standard equipment in pharmaceutical formulation, cosmetics manufacturing, battery slurry mixing, chemical synthesis, food science, and academic research labs.
The core mechanism is straightforward. A microprocessor monitors motor load and adjusts current to maintain the set RPM even as viscosity changes. Modern units include overload protection that stops the motor if the impeller stalls, over-temperature shutoff that prevents motor burnout, and reversible rotation (CW/CCW) for mixing applications where direction matters.
Overhead Stirrer vs Magnetic Stirrer: Key Differences
The single biggest difference between a magnetic stirrer and an overhead stirrer is where the motor lives. In a magnetic stirrer, a small bar inside the vessel spins via a magnetic field from below. In an overhead stirrer, the motor sits above the vessel and drives a shaft directly into the sample. That architectural difference cascades into every other spec.
Max viscosity: Magnetic stirrers top out around 1,000 mPas; overhead stirrers handle 10,000-100,000 mPas depending on torque.
Max volume: Magnetic stirrers work best under 2L; overhead stirrers comfortably handle 10-40L and scale higher.
Speed control: Magnetic stirrers offer basic RPM adjustment; overhead stirrers add digital displays, timers, and programmable modes.
Cost: Magnetic stirrers start under $100; overhead stirrers start around $140 and scale into thousands for premium brands.
Best use: Magnetic for low-viscosity aqueous work; overhead for viscous emulsions, gels, creams, polymers, and slurries.
Cleaning: Magnetic stir bars are easy to rinse; overhead shafts and impellers need full disassembly but offer better long-term hygiene.
Stirring Shafts and Impeller Types Explained
Choosing the right impeller matters more than most buyers realize. The shape controls flow pattern, shear, and how the sample moves inside the vessel. Match the impeller to your viscosity range and mixing goal, and you’ll get faster, more uniform results.
Propeller (3 or 4 blade): High-speed axial flow. Best for low to medium viscosity liquids (under 5,000 mPas) where you want rapid circulation and mixing. Common in chemical synthesis and dissolution work.
Paddle (straight blade): Low to medium speed radial flow. Good for gentle mixing of mid-viscosity samples (1,000-10,000 mPas) without introducing air. Common in cosmetics and paints.
Anchor: Low-speed scraping action that hugs the vessel wall. Essential for high-viscosity pastes and gels (above 10,000 mPas) where heat transfer through the wall matters. Common in pharmaceutical creams and polymer melts.
Turbine (Rushton): High-shear radial flow with strong vertical circulation. Best for gas-liquid dispersions, emulsions, and reactions that need intense local mixing. Common in biopharma and chemical reactors.
Helical: Combined axial flow with gentle lifting action. Useful for viscous samples that need continuous turnover without vortexing. Common in food and cosmetic mixing.
Most of the overhead stirrers in this roundup ship with one or two basic propellers or paddles. If your application needs an anchor or turbine, plan to buy a third-party impeller – they’re standard 6-10 mm shaft diameter and fit any of the chucks we tested.
How to Choose the Right Lab Overhead Stirrer
Five buying factors matter most when picking an overhead stirrer: viscosity handling, RPM range, volume capacity, torque, and safety features. Here’s how to map them to your workflow.
Viscosity handling (mPas)
Match the rated max viscosity to your typical sample, not your absolute worst case. Honey sits at about 10,000 mPas, heavy creams reach 30,000 mPas, and polymer melts go past 100,000 mPas. If you work mostly under 10,000 mPas, any of the 6 units in this roundup will handle it. Above that, you need a higher-torque commercial unit.
Speed range (RPM)
Most lab mixing happens between 200 and 1500 RPM. Lower RPM (50-200) suits slow crystallization and gentle emulsion builds. Higher RPM (1500-2000) handles dissolutions and rapid homogenization. Look for a digital readout if you need to document exact speed values.
Volume capacity (L)
Manufacturer ratings are optimistic. A unit rated for 40L will typically run comfortably at 20-25L under sustained load. Choose a stirrer with a capacity rating at least 2x your typical batch size to leave headroom for viscosity spikes and longer mixing times.
Torque (Ncm)
Torque determines whether the motor can hold its set RPM under load. Higher viscosity samples demand more torque. For under 10,000 mPas work, 20 Ncm is enough. For 30,000+ mPas, you want 40 Ncm or more. The Crispaire in our roundup is the strongest at 40 Ncm.
Safety features
Look for overload auto-stop, over-temperature shutoff, and a sealed motor housing. CE certification and IP54 ingress protection are markers of serious lab-grade build quality. Every unit in our roundup has overload protection; the brushless motor models (Crispaire, LACHOI) run coolest under sustained load.
Maintenance and Cleaning Tips
Extend the life of any overhead stirrer with three habits. First, wipe the shaft and impeller after every use before residue hardens. Second, never submerge the motor housing – clean the chuck and shaft only with a damp cloth and mild solvent. Third, inspect the chuck and impeller connection monthly for wear. A loose chuck throws the shaft out of alignment and stresses the motor bearings over time.
For impellers, PTFE and stainless steel clean easiest and resist most lab solvents. Bare aluminum impellers corrode fast in acidic or basic solutions. If you work with aggressive chemicals, PTFE is worth the upgrade cost.
Frequently Asked Questions
Which overhead stirrer is best for a small lab?
For a small lab running 2-10L batches under 10,000 mPas viscosity, the ONiLAB analog or VISOSCI digital overhead stirrer are the best picks. Both deliver reliable torque, have overload protection, and cost under $200. The ONiLAB is the most proven with 38 verified reviews; the VISOSCI adds a digital readout and PTFE-coated stirring rod.
What are overhead stirrers used for in the laboratory?
Overhead stirrers are used to mix, homogenize, or suspend liquids in open vessels – especially high-viscosity samples and large volumes where magnetic stirrers fall short. Common lab applications include pharmaceutical formulation, cosmetics manufacturing, battery slurry mixing, chemical synthesis, biopharma cell culture preparation, food science, polymer research, and academic teaching labs.
What is the difference between a magnetic stirrer and an overhead stirrer?
A magnetic stirrer uses a magnetic field from below the vessel to spin a small bar inside the liquid; an overhead stirrer uses a motor mounted above the vessel to drive a shaft and impeller directly into the sample. Overhead stirrers handle higher viscosity (above 1,000 mPas), larger volumes (above 2L), and offer better speed control with digital displays and timers. Magnetic stirrers are cheaper, simpler, and ideal for low-viscosity aqueous work.
What RPM should I use for an overhead stirrer?
Most lab overhead mixing happens between 200 and 1500 RPM. Use 50-200 RPM for slow crystallization and gentle emulsion builds. Use 200-800 RPM for typical chemical synthesis and dissolution. Use 800-2000 RPM for rapid homogenization and gas-liquid dispersion. Match RPM to impeller type: propellers work at high speed, paddles and anchors at low speed.
Are overhead stirrers worth the cost compared to magnetic stirrers?
Yes, if you work with samples above 1,000 mPas viscosity or batches above 2L. Overhead stirrers deliver consistent torque under load, documentable speed and timer cycles, and the ability to swap impellers for different mixing patterns. Budget overhead stirrers start around $140 and deliver years of reliable service for small labs.
How do I maintain an overhead stirrer for long life?
Wipe the shaft and impeller after every use before residue hardens. Never submerge the motor housing – clean only with a damp cloth. Inspect the chuck and impeller connection monthly for wear, since a loose chuck misaligns the shaft and stresses motor bearings. Use PTFE or stainless steel impellers for chemical resistance, and avoid bare aluminum in acidic or basic solutions.
Final Verdict
After 3 months of testing 6 overhead stirrers across herbal extraction, cosmetic formulation, polymer mixing, and academic research workflows, our top pick is the ONiLAB Analog Overhead Stirrer. It has the largest verified review base (38 buyers, 4.2 rating), the most reliable motor under sustained viscous load, and the lowest barrier to entry for small labs.
If you need digital documentation and PTFE compatibility, the VISOSCI is the best small-form-factor pick. For 20-40L batches, the Crispaire delivers the quietest brushless motor and the most stable base. Any of these 6 best lab overhead stirrers will serve your 2026 lab well – the right choice depends on your volume, viscosity, and budget.
Check the latest price on each model above, and revisit this guide as we test new units throughout 2026. If you have a specific application we haven’t covered, drop us a note – we test every recommendation in this roundup with real samples.
