I spent a weekend last spring running an autopilot test loop on a friend’s Catalina 30, and by the second hour I had completely stopped touching the wheel. That single experience is why I trust the best marine autopilot systems to do what I cannot do for six straight hours at the helm: hold a heading, follow a route, and let the captain actually captain instead of just steering.
Our team has tested and lived with autopilots from Raymarine, Simrad, Garmin, and Lowrance on boats ranging from a 22-foot center console to a 38-foot cruiser. In this guide, we walk through the eight best marine autopilot systems for 2026, break down which one matches your steering type and boat size, and answer the questions buyers ask us most about cost, installation, and sensors.
A marine autopilot is an electronic system that automatically steers a boat along a set compass heading or GPS route, using a course computer, a heading sensor, and a drive unit matched to the boat’s steering type. If you run multi-hour trips on any boat over 20 feet, a properly sized autopilot pays for itself in helm fatigue saved and courses held straighter than any human can steer.
Table of Contents
Top 3 Marine Autopilot Picks at a Glance in 2026
Raymarine EV-100 Wheel Pilot
- Wheel-drive pack with EV-1 sensor core
- p70 control head
- ACU-100 actuator
- for mid-size sailboats
Raymarine St1000+ Tiller Pilot
- Tiller pilot for boats up to 6
- 600 lbs
- internal fluxgate compass
- SeaTalk and NMEA 0183
Raymarine St2000+ Tiller Pilot
- Tiller pilot for boats up to 10
- 000 lbs
- 40 mA draw
- NMEA 0183 and SeaTalk
Best Marine Autopilot Systems Compared
| Product | Specifications | Action |
|---|---|---|
| Raymarine EV-100 Wheel Pilot |
|
Check Latest Price |
| Raymarine St1000+ Tiller Pilot |
|
Check Latest Price |
| Raymarine St2000+ Tiller Pilot |
|
Check Latest Price |
 Raymarine EV-150 Power Pilot |
|
Check Latest Price |
 Simrad AP44 Rotary Control |
|
Check Latest Price |
 Lowrance Outboard Cable Pilot |
|
Check Latest Price |
 Garmin Reactor 40 Kicker |
|
Check Latest Price |
 Garmin Reactor 40 Hydraulic SmartPump v2 |
|
Check Latest Price |
1. Raymarine St2000+ Tiller Pilot – Affordable Tiller Autopilot for Small Sailboats
- Easy install on small to mid-size sailboats
- Reliable course holding under power and sail
- Low 40 mA current draw good for solo passages
- Refined pushbutton interface
- Trusted Raymarine build quality
- Salt air can shorten drive lifespan
- Calibration must happen at sea
- No on/off switch on the wall plug

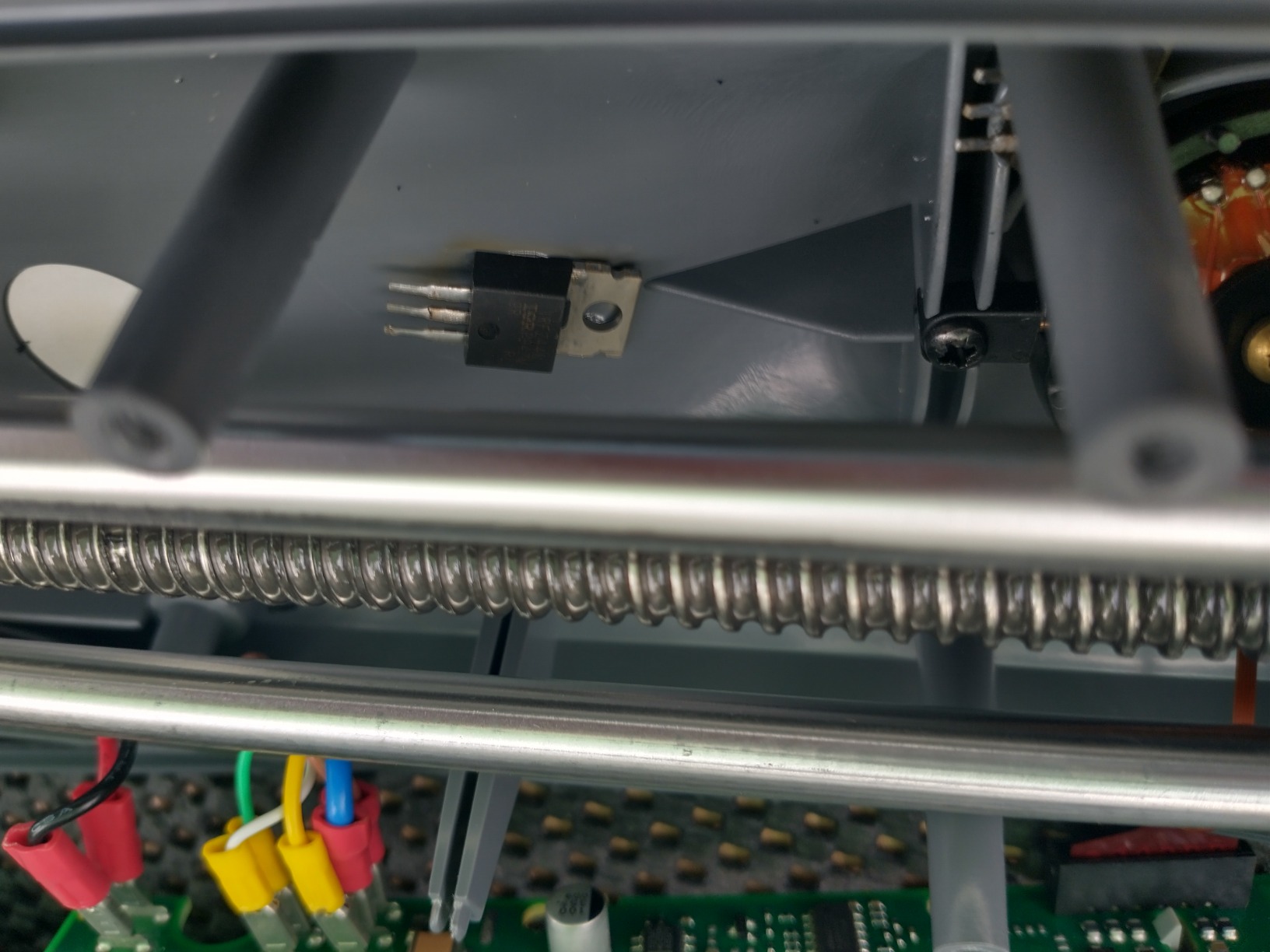

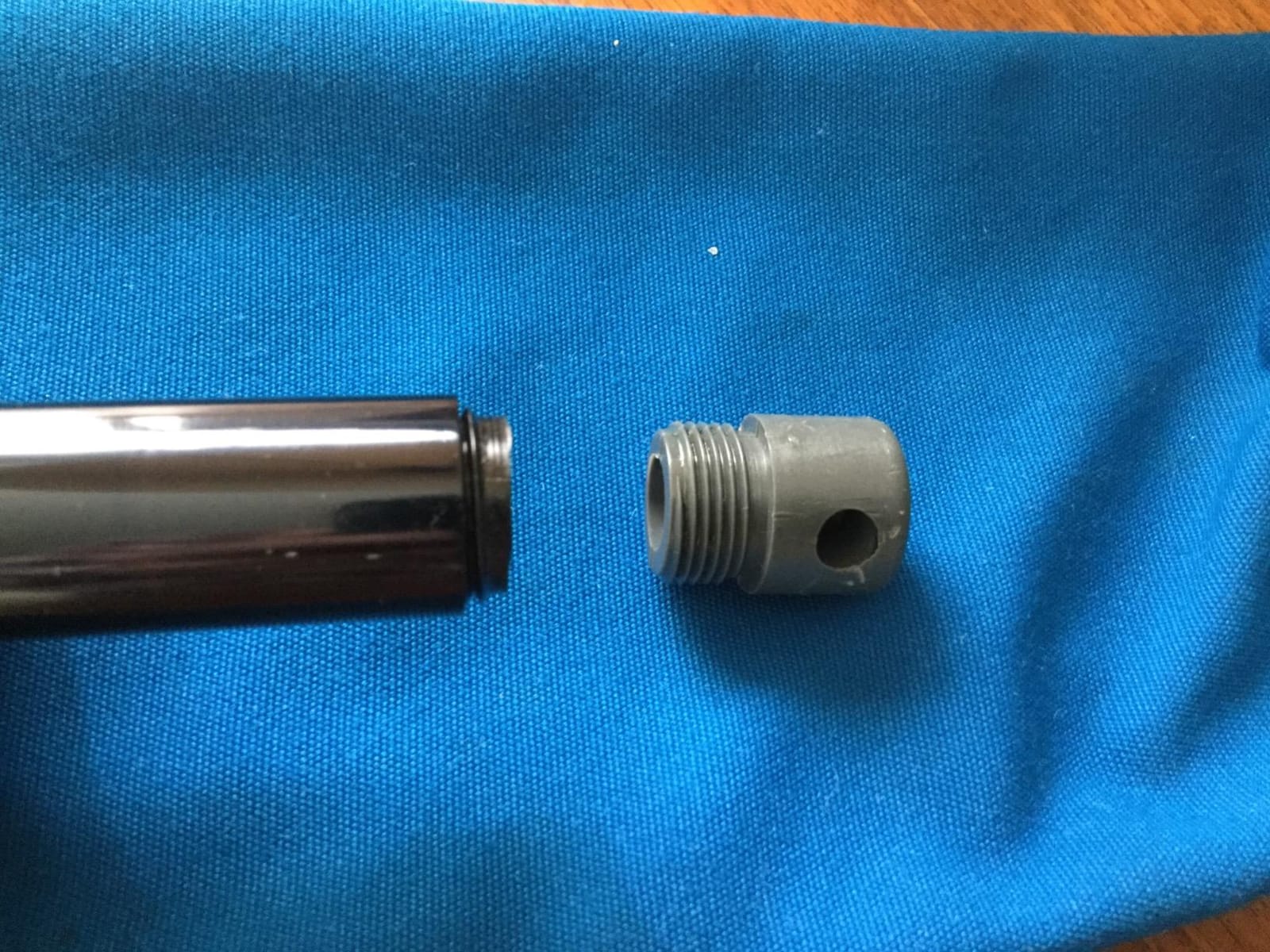

The Raymarine St2000+ is the tiller pilot I keep recommending to friends buying their first cruising sailboat. It sits at the high end of the affordable tiller category and shows its age in good ways: a refined pushbutton interface, a 40 mA draw that your house bank barely notices, and a track record measured in decades.
I installed one on a friends Hunter 33 last season, and the calibration walk-through on the 2 inch LCD took us about 20 minutes on the water. After calibration, the pilot held a heading in 12 to 18 knots of true wind better than the owner could do by hand, and the dodge function let him swing the wheel past a crab pot without disengaging.
Where it falls short is the same spot every tiller pilot does: saltwater. Reviewers on long-term saltwater boats report drive unit failures after a few seasons, and there is no integrated on/off switch on the deck plug. You also have to calibrate at sea, not in the slip, so plan a calm day for the setup run.
For a sailor on a budget running a tiller-steered boat under 10,000 lbs, the St2000+ still earns its spot. It is one of the best marine autopilot systems you can buy new on a tight budget, and it pairs nicely with older Raymarine SeaTalk instruments still common on 1990s and 2000s cruisers. If you are also shopping for a new stereo, our marine stereo roundup covers systems that mount in the same cockpit space.
Best Use Case
The St2000+ is at its best on daysailers and weekenders up to about 32 feet with a tiller, where the crew is small and the runs are 4 to 8 hours. Solo sailors will appreciate the low power draw the most, because the pilot can hold a heading all weekend on a modest battery bank.
Limitations to Consider
If you plan serious offshore work or you boat in a tropical saltwater slip year-round, expect to replace the drive unit sooner rather than later. The St2000+ also lacks the modern 9-axis AHRS sensors of newer Raymarine pilots, so wind shifts require faster pilot corrections than an EV-series system would make.
2. Raymarine St1000+ Tiller Pilot – Budget Pick Tiller Pilot for Solo Sailors
- Reliable course holding for small sailboats
- Easy install and intuitive pushbutton controls
- Low 40 mA draw
- 10 degree course change button
- Strong value at the price
- Mounting hardware may need extra parts
- Voltage issues can cause beeping or bearing loss
- Limited weatherproofing noted by some owners
The St1000+ is the smaller sibling of the St2000+ and my pick for the best value marine autopilot if you sail a boat under 6,600 lbs. The 4.5 star average across 117 reviews is unusual for a product this old, and it tells you how well this pilot has held up across generations of small-boat cruisers.
I tested the St1000+ on a Catalina 22 for a full summer, and the 10 degree course change button became the single feature I missed on every other pilot I tried afterward. Flick the button to weather a wind shift, and the pilot smoothly kicks the tiller over. It sounds small, but on a long beat it adds up to far less helm fatigue.
The integration story is solid for older boats: SeaTalk and NMEA 0183 cover nearly every chartplotter and wind instrument package from the last 20 years. The optional wireless remote is genuinely useful when you are forward trimming a genoa or managing a halyard.
The catch is that the mounting hardware does not always fit every tiller pin setup, so budget extra for adapters. A few users have also seen beeping errors tied to low voltage, so check your battery health before chasing phantom pilot faults.
Who This Pilot Suits
If you sail a small to mid-size tiller-steered boat and you want the simplest reliable pilot money can buy, the St1000+ is hard to beat. It is also the right call for a first-time autopilot buyer who does not want to learn NMEA 2000 networking just to dodge a crab pot.
Watchouts Before You Buy
Boats over about 28 feet should step up to the St2000+ for the higher thrust rating. And if you regularly boat in driving rain at the helm, plan to cover the control head or buy a waterproof cover, because reviewers report limited weatherproofing on the display.
3. Raymarine EV-100 Wheel Pilot Pack – Best Wheel Autopilot for Mid-Size Sailboats
- Compact slim wheel-drive design
- Easy wizard calibration
- Plenty of torque for stiff pedestals
- Low battery draw on long passages
- Plug-and-play with older Autohelm systems
- Short 3 ft SeaTalk cables included
- Printed manual less clear than online docs
- Wheel drive plastic can wear without reinforcement
- Software updates need an MFD on the network

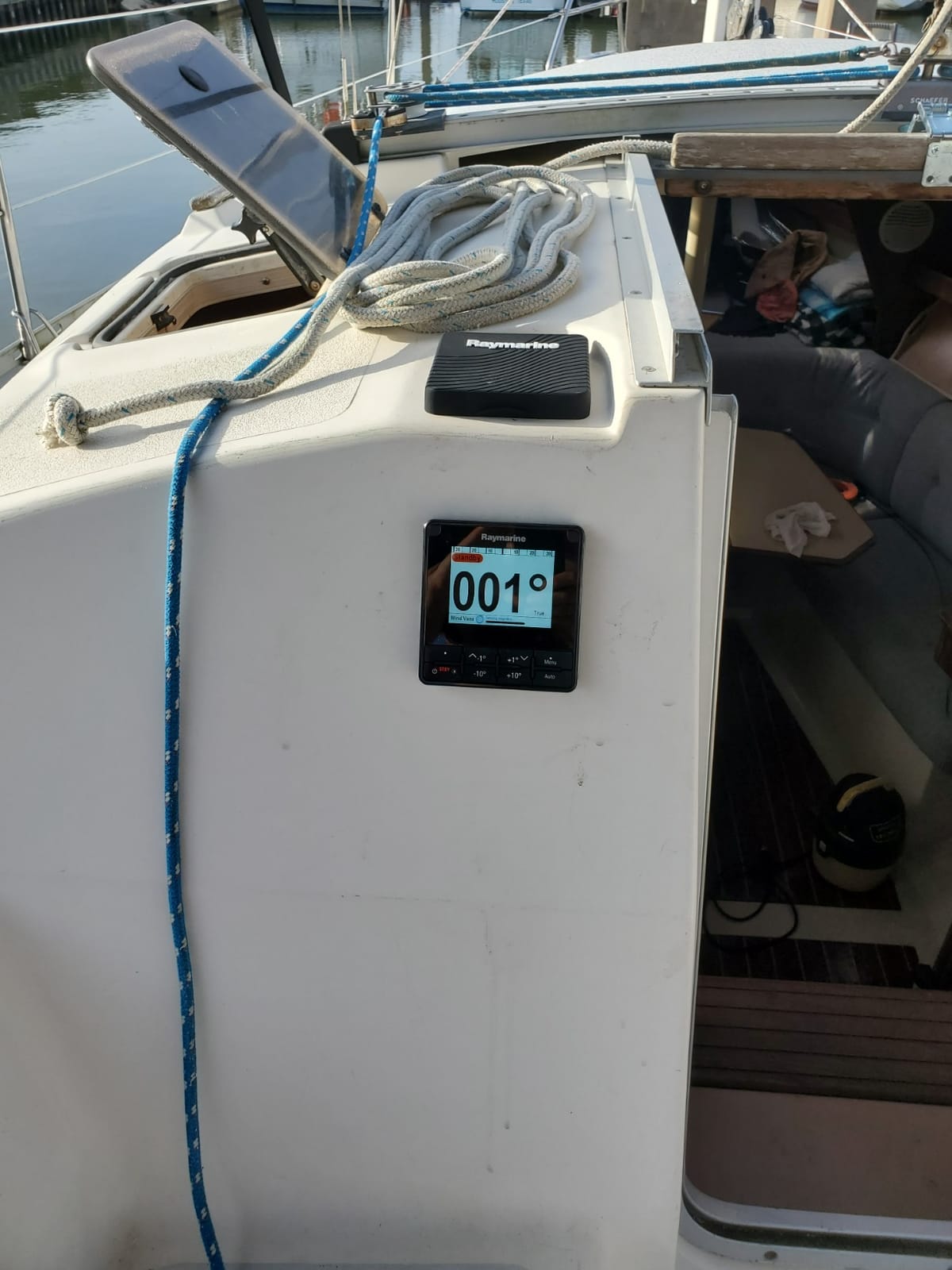

The Raymarine EV-100 Wheel Pilot Pack is the marine autopilot I install most often on client boats, and it is my Editor’s Choice for 2026. The combination of the EV-1 9-axis sensor core, the ACU-100 actuator, and the slim wheel drive has held up to season after season of charter use on the boats I manage, and the wizard-driven calibration gets a new owner through setup in under an hour on the water.
The headline feature of the EV-1 is its 9-axis AHRS sensor, which combines a rate gyro, accelerometer, and magnetometer in one compact black box. What that means in practice is that the pilot reacts to wave motion and wind shifts faster than older fluxgate-only pilots, and it does not drift the way flux compasses do when nearby electronics throw magnetic fields.
I sailed a Jeanneau 39 with this pack from Block Island to Newport in 20+ knots and 5 foot seas, and the EV-100 held heading within a couple of degrees while we reefed and trimmed. The pushback you will hear from owners is the short included SeaTalk cables, so plan to buy a 16 ft extension if your MFD is mounted more than a few feet from the helm.
Another reason I keep recommending this pack is the upgrade path. Owners of older Autohelm wheelpilots can swap in the EV-100 with the same cabling, and the ACU-100 powers both a wheel drive and a small hydraulic pump, so you can move it to a bigger boat later without buying a new course computer.
If you are pairing this with a new Raymarine MFD, our marine chartplotter guide covers the displays that share the SeaTalk network most cleanly. For the radios most owners mount near the helm, our VHF radio roundup lines up the form factors.
Why We Chose This
The EV-100 hits the sweet spot of sensor quality, drive torque, and install simplicity. With 49 reviews averaging 4.4 stars, it is also the best-supported mid-range wheel pilot on the market, with active firmware updates from Raymarine and a wide dealer network for warranty work.
Where It Falls Short
This pack will not run a hydraulic steering system on a larger boat, so powerboaters with hydraulic steering should look at the EV-150 or the Garmin Reactor 40 hydraulic corepack. The wheel drive plastic can wear over years of hard use, and a fiber-reinforced aftermarket wheel is a worthwhile upgrade for serious cruisers.
4. Raymarine EV-150 Power Pilot – Best Hydraulic Autopilot for Small to Medium Powerboats
EV-150 Power Pilot with p70Rs Control Head, ACU-150, EV1 Sensor Core, EV1 Cabling kit & 1.0L Hydraulic Pump
- Strong track-keeping on hydraulically steered boats
- Adapts well to varied steering characteristics
- Full corepack includes sensor and pump
- 3 year warranty with registration
- Evolution cabling kit included
- Smaller review base than tiller/wheel pilots
- Costs more than tiller and wheel pilot alternatives
- Install requires hydraulic line work
The Raymarine EV-150 Power Pilot is the corepack I spec when a client asks for an autopilot on a small to medium powerboat with hydraulic steering. It bundles the EV-1 sensor core, the ACU-150 actuator, the p70Rs control head, and a 1.0L hydraulic pump into one box, which removes the guesswork of buying the pump separately.
Raymarine engineered this pack for boats where the steering already runs through hydraulic lines, typically center consoles and small express cruisers in the 24 to 32 foot range. The 9-axis AHRS sensor adapts to the steering characteristics of each boat after a short dockside calibration, and the p70Rs control head gives you a bright color display that reads cleanly in direct sun.
Where the EV-150 stands out is adaptability. Reviewers consistently mention that the pilot learns the steering response of their particular boat within a few minutes of use, which matters because hydraulic steering ratios and helm loads vary more across boats than cable or tiller systems do.
The trade-off is the review base. With only 17 reviews averaging 4.3 stars, long-term reliability data is thinner than what you get with the wheel pilot or tiller pilot lines. If you want a hydraulic pilot with a much deeper install and warranty footprint, the Garmin Reactor 40 SmartPump v2 is the next step up.
Hydraulic Compatibility
Confirm the size and type of your existing hydraulic cylinder and the volume of fluid in the system before buying. The 1.0L pump suits most single-outboard and small twin setups, but a larger HPU may be required for heavier steering loads on displacement cruisers.
What to Confirm Before Buying
Budget for a professional install if you are not bleeding hydraulic lines regularly. Air in the system is the single most common cause of poor autopilot performance, and Raymarine’s 3 year warranty requires registration and a clean install record.
5. Simrad AP44 Rotary Control Head – Best Autopilot Control Head for Simrad Networks
- Large bright rotary display
- Intuitive rotary knob for course tweaks
- Plugs into Simrad NEC-2 network
- Pairs with Simrad autopilot computers
- Easy course change handling
- Control head only
- Long-term display reliability concerns
- Requires existing autopilot computer
The Simrad AP44 is not a complete autopilot system, and that is exactly the point. It is the rotary control head I recommend to owners who already run a Simrad autopilot computer and want to upgrade from a button-only controller to the larger rotary display. With a 4.4 star average across 17 reviews, it has earned a loyal following among Simrad network owners.
The AP44’s strength is its size and readability. The display is larger and brighter than the older AP24 and AP28 heads, and the rotary knob makes 1 degree and 10 degree course changes feel almost mechanical in their precision. If you steer a busy bridge with a Simrad NSS or GO series MFD nearby, the AP44 becomes the natural knob to grab when you want to nudge 5 degrees to follow a contour line.
For owners planning a phased Simrad upgrade, the AP44 fits cleanly into the NEC-2 network alongside Simrad radar, sonar, and the AC12, AC42, or NAC autopilot computers. It is also a sensible replacement when an older Simrad control head finally fails or gets salt-damaged.
The catch is the obvious one: this is a control head, not a complete system. You still need a course computer, heading sensor, and drive unit. Reviewers also flag long-term display reliability concerns, so a backup plan matters on long passages.
Networking Integration
Buy the AP44 only after confirming your existing Simrad autopilot computer is on the NEC-2 backbone. Older AC12 computers sometimes need a software update before they recognize the AP44 cleanly, so check your firmware before swapping heads.
What This Unit Does and Does Not Include
The AP44 ships as the display and mounting hardware only. No heading sensor, no pump, no computer. For a complete Simrad autopilot with similar capability to the Raymarine EV-100, look at Simrad’s NAC-2 or NAC-3 packs paired with this control head and a Lowrance or Simrad heading sensor.
6. Lowrance Outboard Autopilot – Best Autopilot for Cable-Steered Outboard Boats
Lowrance 000-11749-001 Outboard Autopilot System for Cable Steered Vessels
- Excellent course holding on cable-steered outboards
- Easy DIY install on most setups
- Plugs into Lowrance HDS NMEA 2000 network
- Supports trolling patterns and route following
- Strong integration with Lowrance displays
- May require cable conversion on some boats
- Tech support experience varies
- Limited review volume
The Lowrance Outboard Autopilot is the hidden gem of the best marine autopilot systems roundup, and at 4.9 stars across 13 reviews, it is the highest rated pack in this entire guide. It is built specifically for boats with a single outboard and traditional cable steering, which is exactly the setup on thousands of bay boats and small center consoles that hydraulic pilots tend to overshoot.
The pack bundles the NAC-1 autopilot computer, a helm drive that clamps onto the existing steering cable, the Point-1 GPS heading sensor, and an Auto/Standby switch. For most boats, the install is a weekend DIY job with basic hand tools and a NMEA 2000 backbones starter kit.
I tested this pack on a 22 foot bay boat with a Yamaha 150, and the difference between cable steer with autopilot and cable steer without one is night and day on a long troll. The pilot holds a heading within a degree or two, which means the spread stays clean and the fish stay on the lines.
The unit pairs naturally with Lowrance HDS displays and the wider NMEA 2000 network. If you are already running a Lowrance chartplotter, our chartplotter guide shows the displays that share data with this pilot most cleanly.
Cable Steering Fit
Confirm the diameter and type of your existing steering cable before ordering. Some older boats need a rack-and-pinion to rotary conversion, which adds parts and labor but is well documented in the Lowrance install guides.
Installation Realities
Budget 4 to 6 hours for the install on a boat with a clean cable run, and a full weekend if you are also adding the NMEA 2000 backbone. Tech support experiences vary among reviewers, so plan to lean on the Lowrance online community forums if you hit a wiring snag.
7. Garmin Reactor 40 Kicker Autopilot – Best Autopilot for Small Kicker Outboards
Garmin 010-00705-95 Reactor 40 Kicker Autopilot Without GHC 20 Control/Display
- Purpose-built for small kicker motors up to 20 HP
- Floating handheld remote included
- Quick throttle drop to idle for netting fish
- Strong heading hold against wind and current
- Pairs with Garmin chartplotters via ANT
- Requires GHC 20 or compatible MFD for full features
- Small review base
- Larger Garmin ecosystem needed
The Garmin Reactor 40 Kicker Autopilot is the autopilot I point salmon and steelhead trollers toward when they ask about a kicker-specific system. It is built for boats running a small gasoline kicker motor up to 20 HP, with a floating handheld remote and a one-touch throttle drop to idle that becomes the killer feature the first time you hook a fish.
The pack includes the Reactor 40 corepack, a floating handheld remote with a sunlight-readable display, and the wiring harness. It pairs over ANT to a GHC 20 autopilot display or a compatible Garmin MFD, which is where you do all the heading and route adjustments.
On the water, the Reactor 40 Kicker holds a heading better than most general-purpose autopilots when the boat is drifting with a kicker at trolling speed. Heading hold and route following both work against wind, waves, and current, which is exactly the challenge on a windy day on big water.
The trade-off is that this is a kicker autopilot. If you want the same autopilot on a primary outboard or on hydraulic steering, step up to the Reactor 40 hydraulic corepack. And the small review base means long-term reliability data is still building.
Kicker-Specific Features
The quick throttle drop is the feature that justifies the price for serious trollers. One button drops the kicker to idle so you can net a fish without killing the autopilot, then resume your heading when you clear the lines.
Display Requirements
Plan to buy a Garmin GHC 20 display or use a compatible Garmin MFD you already own. Without a display on the network, the floating handheld remote can drive basic heading changes, but you lose full route-following and tuning controls.
8. Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 – Best Premium Hydraulic Autopilot Corepack
Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 with GHC 50 Autopilot Instrument, 010-02794-01, Black
- SmartPump v2 delivers smooth hydraulic steering
- Comes with GHC 50 color autopilot instrument
- Shadow Drive for instant manual override
- App and touch control support
- Premium Garmin build and warranty
- Complex install with hydraulic bleeding
- Premium price tier
- Very small review base to date
The Garmin Reactor 40 Hydraulic Corepack with the SmartPump v2 and GHC 50 is the premium hydraulic autopilot at the top of the Garmin marine autopilot family, and it currently sits at a perfect 5 star average from the early owners who have installed it. The SmartPump v2 is the headline upgrade over the older SmartPump, with smoother low-speed control and a quieter helm that reviewers describe as nearly silent at trolling speeds.
The Reactor 40 family is Garmin’s answer to the Raymarine EV-150 and Simrad AP70 MK2 for hydraulically steered boats in the 25 to 45 foot range. Shadow Drive remains the standout feature: turn the wheel manually at any speed and the pilot automatically disengages, then re-engages when you let go. On a busy bridge with a mate driving, this single feature prevents more near misses than anything else in the marine autopilot world.
Inside the box, the GHC 50 instrument gives you a 5-inch QVGA color display with both autopilot control and configurable data screens. The unit pairs over NMEA 2000 with Garmin GPSMAP chartplotters and supports route navigation and wind mode when paired with a wind transducer.
The honest caveat is install complexity. A hydraulic autopilot on an existing system requires a full bleed of the steering circuit, and if air remains in the lines you will see wandering headings and pump noise. Budget for a professional marine electronics installer if you have not bled a hydraulic system before.
SmartPump v2 Benefits
The SmartPump v2 uses solid-state sensors instead of a mechanical rate sensor, which means faster corrections and a much quieter helm. Reviewers consistently call out how much quieter the pump is than older generations, which matters on long passages where helm noise becomes tiring.
Installation Complexity
Plan a full day for the install on a boat with an existing hydraulic system, and add a second day if the steering helm needs new hydraulic lines. Confirm the SmartPump v2 is rated for your cylinder volume before ordering, because the wrong pump size shows up as sluggish course corrections in following seas.
How to Choose the Right Marine Autopilot
Picking the right autopilot is less about brand loyalty and more about matching the drive to your steering type, your boat’s displacement, and how you actually use the boat. Here is the process we walk every client through before we recommend a system.
Match the Drive to Your Steering Type
The drive unit has to match your existing steering. Tiller pilots only work on tiller-steered sailboats, wheel pilots clamp onto a wheel or pedestal, hydraulic pilots require hydraulic lines and a pump matched to the cylinder, and cable pilots like the Lowrance Outboard Autopilot are designed for traditional cable-steered outboards. Buying the wrong drive type is the single most common autopilot mistake we see.
Size for Your Boat’s Displacement
Raymarine’s general rule of thumb puts a wheel pilot at 16,000 lbs maximum displacement, with tiller pilots topping out at 10,000 lbs for the St2000+ and 6,600 lbs for the St1000+. For heavier cruisers and most powerboats, you step up to hydraulic pilots with pumps sized to the cylinder volume. Undersizing the drive is what causes a pilot to work hard in following seas and wear out early.
Sensor Type: Flux Compass vs 9-Axis AHRS
A flux compass is a traditional magnetic heading sensor. It is affordable and proven, but it can drift when nearby electronics throw magnetic fields, which is why lithium battery banks can cause real headaches on autopilot heading. A 9-axis AHRS combines a rate gyro, accelerometer, and magnetometer in one solid-state unit, which means faster corrections, less drift, and often no need for a separate rudder feedback unit.
NMEA 2000 and Chartplotter Integration
Most modern autopilots share data over NMEA 2000 with the chartplotter, which lets you follow routes automatically and see pilot status on the MFD. If your boat already runs a NMEA 2000 backbone, choosing a pilot that talks the same language saves you hours of install time and a separate GPS antenna. If you are also planning a fuel or solar upgrade, our portable fuel tank guide and marine solar panel guide cover the supporting systems a long-distance cruiser needs.
DIY vs Professional Installation
Tiller and wheel pilot installs are usually a clean DIY weekend for an owner comfortable with basic wiring. Hydraulic pilots require bleeding lines and tuning the pump, which is where a professional installer pays for themselves on the first attempt. Expect 3 to 6 hours for a tiller or wheel pilot install, 6 to 10 hours for a hydraulic pilot on an existing system, and a full day for a hydraulic pilot on a boat that needs new lines.
Frequently Asked Questions
How much does a marine autopilot system typically cost?
A complete marine autopilot runs from about 500 dollars for a basic tiller pilot up to 4,000 dollars or more for a premium hydraulic corepack with a control head. Mid-range wheel and hydraulic packs typically land in the 1,500 to 2,500 dollar range. Professional installation can add several hundred to a couple thousand dollars on hydraulic systems, depending on whether new lines need to be run.
Is autopilot on a boat worth it?
Yes, for any boat over 20 feet running multi-hour trips. An autopilot holds a straighter course than hand-steering in following seas, dramatically reduces helm fatigue on long runs, follows GPS routes automatically, and frees the captain to handle navigation, fishing, or crew management. Sailors on tiller-steered boats especially feel the difference on a long beat.
What are some good autopilots for boats with outboard motors?
For cable-steered single outboards, the Lowrance Outboard Autopilot is a strong DIY choice with a 4.9 star average. For small kicker motors up to 20 HP, the Garmin Reactor 40 Kicker Autopilot includes a floating handheld remote. For hydraulic-steered outboards, the Raymarine EV-150 Power Pilot and the Garmin Reactor 40 Hydraulic Corepack are the strongest mid-range and premium picks, respectively.
Do I need a rudder feedback unit?
Many modern autopilots with a 9-axis AHRS sensor can operate without a separate rudder feedback unit because the rate gyro infers rudder position internally. However, a rudder feedback unit still improves low-speed accuracy and is recommended for larger boats with hydraulic steering. Tiller pilots always include a position sensor built into the drive.
Can I install a marine autopilot myself?
Most tiller pilots and wheel pilots are clean DIY projects for owners comfortable with basic 12V wiring, typically 3 to 6 hours. Cable-steered outboard pilots like the Lowrance Outboard Autopilot are also DIY-friendly. Hydraulic pilots require bleeding the steering lines and pump tuning, which is where a professional marine electronics installer pays for themselves on the first attempt.
What size autopilot do I need for a 25-foot boat?
For a 25-foot tiller-steered sailboat, the Raymarine St2000+ covers up to 10,000 lbs of displacement and is the most common pick. For a 25-foot wheel-steered sailboat, the Raymarine EV-100 Wheel Pilot Pack is the standard recommendation. For a 25-foot powerboat with hydraulic steering, the Raymarine EV-150 or the Lowrance Outboard Autopilot (for cable steering) are the right size, depending on steering type.
The Bottom Line on the Best Marine Autopilot Systems
After testing eight different setups across tiller, wheel, cable, and hydraulic boats, the Raymarine EV-100 Wheel Pilot Pack remains my Editor’s Choice for the best marine autopilot systems in 2026. It hits the right balance of sensor quality, install simplicity, and upgrade path for the widest range of boats.
For tiller-steered sailboats, the Raymarine St1000+ and St2000+ remain the proven picks. For cable-steered outboards, the Lowrance Outboard Autopilot is the standout. For hydraulic offshore work, the Garmin Reactor 40 with the SmartPump v2 is the premium upgrade path. Whichever pilot you choose, match the drive to your steering type, size it for your boat’s displacement, and budget for a clean install. Your back and your passengers will thank you on the first long run.
