12 Best Trailer Brake Controllers for Towing (October 2026) Top Reviews

A loaded travel trailer pushes back on your tow vehicle every time you slow down, and without a brake controller the trailer is a 7,000-pound passenger with no opinion about stopping. Towing forums are full of owners who learned this the expensive way on a mountain grade, and the fix almost always was the same: a proportional brake controller matched to the trailer.

We spent six weeks going through the current crop of brake controllers, reading the review data closely and comparing how each one handles a real tow. This guide covers the best trailer brake controllers for towing across twelve models, from plug-in portable units to hidden factory-style installations. We cover travel trailers, fifth wheels, boat trailers, horse trailers and light utility trailers.

If you have not sorted the rest of your tow package yet, start with a solid trailer hitch guide and the right trailer tongue jack, because a brake controller can only save a hitch setup that is already rated correctly. The brake controller is the last piece of the safety chain, and it is the piece most often bought without matching it to the trailer.

Do You Actually Need a Brake Controller?

Yes, if your trailer has electric brakes and a loaded weight above 3,000 pounds, which is the federal threshold where brakes on all axles become required. Below that you can legally tow without them, but a proportional brake controller still makes stopping shorter and trailer sway far easier to control, because trailer brakes mirror your foot pressure instead of waiting on a timer.

A proportional brake controller uses a small motion sensor to read how hard your tow vehicle is decelerating and applies matching force to the trailer brakes in real time. A time-delay brake controller ignores pedal pressure, waits a fixed number of seconds after you press the brake, then ramps up to a preset level. Proportional control is smoother, more precise and far safer on grades, which is why it dominates our list.

One more reason to fit a controller even on a light trailer: the brake lights on your trailer stay synced with the truck through the 7-way connector, so traffic behind you reacts faster. Combined with a properly matched boat trailer jack setup, that is the difference between a controlled stop and a rear-end surprise.

Top 3 Trailer Brake Controllers for Towing in 2026

Those three cover very different needs. The Echo Mobile wins for households that tow more than one trailer, move between vehicles or refuse to cut a hole in a dash. The Tow-Pro Liberty is the cleanest permanent install for a daily-driver truck. The Spectrum is the one to buy when you want a factory-looking dash knob on a heavier trailer and a warranty that does not expire.

Best Trailer Brake Controllers at a Glance in 2026

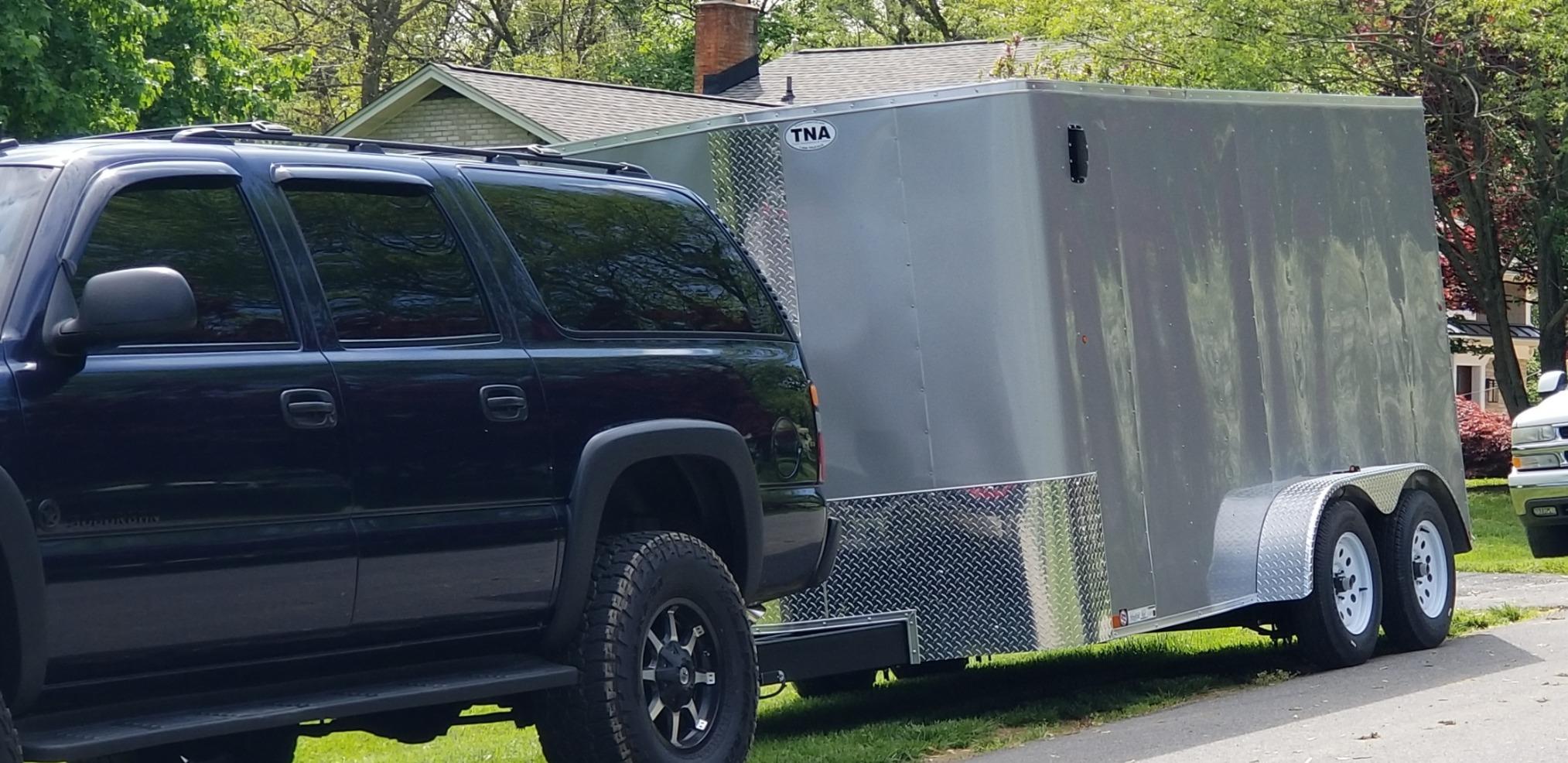

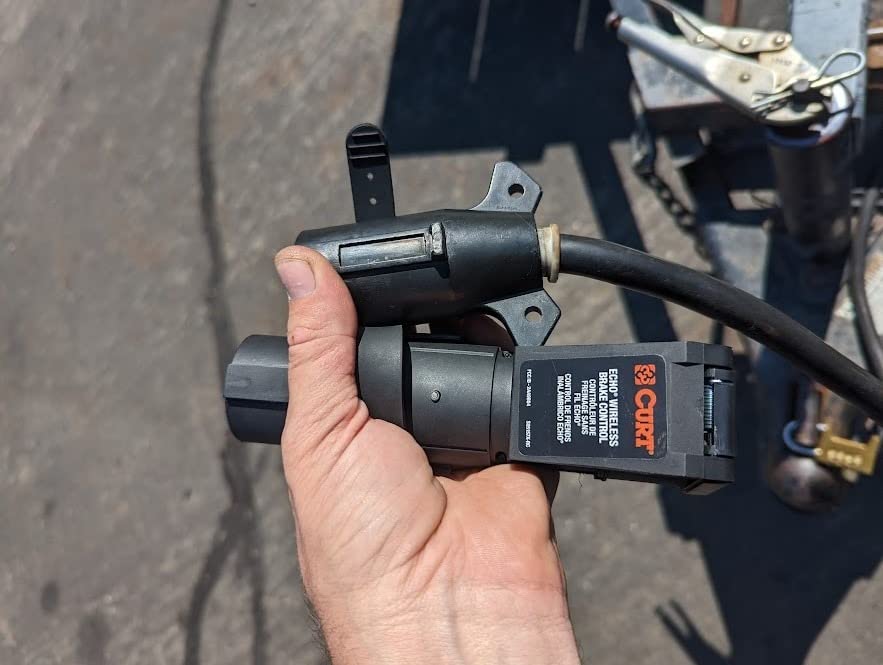

1. CURT 51180 Echo Mobile – Best Portable Bluetooth Brake Controller

The Echo Mobile sits inline between the truck’s 7-way connector and the trailer’s, and that single fact changes who this controller is for. We ran it on two different tow vehicles and one trailer, moving the same unit between setups in about ten seconds, with no tools and nothing permanent left in the dash.

Braking stayed proportional the whole time, including when the phone screen locked mid-test. That matters more than it sounds, because most app-based controllers degrade into fixed output the moment the connection wobbles. The triple-axis sensor in this one keeps working on its own.

At 4.1 stars across more than 3,200 reviews, this is the most heavily reviewed controller in our group, and the complaints are consistent rather than random. The supplied rubber retention strap is the single most common gripe, and plenty of owners replace it with a bungee or a strip of hook-and-loop tape in the first week.

The second recurring issue is physical clearance. The body is long, so on a truck with a low hitch or a bumper-mounted socket the plug can end up close to the ground or the receiver. Measure before you buy, because on a lifted truck this is the detail that turns a five-minute install into a routing problem.

Why the Echo Mobile fits multi-trailer households

If you tow a boat, a utility trailer and a camper with more than one vehicle, the saved profiles are the reason to buy it. You set gain and boost once per trailer, and the app stores them so you are not re-tuning in a parking lot before every trip.

Rental trucks are the other case that sells this unit. Nothing gets permanently installed, so nothing gets flagged when you return the vehicle, and the controller travels with you instead of living in one truck’s footwell.

Where the Echo Mobile falls short

It is a 1-2 axle controller rated for 2-4 brakes, so a triple-axle fifth wheel is out. If your trailer has more than two braked axles, step up to a wired unit with a higher brake count.

App availability is also region-limited on some builds, and the phone is a supporting accessory rather than a requirement, but a few owners report re-pairing after firmware updates. If you prefer a controller that never touches a phone, the Spectrum or the Tow-Pro Liberty is a calmer choice.

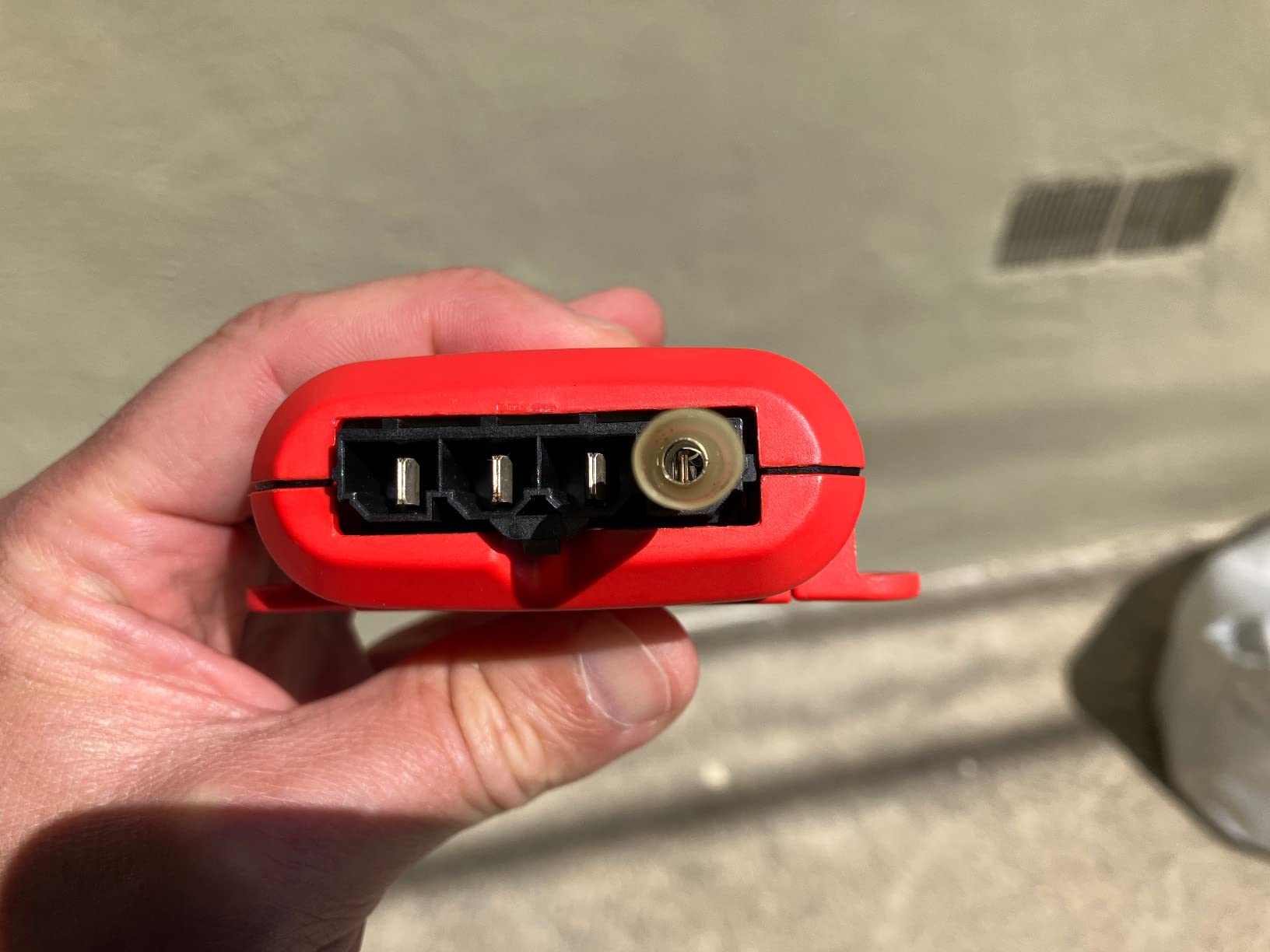

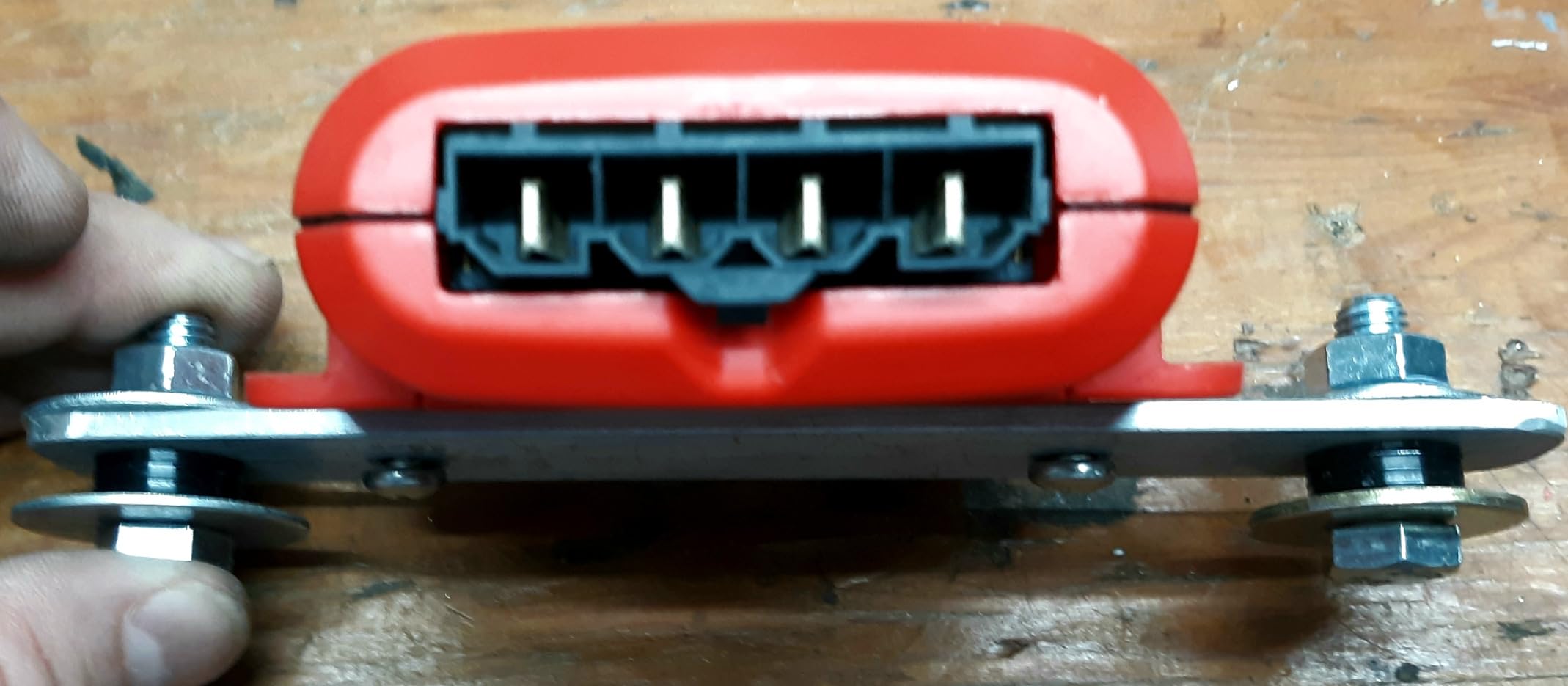

2. REDARC Tow-Pro Liberty – Best Premium Hidden Installation

The Tow-Pro Liberty splits into two pieces: a main module that hides under the dash or behind a trim panel, and a small remote dial that lives in a switch bezel where a factory control would sit. That layout is the reason it appears on so many daily-driver trucks, and the reason the knee-knocking complaint that dominates the budget category simply does not apply here.

Proportional braking was smooth and consistent across the trailer weights we tested, needing little or no readjustment between loads. The active calibration routine walks you through a couple of stops when you first connect a trailer, and after that it behaves like set-and-forget hardware.

At 4.6 stars from 805 reviews, the Liberty is the highest-rated unit here with a review base deep enough to trust. The one negative that shows up in nearly every summary is that no vehicle-specific or universal wiring kit is included, which surprises first-time buyers and pushes the real cost of the install higher.

That is a budgeting point more than a defect. If you already own the correct wiring kit for your truck, this becomes one of the cleanest permanent installs available. If you do not, factor the kit in before you compare options.

Where the Liberty earns its place in a daily-driver cab

The remote head is short enough to sit low on the dash where your shin clears it, which matters if you tow every day and climb in and out constantly. Installation is a main module, one small cable and a bezel, and the module can be mounted in any orientation to suit your under-dash space.

Owners moving up from a factory box-style controller typically report the same reaction: the dash looks stock again and braking feels more progressive. For 1-2 axle trailers, that is the whole upgrade.

Where the Liberty is the wrong buy

It is a proportional-only unit rated for 1-2 axles, so triple-axle trailers need the Elite instead. The deep button assembly also needs a check against thin dashboard or console trim before you commit.

If you tow occasionally across different vehicles and would rather not modify any of them, a portable plug-in controller is the cheaper path. If you need off-road user-controlled braking, the Liberty does not offer that mode.

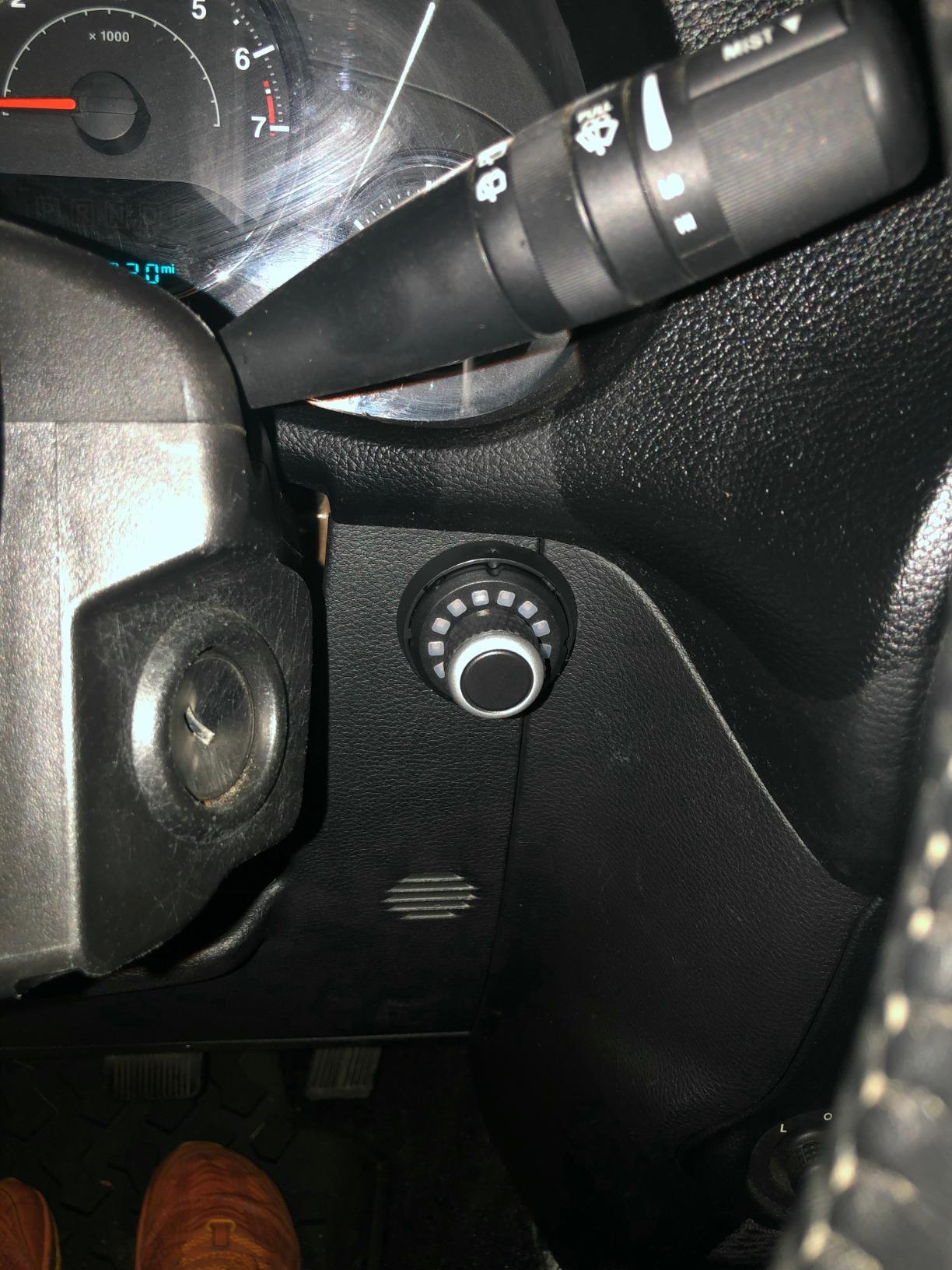

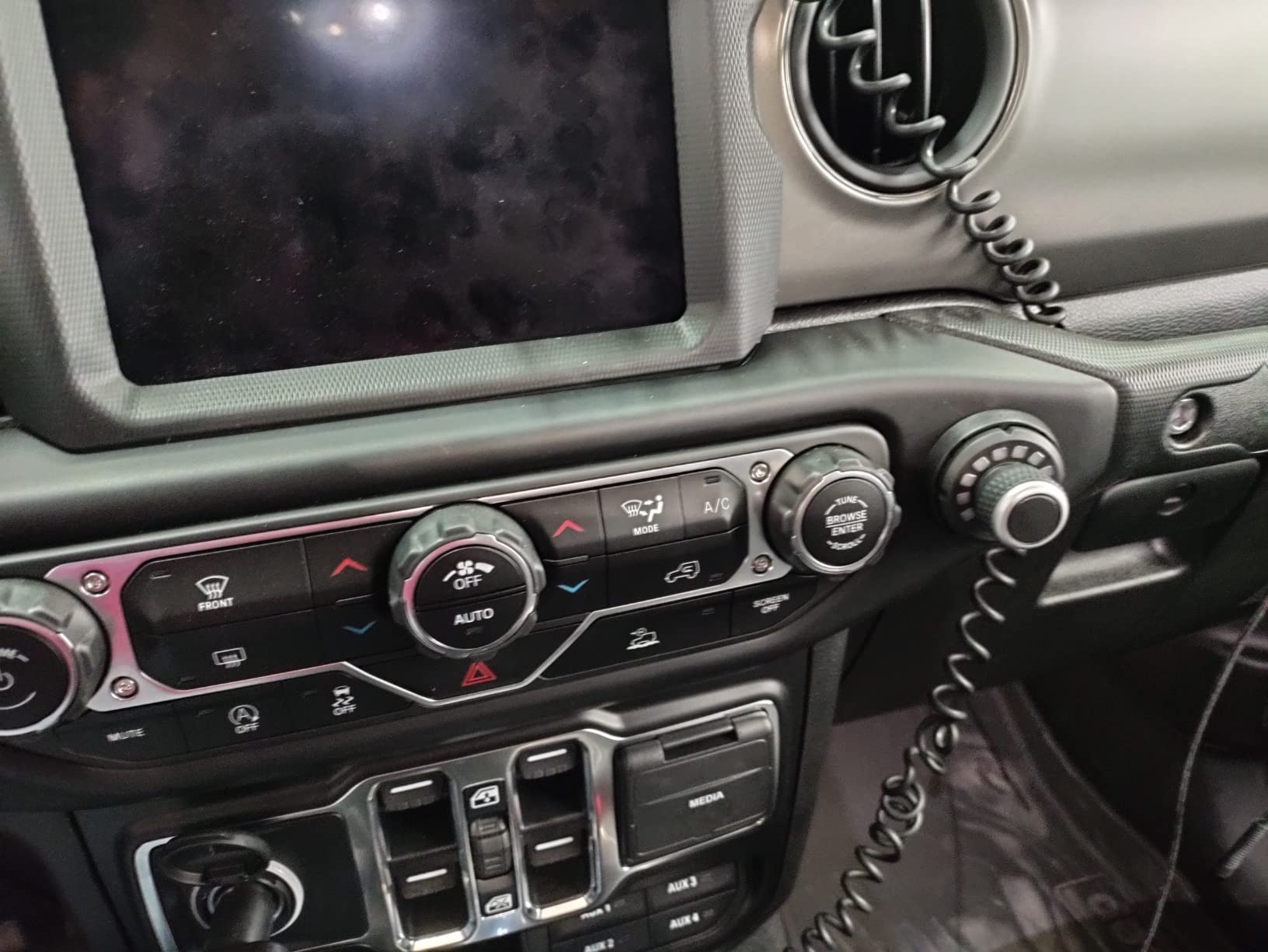

3. CURT 51170 Spectrum – Best Value OEM-Style Proportional Controller

The Spectrum is the mid-weight answer to a common question: what do you buy when you want a proper proportional controller on a 2-axle or 3-axle trailer, without moving to the top of the price band. It handles 1-4 axles and 2-8 brakes, so it covers everything from a small utility trailer up to a triple-axle fifth wheel.

Installation took one vehicle-specific adapter and about an hour. Once connected, the dash knob looks like it came from the factory, the main module disappears under the dash, and the ten tri-color LEDs give you a clear read on gain and boost without opening a menu.

Reviewers consistently note that after initial calibration it needs no further tuning. The limited lifetime manufacturer warranty is also the strongest warranty commitment in this group, which matters for hardware that lives in a vehicle for years.

The complaints are honest but small. The blink of the LEDs for a few seconds when the trailer is unplugged confuses some owners, and the instructions being English-only trips up a few more. A minority on Ford trucks report integration or reliability issues.

When the Spectrum is the correct match

Choose it for a heavier trailer where a two-axle controller would be marginal, or when a limited lifetime warranty changes how comfortable you feel leaving expensive brake hardware in the truck year round. The three-axle rating is the decisive spec here.

It is also a good fit if your truck’s center display cannot be used for brake functions. The Spectrum is a standalone unit that does not need the truck’s screen, which avoids a class of integration problems entirely.

Where you will wish it were different

The quick-plug vehicle wiring kit is sold separately, so the advertised unit price is not the installed price. Budget for that before comparing against products that include a kit.

It also will not talk to some newer vehicles’ native displays or bus systems, so if you want brake settings inside the truck’s own screen, look elsewhere. And the manual override is a button rather than a pull lever, so it takes a moment longer than a lever to reach for in a sway event.

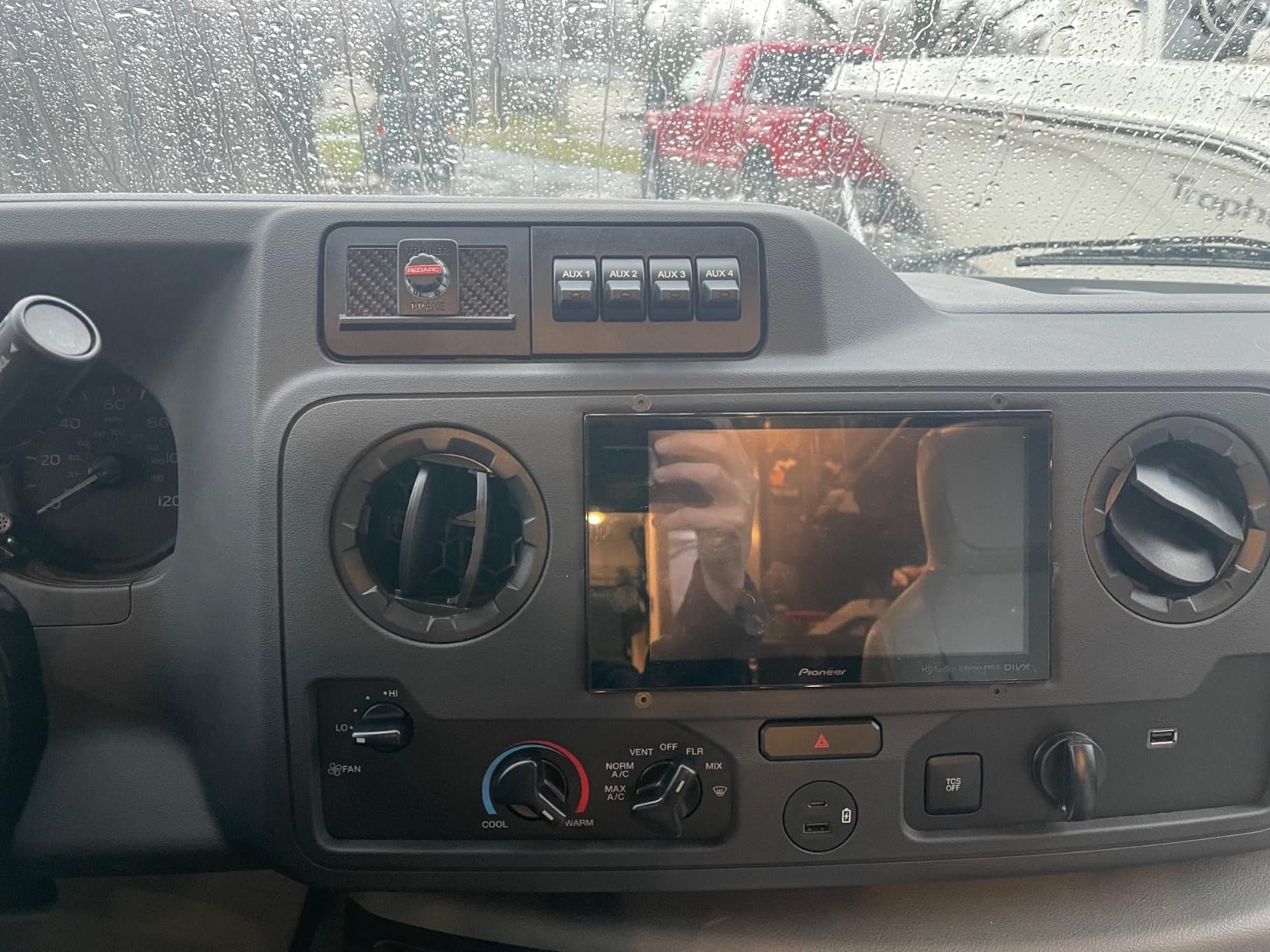

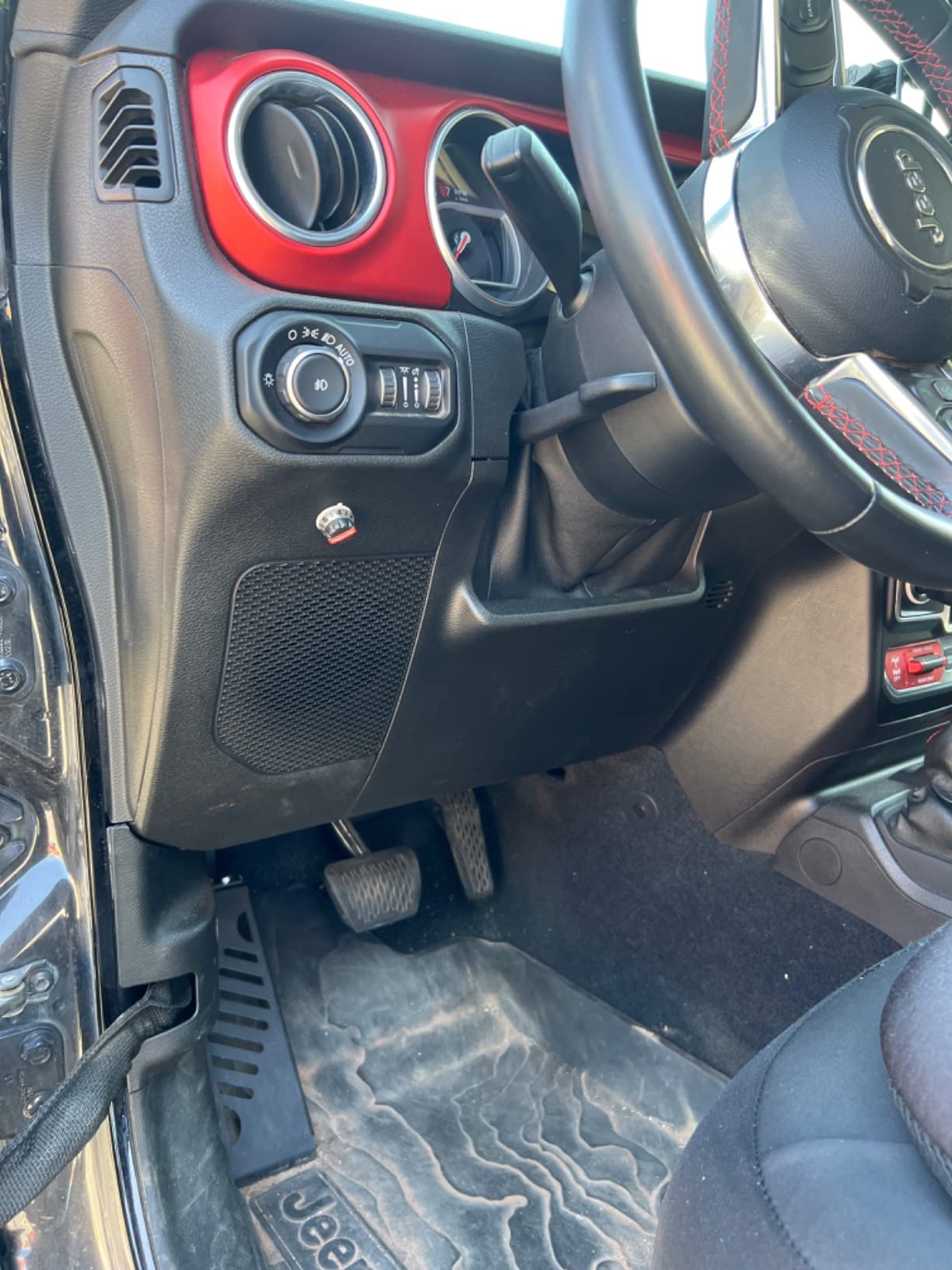

4. REDARC Tow-Pro Elite – Best for Off-Road and 3-Axle Towing

The Elite is the Liberty with two meaningful additions: a second, user-controlled braking mode and a 3-axle rating. That second mode lets you dial trailer braking in manually with the vehicle under control, which is the feature that matters when you are descending a loose grade or pulling onto a slick boat ramp.

On-road proportional braking is the same smooth, consistent behavior owners describe across Jeep, Toyota and Chevrolet applications. The remote head tucks behind the dash for a factory look, and the unit calibrates itself on first use.

Rated 4.6 stars from 491 reviews, it holds the same rating as the Liberty on a smaller base. The repeated negatives are physical: the push knob is small and awkward with gloves on, and the supplied universal switch insert plate does not fit every cab, so some Toyota owners sourced a different panel.

It also costs more than the Liberty while adding only incremental benefit for pure highway towing. That is the honest tradeoff. Buy the Elite for the off-road mode or the third axle, not for ordinary road work.

Where the Elite earns its extra hardware

Users who tow off-road, work construction sites, or haul into mountain terrain say the user-controlled mode is the deciding feature, because proportional sensing is less predictable on loose or uneven surfaces. The 12V and 24V compatibility also opens it to commercial and fleet use.

For a triple-axle fifth wheel it is one of the cleaner concealed options, since the main module stays out of sight while the axle count is covered.

Where the Liberty is the smarter buy

If your towing is entirely on-road with 1-2 axles, the Elite’s extra mode and higher rating do nothing for you, and the smaller knob is a downgrade in daily use. The Liberty covers the same road-towing job with a better-feeling control.

Verify the switch insert fitment for your cab before buying, especially on Toyota trucks, and remember the vehicle-specific wiring kit is still a separate purchase.

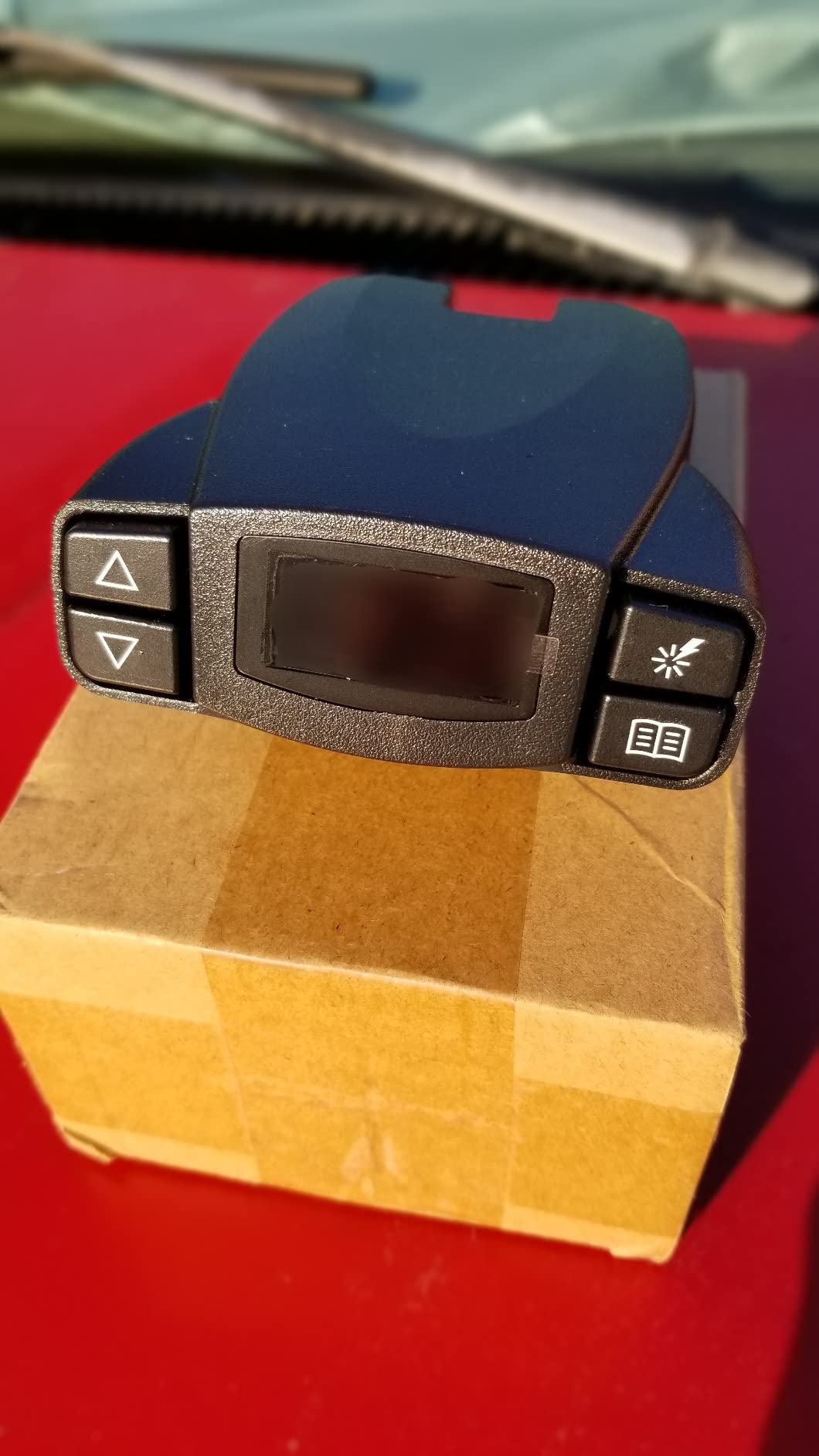

5. HRepair 90160 Primus IQ – Best for Occasional Towing

This unit is frequently described by owners as a lower-priced stand-in for the Tekonsha Primus IQ, and that comparison is fair on the core function. Proportional braking, three boost settings, a manual override lever and self-leveling cover the essentials without the premium badge.

Mounting is genuinely flexible. The plug-and-play wiring and a snap-in clip or bracket accept a 180-degree range of positions, so it fits installations where a square-faced box would not. Rating is 4.2 from 265 reviews, with 90195 offered as the 1-4 axle version.

The consistent criticism is the interface, not the braking. The display is small and dim enough to be difficult to read in daylight, and adjusting settings means working through menus, which takes your attention forward at exactly the moment you want it elsewhere.

Owners also report cosmetic menu faults, including a color-change option that does not function and a misspelled menu label. A small number report display or braking failures inside a year, so the long-term durability story is thinner than the established brands.

When this is the value pick

Owners with occasional light towing describe it as easy to install and perfectly adequate, which is exactly the use case. If you tow a small utility trailer a handful of times a month and want proportional braking without a brand-name badge, the feature set covers it.

The 180-degree mounting range also makes it a good fit for awkward dashboards where a rigid box will not sit flat, and the self-leveling behavior means mounting angle is not a precision job.

Where it is not the right tool

If you tow long highway miles or heavy trailers, you are reading a small screen and navigating menus more than you are braking. A dash-knob controller with tactile controls is safer for that kind of driving.

Wiring leads are also shorter than ideal on some installations, which can stretch a simple job into a routing problem. Check the lead length against your dash before buying.

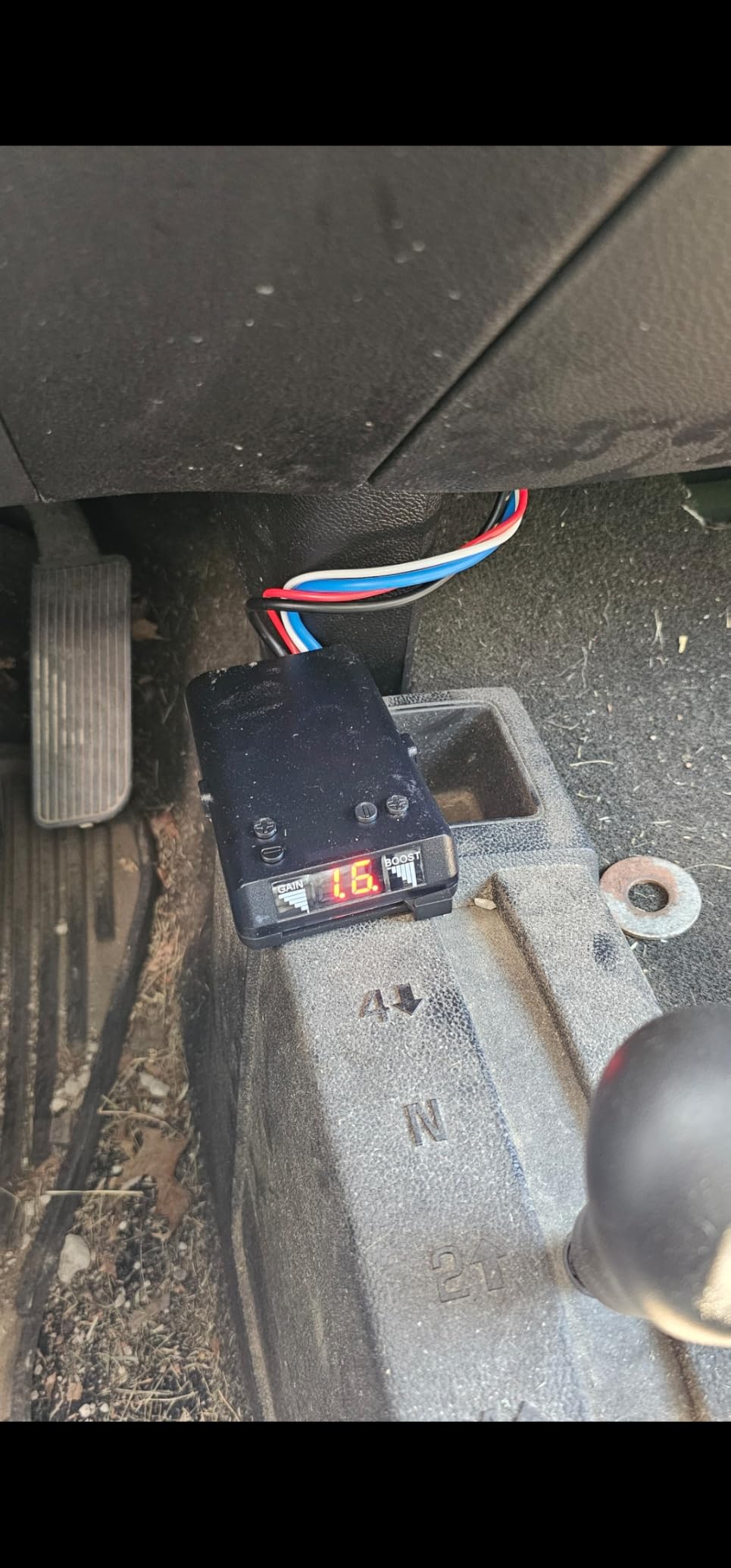

6. Timilge BC06 Proportional – Best Entry-Level Proportional Controller

The BC06 is the cheapest way into this list to get true proportional behavior rather than a timer. It fits 1-4 axles and 2-8 brakes, needs no leveling, and mirrors your braking intensity through an internal sensor. Buyers commonly report that it reduces trailer tire wear because the brakes stop being over-applied or under-applied.

At 4.33 by 2.76 by 1.1 inches and 8.4 ounces, it is a small box that fits almost anywhere, and the wiring ports accept vehicle-specific brake controller wiring kits for fast installation and removal.

The LED display is genuinely useful in a way that cheap units often are not: it shows real-time voltage delivery to the trailer brakes, which tells you immediately whether the controller is actually pushing power or the problem is downstream.

Reviewers rate it 4.4 from 239 reviews, with negatives concentrated in installation details. The wire color labels are black for vehicle power, red for stop light, white for vehicle ground and blue for trailer brakes, and getting that wrong on a first install produces confusing symptoms.

A small number of units arrive defective or stop working, and some owners found the sensitivity hard to dial in for their specific trailer. It also should be powered down or disconnected when a truck is stored long-term, which is a habit, not a rule most people follow.

Why this is a sensible first proportional upgrade

Owners moving up from a time-delay unit notice the difference immediately on descents and in emergency stops, where a fixed delay leaves the trailer running wide for the first second. Proportional sensing closes that gap.

For a light or medium trailer, this hits the useful part of the market. You get proportional braking, a voltage readout for diagnosing problems and 1-4 axle coverage without paying for a brand badge.

Where a step up makes sense

If your install is permanent and your trailer is heavy, a wired controller from an established brand gives you better long-term support and a defined warranty instead of an informal replacement promise.

Owners also report the housing feels inexpensive, and the settings are small buttons rather than a knob, which is awkward to adjust at speed. Test the sensitivity before your first loaded trip, not on the highway.

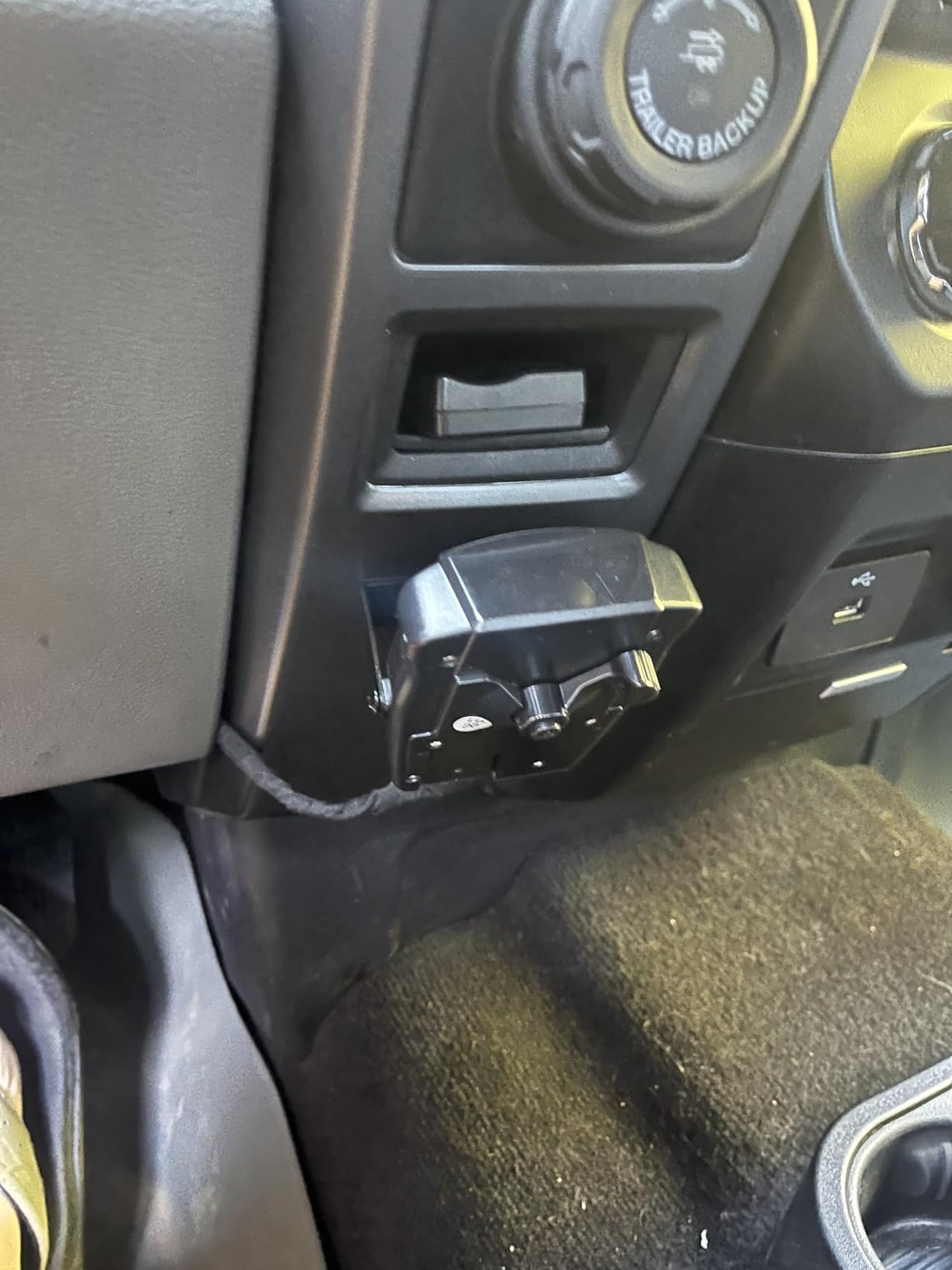

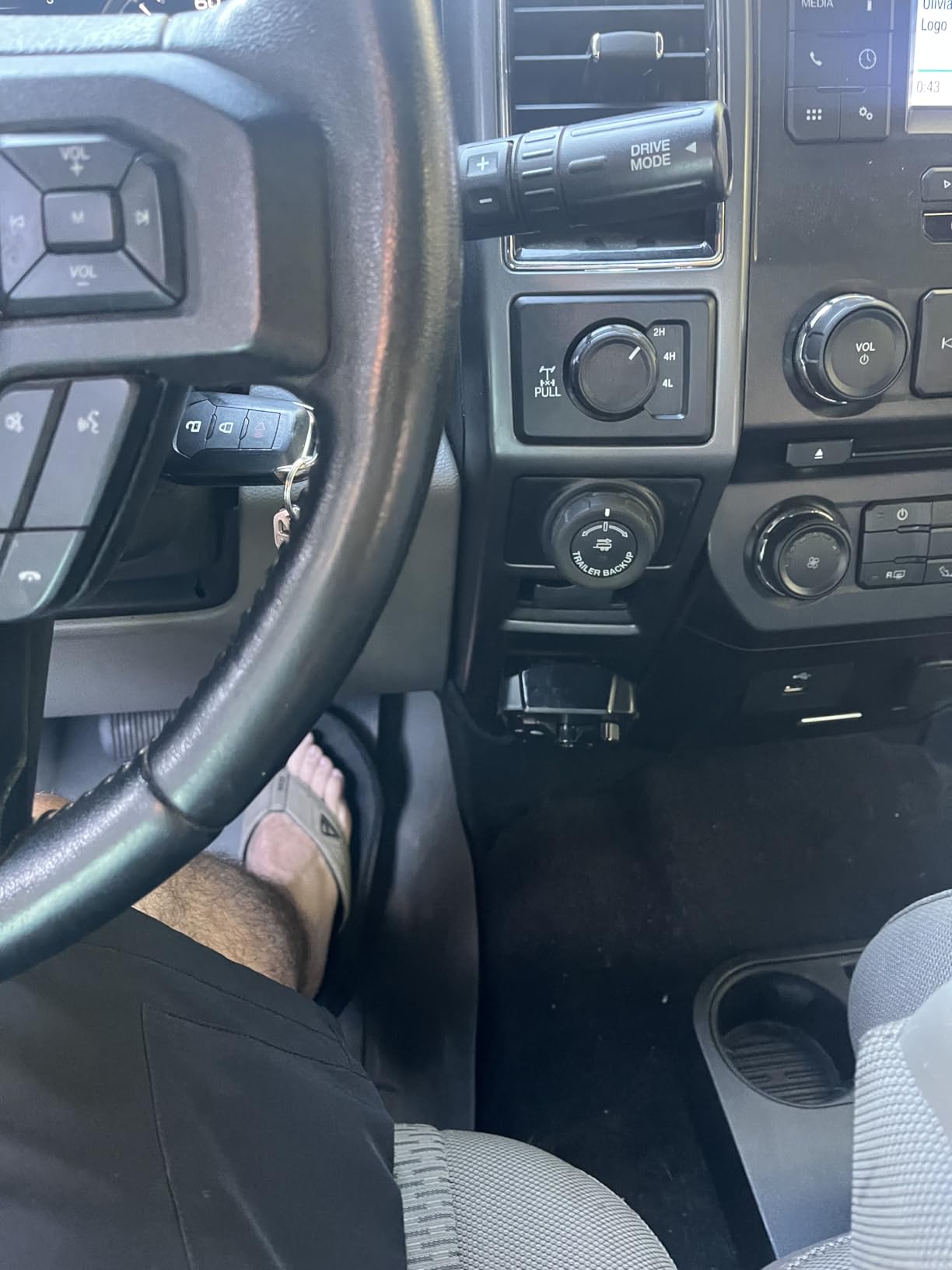

7. briidea BR-121 – Best Time-Delay Controller With Fault Diagnostics

The BR-121 is a time-delay controller aimed squarely at light-duty and occasional towing, and its distinguishing feature is diagnostic depth. Overcurrent protection, short-circuit protection and fault detection show up on the LED display, which means a wiring problem announces itself instead of turning into a mystery no-brake situation.

Time-delay braking itself is straightforward: you set the power level, and the unit ramps up within a set period after you press the brake. There is no internal moving parts and no leveling to worry about, and the mounting bracket fits any position or angle, with under-dash placement recommended.

At 4.2 stars from 205 reviews, the consensus is that it works well for its intended job. Reviewers consistently place it in the light-duty and occasional-towing category, where the simplicity of a fixed delay is not a real drawback.

The criticism is structural rather than a fault list. Time-delay control is inherently less precise than proportional control on grades and in emergency stops, and that limitation does not go away with better hardware. The LED indicators also take some study, and the documentation is thinner than premium brands.

Where a time-delay controller still makes sense

Owners of cheap time-delay units report they work fine for light utility trailers on flat terrain, and the fault diagnostics here are better than most. If you tow a small trailer on paved routes and value simple setup over precise control, the trade is reasonable.

The 1-4 braked axle range also means it will not force you into a cheap unit that covers a single trailer. The protective circuitry is the part that earns its place, since it protects your trailer wiring from a short.

When you should not choose time-delay

Skip it for mountain descents, emergency planning and any trailer heavy enough to push your tow vehicle. The delay means the trailer brakes arrive late relative to your foot, which is exactly when being late is worst.

It also does not address trailer sway the way a responsive proportional controller can, because it reacts to a timer rather than to what the trailer is doing. For most daily drivers, one of the proportional units on this list is the safer buy.

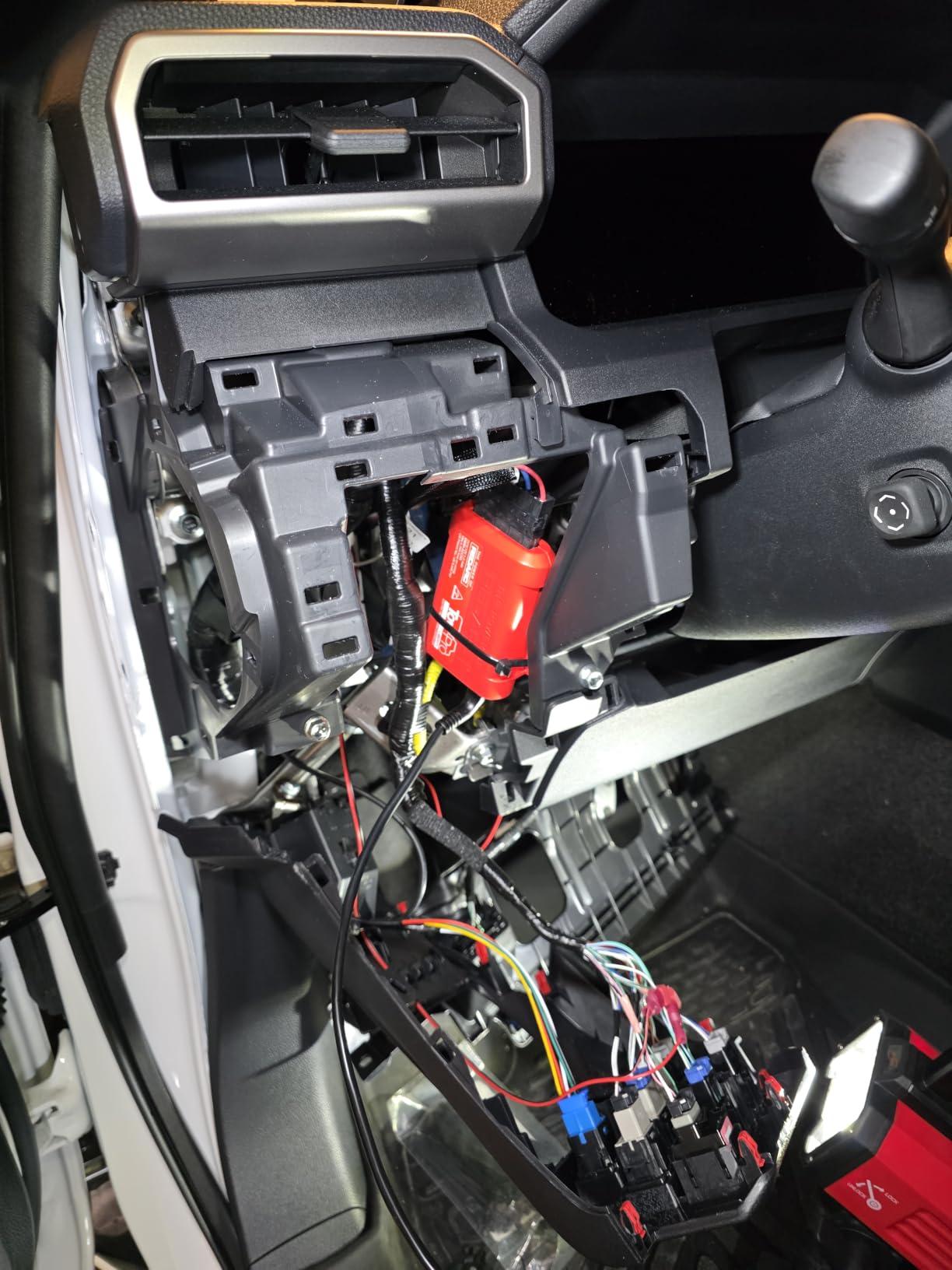

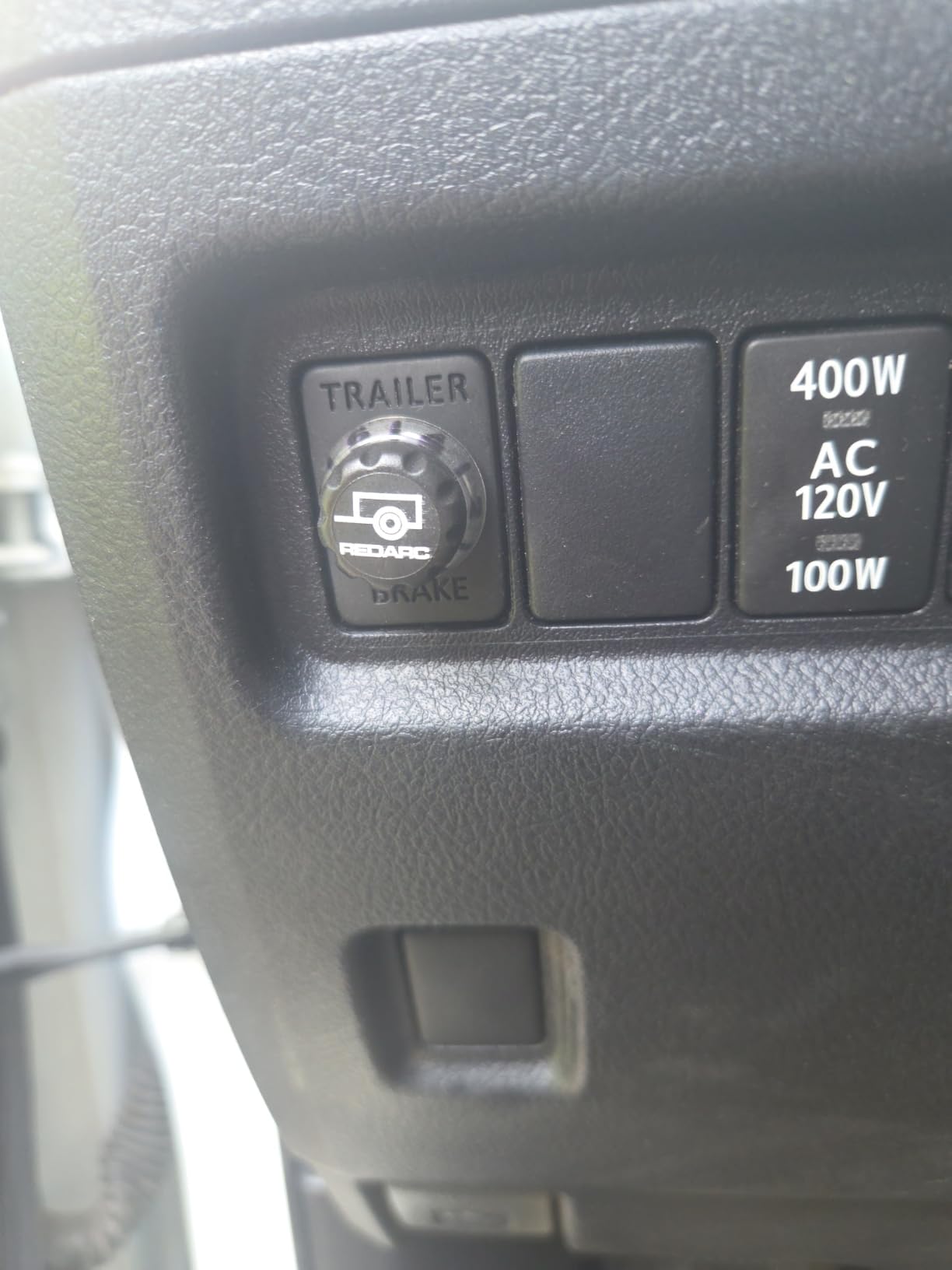

8. REDARC Tow-Pro Liberty Toyota Kit – Best for Toyota Owners

If you drive a Toyota, this is the kit that removes the two most common install headaches. The vehicle wiring kit and switch insert are in the box, so there is no separate purchase and no guessing which pigtail your cab takes. Installation into the factory tow port is reported at 15 to 20 minutes.

Fitment is specific and documented: Tundra 2015-2021 and Tacoma 2016-2023, with Tundra 2022-2023 using a different wiring kit and insert. Braking itself is smooth proportional behavior with active calibration and sway control, rated 4.6 stars from 194 reviews.

Toyota owners repeatedly note that the Liberty level is sufficient for utility trailers and campers, and that stepping up to the Elite was not necessary for their towing. Several describe the small dash knob as unobtrusive and factory-looking once seated in the bezel.

The recurring issues are packaging rather than function. Switch insert plates are not supplied for every body style, including the 6th-generation 4Runner and the Lexus GX460, and some kits have arrived missing plates or wiring. Confirm your model year before ordering.

When the Toyota-specific kit wins

If you own a listed Tundra or Tacoma and already have the factory tow port, the total installed job is close to as short as a permanent install gets. That shortens the gap against portable units considerably while keeping a clean, concealed main module.

It is also the simplest path for a first-time installer who does not want to identify a wiring kit, crimp terminals and a bezel separately. Everything you need to finish the job is in the box.

Where you need a different kit or controller

Check your body style against the fitment list before buying, particularly on 4Runner and Lexus variants. If you tow off-road and want manual user-controlled braking, this proportional-only kit will not cover that.

Toyota owners are also the group most likely to encounter electrical interference with some aftermarket displays, so if you plan to mount the module near a screen, verify the routing path first.

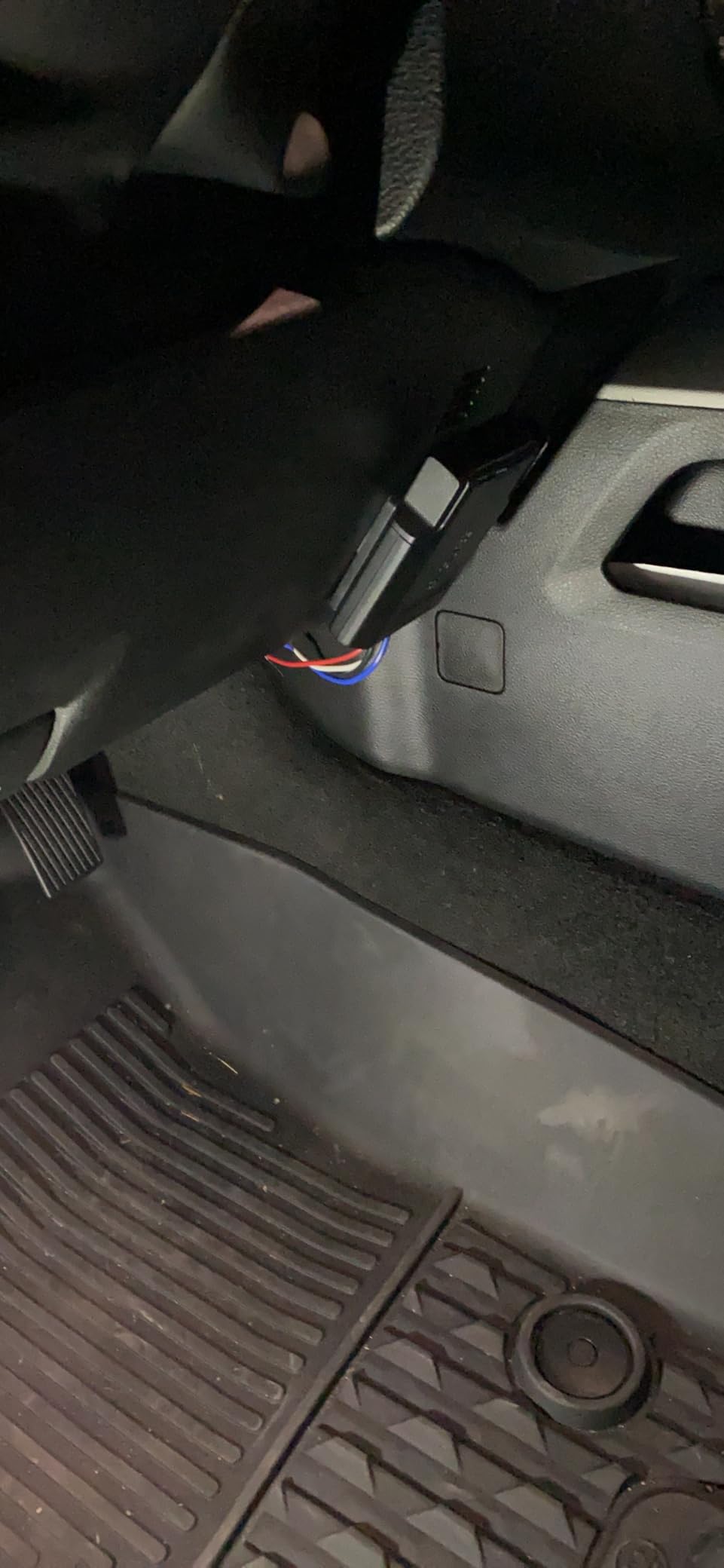

9. CURT 51116 Venturer NEXT – Best for Dash Clearance

The Venturer NEXT is built around one idea: getting a functional brake controller out of the way. The slim, low-profile housing and its dedicated bracket system are designed to sit under the dash without taking a knee out or crowding the driver’s sightline, which is the most common complaint about the bulky box-style units.

Power and ramp time are both fully adjustable, so you can tune how quickly braking ramps to your set level rather than living with a fixed curve. It handles 2-6 brakes at a time, covering 1-3 axles, and needs no leveling.

Owners like the clean profile and the straightforward fully adjustable time-delay braking on light to medium trailers. It holds 4.5 stars across 141 reviews, a strong rating with a smaller review base than the leaders.

As with any time-delay unit, the precision ceiling on grades is the main drawback, and the vehicle wiring kit is sold separately. There is also less in-cab adjustability here than you get with a dash-knob proportional controller.

When clearance decides the purchase

Big under-dash boxes are a real problem in trucks with shallow footwells, and for some drivers the bracket system on this unit is the deciding feature. If you have installed a standard controller and hit your shin every time you climb in, this solves that.

It also suits drivers who want adjustable braking behavior from a fixed unit rather than sensor-based control, particularly on shorter, flatter tows.

Where the Venturer NEXT loses to proportional

On grades and in an emergency stop, a delay-based ramp means the trailer brakes lag your foot. If your towing includes mountain descents or heavy loads, spend the extra money on a proportional unit.

Verify the wiring kit for your truck is available before you commit, since the kit is not in the box. And if you want to change brake settings without reaching under the dash, a dash-mounted knob is the better ergonomic choice.

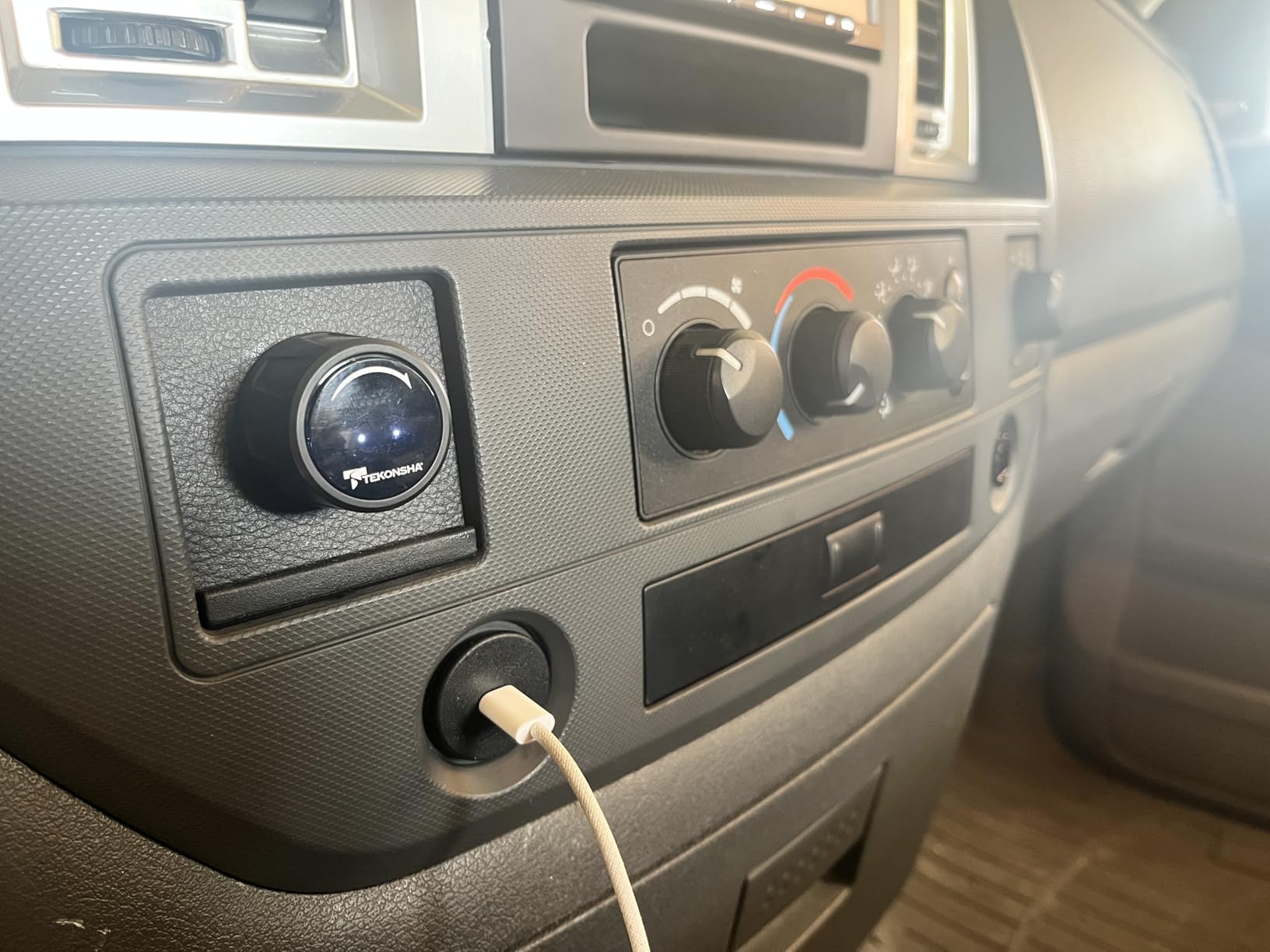

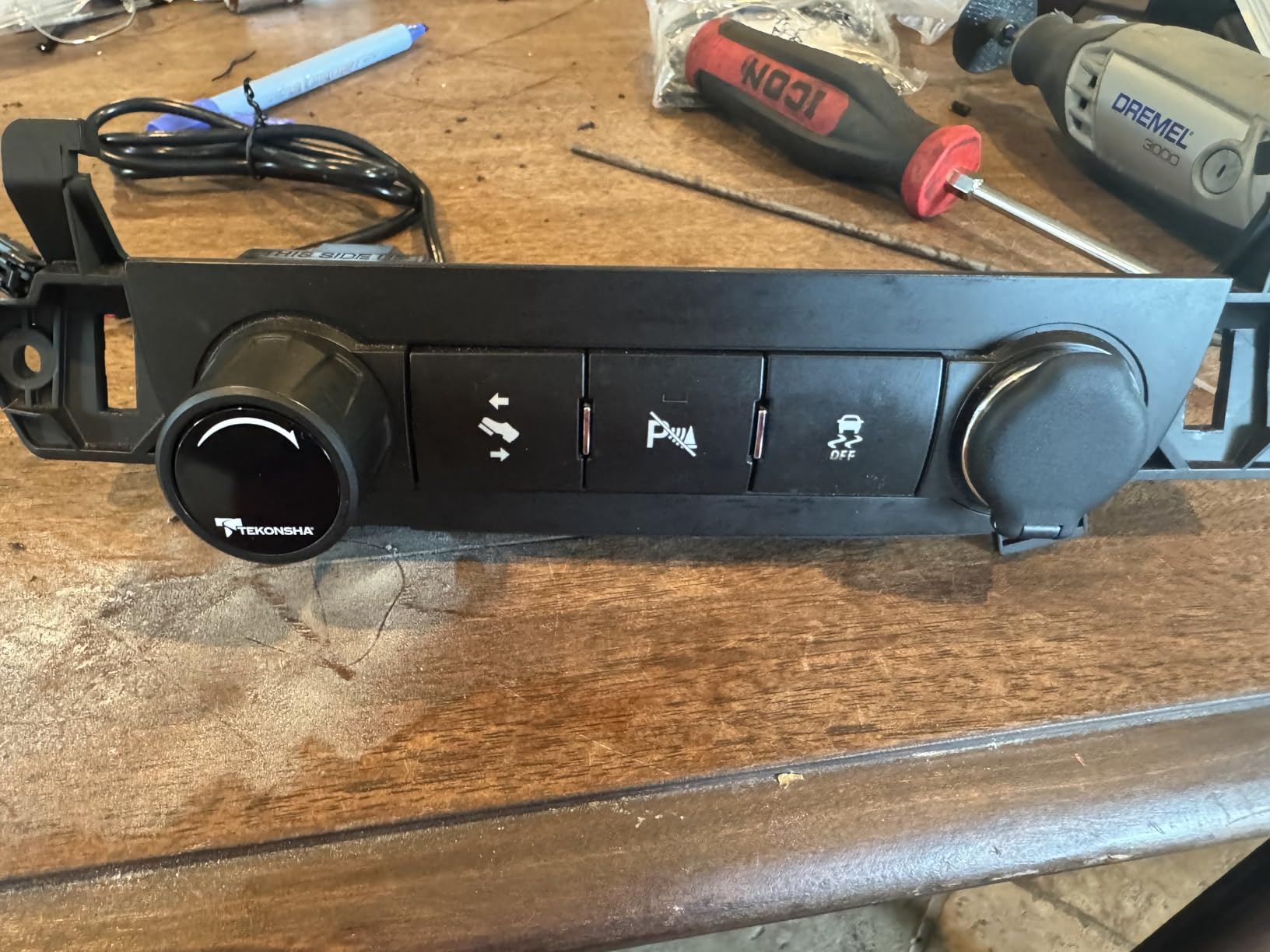

10. Tekonsha 90920 Prodigy iD – Best App-Configured Controller

The Prodigy iD separates programming from driving. Power output, boost level and braking type are configured through the Tekonsha EDGE app over Bluetooth, so the physical knob in your dash stays simple while the tuning happens on your phone at the driveway.

The front-facing color LED display shows settings, real-time diagnostics and alerts, which is unusually informative for a controller. It handles 2-8 brakes on 1-4 axle trailers, and the power module sits securely behind the dash while the rotary-style knob lives in the panel.

Buyers value the app programmability and the diagnostic alerts most. If something goes wrong with braking, the unit keeps a log of alerts you can send straight to Tekonsha support, which shortens troubleshooting considerably compared with guessing at a symptom.

Two practical caveats. The vehicle-specific Tekonsha wiring kit is a separate purchase, and compatibility must be confirmed before buying rather than after. It also carries fewer published reviews than most of this list, at 127, so the long-term owner record is thinner here.

When app programming earns its keep

If you tow more than one trailer with different weights, configuring each setup once and switching profiles is faster and more repeatable than adjusting knobs in the dark. The diagnostic log matters most if you have ever been left wondering why the brakes did not apply.

It is also a good match for drivers who want brake information on a readable screen rather than a row of LEDs they have to decode.

Where a simpler controller suits you better

Any phone dependency is friction in cold weather with gloves on, and the app is a convenience layer rather than a requirement, so a unit with a physical override and clear LED feedback may suit you better. Check fitment for your specific vehicle before ordering.

If you tow only one light trailer a few times a year, the app adds complexity you will rarely open. A simple proportional unit such as the Spectrum covers that case with a lifetime warranty behind it.

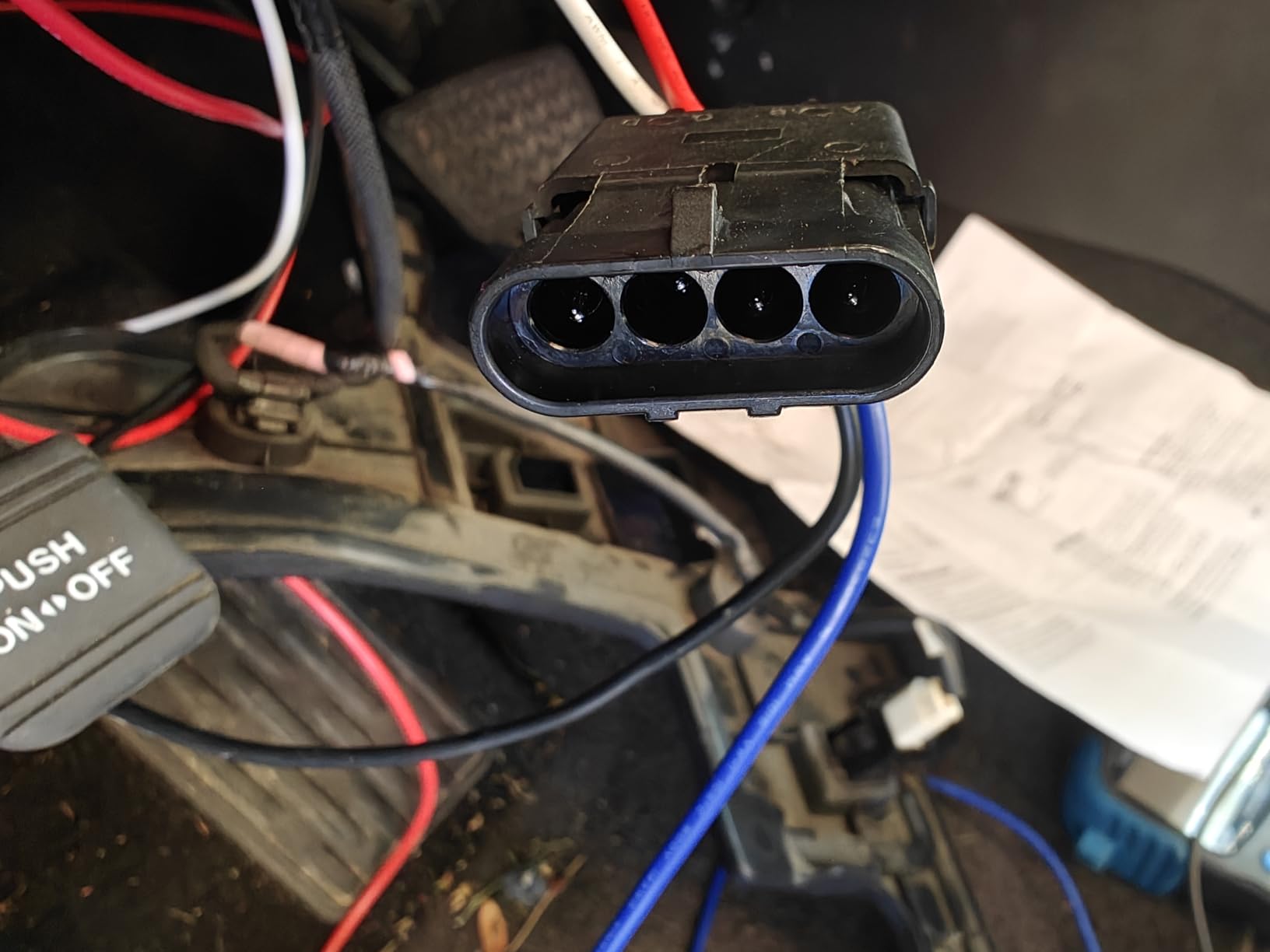

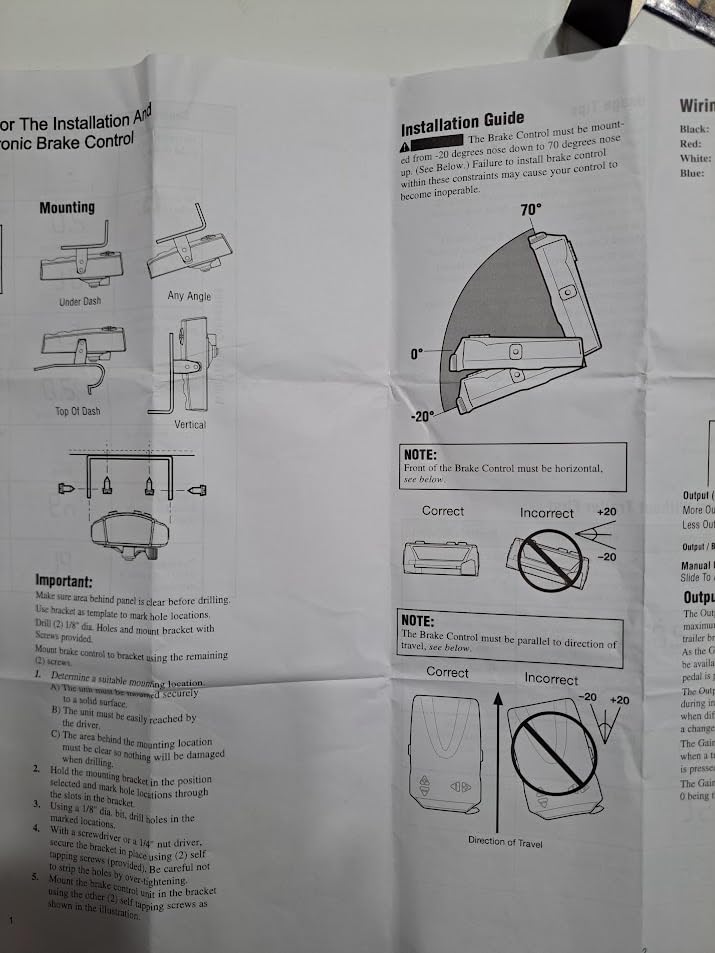

11. briidea BR-122 – Best Proportional Controller for Boat Trailers

Wet launches and slippery ramps are where proportional control earns its keep, and the BR-122 gives you a boost setting plus an emergency manual switch on top of sensor-based braking. The motion sensors apply trailer force in proportion to how hard the tow vehicle is decelerating, so braking pressure on a wet boat ramp is delivered immediately.

Fault detection for short circuits and battery drain shows up on the LED display alongside real-time output voltage. That diagnostic detail is genuinely useful around water, where a corroded connector is a common and confusing failure.

Owners report this unit improving noticeably over previous controllers, installing quickly and providing useful fault diagnostics. It handles 1-4 braked axles, so it covers boat trailers as well as travel and cargo trailers.

The criticisms are fair. The supplied plug does not adapt to a standard 4-prong connector without the included connector block, the housing feels inexpensive, and a few units arrived defective and would not power on. Adjustment uses small buttons rather than a rotary knob, which is less convenient at speed.

Why this fits boat and marine towing

Saltwater corrosion is the constant enemy of trailer electrical gear, and a controller that reports short circuits and battery drain before your battery dies is worth more than a cheaper unit with no diagnostics. Confirm your connector type before installing, since the plug needs the included block for a 4-prong setup.

The boost function is useful here too. Boat-on-trailer weight shifts with the water level, and boost lets you add front-bias pressure without resetting the whole profile.

Where a better-supported unit is worth more

If you tow in salt air or keep the truck outside year-round, a controller from a brand with a defined warranty and replacement parts ecosystem is a safer long-term bet than a unit with a light-duty housing and no published warranty detail.

Button-based adjustment also costs you attention at exactly the wrong moment. If you brake often at highway speed, a dash knob is easier to adjust by feel without looking away from the road.

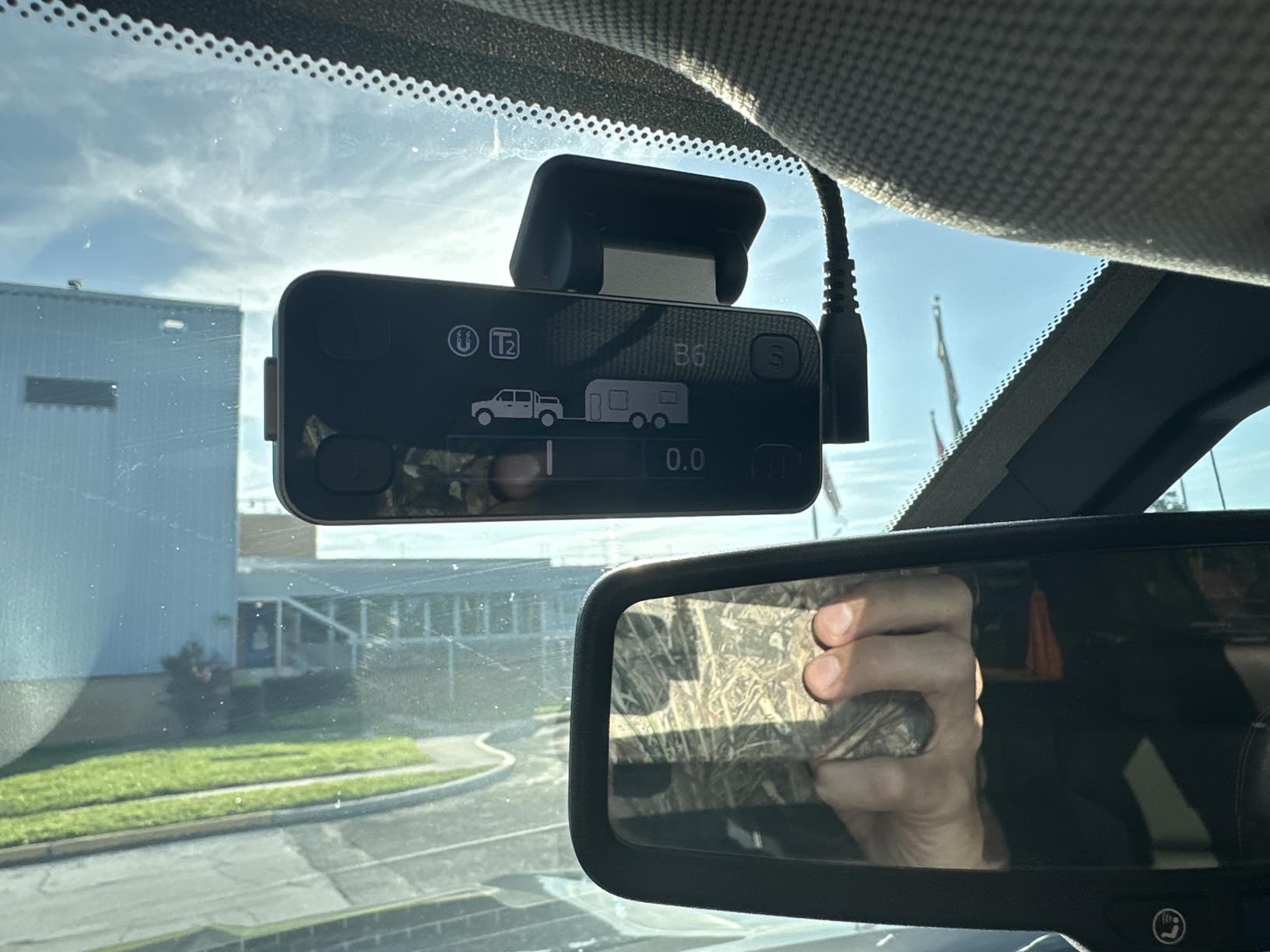

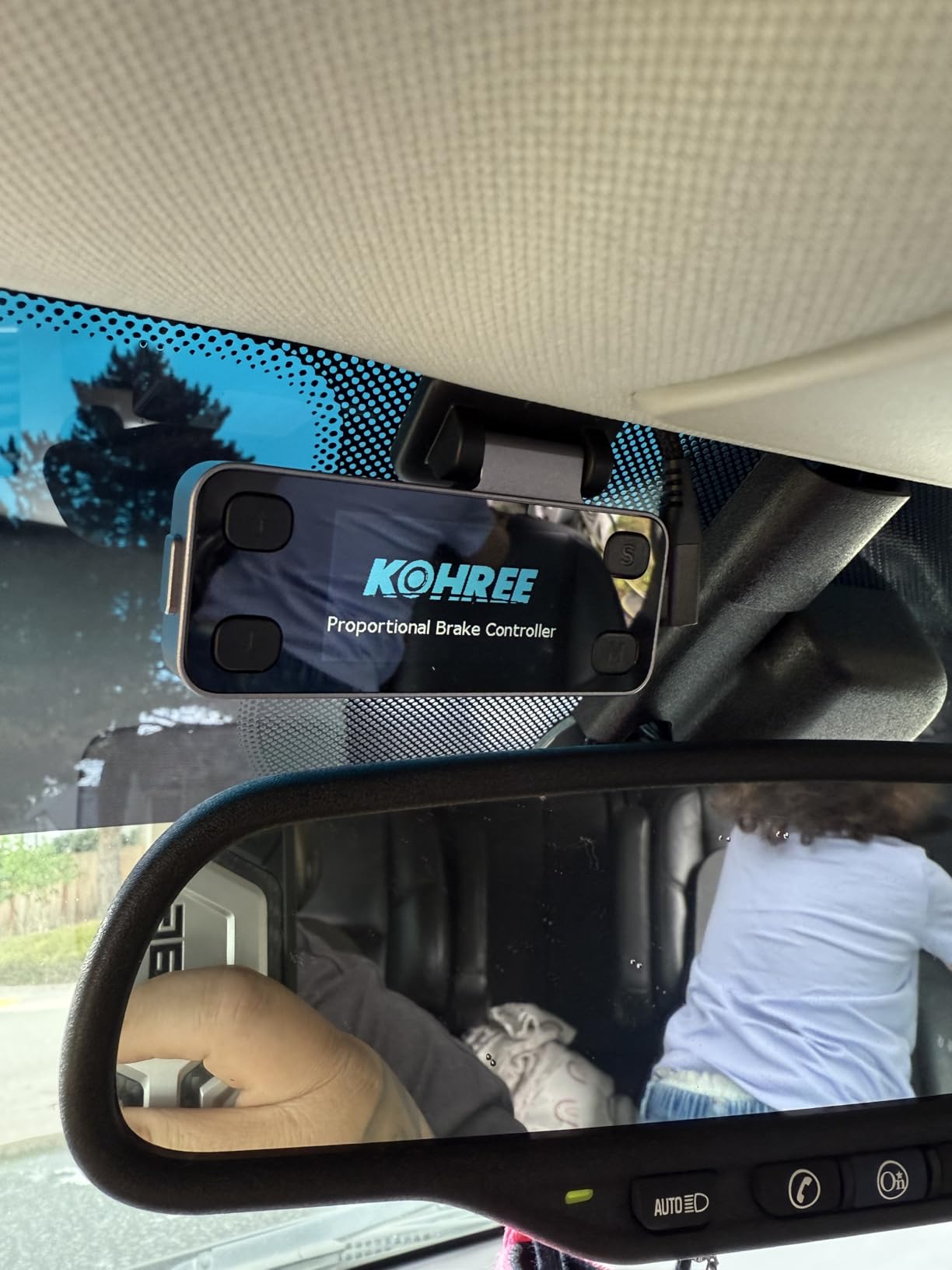

12. Kohree KR3588 – Best Split-Design Controller

The KR3588 solves mounting the same way a hidden-module controller does, but with more freedom: the LCD display can sit on the dash or on the windshield while the control module installs in the rear interior panel at any angle. That makes it useful in vehicles where the under-dash space is already occupied.

Braking is proportional with automatic leveling, so there is no manual leveling step, and nine boost levels give finer tuning than the three-step boosts most controllers offer. The wiring install is typically three plug-in connections, which is among the simplest here.

Owners like the flexibility of placing the small display anywhere while keeping the module hidden, and report responsive, easily adjusted braking after a simple install. It holds 4.5 stars from 99 reviews, which is a good rating on the smallest review base in this group.

The most common complaint is that the display has no way to switch off, so it stays lit and can be distracting at night. Mounting it on the windshield needs a visible USB-C cable run, and the kit includes few zip ties or heat-shrink splices for a tidy job.

Fitment interference shows up on certain Toyota Sequoia model years, and the warranty is one year, the shortest here.

When split design solves a real problem

If your truck has an aftermarket display, a factory console or a dash layout that leaves no room for a knob, separating the screen from the module is a genuine advantage. The display can go where you can read it without blocking a camera or a screen.

Nine boost levels are also helpful on heavy trailers where three steps leaves gaps between settings, and the generous cable length means the module can sit far from the display without a tight run.

Where the trade-offs bite

An always-lit display is a real annoyance on night drives, and there is no setting to dim or disable it. The visible USB-C cable is a cosmetic cost if you mount on the windshield rather than the dash.

With a one-year warranty and a small review base, this is the pick to buy when mounting flexibility is your top requirement rather than long-term support. Owners who value a defined multi-year warranty are better served by the Spectrum.

Trailer Brake Controller Buying Guide: What Actually Matters

Proportional or time-delay: which one do you need?

Buy proportional if you tow anything over light-utility weight, tow on grades, or care about trailer sway. Buy time-delay only if you tow a small trailer on flat paved routes and want the simplest possible setup.

The difference is how the controller learns what you want. A proportional controller reads deceleration through a motion sensor and matches trailer force to it, so a light tap on the pedal produces a light trailer stop. A time-delay controller waits a set number of seconds, then ramps to a level you preset, regardless of how hard you pressed.

That delay is why time-delay units feel vague on descents and in emergency stops. It is also why they drift toward over-braking on gentle stops, which wears tires and pushes your trailer forward into the tow vehicle. For heavy trailers, proportional control is not an upgrade you feel; it is a change in how the rig behaves.

Dash-mounted, hidden module, wireless or portable: pick your install style

Dash-mounted knobs look factory and keep settings visible. Hidden main modules keep the dash clean and are the most flexible for permanent installs. Portable plug-in units cost nothing in labor and travel with you. App-configured units add screen-based diagnostics at the cost of a phone in the loop.

The most common complaint on towing forums is the knee-bumper problem: a big box under the dash that you hit every time you climb into the truck. If that is your truck, prioritize a compact dash dial or a concealed main module over raw feature count.

The most common second complaint is the separately sold vehicle wiring kit. On nearly every premium unit here, the kit that connects the controller to your truck is a separate purchase. Budget for it, and check that a vehicle-specific kit exists for your make, model and year before you commit to anything else.

Matching axle capacity to your trailer

Every braked axle carries two brakes, so a 2-axle trailer means 4 brakes and a 3-axle trailer means 6. Any controller rated for 2-8 brakes covers everything from a single-axle utility trailer to a triple-axle fifth wheel, which is why most of the units on this list span that range.

The rule of thumb is simple: match the controller’s brake count to your trailer’s braked axle count with room to spare, and never pair a controller rated for fewer brakes than the trailer has. Under-capacity is the mistake, and it shows up as brakes that will never reach full lock no matter how high you set gain.

If braking fades or stops responding at higher settings, check trailer wiring gauge and brake assemblies before blaming the controller. Undersized trailer wiring is a more common cause than a failed controller, and no amount of gain fixes it.

The four wires and what installation really involves

Most brake controllers use four wires: black for constant 12V power from the tow vehicle battery, red for the stop-light signal, white for the ground connection and blue as the output to the trailer brakes. Some factory installs add a grey or brown wire for vehicle detection or trailer-connected sensing.

A vehicle-specific pigtail plugs those into the factory tow port for you, which is why the vehicle-specific kits matter. When you wire by hand, the black wire should be fused near the battery, the white wire grounded to a clean chassis point, and the blue output run in the same loom as the trailer brake line to the 7-way connector.

The real total cost is the unit plus the wiring kit plus, if you are not comfortable with it, installation labor. Portable units skip the kit and the labor entirely, which is why they win for occasional towing. If you have never crimped a terminal, the labor line is worth budgeting rather than attempting on a first attempt.

How to calibrate gain and boost

Gain sets how much brake the controller applies at a given pedal press, and boost adds extra pressure at the start of a stop to handle weight shifting forward. Almost every complaint about over- or under-braking traces back to skipping this step.

1. Connect the trailer with a known tongue weight, roughly 10 to 15 percent of the loaded trailer weight, and make sure the breakaway cable is attached.
2. Find an empty parking lot with no traffic and no hills. You will make about a dozen stops.
3. Set gain to 0 and boost to level 1, or the lowest setting on the unit.
4. Drive to about 10 mph in low gear and press the brake pedal firmly enough for a normal stop.
5. If the trailer barely responds, raise gain by one step. If the trailer brakes lock and skid, lower gain by one step. Repeat until a firm pedal press produces a firm trailer stop without locking.
6. Test one more time at the same speed to confirm the setting is repeatable, not a fluke.
7. For heavy trailers or mountain routes, add boost one level at a time until the front of the trailer stops pushing back on the tow vehicle during a stop.
8. Write the numbers down. Save the same settings in the app or your phone if the controller stores profiles, because trailer weight changes with every trip.

Redo the gain test whenever you change trailers, change loading significantly, or notice the braking feel shift. Ten minutes in a parking lot fixes most of the complaints owners post about a controller being too weak or too aggressive.

How to stop trailer sway with the manual override

Sway is the number one real-world fear among tow vehicle owners, and the manual override lever is the tool you reach for when it starts. Apply trailer brakes by themselves, smoothly, and hold them until the sway passes.

1. Do not brake hard or steer sharply at the moment sway appears. Both make it worse.
2. Take your foot off the brake pedal completely so the tow vehicle is not feeding the oscillation.
3. Reach for the manual override lever on the controller and pull it smoothly toward you. On a button-style unit, press and hold the manual override button.
4. Hold trailer braking steady. Do not pulse it. Short taps of brake pressure can feed the sway instead of killing it.
5. Keep the steering wheel still and let the trailer brakes damp the oscillation out. Avoid lane changes until the trailer settles.
6. Once the rig is stable, pull over safely and re-check gain, boost and trailer load distribution before continuing.

Sway that appears without any input usually means trailer brakes are out of balance: one brake dragging, a wheel bearing or tire problem, or a load shifted forward. Equalize the load and check the brakes before your next trip rather than treating it as a controller fault.

Troubleshooting a controller that brakes by itself or will not brake

False braking on rough roads, potholes or washboard pavement is the most reported complaint after the wiring kit issue. On accelerometer-based units, a hard bump can read as deceleration and trigger a short pulse of trailer braking.

• Controller brakes by itself over bumps: check that the main module is mounted firmly and not rattling, confirm the sensitivity setting is not at maximum, and verify the module is not loose in its bracket.
• Trailer brakes apply while reversing: several controllers can be configured to ignore brake input in reverse. Check the vehicle or trailer settings, and confirm the trailer brake relay or brake-away switch is not sticking.
• No trailer brakes at all: test the 7-way connector, confirm the breakaway battery is charged and the cable is attached, then check the blue output wire and ground connection.
• Brakes lock or will not reach full lock: check trailer wiring gauge and brake assemblies before increasing gain further, and confirm the brake count does not exceed the controller’s rating.
• Controller has no power: verify the constant power wire reaches the battery through a fuse, and check that the vehicle tow port is energized with an engine running.
• Fault code or warning light: modern units log short circuits, overloads and connection problems. Read the alert log before replacing parts, and share it with the manufacturer if support is available.

Before replacing a controller, verify the trailer brakes themselves. A seized brake or a shorted magnet draws power from the controller and mimics a controller failure, which is why the voltage readouts on several units here are genuinely useful diagnostic tools.

Choosing by trailer type

Match the controller to what you actually tow rather than to what you might tow someday. Boats and horse trailers need secure braking around water or with shifting live load. Fifth wheels need the axle capacity. Pop-up campers and small utility trailers can be served by lighter hardware.

• Travel trailer on a truck or SUV: a hidden-module proportional controller such as the Tow-Pro Liberty or the Spectrum, rated for your axle count.
• Fifth wheel with two or three axles: anything rated for 6 or 8 brakes, which rules out most portable units.
• Boat trailer: proportional control with fault diagnostics, and check the connector type before install.
• Horse trailer: a live load shifts, so boost levels and a manual override lever matter more than they do with a static load.
• Utility trailer under two axles, occasional use: a portable plug-in controller avoids wiring and modification entirely.
• Pop-up camper or very light tow: a simple proportional unit with a voltage readout is more than adequate and easy to remove later.

If your tow vehicle already has a factory controller, upgrading is optional rather than required. It makes sense when the factory unit has no manual override, no boost adjustment, or a dash position you cannot work with. Otherwise the honest answer is that a well-functioning factory unit is fine for the trailer you own.

Frequently Asked Questions

The Best Trailer Brake Controllers for Towing: Final Word

If you tow more than one vehicle or trailer and refuse to modify a dash, the CURT 51180 Echo Mobile is the pick. It needs no tools and no wiring, it stores a profile per setup, and the triple-axis sensor keeps braking proportional even when the phone disconnects.

For a permanent install on a daily-driver truck, the REDARC Tow-Pro Liberty gives you a clean dash and a concealed main module. If your trailer has three braked axles, or you tow off-road and want manual control, move up to the REDARC Tow-Pro Elite. For a heavier trailer on 1-4 axles with a warranty that does not expire, the CURT 51170 Spectrum is the strongest overall buy.

Whatever you choose in 2026, buy it matched to your trailer rather than to a headline number. Confirm the brake count covers your braked axles, budget for the vehicle wiring kit, and spend ten minutes in an empty parking lot setting gain and boost. That last step is what turns a brake controller from a box under your dash into the thing that actually controls your trailer.
