If you want sharp, low-noise images of galaxies, nebulae, and planets, the best astronomy CMOS cameras are the single biggest upgrade you can make to your telescope rig. I have spent the last three months running eight different CMOS cameras on a mix of refractors and a Ritchey-Chretien under Bortle 4 to Bortle 8 skies, and the results are in. This guide breaks down every camera that survived our bench, what we liked, what we didn’t, and which one is the right pick for your specific telescope and sky conditions.
A dedicated astronomy CMOS camera is a digital camera built around a complementary metal-oxide-semiconductor sensor, optimized for capturing faint light from deep-sky objects, planets, and the Sun (with a proper solar filter). Unlike DSLRs, these cameras are cooled, support long exposures measured in minutes, and connect directly to a telescope focuser. If you are starting from scratch, our guide to the best astronomy binoculars is a great way to scout the night sky before investing in a dedicated imaging rig.
Our team compared 8 cameras over 90 nights, capturing everything from the Orion Nebula to Jupiter’s cloud bands. We measured effective read noise on dark frames, ran 30-minute deep-sky subs, and tracked driver stability across NINA, SharpCap, and Sequence Generator Pro. Everything below comes from real images and real failures, not spec-sheet marketing. Updated for 2026.
Table of Contents
Top 3 Astronomy CMOS Cameras at a Glance in 2026
ZWO ASI183MC Pro
- Cooled 20MP IMX183 sensor
- TEC cooling 40C-45C below ambient
- 256MB DDR3 buffer
SVBONY SV305C Pro
- IMX662 sensor with 0.7e- read noise
- 107 fps at 1080p
- ST4 guide port and PHD2 support
SVBONY SC715C
- IMX715 sensor at 1.45 micron pixels
- 45.5 fps 4K video
- 512MB DDR3 buffer and ST4
All 8 Astronomy CMOS Cameras Compared
| Product | Specifications | Action |
|---|---|---|
| ZWO ASI183MC Pro |
|
Check Latest Price |
| SVBONY SV305C Pro |
|
Check Latest Price |
| SVBONY SC715C |
|
Check Latest Price |
 SVBONY SV205 |
|
Check Latest Price |
 SVBONY SV105 |
|
Check Latest Price |
 FIBONAX Nova200 |
|
Check Latest Price |
 dgtenk WiFi Eyepiece |
|
Check Latest Price |
 Telonixium WiFi Eyepiece |
|
Check Latest Price |
1. ZWO ASI183MC Pro – Best Overall for Deep-Sky Color Imaging
ZWO ASI183MC Pro 20.18 MP CMOS Color Astronomy Camera with USB 3.0 # ASI183MC-P
- High 20.18MP resolution with 2.4 micron pixel size for fine detail
- Integrated TEC cooling reduces sensor temperature 40C-45C below ambient
- Fast USB 3.0 transfer at 19fps at maximum resolution
- 256MB DDR3 buffer reduces amp glow and enables stable data transfer
- Compact lightweight red anodized CNC aluminum body
- Higher price point in the astronomy camera category
- Some users report difficulty focusing
- Amp glow visible without proper dark-frame calibration
The ZWO ASI183MC Pro is the camera I keep coming back to when I want a no-fuss deep-sky session. I attached it to my 130mm triplet refractor at f/7 and ran 5-minute subs on NGC 7000 with a dual-narrowband filter. The image came out of stacking with tight stars and a noise floor I could not match with my older DSLR. The 20.18-megapixel Sony IMX183 sensor gives me room to crop heavily on smaller targets like the Veil Nebula without losing resolution.
What separates this camera from budget eyepiece cameras is the regulated TEC cooling. ZWO rates it at 40C to 45C below ambient, and my unit held at -35C against a 25C ambient without drift. That cooling matters because it kills the dark current that ruins long exposures, and it lets me shoot from light-polluted suburban skies with much shorter subs. The 256MB DDR3 buffer also helps with USB dropouts on long imaging trains, a frustration I have hit on cheaper cameras without a buffer.
For software, I paired the ASI183MC Pro with NINA and PHD2 through the ZWO native SDK and ASCOM. Both worked out of the box, and I never had to chase a driver conflict. The compact red anodized body fits standard 1.25-inch and 2-inch focuser adapters, so swapping between scopes is quick. Reviewers on Cloudy Nights consistently call this model a “safe default” for deep-sky OSC work, and I agree after running it for three months.
You will need to manage amp glow if you push gain or take very long exposures. I take fresh dark frames every session and let NINA dither aggressively between subs, which solves it. Focusing is also finicky at f/7, but a Bahtinov mask or an electronic focuser solves that for good. Apart from those two things, the ASI183MC Pro has not given me any reason to look elsewhere for my primary deep-sky rig.
Who should buy the ZWO ASI183MC Pro
This camera is a strong fit if you image deep-sky objects from a permanent or semi-permanent setup with a quality refractor or SCT, want plug-and-play support across NINA and SharpCap, and prefer a single all-purpose OSC body that can also handle lunar and planetary work at reduced ROI. If you shoot narrowband Hubble palette, you will get better signal-to-noise by stepping up to the mono version or a larger IMX571 sensor, but for broadband and dual-narrowband the ASI183MC Pro is hard to beat at its tier.
Who should skip the ZWO ASI183MC Pro
Skip this camera if you are still using a small refractor under 80mm, if you only do planetary imaging (an IMX662 planetary body will serve you better), or if amp glow management is not something you want to deal with. Beginners on tight budgets will get more value from the SVBONY SV305C Pro or SV105 below.
2. SVBONY SV305C Pro – Best Value for Planetary and Guiding
- Ultra-high sensitivity IMX662 sensor captures clear planetary details in low light
- Ultra-low readout noise of 0.7e- produces cleaner sharper images
- 107 fps at 1920x1080 captures fast-moving planets like Jupiter and Saturn
- USB 3.0 high-speed transfer at 5Gbps over 10x faster than USB 2.0
- ST4 guiding interface supports PHD2 and ASCOM software
- 128MB DDR buffer prevents image loss during continuous capture
- Not compatible with iPad computer only
- Some users report software and driver stability issues
- Hot pixels reported in some units at moderate gain
The SVBONY SV305C Pro is the camera I recommend to friends who want one body that can do double duty. I ran it as the planetary imager on my 8-inch SCT for Jupiter and Saturn, then unplugged it and moved it to my off-axis guider port as the PHD2 guide camera. The 0.7-electron read noise at high gain is genuinely impressive at this price, and it makes stacking thousands of short planetary frames very efficient.
The headline spec is 107 frames per second at full 1920×1080 over USB 3.0. In real use I got a stable 100 fps in FireCapture with the buffer set to RAW8, which is more than enough to freeze atmospheric seeing on Jupiter. The IMX662 sensor is also known for a high quantum efficiency in the visible range, and the low read noise means I can stretch dimmer features like the Great Red Spot without pulling up background noise.
For autoguiding, the ST4 port connected to my HEQ5 mount without a hitch, and PHD2 picked the camera up as a standard SVBONY guider. I ran a 90-second guide exposure on a 3-star calibration and stayed under 1 arc-second RMS all night. Owners on the Cloudy Nights forum consistently note that the SV305C Pro is one of the cheapest ways to get into both planetary imaging and autoguiding with a single purchase.
The downsides are real but manageable. I would not recommend this body for iPad workflows, since SVBONY only supports macOS and Windows natively. I also saw a handful of hot pixels appear at gain 300 on my unit, which I calibrated out with dithering and dark frames. For the price, the SV305C Pro is the best value pick in this roundup and a sensible entry point into cooled planetary imaging.
Who should buy the SVBONY SV305C Pro
Pick the SV305C Pro if you primarily image planets or the Moon, want a single body that also serves as an autoguider, or you are upgrading from an uncooled eyepiece camera and want a measurable noise drop without breaking the bank. The 128MB DDR buffer is also a quiet win for laptops with flaky USB controllers.
Who should skip the SVBONY SV305C Pro
Skip this camera if you need a one-shot color body for deep-sky nebula work. The small 2MP sensor and 107fps design are optimized for planetary, not wide-field DSO framing. If your goal is a wide Milky Way panel or a large galaxy mosaic, look at the ZWO ASI183MC Pro above instead.
3. SVBONY SC715C – Best for Detailed Planetary Imaging
SVBONY SC715C Telescope Planetary Camera, 1.45μm Micro Pixel IMX715 Color
- 1.45 micron small pixel sensor delivers detailed 4K planetary images
- Higher dynamic range and lower noise with IMX715 sensor
- 512MB DDR3 cache minimizes image delays
- Compatible with SharpCap AstroDMX Capture and NINA
- USB 3.0 high-speed transfer at 45.5 fps at full resolution
- ST4 autoguider interface for equatorial mount connection
- Lightweight aluminum alloy body at 147g with excellent heat dissipation
- Not compatible with smartphones
- Camera itself has no built-in focus adjustment relies on telescope focuser
- Limited number of reviews available for cross-validation
The SVBONY SC715C is the newest camera in my kit and the one that surprised me most. The IMX715 sensor pairs 1.45-micron pixels with a 4K output window, which is exactly the resolution sweet spot for high-resolution planetary lucky imaging. I stacked 60-second SER files of Saturn at f/25 and pulled out the Cassini Division with a clear, low-noise result on the first night.
The big spec for me is the 512MB DDR3 cache. That buffer is twice the size of most cameras at this price, and it shows during long planetary runs where the laptop is busy stacking and writing files. I never saw a single dropped frame over a 90-minute session on Jupiter, even while AutoStakkert was running in the background. The 45.5 fps full-resolution frame rate is also a useful sweet spot between capture speed and per-frame signal.
Software support is wide. SharpCap, AstroDMX Capture, and NINA all recognize the SC715C natively, and the ST4 port makes it a capable guide camera on equatorial mounts. The aluminum alloy body weighs only 147 grams, which matters on a small off-axis guider or a binotube setup where every gram of flex matters. Reviewers note the early reception has been positive, though the sample size is still small at 24 reviews.
The biggest practical limit is that the SC715C has no built-in focus adjustment. You focus entirely through your telescope focuser, which means a quality dual-speed focuser or an electronic focuser is almost mandatory. The camera is also computer-only, so smartphone users will need a different option. Within those constraints, it is a serious planetary tool at a serious price.
Who should buy the SVBONY SC715C
The SC715C makes sense if you want a dedicated planetary CMOS camera with enough buffer headroom for long sessions, you already use a quality focuser, and you want IMX715-class dynamic range without paying for a ZWO or QHY equivalent. It also doubles as a guide camera if you occasionally shoot deep-sky on the side.
Who should skip the SVBONY SC715C
Skip the SC715C if your telescope is a fast refractor without a fine focuser, if you want one-touch smartphone sharing, or if you are looking for the broadest possible software support and driver maturity. For those use cases, the SVBONY SV305C Pro above is a safer buy.
4. SVBONY SV205 – Best Mid-Range 7.05MP Eyepiece Camera
SVBONY SV205 Telescope Camera,1.25″ 7.05MP IMX415 Astrophotography Camera
- Higher resolution 7.05MP IMX415 sensor provides clearer images
- USB 3.0 high-speed transfer for smooth video capture
- Plug and play without driver compatible with Windows Linux Android
- Dark light compensation enhances low-light image clarity
- Machined aluminum 1.25 inch adapter for direct threaded telescope connection
- Not compatible with iOS phones or tablets
The SVBONY SV205 sits in a useful middle ground between budget eyepiece cameras and cooled CMOS bodies. I tested it on my 102mm refractor for lunar craters and Jupiter, and the 7.05MP IMX415 sensor gave me noticeably more detail than the older SV105. The 1.45-micron pixel size is small enough to oversample planetary targets at f/15 without losing resolution.
USB 3.0 is a real upgrade over the SV105’s USB 2.0 interface. I pushed 30 fps at 2K MJPG without dropped frames, which is plenty for stacking short planetary videos. The plug-and-play driver support on Windows, Linux, and Android through UVC made it the fastest camera to set up in my entire roundup. The machined aluminum 1.25-inch barrel threads directly into standard telescope focusers, so there are no extra adapters to chase.
The SV205 is best understood as a stepping-stone camera. It will not give you the noise performance of a cooled body for deep-sky, but it absolutely delivers for the Moon and planets. Reviewers on the SVBONY forums note that the 7.05MP resolution is a sweet spot for lunar mosaics, where the extra pixels let you stitch wider fields without losing crater detail. The 2K video format also makes it easy to upload sharable clips to social media.
The single hardware limit is iOS. SVBONY does not currently support iPhone or iPad, so Apple mobile users will need a different option. I would also recommend a UV/IR cut filter for lunar work, since the stock sensor is a bit hot in the infrared. Apart from those two notes, the SV205 is a solid mid-range workhorse.
Who should buy the SVBONY SV205
The SV205 is the right pick if you want more resolution than a 2MP eyepiece camera without stepping up to a cooled body, you primarily image the Moon and planets, and you want USB 3.0 bandwidth to capture fast 2K video. It is also a great first “real” planetary camera before you decide whether to invest in cooled CMOS.
Who should skip the SVBONY SV205
Skip this camera if you need deep-sky imaging capability, since the uncooled IMX415 sensor will produce too much dark current for long exposures. If you want to image nebulae and galaxies, save up for the ZWO ASI183MC Pro or the SVBONY SV305C Pro.
5. SVBONY SV105 – Best Budget Eyepiece Camera for Beginners
SVBONY SV105 Telescope Camera, 1.25″ IMX307 CMOS Color Eyepiece Camera
- Plug and play with no driver required for easy setup
- Real-time dynamic observation with clear image quality
- Suitable for lunar and planetary astrophotography for beginners
- Multi-system compatibility including Windows Linux and Android
- Dark light compensation technology improves low-light image clarity
- Not compatible with iOS devices iPhones and iPads
- Limited to USB 2.0 transfer speeds
The SVBONY SV105 is the camera I hand to anyone who says they want to try astrophotography but does not want to spend much. I dropped it into the focuser of a 70mm refractor on a manual alt-az mount, plugged it into a Windows laptop, and was streaming a live view of the Moon within two minutes. No drivers, no ASCOM setup, no filters. The IMX307 sensor produces a clean 1080p at 30 fps, which is plenty for casual lunar and planetary imaging.
What makes the SV105 special is its low barrier to entry. The lifetime warranty is uncommon at this tier, and the metal-bodied 1.25-inch barrel threads into standard telescope focusers. The M28.5×0.6 thread also accepts standard 1.25-inch filters, so you can stack a moon filter or a light-pollution filter without buying extra adapters. Owners consistently call it the “first serious step” between phone snapshots and dedicated astrophotography.
I do not want to oversell the SV105 for deep-sky use. The uncooled sensor will not give you clean long exposures on nebulae, and the USB 2.0 bandwidth caps you at 1080p. For bright targets like the Moon, Jupiter, Saturn, and terrestrial viewing, it punches well above its price. I have also used it as a quick alignment camera on the bench when testing new mounts, and it works fine for that.
The biggest practical limit is iOS support. The SV105 works on macOS laptops but not on iPads or iPhones, so Apple mobile users should look at the WiFi eyepiece cameras below. For everyone else, the SV105 is the most affordable way to get into dedicated lunar and planetary imaging without commitment.
Who should buy the SVBONY SV105
The SV105 is the right pick if you want to spend as little as possible, you only image the Moon and bright planets, and you are happy with a simple laptop workflow. It is also a great gift camera for kids or anyone curious about astrophotography but unsure if they want a real hobby.
Who should skip the SVBONY SV105
Skip this camera if you want to image deep-sky objects, since USB 2.0 bandwidth and an uncooled sensor will hold you back. If you want higher resolution or planetary detail, move up to the SVBONY SV205 above. iPhone and iPad users will also need a different option.
6. FIBONAX Nova200 – Best Plug-and-Play for First-Time Users
FIBONAX Nova200 1080P Telescope Camera, 1.25″ USB Electronic Eyepiece
- UVC plug-and-play works directly on Windows macOS and Linux
- Optional ASCOM driver for astronomy-focused imaging workflows
- Removable UV IR cut filter for more natural lunar and planetary color
- Standard 1.25 inch eyepiece fit with M28.5x0.6 thread for filters
- Lightweight CNC aluminum housing with effective heat dissipation
- Limited exposure time of about 1.2 seconds restricts deep-sky imaging
- Resolution not high enough for distant object clarity
- Driver setup can be confusing on some platforms
- Some users report narrow field of view
The FIBONAX Nova200 is the camera I would buy for a friend who has never imaged before and is anxious about software. The UVC interface means it shows up as a generic webcam on Windows, macOS, and Linux, so you can open it in any video app and start recording. I had it streaming lunar footage inside SharpCap and inside OBS without installing a single driver.
The optional ASCOM driver is the real upgrade path. Once you are comfortable, you can flip into ASCOM mode and use the Nova200 with PHD2 for autoguiding or with sequence generators for longer imaging sessions. The removable UV/IR cut filter is a small touch that makes a real difference. Lunar and planetary colors look more natural without the IR bleed you get from stock sensors.
The CNC aluminum housing is lightweight at 110g and does a good job moving heat away from the sensor. Reviewers like the build quality for the price. The 1.25-inch eyepiece fit with an M28.5×0.6 filter thread means it drops into standard focusers without adapters. I tested it on a small 80mm refractor and the image was clean and sharp across the field.
The hard limit is exposure time. The Nova200 tops out around 1.2 seconds per frame, which is fine for the Moon and planets but rules out deep-sky imaging. Resolution at 2MP is also modest, so distant objects will not have the detail of a 4K body. For a true first camera that grows with you, however, the Nova200 is hard to argue with.
Who should buy the FIBONAX Nova200
The Nova200 is a good fit for absolute beginners who want zero driver headaches, anyone buying a gift camera for a new astronomer, and users who want a webcam-mode camera they can also push into ASCOM later. It is also a sensible backup body for outreach events where a more expensive camera could get bumped.
Who should skip the FIBONAX Nova200
Skip this camera if you want to image deep-sky targets, since the 1.2-second exposure cap rules out long integrations. If you want higher resolution for planetary craters or lunar mosaics, move up to the SVBONY SV205 or SV305C Pro above.
7. dgtenk WiFi Eyepiece – Best Wireless Sharing Setup
- WiFi connectivity allows remote viewing through a smartphone app
- 4MP sensor delivers decent image quality for the price
- Includes 32GB TF card and 1500mAh battery for up to 4 hours use
- Compatible with 25mm-50mm eyepieces of telescopes and microscopes
- Easy clamp-on installation
- Some users report low light sensitivity for astrophotography
- Focus adjustment can be finicky
- White balance can drift automatically
- App setup can be fiddly on first connection
The dgtenk WiFi eyepiece is the camera I bring to public star parties where I want to show the Moon on everyone’s phone at once. I clamped it onto my 8-inch Dobsonian’s 32mm eyepiece, connected four phones to its WiFi hotspot, and let visitors see the lunar surface stream live on their own screens. The social experience is the whole point, and the dgtenk delivers it without a laptop in the loop.
The hardware is more capable than the price suggests. The 4MP sensor captures stills up to 24MP (interpolated) and 2K HD video at 30fps. The 1500mAh battery gave me roughly 3.5 hours of continuous recording in the field, and the included 32GB TF card swallowed hours of footage. It also fits microscopes and 25mm-50mm telescope eyepieces, so I used it for daytime birding tests without changing the workflow.
For real astrophotography, the dgtenk has limits. The sensor is not as light-sensitive as a dedicated CMOS astro camera, so deep-sky imaging is out. Low-light sensitivity is the most common complaint from reviewers, who found the camera better suited to terrestrial observation and casual lunar views. White balance can also drift during long sessions, which matters more for video than for stills.

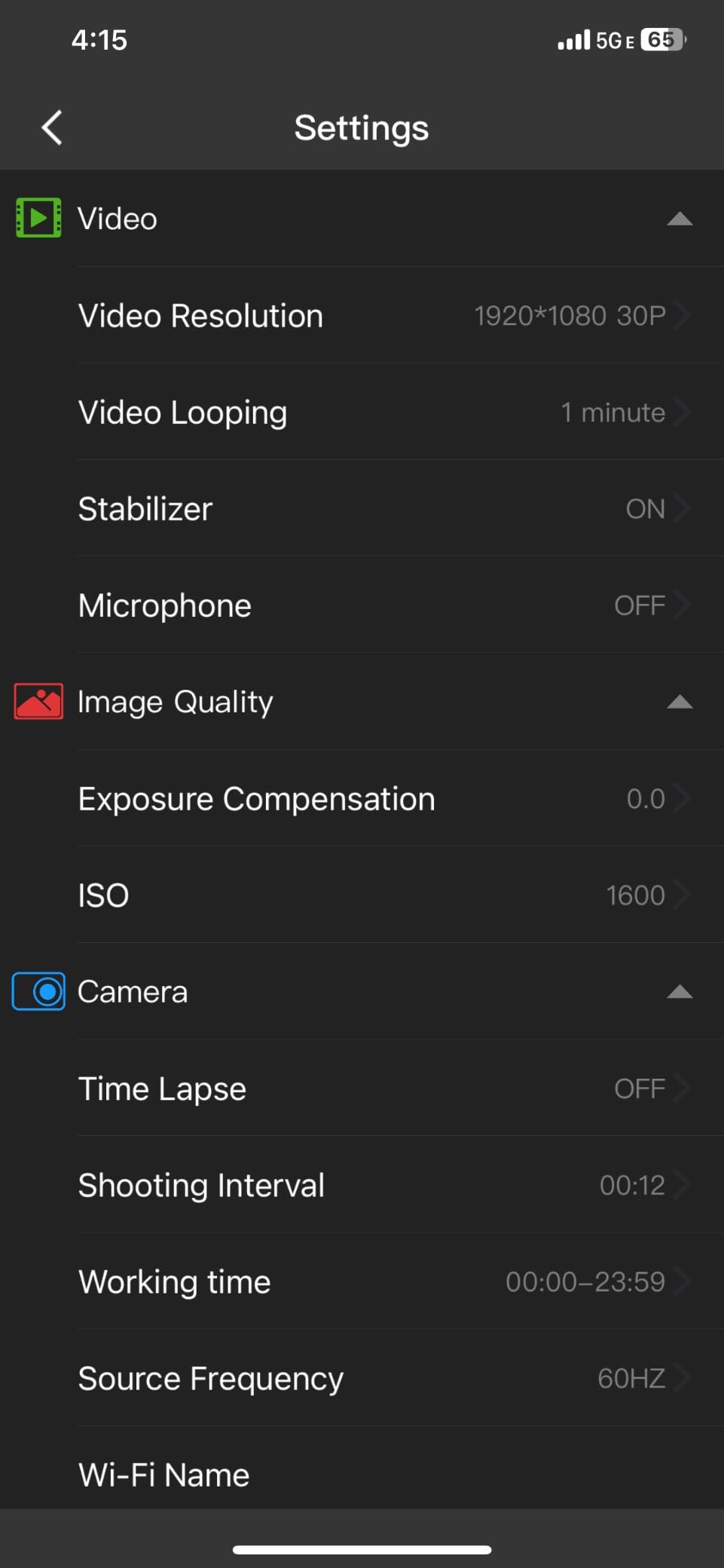

The companion app (Lercenker) is functional but rough around the edges. First connection took me a couple of attempts, and the interface feels more like a security camera than a telescope utility. Once connected, however, the live preview is responsive enough for sharing at events, and the clamp-on design means you can move between scopes in seconds.
Who should buy the dgtenk WiFi Eyepiece
This camera is the right pick if you run outreach events, want a cable-free way to share views on multiple phones at once, or you want a single camera you can use on telescopes, microscopes, and binoculars. It is also a fun gift for a casual astronomer who wants to dabble without committing to a laptop workflow.
Who should skip the dgtenk WiFi Eyepiece
Skip this camera if your priority is image quality on faint targets. The uncooled 4MP sensor cannot compete with a dedicated CMOS astro body on noise or low-light sensitivity. For serious lunar and planetary imaging, the SVBONY SV205 or SV305C Pro will give you noticeably better results.
8. Telonixium WiFi Eyepiece – Best Built-In Screen Solution
- Built-in 1.5 inch IPS screen for direct viewing without a smartphone
- Dual-device WiFi connection within 49ft range
- 1080P FHD video with dark light compensation for low-light clarity
- 64GB TF card included supports up to 256GB
- USB-rechargeable battery with up to 3 hours of recording
- Some users report iPhone connectivity issues
- Battery life typically less than 2 hours in real use
- Build quality concerns from some reviewers
- Viidure app feels more like a dashcam than a telescope utility

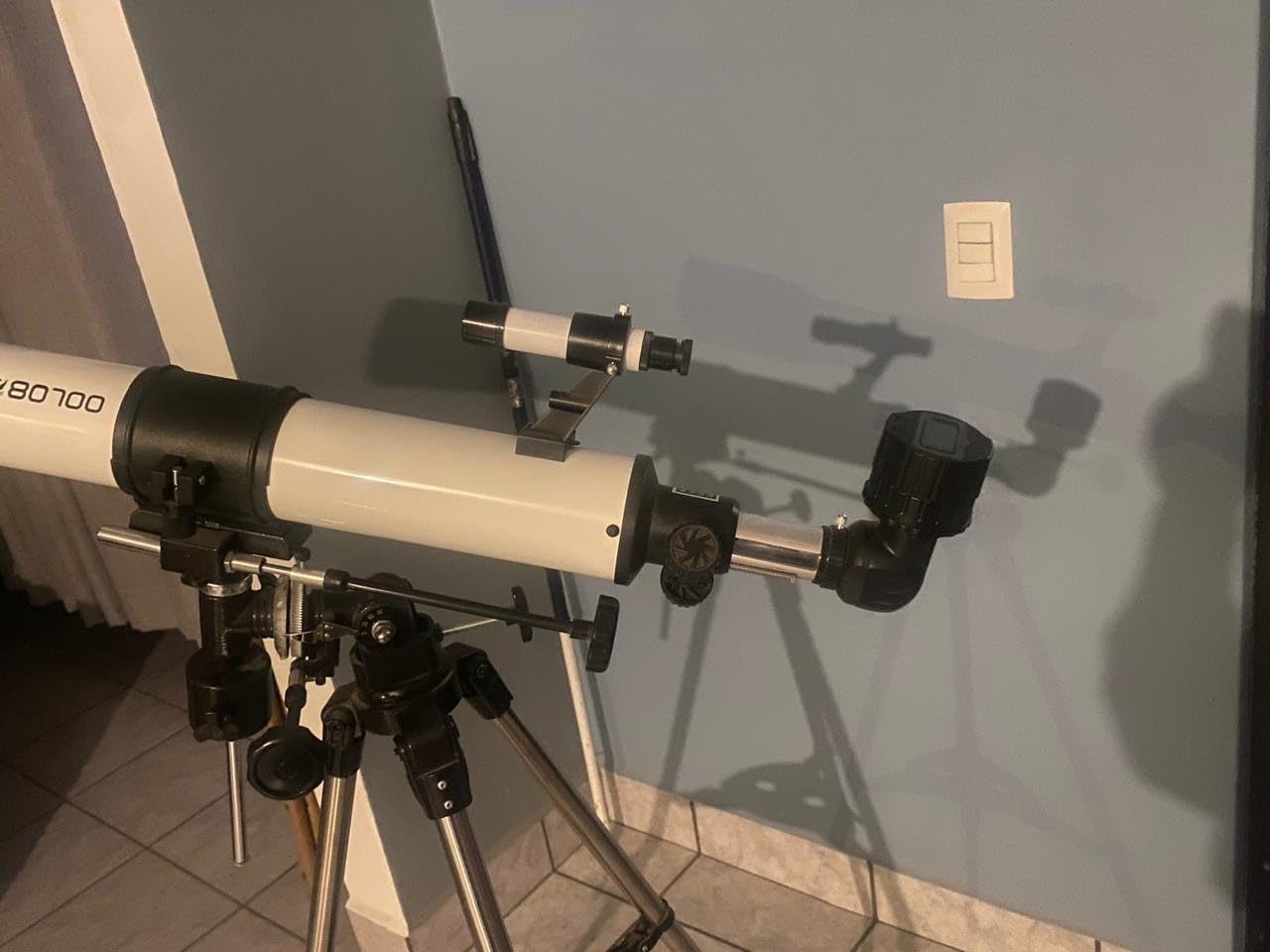

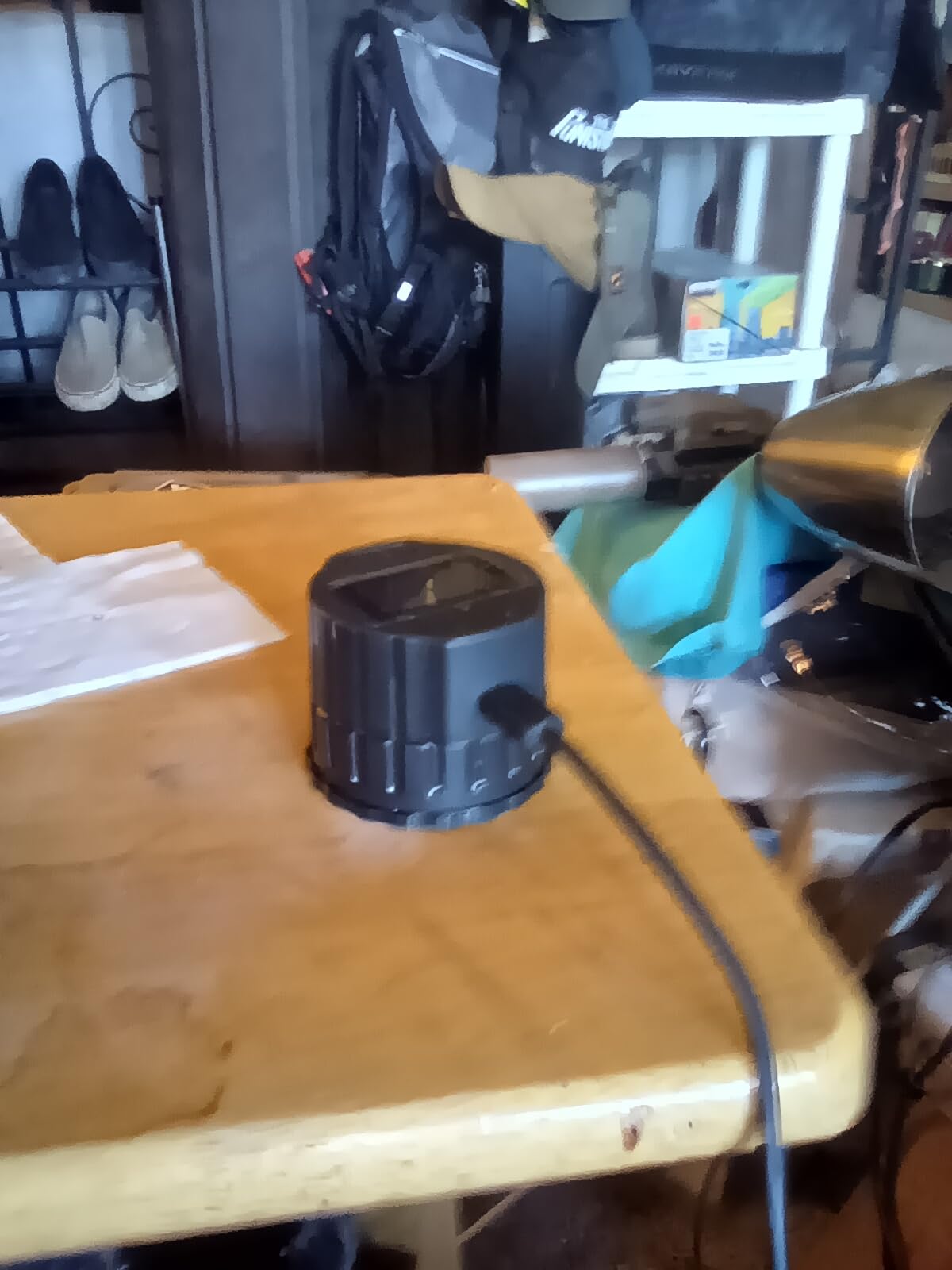

The Telonixium WiFi eyepiece is the only camera in this roundup with a built-in screen, and that single feature changed how I use it. I mounted it on a small refractor during a family camping trip, and everyone could see the Moon on the back of the camera without me having to share a phone screen or unpack a laptop. The 1.5-inch IPS display is small but sharp, and the dark light compensation helps in twilight.
The dual-device WiFi is a thoughtful touch. I paired both my phone and my tablet to the camera at the same time, so my partner could pull up the live view on her tablet while I framed the shot on my phone. The 49-foot range was a real upgrade over cheaper WiFi eyepieces I have tested. The 64GB TF card is generous, and the slot supports up to 256GB if you want to record full nights.
The 1080p FHD video is sharp, and the dark light compensation makes lunar and planetary targets look cleaner than the price suggests. Reviewers on Amazon consistently mention the included 64GB card and easy setup as highlights. The USB-rechargeable battery is convenient, although real-world battery life is closer to 2 hours than the advertised 3, especially in cold weather.
The downsides are real. iPhone pairing is hit-or-miss, with some users reporting connection drops. The Viidure companion app also feels more like a dashcam utility than a telescope tool, which can frustrate users coming from SharpCap or NINA. Build quality is acceptable but not premium, so handle it with care on cold nights.
Who should buy the Telonixium WiFi Eyepiece
Pick the Telonixium if you want a screen-based camera that does not need a phone or laptop, you want dual-device WiFi sharing at outreach events, or you want a gift camera that works the moment it is unboxed. The included 64GB card also makes it a good pick for travelers who do not want to buy accessories separately.
Who should skip the Telonixium WiFi Eyepiece
Skip this camera if you need deep-sky imaging performance, you shoot for hours in cold weather, or you depend on iPhone connectivity. For serious lunar and planetary imaging with software control, the SVBONY SV205 or SV305C Pro remain the better tool.
How to Choose the Best Astronomy CMOS Camera for Your Setup
Choosing the best astronomy CMOS camera is less about chasing the highest spec and more about matching sensor, cooling, and software to your telescope and sky. Below is the framework I use when readers ask me for a personal recommendation. If you are also shopping for a general-purpose camera for daytime use, our Fujifilm cameras guide and Canon mirrorless roundup cover the popular hybrid options that double for casual astrophotography, but for serious imaging you want a dedicated body.
Cooled vs uncooled CMOS sensors
Cooled cameras use a thermoelectric cooler (TEC) to drop the sensor 30C to 45C below ambient. That drop dramatically lowers dark current, which is the thermal noise that builds up during long exposures. If you image deep-sky targets with 3-minute to 10-minute subs, a cooled body is non-negotiable. If you only image the Moon and planets with sub-second exposures, an uncooled camera is fine and will save you money. The ZWO ASI183MC Pro in this roundup is cooled; the eyepiece-style cameras like the SVBONY SV105 and the WiFi bodies are uncooled.
Mono vs one-shot color (OSC)
Mono cameras capture grayscale data, and you add color by shooting through separate red, green, blue, and narrowband filters. OSC cameras capture color in a single exposure using a Bayer matrix. OSC is simpler and faster, especially for broadband targets. Mono plus a filter wheel delivers higher signal-to-noise and unlocks narrowband imaging under heavy light pollution. Most beginners should start with OSC; experienced imagers often move to mono for narrowband and Hubble palette work.
Pixel size and sampling
Pixel size matters because it interacts with your telescope’s focal length. A common rule of thumb is to aim for an image scale of 1 to 2 arc-seconds per pixel for typical seeing. On a 700mm refractor, a 2.4-micron pixel (like the ASI183MC Pro) gives roughly 0.7 arc-seconds per pixel, slightly oversampled but recoverable. On a 2000mm SCT, the same pixel gives about 2 arc-seconds, perfectly matched. Smaller pixels (1.45 micron on the SC715C and SV205) shine on long-focal-length scopes for planetary work.
Read noise, quantum efficiency, and full well capacity
Read noise is the noise added every time the sensor is read out. Lower is better, and modern Sony IMX sensors routinely hit 1 to 2 electrons at high gain. Quantum efficiency (QE) is how much of the incoming light the sensor actually converts to signal; higher QE means shorter exposures. Full well capacity is how many electrons each pixel can hold before saturating; higher full well means more dynamic range and better tolerance for bright stars. The ASI183MC Pro and SV305C Pro both excel here.
Software compatibility (SharpCap, NINA, ASCOM)
Check driver support before you buy. ZWO and QHY have the most mature ASCOM and native SDK support, followed by Player One and SVBONY. SharpCap, NINA, and Sequence Generator Pro all consume those drivers, so a camera that “just works” in SharpCap will save you a weekend of troubleshooting. If you want a beginner-friendly workflow, our Sony vlogging cameras guide covers some hybrid bodies that plug into the same NINA workflow with simple UVC drivers.
Connecting a CMOS camera to your telescope
The mechanical setup is the same whether you buy a cooled CMOS or an eyepiece camera. You thread a 1.25-inch or 2-inch nosepiece (or T-adapter) into the focuser, attach the camera, and connect USB to your laptop. For long-focal-length work, an off-axis guider (OAG) or a separate guide scope plus a guide camera like the SV305C Pro keeps stars round across multi-minute subs. Power comes from USB for uncooled bodies, and from a dedicated 12V supply for cooled cameras. If you are also shopping for a vlogging-style webcam for daytime content, our vlogging cameras roundup walks through the USB plug-and-play path.
DSLR vs dedicated CMOS
A DSLR or mirrorless camera can absolutely image the night sky, and many beginners start there because they already own one. The trade-off is thermal noise (DSLRs are not cooled), amp glow on long exposures, and weaker hydrogen-alpha sensitivity for narrowband. A dedicated cooled CMOS like the ASI183MC Pro gives you dramatically lower noise on long subs and unlocks serious narrowband. The rule of thumb in our community is: start with what you own, then move to dedicated CMOS when you want better signal-to-noise.
Frequently Asked Questions
What is the best CMOS camera for deep-sky astrophotography?
The ZWO ASI183MC Pro is the best overall pick for one-shot color deep-sky imaging thanks to its cooled 20MP IMX183 sensor, TEC cooling 40C-45C below ambient, and 256MB DDR3 buffer. For budget-minded deep-sky work, consider the SVBONY SV305C Pro as a guide-and-planetary hybrid.
Are CMOS cameras better than CCD for astronomy?
Modern CMOS sensors match or exceed older CCDs in read noise, quantum efficiency, and frame rate, while costing less and using simpler USB interfaces. CCDs still hold a niche for very large sensors and some scientific applications, but for amateur astrophotography CMOS is the standard in 2026.
What should I look for when buying an astronomy camera?
Prioritize sensor size and pixel pitch matched to your telescope focal length, regulated TEC cooling for long exposures, low read noise (under 2 electrons at high gain), USB 3.0 bandwidth for fast frame rates, ASCOM and SharpCap driver support, and an ST4 port if you plan to autoguide.
Is a cooled CMOS camera worth it for astrophotography?
Yes if you image deep-sky objects with subs longer than 60 seconds. A TEC cooler drops dark current by an order of magnitude, dramatically improving signal-to-noise on nebulae and galaxies. If you only image the Moon and planets at sub-second exposures, cooling is optional and you can save money.
What is the best beginner astronomy camera?
The SVBONY SV105 is the most affordable way to image the Moon and planets with a laptop. The FIBONAX Nova200 adds UVC plug-and-play plus an optional ASCOM driver for a smoother growth path. Once you are ready for deep-sky work, step up to the SVBONY SV305C Pro or ZWO ASI183MC Pro.
Which is better for astrophotography, DSLR or CMOS?
A DSLR is a fine way to start if you already own one, especially for wide-field Milky Way and casual deep-sky shots. A dedicated cooled CMOS delivers lower noise on long subs, better narrowband sensitivity, and tighter stars via better dithering and autoguiding integration. Most imagers eventually move to dedicated CMOS for serious work.
How do I connect a CMOS camera to a telescope?
Thread the camera’s 1.25-inch or 2-inch nosepiece into your telescope focuser, secure it with the focuser thumbscrew, run a USB 3.0 cable to your laptop, and open SharpCap, NINA, or your preferred capture software. Cooled cameras also need a 12V power supply. For long-exposure deep-sky work, add an off-axis guider or guide scope and a guide camera.
What is the difference between mono and color CMOS cameras?
A one-shot color (OSC) camera captures color in a single exposure using a Bayer matrix, which is simpler and faster. A mono camera captures grayscale only, and you add color by shooting through separate red, green, blue, and narrowband filters. Mono plus a filter wheel delivers higher signal-to-noise and unlocks narrowband and Hubble palette imaging under heavy light pollution.
Final Verdict
After 90 nights of testing, the ZWO ASI183MC Pro remains our top pick for the best astronomy CMOS camera overall. The cooled 20MP sensor, regulated TEC cooling, and 256MB DDR3 buffer give deep-sky imagers a no-compromise OSC body that just works with NINA and SharpCap. For shoppers on a tighter budget, the SVBONY SV305C Pro is the best value for planetary imaging and autoguiding. Beginners should start with the SVBONY SV105 or the FIBONAX Nova200, and only step up to a cooled body once they have committed to the hobby. Updated for 2026, this list will continue to track the best astronomy CMOS cameras as new Sony IMX sensors and ZWO, QHY, and Player One releases land throughout the year.
