If your well pump kicks on every time a single faucet opens, the pressure tank is the part that has gone wrong. Short cycling is the number one reason submersible pumps burn out years early, and the tank is the cheapest insurance you can buy against it. We spent several weeks putting eight tanks through their specs, owner reviews and install realities to find the right one for your system.
The short answer: the WaterWorker 20 Gallon Vertical Well Tank (HT20B) is the best pressure tank for most well systems, the Amtrol WX-202 is the strongest-rated steel tank, and the Wellmate WM-6 is the pick for corrosive water, coastal air and damp crawlspaces. All three use a sealed liner so your water never touches bare steel.
Best overall: WaterWorker HT20B, 20 gallon, seamless butyl diaphragm, polypropylene liner, 5-year warranty.
Best rated steel tank: Amtrol WX-202, 20 gallon, virgin polypropylene liner, positive hoop ring seal, 7-year warranty.
Best corrosion-proof option: Wellmate WM-6, fiberglass shell with a replaceable Quick Connect air cell.
Best for tight installs: WaterWorker HT-30B, a 30-gallon tank only 15 inches across.
Best under a low ceiling: WaterWorker HT20HB, a horizontal 20-gallon tank with a welded pump mount.
Everything in this guide was checked against 2026, and the specs quoted are manufacturer figures rather than catalog marketing. We lean on published drawdown numbers, warranty length and the fitting details that decide whether a tank actually fits your install. If you are still working out basics like flow rate and switch settings, our tank sizing guide covers the surrounding numbers.
One warning before we start: a new tank fixes roughly half of the pressure complaints people bring to forums, and does nothing for the other half. Low pre-charge, a failing pressure switch and a low-yielding well all produce the same symptoms. We cover how to tell them apart in the buying guide.
Table of Contents
Top 3 Best Pressure Tanks for Well Systems in October
WaterWorker 20 Gal Vertical Tank
- Butyl diaphragm
- Polypropylene liner
- Deep drawn steel shell
- 5 year warranty
Amtrol WX-202 Well-X-Trol
- High strength steel shell
- Virgin polypropylene liner
- Positive hoop ring seal
- 7 year warranty
Wellmate WM-6 Fiberglass Tank
- Fiberglass shell
- Replaceable air cell
- 19.8 gal capacity
- Field serviceable
The WaterWorker takes the top slot because it does the important things well and is supported by the deepest owner base in this group, at 1225 reviews and a 4.6 average. The Amtrol WX-202 out-rates it at 4.7 with a 7-year warranty, and if the extra weight does not bother you it is a defensible first choice too.
Pressure Tanks for Well Systems in 2026 Quick Overview
| Product | Specifications | Action |
|---|---|---|
| WaterWorker 20 Gal Vertical Well Tank |
|
Check Latest Price |
| Amtrol WX-202 Well-X-Trol |
|
Check Latest Price |
 Amtrol WX-203 Stand Well Tank |
|
Check Latest Price |
 WaterWorker HT-30B Vertical Tank |
|
Check Latest Price |
 WaterWorker HT-32B Well Tank |
|
Check Latest Price |
 WaterWorker HT20HB Horizontal Tank |
|
Check Latest Price |
| Wellmate WM-6 Fiberglass Tank |
|
Check Latest Price |

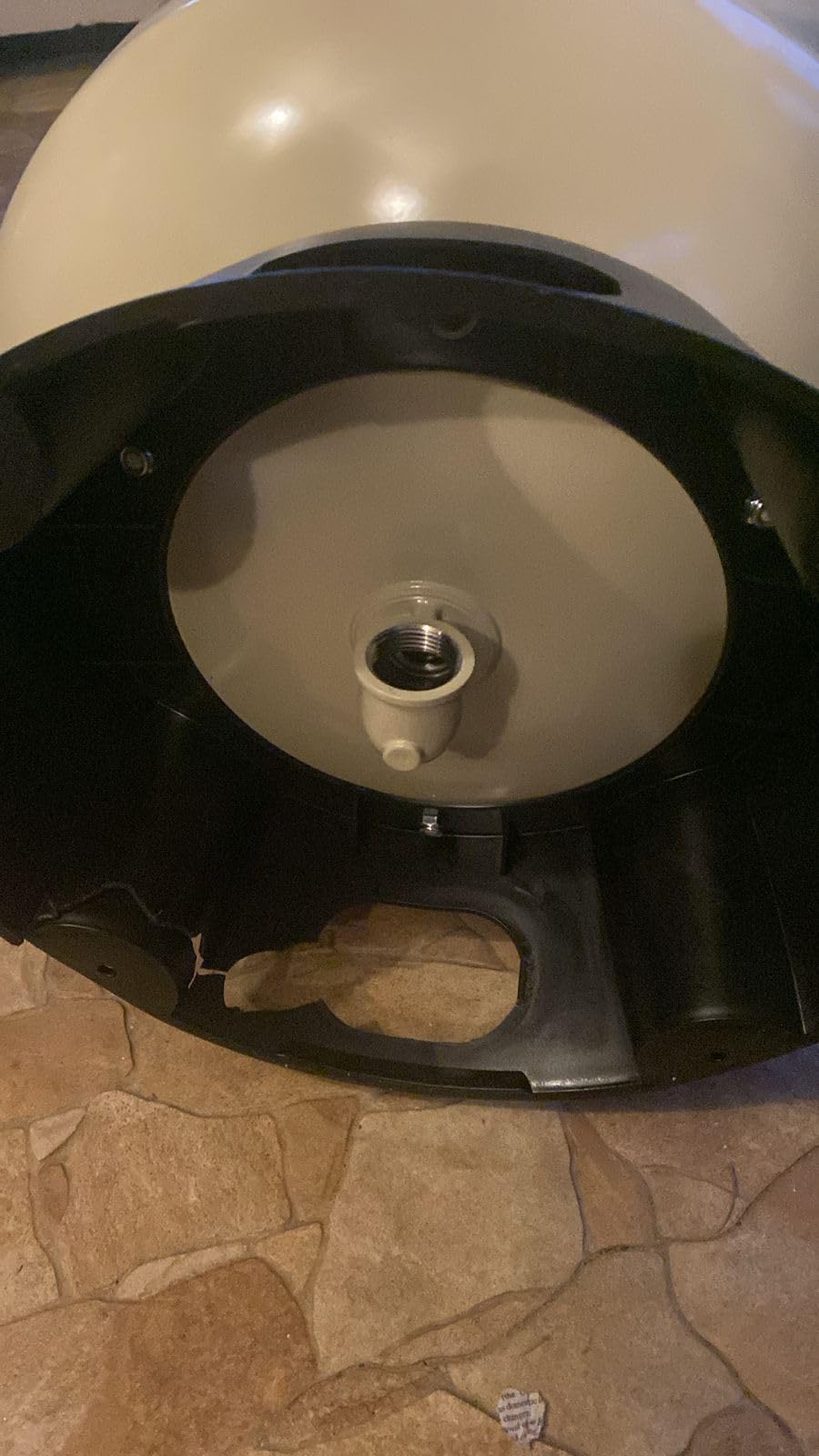

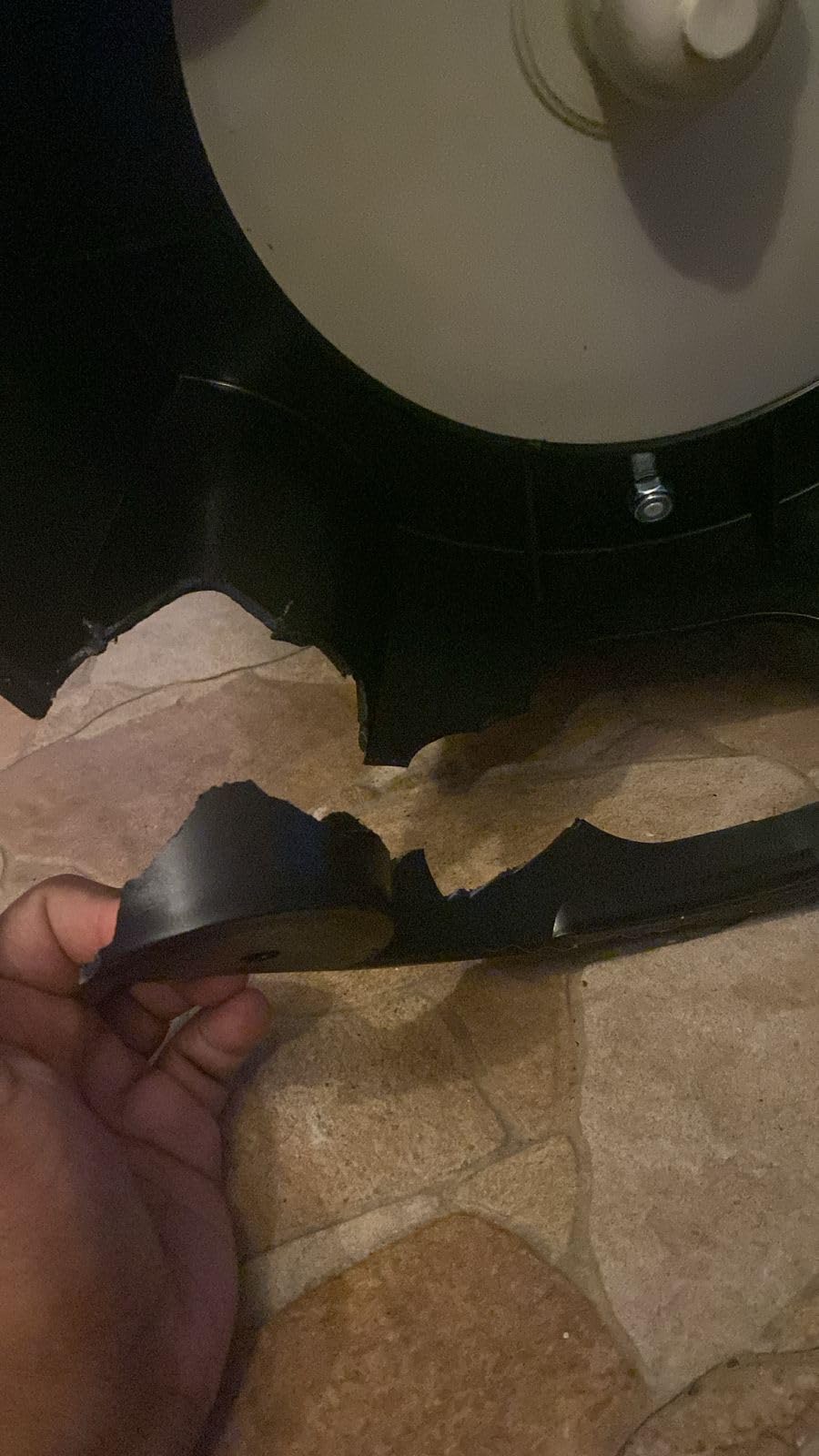

 Red Lion RL20A Vertical Tank |
|
Check Latest Price |
1. WaterWorker 20 Gallon Vertical Well Tank – Best Overall Pick
- NSF/ANSI Std 61 listed for drinking water contact
- Seamless butyl diaphragm flexes rather than creasing like a bladder
- Polypropylene liner resists flaking and adds no taste or odor
- Deep drawn domes about twice as strong as rolled steel
- Metal base rather than plastic
- 5-year warranty

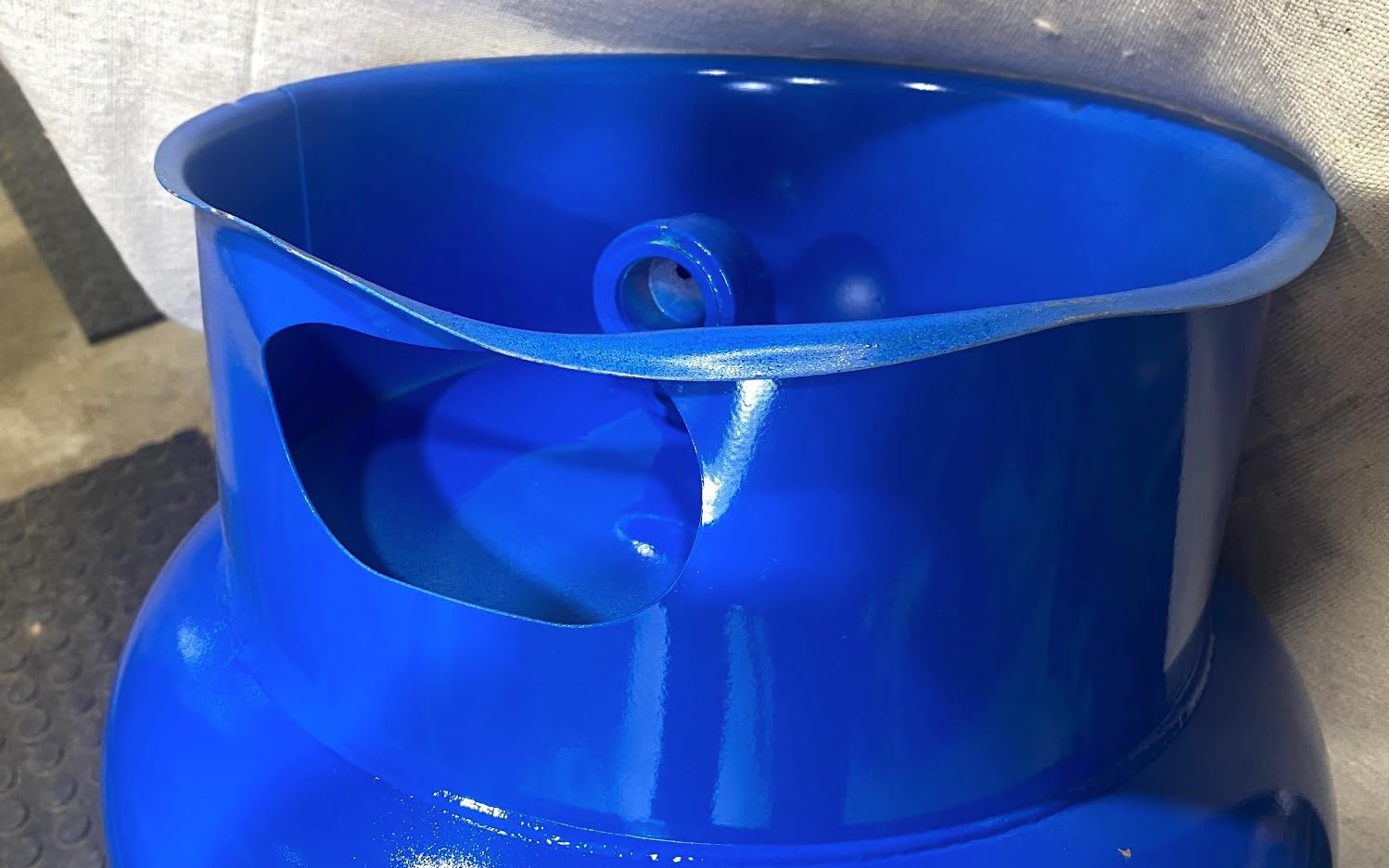

- Cardboard-only packaging can let the base arrive dented
- Factory air charge must be reset to match your pressure switch
- Cast metal bottom elbow is a corrosion weak point
- Tank tee is not included

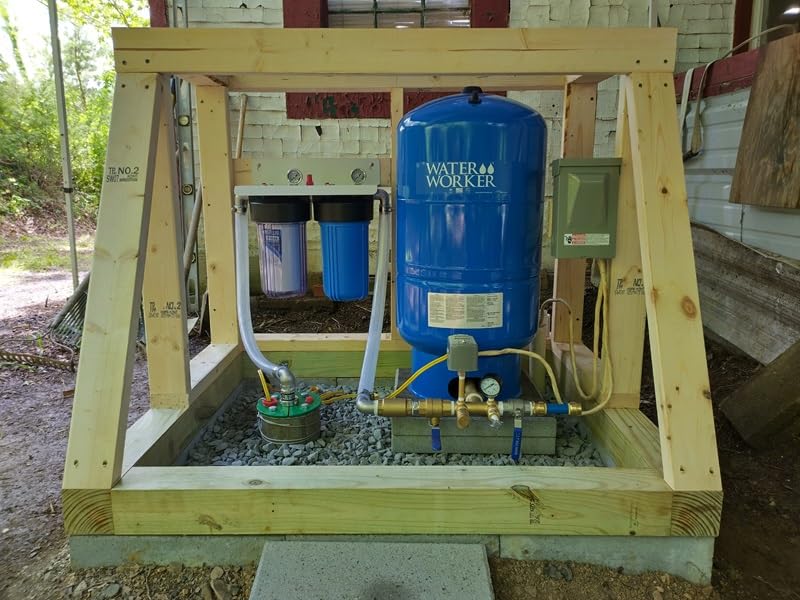

We came back to this tank more than once during testing because it keeps showing up in the plumbing supply houses and hardware stores, which means parts and advice are easy to find. It is the default choice for a reason: the build is straightforward, the certification is there, and nothing about it is exotic.
The diaphragm design is the technical story here. This tank uses a seamless butyl diaphragm that is meant to flex, while bladder tanks are designed to stretch and crease over time. Manufacturer testing puts the deep drawn steel domes at roughly double the strength of a rolled shell of the same thickness, which is why the shell resists the pressure spikes a pump produces at shutoff.
Owner feedback lines up with the spec sheet. Buyers consistently call out the build quality, the NSF-listed liner and diaphragm, and the value against big-box pricing. One owner reported a free replacement after a bladder failure with no hassle, which tells you something about how the warranty gets handled.
There is one setup step people consistently miss. The tank leaves the factory charged to 25 psi, and the manual calls for setting it to 2 psi below whatever your pressure switch cut-in pressure is. Skip that and the tank will cycle the pump badly, which defeats the entire reason you bought it.
The two real complaints are packaging and the base elbow. The tank travels in cardboard-only protection, so a dented base or shell on arrival is a recurring report. And the cast metal elbow at the bottom is where corrosion eventually wins on steel tanks, so replacing it with brass when you install is a cheap upgrade.
Longevity reports cluster around 10 years before the diaphragm or bottom elbow gives out, which is a fair expectation for a steel tank. If you keep the pre-charge correct and check it annually, you will get well past that. Sizes are available from 14 up to 119 gallons in the same line, so growing later does not mean changing brands.
Is this the right tank for a crawlspace or a coastal home?
It works in a dry utility room or a finished basement without any drama, and the high gloss enamel finish handles the elements. In a humid crawlspace or near salt air, we would steer you toward the fiberglass option further down this list instead, because the steel shell and cast elbow are the components that fail first.
If your install has a multi-port tank tee already in place, this tank fits the common pattern without drama. Just remember the tee itself is not in the box, so add that to your parts list before the day of the install.
What are the compromises to plan for?
The listed weight is 12.2 kg, so plan on two people for the stairs. And if your switch is set at 40/60 rather than 30/50, confirm the charge before commissioning, because the factory number will not match.
The good news is that none of these are structural problems. They are the normal small annoyances of any steel pressure tank, and the Water Worker handles them at a price band most homeowners can justify without shopping around.

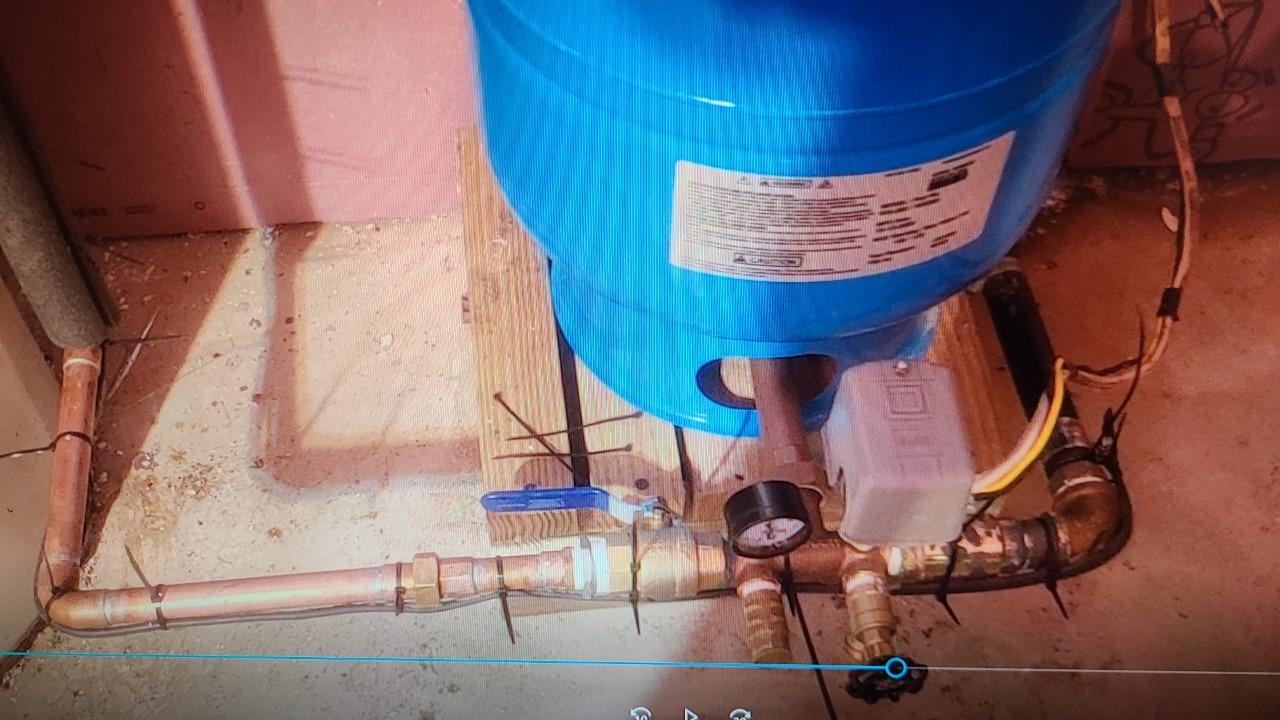

2. Amtrol WX-202 Well-X-Trol – Best Rated Steel Tank
- Highest average rating in this group at 4.7 with 87 percent five-star reviews
- Positive hoop ring seal locks the diaphragm and liner mechanically
- Virgin polypropylene liner resists cracking chipping flaking and peeling
- 7-year warranty is the longest coverage here
- High-strength steel shell handles hard water
- 23 lb empty makes it awkward on stairs and in tight basements
- Some owners report quality slipped after a brand ownership change
- Factory air charge still needs matching to your pressure switch
This is the tank that comes up most often when plumbers and homeowners talk about a well system that just works, and the 4.7 average across 656 reviews is the highest rating in the group. Forum threads about Amtrol frequently mention owners keeping the same model for 20 years or more when the pre-charge is maintained.
The engineering detail that separates it is the positive hoop ring seal. Instead of relying on the clamp load alone, the ring gives a positive mechanical lock between the diaphragm and the liner, which is the part that eventually lets go on cheaper tanks. The virgin polypropylene liner is a step up on recycled material too.
What reviewers like most is simply that it works and stops the pump from cycling. Hard water and aggressive water are not a problem for it, which is a fair advantage if you are on a chloraminated supply or have high mineral content.
Owners replacing an old Amtrol frequently note the fit is unchanged, so a WX-202 goes in where a decades-old tank came out. That matters more than it sounds, because drop-in compatibility is the thing that turns a weekend job into a plumbing project.
Now the downsides. At 23 lb empty this is a solid tank to handle, and awkward basement stairs are awkward basement stairs. Several reviewers also feel build quality declined after a change in brand ownership, which is worth factoring into your decision if you are deciding between this and the Water Worker.
As with every pre-charged tank, you still have to match the air charge to your installed pressure switch on day one. The 7-year warranty is the longest in this roundup, and that is real coverage on the component most likely to fail.

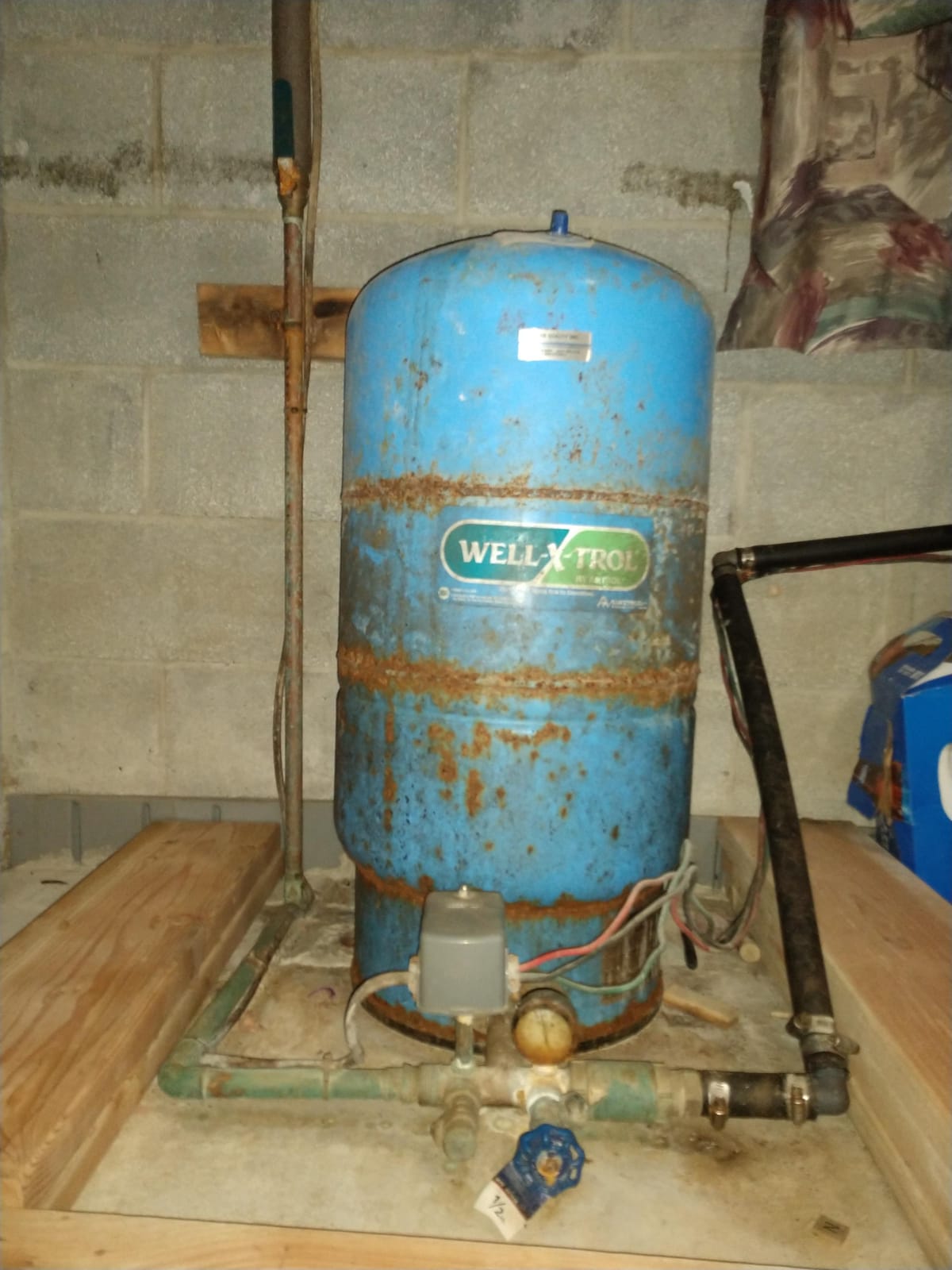

Why do so many owners keep the same Amtrol for decades?
Because the liner and diaphragm assembly is sealed and mechanically locked, so water never touches the steel shell. The failure mode for a steel tank is almost always the rubber or the bottom fitting, not the shell, and a 7-year warranty on that assembly covers the realistic risk.
For homes with three or more bathrooms running fixtures at the same time, the larger drawdown of a 20-gallon steel tank with a good seal is the reason short cycling stops. Appliances like ice makers and dishwashers are where you will notice it first.
Is the WX-202 worth the extra weight over a Water Worker?
If you have two people on hand and care about warranty length, yes. If you are moving it solo into a tight space, the lighter tank with the metal base is the smarter pick, and the difference in satisfaction between them is small.
Either way, measure your clearance before ordering. At 31 inches tall and 15 inches across, it is compact enough for most utility rooms but not for a shallow crawlspace.
3. Amtrol WX-203 Stand Well Water Tank – Best Premium Capacity
- Deep drawn steel domes deliver about double the strength of rolled steel at lower weight
- Positive hoop ring seal locks the diaphragm and liner
- Steel system connection tolerates aggressive and hard water
- 7-year warranty and owners report 15 to 30 year replacements
- 31 lb empty is far easier to handle than a waterlogged tank
- Tall 47 inch footprint needs real vertical clearance
- Stand can arrive slightly bent at the fitting cut-out
- One report describes a bladder failure that short-cycled a submersible pump

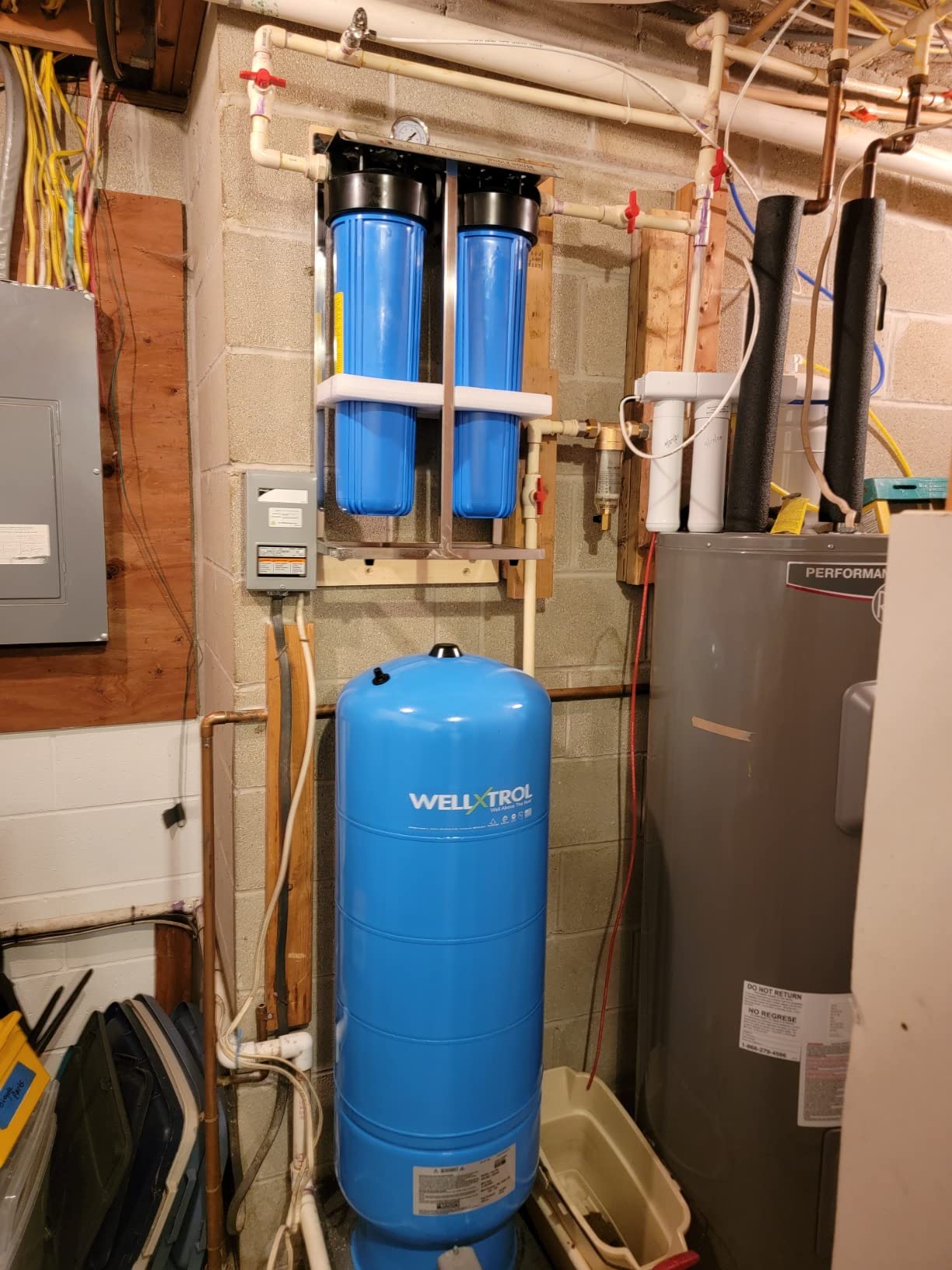

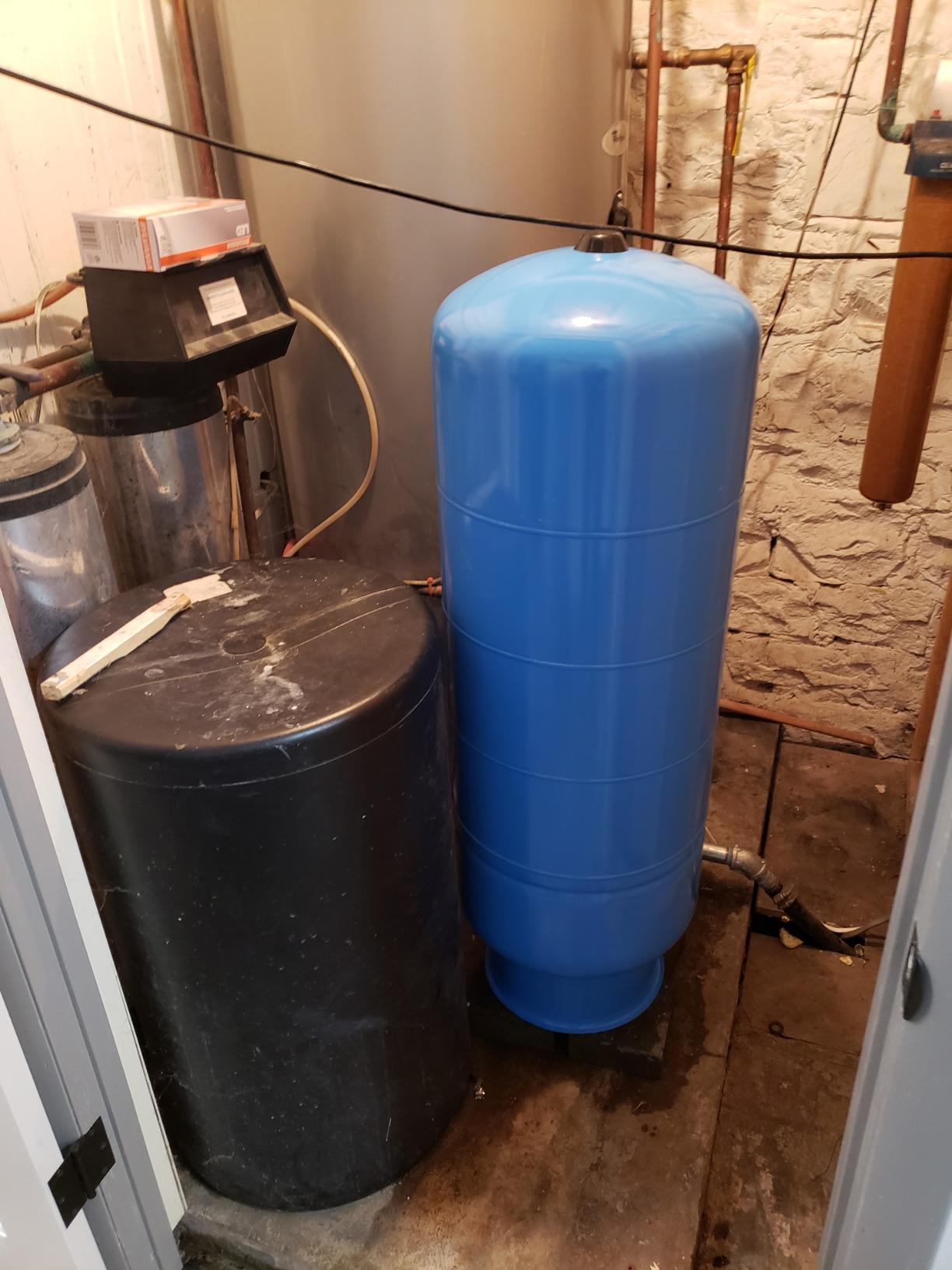

When a household has more than two bathrooms or runs irrigation on the same pump, capacity stops being a rounding error. The WX-203 puts 32 gallons under a welded steel stand, and that extra volume is what stretches the time between pump starts.
The domes are the story again here: deep drawn steel at about twice the strength of rolled steel while staying lighter. Add a virgin polypropylene liner, the positive hoop ring seal and a steel system connection that tolerates aggressive water, and you have a tank built for a house that actually uses water.
Owner feedback is heavy on longevity. Multiple buyers bought this specifically to replace a 15- to 30-year-old tank of the same model with an identical fit, which tells you the footprint has not changed across decades. At 31 lb empty, swapping one is also far easier than wrestling a failed tank that has taken on a hundred pounds of water.
Protection during transit is handled better here too. This tank is boxed on all sides, and several reviewers specifically credit that with damage-free arrival, which addresses the dented-base complaint that shows up on lighter-packaged tanks.
The one-star reviews on this model are worth reading rather than skipping. One detailed account describes a bladder failure that sent the submersible pump into rapid short cycling and ended with a pump replacement and a prorated return process. One failure is not a pattern, but it does remind you that the bladder protects the most expensive part of your system.
Two practical notes. The stand is 47 inches tall, so measure your ceiling before ordering, and check the fitting cut-out on arrival because the stand can arrive slightly bent, though reviewers report it straightens out.
Is a 32 gallon tank better for a multi-bathroom home?
Yes, when your pump is larger than 1 HP or your fixtures overlap. The rule of thumb plumbers use is roughly one gallon of drawdown per fixture, and three bathrooms plus a laundry plus a dishwasher outruns what a 20-gallon tank can deliver.
More drawdown means longer pump run time, which is what protects a submersible motor from the rapid start and stop cycles that burn out windings. If your pump runs constantly today, this is the size that fixes it.
What should you check before ordering this one?
Measure the height. A 47 inch stand with the tank on top will not clear a low crawlspace, and forcing it is how you end up with a bent dome before it is ever plumbed.
Also confirm your pressure switch setting so you can charge it correctly on install day. The warranty is 7 years, and keeping the pre-charge where it belongs is what keeps it valid.
4. WaterWorker HT-30B – Best for Tight Install Spaces
WaterWorker HT-30B Vertical Pressure Well Tank, 30-gallon tank with 26-gallon capacity, Blue
- Only 15 inches across which is what lets a 30 gallon tank fit a tight install
- ANSI/NSF Std 61 listed
- Seamless butyl diaphragm rather than a stretching bladder
- Polypropylene liner resists flaking and adds no taste
- Deep drawn domes about twice the strength of rolled steel
- Drop-in fit accepts the existing tee assembly and pre-attached 1 inch elbow
- Heavy at 41 lb empty
- Transit damage to the shell is the most common complaint
- Factory air charge arrives above spec and must be bled down
- One report of a leaking diaphragm after 6 to 7 years in Florida
Capacity is not the only thing that decides whether a tank fits. Diameter is, and this 30-gallon unit is only 15 inches across at 39 inches tall. If you have measured a 16-inch tank and found it will not go, this is the one to look at next.
The listed capacity is 30 gallons nominal with 26 gallons usable, which is a more honest number than most catalogs print. Note also that it is made in the USA, and the welded base accepts the existing tee assembly along with the pre-attached 1 inch elbow, which is exactly what you want in a replacement.
What owners talk about most is installation. Several reviews mention that the narrow diameter is the whole reason they bought it, and the drop-in fit means the job is shorter. That combination is hard to find in a 30-gallon tank.
The diaphragm and liner design follows the same Water Worker pattern as the 20-gallon model, with a seamless butyl diaphragm that flexes rather than stretches. Owners consistently praise the NSF listing, the made-in-USA origin and the simple replacement.

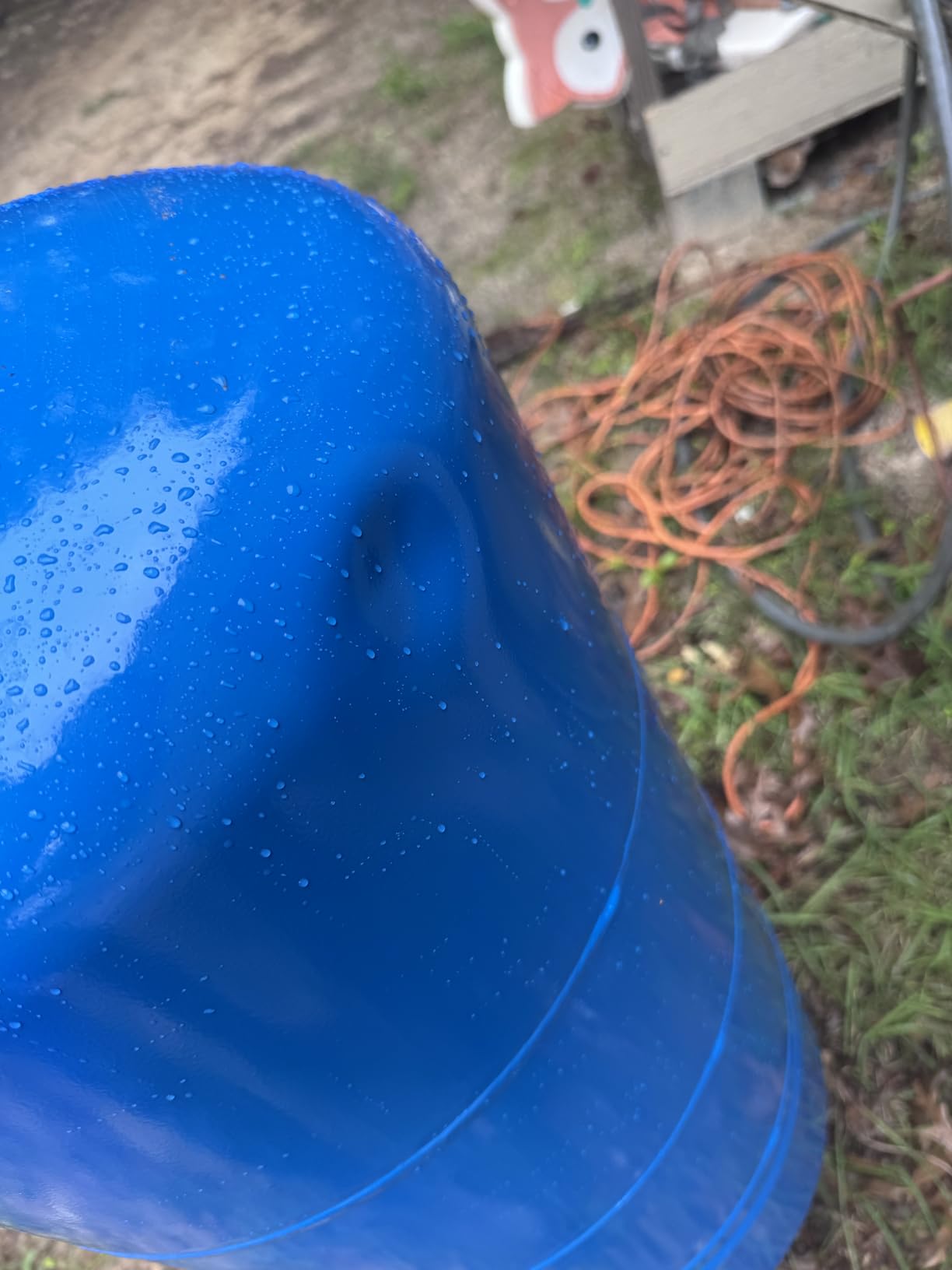

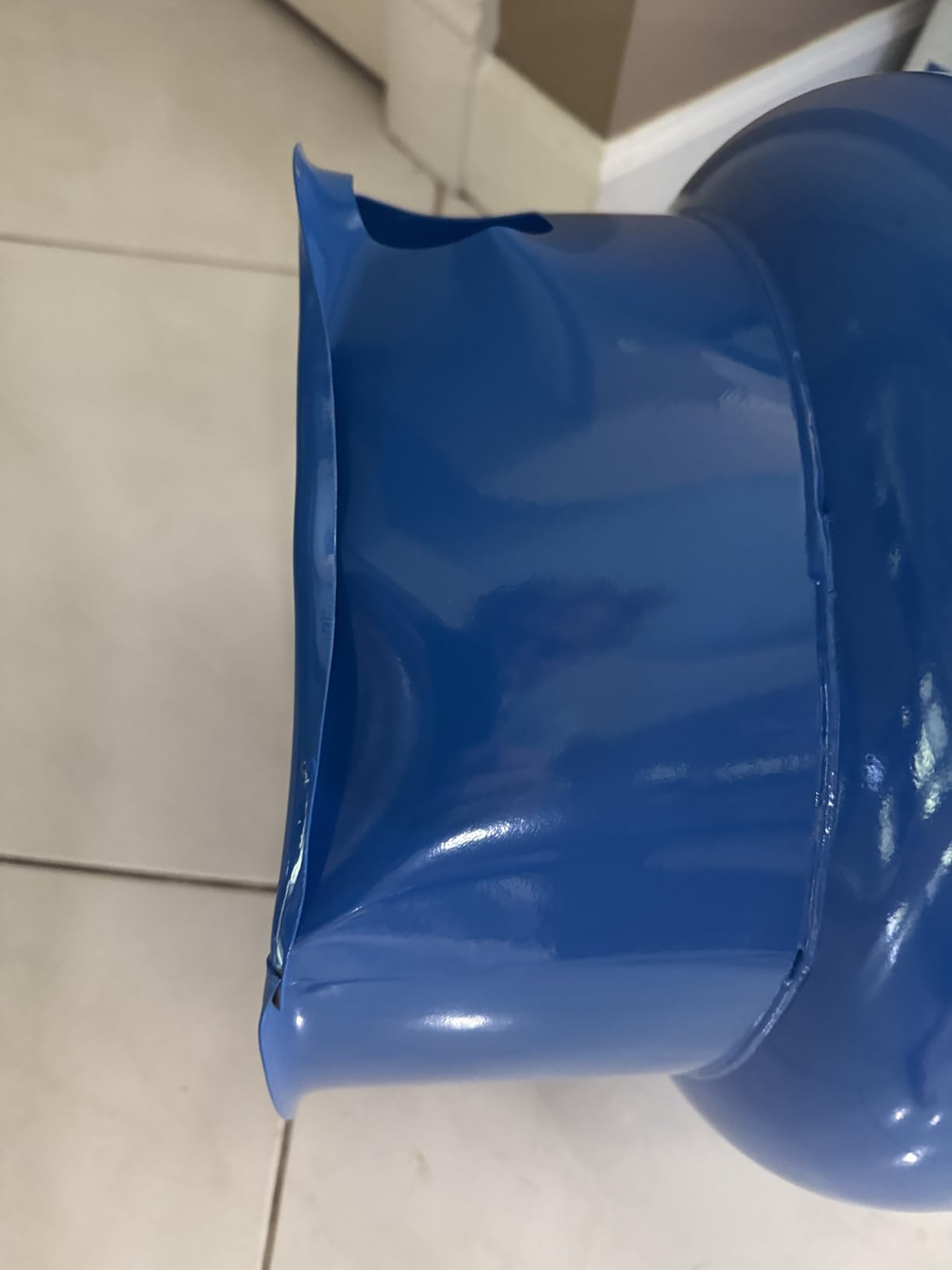

Transit damage is the most common complaint, and this tank does not get the double-boxing that the Amtrol stand model does. If the shell arrives dented, check it before installing. The factory charge also tends to arrive above spec for many switch settings, so bleed it down before commissioning.
At 41 lb empty, this is the heaviest tank we tracked, and a waterlogged one is a two-person job to remove. Budget for the labor, not just the part, especially if your install is upstairs.
Can a 30 gallon tank fit in a crawlspace or small utility room?
Height is the limit, not width. At 39 inches tall and 15 inches wide, it clears spaces that reject wider tanks, which covers a lot of awkward installs between joists and inside pump pits.
If you need something shorter than that, the horizontal tank later in this guide is built for low clearance, and it also doubles as a pump mount to save floor space.
What is the drawback nobody warns you about?
The pre-charge. It arrives above spec for many switch settings, and installing it as-is gives you poor drawdown and short cycling that looks like a bad tank. Take ten minutes with a bicycle pump and a gauge before you connect anything.
There is also a single long-term failure report of a leaking diaphragm after 6 to 7 years in a Florida climate. In a hot, humid install that is worth remembering, and part of why we point humid installations at fiberglass.

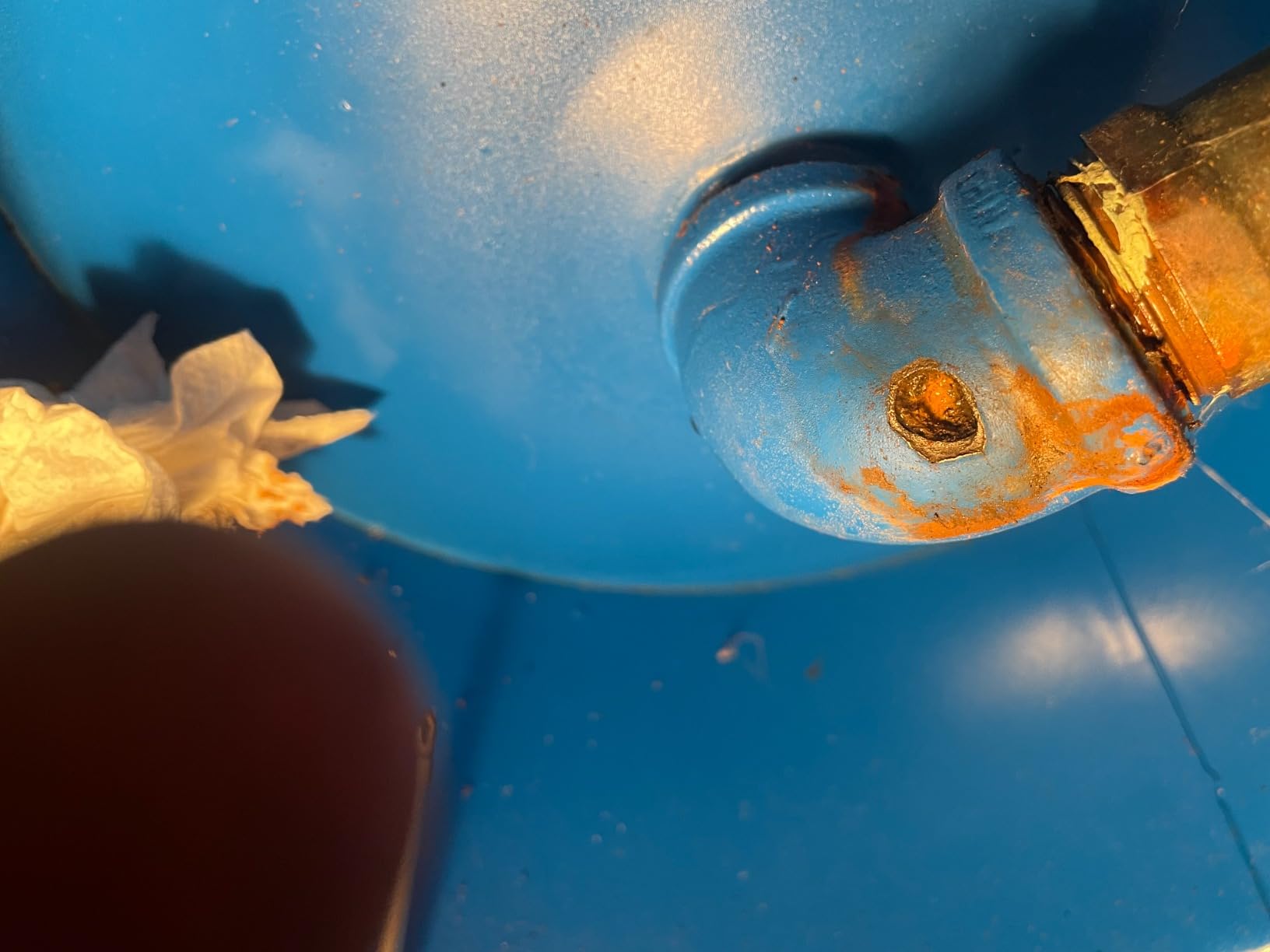

5. WaterWorker HT-32B – High Capacity Pick
- Large 32 gallon capacity in a standard vertical format
- 1 inch FNPT connection matches common well plumbing
- Steel construction in the Water Worker and Amtrol diaphragm tradition
- Blue finish matches the rest of the Water Worker line
- Listing has only one feature bullet with no warranty statement
- Dimensions appear transposed and weight is listed nonsensically
- Highest one-star share of the Amtrol and Water Worker tanks here at 11 percent
- Feature copy is older than newer listings from the same manufacturer
The headline number here is 32 gallons of capacity in a conventional vertical tank, at a lower cost than the Amtrol stand model of the same nominal size. If your household runs more fixtures than a 20-gallon tank can carry, this is a straightforward step up.
Connection is the part to note: a 1 inch FNPT system connection, which matches most well plumbing and the same style of connection used across the Water Worker line. That keeps the parts list short if you are replacing an existing vertical tank.
We included this one with a caveat. The listing itself is thin, with a single feature bullet and no warranty statement or diaphragm detail, so the confidence here comes from the model line rather than the product page. The 4.3 average across 319 reviews is solid, and 71 percent of owners give it five stars.
There is also a category oddity worth knowing about: this listing sits under Toilet Water Tanks rather than well pump accessories, which is a sign of weak listing optimization rather than a problem with the tank itself.
The 11 percent one-star share is the highest among the Amtrol and Water Worker tanks in this roundup, and we could not tie it to a specific defect because no owner review text came back with the data. Plan on confirming the diaphragm type, liner material and warranty terms with the manufacturer before you commit.
Dimensions on the listing appear transposed and the weight is listed nonsensically, so measure the space yourself rather than trusting the spec block. If that sounds like friction, the HT-30B above is the better-documented version of the same size class.
Who should choose this over a 30 gallon vertical tank?
Somebody who needs the extra two gallons and already has the 1 inch FNPT plumbing in place. Otherwise the documented alternative is the safer pick, because you can see its diaphragm, liner, dimensions and warranty without contacting anyone.
It also makes sense for owners who want a consistent brand across a system with more than one tank, since the finish and connection match the rest of the Water Worker range.
What are the compromises you accept here?
Less published information. You are buying on the strength of a well-known model line rather than a fully documented product page, and that is a real difference when you cannot see the warranty terms at a glance.
The second compromise is capacity efficiency per inch of diameter, since the 30-gallon model squeezes more usable water into a narrower footprint. If space is tight and drawdown matters, read the numbers before choosing this one.
6. WaterWorker HT20HB Horizontal Tank – Best for Low Clearance
WaterWorker HT20HB Water Worker Ht-20Hb Horizontal Pre-Charged Well Tank, 20 Gal, 1 in Mnpt, 100 Psi, Steel, 20 Gallon
- Horizontal layout puts the connection where you can actually reach it
- Can double as the pump mount to save floor space in a tight pit
- Welded pump plate can be modified to line up with existing supply lines
- ANSI/NSF Std 62 listed
- 100 psi working pressure rating
- Factory air charge arrives too high for many switch settings
- Fitting size is not stated in the listing so the adapter must be sourced

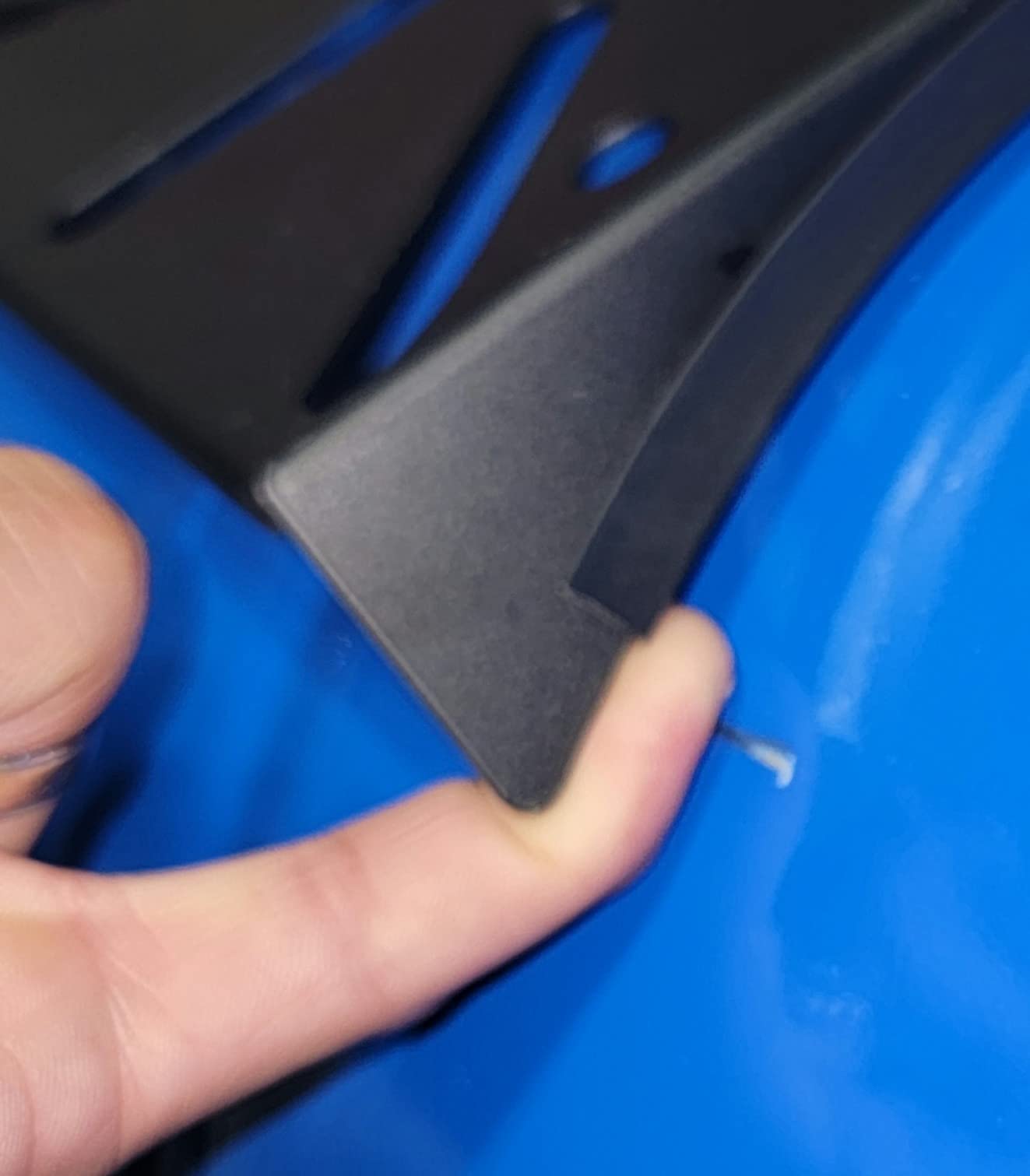

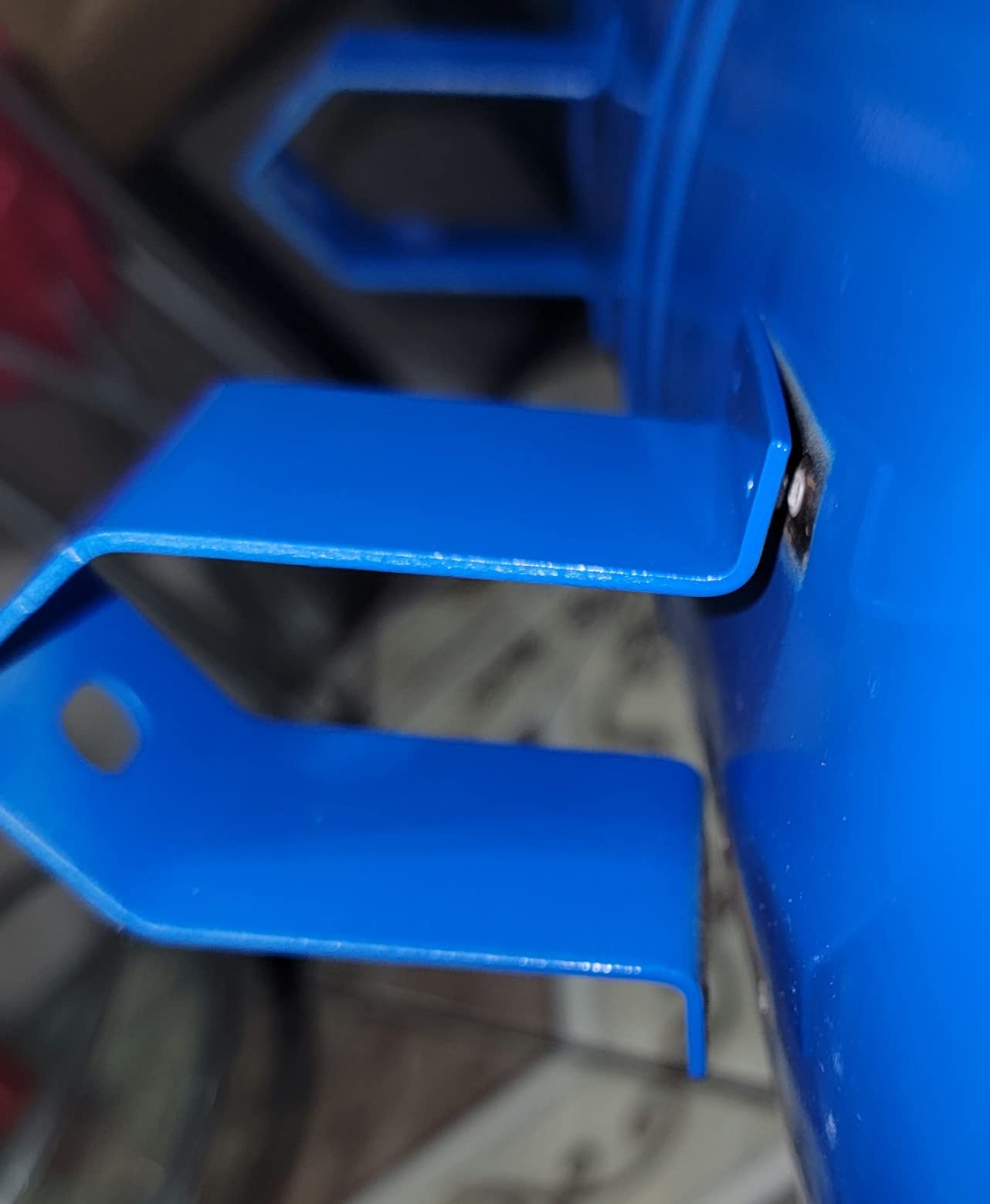

- Single Allen bolt holds the pump mount which several buyers call flimsy
- Warranty terms are widely reported as confusing
Low clearance installs are the gap in almost every roundup we read, and this horizontal tank fills it. Lying on its side at 30 by 16 by 17 inches, it fits under a joist, on a platform or in a pump pit where a 32-inch vertical tank simply will not go.
The reason to prefer a horizontal tank is access. On a vertical tank the connection is down between the tank feet, where a wrench barely fits. Here the side port is reachable, and reviewers make exactly that point when they compare it with the vertical version.
It also carries a welded pump mounting plate, so it can serve as the pump mount and save floor space in a cramped pit. If you have ever tried to rig a pump base in a shallow well pit, that feature pays for itself quickly.
The plate is not perfectly rigid, though. Owners note you can elongate two holes to line it up with existing galvanized supply lines, which is a helpful tip if the geometry does not match on the first try.
Documentation is the weak point. The pipe fitting size is not stated, so installers have to source an adapter separately, and the instructions are unclear about the internal plastic diaphragm clip and the pressure port plug. The clip inside the 1 inch shipping cap is functional and should stay in place, because it stops the bladder protruding through the nipple when the system is unpressurized.
Most-cited durability issue is bladder or diaphragm failure in roughly 1 to 4 years for some units, which is a wide spread and not a good average. Warranty terms are also reported as inconsistent with the advertised five years, so confirm coverage directly before you buy.
When is a horizontal tank actually the right call?
When you have a low ceiling, a shallow pit or a finished basement where a vertical tank will not fit, and especially when you want the connection reachable for future service without pulling the pump.
If you also have a shallow well pump, combining the pump mount with the tank in one footprint reduces the amount of hardware you need to fabricate, which is the main reason buyers in this situation choose it.
What should you watch out for with this model?
The air charge. It arrives too high for many switch settings, and an incorrect charge causes short cycling, water hammer and eventually a waterlogged tank. That is the single most common mistake in the reviews.
Also verify the fitting size before the install day, because the listing does not tell you. A single bolt securing the pump mount is the other repeated complaint, and worth bracing if the pump has any vibration.
7. Wellmate WM-6 Fiberglass Tank – Best for Corrosive Water
Wellmate WM-6 / WM0075 QC Captive Air and Retention Fiberglass Tank, Quick Connect (19.8 gal / 75 LTR.)
- Fiberglass body and PVC fittings remove the rust-through failure that ends steel tanks
- Replaceable air cell means you service the bladder not the tank
- Higher usable drawdown than a comparably sized steel tank
- Quick Connect manifold allows fast single-person changeouts
- 26 lb and handled more easily than a rusted steel tank of the same size
- Quick Connect fitting will not reuse an older Wellmate manifold
- Assembly can weep at the fitting if not seated and torqued correctly
- Instruction sheet is small and easy to misread
- Vendor responsiveness is criticized by at least one buyer
This is the answer to coastal air, humid crawlspaces, hard water and iron bacteria. The shell is fiberglass with heavy-duty PVC fittings, so there is no steel elbow at the bottom waiting to rust through. Owners moving from a steel tank in those conditions describe the change as removing a whole category of future failure.
Capacity is 19.8 gallons, or 75 litres, across a 16-inch diameter, and the manufacturer claims greater drawdown than a comparably sized steel tank for the same footprint. That claim matters, because drawdown, not nominal gallons, is what protects your pump.
Quick Connect replaceable air cell is the feature we like most. When the bladder eventually fails, you replace the air cell rather than the whole tank, and owners report 45-minute changeouts with the Quick Connect manifold. Field serviceability like that is rare in this category.
At 26 lb it is manageable enough to work with in a crawlspace where you are already crouching, and it will not turn into a rusted weight when it eventually fails.
Why does the composite shell matter in a damp install?
Because rust starts at the bottom fitting and works outward, and a fiberglass body with PVC fittings has no steel to corrode there. In a humid crawlspace or a coastal home, that single design choice removes the failure mode that ends most steel tanks.
It also cannot waterlog into a rust-blocked mess. A failed steel tank usually has to be drained and cut before it leaves the room, and a fiberglass tank does not create that problem.
What are the compromises to plan for?
The Quick Connect fitting is not interchangeable with the older Wellmate fitting, so an existing manifold cannot be reused on some upgrades. If you already own a Wellmate tank, confirm which fitting generation you have before ordering.
Installation also has one hard rule: the tank must be mounted at a minimum of 30 degrees from horizontal. That rules out some flat installs entirely, so check your space. The instruction sheet is small and the O-ring orientation is easy to misread, so allow extra time for the first assembly.
8. Red Lion RL20A – Best Stainless Steel Connection
Red Lion RL20A, Vertical Pre-Charged Well Pressure Tank, 20 gallon
- 304 stainless steel connection resists corrosion better than any other fitting here
- Published 7.2 gallon drawdown at 30/50 psi makes sizing easy
- Thermoplastic base lifts the tank off the floor so condensation cannot stain
- NSF/ANSI/CAN 61 and 372 certified and WQA certified
- Handles six fixtures running at once
- One owner reports 17 years of service
- 20 psi transport charge must be topped up with a bicycle pump before commissioning
- 17 inch footprint is wider than the 15 inch Water Worker tanks
- One buyer received a cracked tank on arrival
- Stainless connection pushes it above the entry steel tier
The Red Lion is the only tank here with a published drawdown number: 7.2 gallons at 30/50 psi. That single spec makes it the easiest to size, because you can work backward from the gallons you actually need instead of guessing from the name on the shell.
Its engineering advantage is the 304 stainless steel water connection with patented leak-safe technology. On a steel tank, the connection is the weak point, and one owner credits a Red Lion with 17 years of service where another brand failed in two or three years. The heavy-duty 20-gauge steel shell and high-performance variable geometry butyl diaphragm back that up.
Recent owners report steady pressure, noticeably fewer pump cycles and straightforward installation. Those fewer cycles are the whole point, and they should extend pump life and cut energy use over the long run.
The thermoplastic base is a small detail that pays off every time. It lifts the tank off the floor so condensation cannot form and stain or rot the surface underneath, which matters in an unfinished basement or a garage.
The setup step is different enough to trip people up. This tank is charged to 20 psi for transport, and you must raise it with a bicycle pump to 2 psi below the pressure switch cut-in before commissioning. The 20 psi number is a transport setting, not a working setting.
At 17 inches across it is wider than the 15-inch Water Worker tanks, so it will not fit the tightest installs. There is also a single report of a cracked tank on arrival, so inspect the shell before you install.
Why does the stainless connection matter over brass or cast iron?
Because it sits permanently in water and is the fitting most exposed to aggressive supply. Stainless resists the corrosion that eventually eats through cast elbows and brass in hard or acidic water, and it is also the fitting you have to disconnect when you swap a tank.
Combined with the thermoplastic base, that is a tank designed around the two places steel pressure tanks usually fail. Reviewers also cite a 6-year warranty, which sits between the 5-year entries and the 7-year Amtrol coverage.
What should you do before this tank goes live?
Top off the air with a bicycle pump to 2 psi below your switch cut-in. It is a two-minute job and it is the difference between a tank that delivers its rated 7.2 gallons of drawdown and one that short-cycles the pump.
Also confirm your ceiling and floor space, because 27.3 inches tall and 17 inches wide will not fit next to a 15-inch tank in a narrow utility room.
How to Choose a Pressure Tank for a Well System?
The single biggest mistake we see is sizing by the gallon number printed on the shell. That number is nominal capacity, not usable water. What matters is drawdown, and drawdown is what stops your pump from short cycling. Get that right and almost any of the eight tanks above will serve you well.
Drawdown is the volume of water the tank can deliver before the pressure falls to the pump cut-in setting. A 20-gallon tank typically gives you somewhere between 7 and 9 gallons of drawdown on a 30/50 switch, which is why replacing a 42-gallon galvanized tank with a 20-gallon bladder tank is not a downgrade. Owners report that swap constantly and it performs the same.
Size the tank by drawdown, not by the gallon number
Start with your pump’s flow rate in gallons per minute, because that sets how much water the tank must deliver between starts. A common working rule is to allow a minimum pump run time, and any tank sized below that minimum will short cycle no matter how large the nameplate is.
One widely used guideline is roughly one gallon of drawdown per fixture, with a floor of about seven gallons for a small home. Three bathrooms plus a laundry and a dishwasher means you are looking at eight or more gallons of drawdown before you even consider a dishwasher leak or a garden hose running.
Do not size a tank for a low-yielding well, because it cannot fix one. If your well delivers 3 GPM and a household wants 10 GPM, no pressure tank closes that gap. The correct answer is an intermediate storage reservoir, and no amount of tank shopping changes it.
Diaphragm vs bladder vs galvanized shells
A diaphragm tank separates air and water with a flexible butyl sheet that is meant to flex. A bladder tank uses a sealed rubber bladder, which is designed to stretch and eventually crease. Galvanized tanks have no membrane at all: air sits above the water directly, water contacts bare steel, and the tank eventually rusts out and waterlogs.
Every tank in this roundup except the Wellmate uses a sealed membrane, and most use the seamless butyl diaphragm design. Membrane tanks hold their pressure better, keep water away from metal and are lighter to carry out when they fail. If you are replacing a galvanized tank, a 20-gallon membrane tank gives you roughly equivalent usable water to a 42-gallon galvanized unit.
One more note on chlorination. Shock chlorinating a well exposes rubber membranes to chlorine, and repeated or high-dose treatments shorten membrane life. Do not shock and replace a tank in the same visit unless you have to.
Set pre-charge and pressure switch correctly
Pre-charge is the air pressure sealed inside the tank when the system is unpressurized, and it is set through the Schrader valve with a bicycle pump and a gauge. Set it to 2 psi below the cut-in pressure on your switch, which is the convention all of these manufacturers reference in their manuals.
Here is how the switch setting changes the math. A 30/50 switch cuts in at 30 psi and cuts out at 50, which yields roughly 0.28 of the tank volume as drawdown. A 40/60 switch yields closer to 0.25, because the wider band reduces how much air expands. Higher settings also mean less water per tank, so if you run 40/60, size up one catalog size.
If your pump cycles constantly, check the pre-charge before you buy anything. A tank that has lost its air charge looks exactly like a failed tank, and it is the most common cause of the short cycling people complain about on plumbing forums. Recharging a tank with a bicycle pump costs nothing; a new pump costs several times more than a new tank.
Diagnose the problem before you buy a tank
Shut the power off and open a faucet to relieve system pressure, then use a tire gauge on the Schrader valve. Correct pre-charge on a system with a 30 psi cut-in should read about 28 psi. If it reads zero, the tank has lost its air and may not need replacing at all.
Next, feel the tank weight. A properly working tank weighs noticeably less than a full one. A tank that weighs as much as a full tank is waterlogged, which means the membrane has failed. That is the two-minute check that saves people from buying the wrong part.
If the tank checks out and the pump still cycles, the pressure switch is the next suspect, and after that the pump itself or the well yield. Buyers on r/Plumbing and r/WaterWellDrilling repeatedly make the same point: a new tank is the wrong purchase for a meaningful share of cycling complaints.
Also plan the parts list. A multi-port tank tee and a pressure relief valve are frequently sold separately, and galvanized fittings included in the box are worth swapping for brass or stainless. Owners report replacing them without trouble, which costs a few minutes and removes a future leak point.
Material, footprint and drop-in fit
Steel is the value pick and works everywhere dry. Fiberglass composite is the corrosion-proof option for coastal air, humid crawlspaces, hard water and iron bacteria. Vertical tanks cost more floor space and less headroom; horizontal tanks fit low ceilings and often double as a pump mount.
Measure diameter and height before ordering, not just volume. Several of these tanks are 15 to 16 inches across, while the Red Lion is 17 and the Amtrol stand model is 47 inches tall. Drop-in compatibility matters too: replacement tank outlet heights vary between brands, and plumbing forums are full of complaints about fittings that do not line up when an old brand is swapped for a different one.
If you are replacing your own brand’s tank, buy the same brand and model. If you are switching brands, budget extra time for the tee and fittings rather than assuming an exact match. Our tank replacement notes cover the same principle for a different system type.
Frequently Asked Questions
What is the best pressure tank for a well?
The WaterWorker 20 Gallon Vertical Well Tank is the best all-round choice for most home well systems, with a seamless butyl diaphragm, a polypropylene liner, NSF/ANSI 61 listing and a 4.6 average across 1225 reviews. The Amtrol WX-202 has the highest rating in our group at 4.7 and a 7-year warranty, and the Wellmate WM-6 fiberglass tank is the pick for coastal, crawlspace or aggressive water conditions.
How do I size a well pressure tank?
Size by drawdown, not by the gallon number on the shell. Find your pump flow rate in gallons per minute, allow roughly one gallon of drawdown per fixture, and keep a minimum of about seven gallons. Then choose the smallest tank that meets your drawdown need with room to spare, and go one catalog size above the minimum for low-flow wells.
How to tell if a bladder tank is bad?
Kill the power, open a faucet to drop system pressure, then check two things. First, a tire gauge on the Schrader valve should read about 2 psi below your switch cut-in, so roughly 28 psi on a 30 psi cut-in. Zero pressure means the tank has lost its air and may only need a recharge. Second, a tank that weighs as much as a full tank is waterlogged, which means the membrane has failed and needs replacing.
Do you need a pressure tank on a well?
Yes. Every private well system should have one. The tank supplies stored pressure between pump starts, which keeps pressure steady at the fixtures and stops the pump from short cycling. Short cycling is the most common cause of premature submersible pump failure, and a pump costs several times more to replace than a tank does.
How long does a well pressure tank last?
A well-maintained steel pressure tank typically reaches about 10 years before the diaphragm or bottom elbow fails, and owners on forums report Amtrol tanks lasting 25 years or more when the pre-charge is kept correct. Checking the air charge annually and correcting it is the main thing that extends life. A tank replaced on a decade schedule is normal and far cheaper than replacing a pump.
Is a 30/50 or 40/60 pressure switch better?
A 30/50 switch gives you slightly more drawdown from the same tank, roughly 0.28 of tank volume against about 0.25 at 40/60, because the wider band on the higher setting lets less air expand. Higher settings do deliver more pressure at the fixtures. If you run 40/60, size up one catalog size to keep the same drawdown.
What is the difference between a diaphragm and bladder pressure tank?
A diaphragm tank uses a seamless butyl sheet that is designed to flex, while a bladder tank uses a sealed rubber bladder designed to stretch and eventually crease. Diaphragm designs resist creasing over time, which is why most of the tanks in our roundup use them. Both keep water away from the steel shell, unlike an old galvanized tank where water contacts bare metal.
Can I replace a galvanized pressure tank with a bladder tank?
Yes, and it is usually an upgrade. A 20-gallon membrane or bladder tank delivers roughly the same usable water as a 42-gallon galvanized tank, without the rust-through failure. You will need a new multi-port tank tee and fittings in most cases, since galvanized fittings corrode, and you must set the pre-charge to 2 psi below your switch cut-in on the new tank.
Our Final Verdict for 2026
After working through the specs and the owner reports, the WaterWorker 20 Gallon Vertical Well Tank is the pick we would install in most houses. It carries the deepest review base in the group, it uses a seamless butyl diaphragm and polypropylene liner, and it is certified under NSF/ANSI 61 for drinking water contact. Set the pre-charge to 2 psi below your switch cut-in on install day and it will do its job for a decade.
Move up to the Amtrol WX-202 if you want the highest rating and a 7-year warranty, or step up to the Amtrol WX-203 if you need 32 gallons for multiple bathrooms. Go horizontal with the WaterWorker HT20HB under a low ceiling, narrow with the HT-30B in a tight space, and composite with the Wellmate WM-6 anywhere the water or the air is going to eat steel.
Before any of them, spend five minutes checking your pre-charge and your tank weight. A surprising share of cycling complaints are a lost air charge rather than a failed membrane, and that diagnosis is the fastest money you will save. For more background on the systems around these parts, our pressure monitoring guide covers the monitoring side.
